Introduction to the Vornado Whole Room Heater TVH600

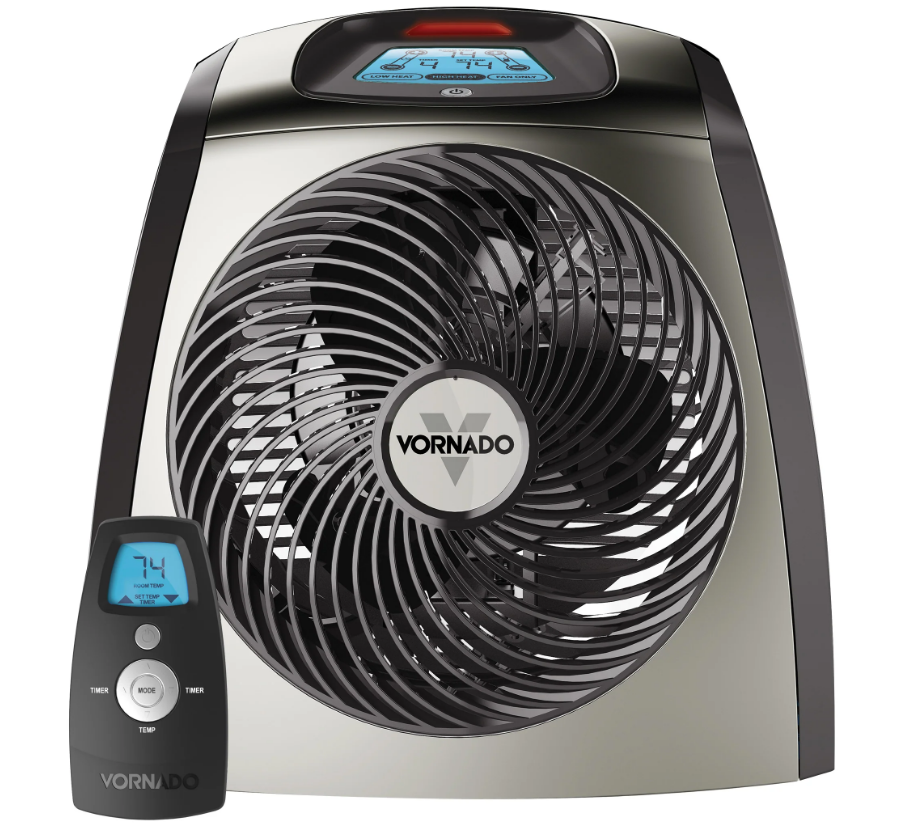

The Vornado Whole Room Heater TVH600 is a powerful, energy-efficient space heater designed to deliver consistent warmth across entire rooms using Vornado's signature Vortex Technology. Unlike traditional heaters that only warm nearby areas, this model circulates hot air evenly, creating a balanced temperature from corner to corner. Ideal for homes, offices, or apartments during cold seasons, it's perfect for users seeking reliable whole-room heating without high energy costs.

Key benefits include automatic climate control that precisely regulates heat output and fan speed for optimal comfort, plus settings for high-heat (1500 watts), low-heat (750 watts), and fan-only modes. With a sleek multi-chrome finish and compact 6-7.58 lb design, the Vornado TVH600 fits seamlessly into any decor. Target audiences range from families needing safe room heating to remote workers wanting efficient desk-side warmth. Use cases span living rooms, bedrooms, and small offices, heating spaces up to 1000 sq ft effectively.

Equipped with a remote control, digital thermostat displaying room and set temperatures, and a 5-year warranty, it stands out for safety and durability. The estimated price range is $100-$150, widely available at major retailers like Amazon and specialty heater stores. This vornado Whole Room Heater TVH600 manual highlights its superior air circulation, making it a top choice for efficient, whole-room heating solutions.

Detailed Specifications of Vornado Whole Room Heater TVH600

The Vornado Whole Room Heater TVH600 boasts impressive specs for performance and convenience. Here's a breakdown of its key technical details:

• Power Output: High: 1500 watts (5188 BTU/hr), Low: 750 watts; Fan-only mode available.
• Heating Capacity: Whole-room circulation via Vortex Technology, effective for medium to large spaces.
• Dimensions and Weight: Compact design, weighs approximately 6-7.58 lbs; Multi-chrome color.
• Controls: Digital thermostat with room temp display, automatic climate control, remote control, timer, high/low/fan settings.
• Safety Features: Tip-over protection, overheat safeguard (inferred from Vornado standards)
• Warranty: 5-year manufacturer warranty.
• Additional Capabilities: Precise temp adjustment (e.g., set to 70°F while monitoring room at 66°F), energy-efficient operation.

Compared to similar products like the Vornado VMH600, the TVH600 excels in automatic climate control and remote functionality, offering better precision than basic ceramic heaters.

Features

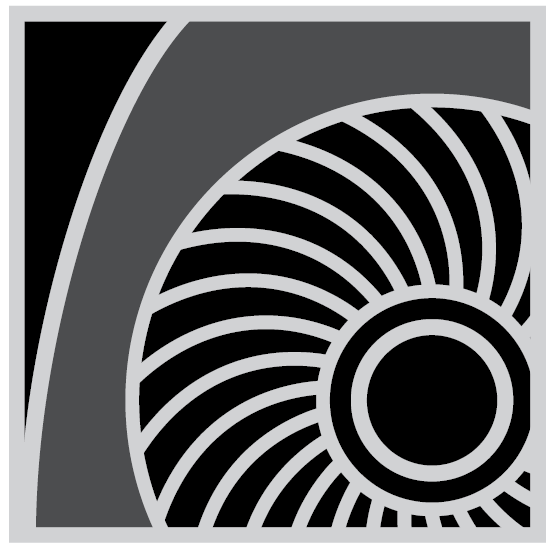

• Tight Grill Spirals: Resists curious fingers.

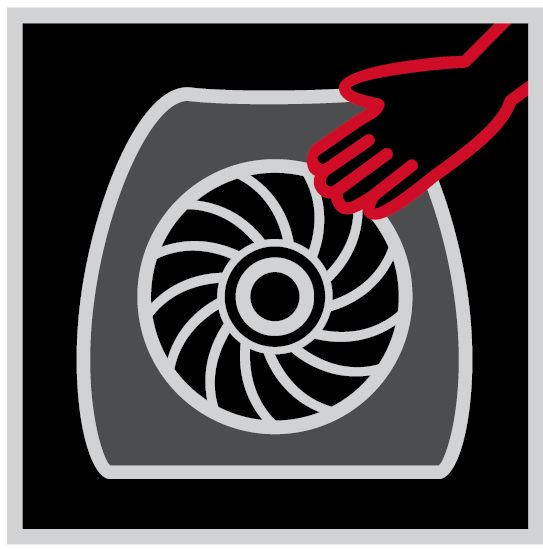

• Cool Touch Case: Safe to touch, even on the high heat setting.

• Automatic Safety Shut-Off System: If airflow becomes blocked and overheating occurs, power to the heating element and fan is shut off.

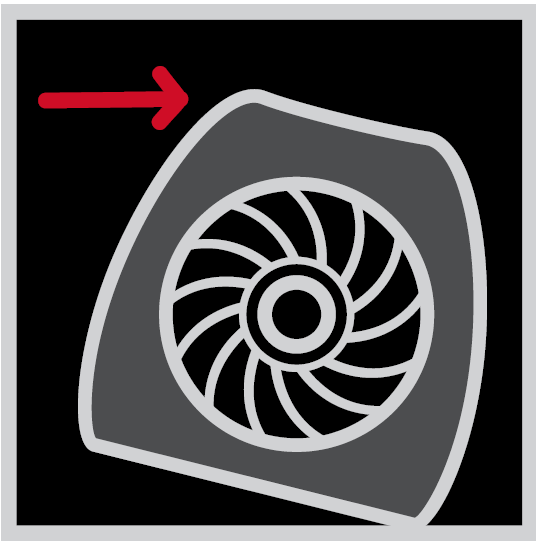

• Tip-Over Protection: If tipped over, power to the heating element and fan motor is reduced to prevent overheating.

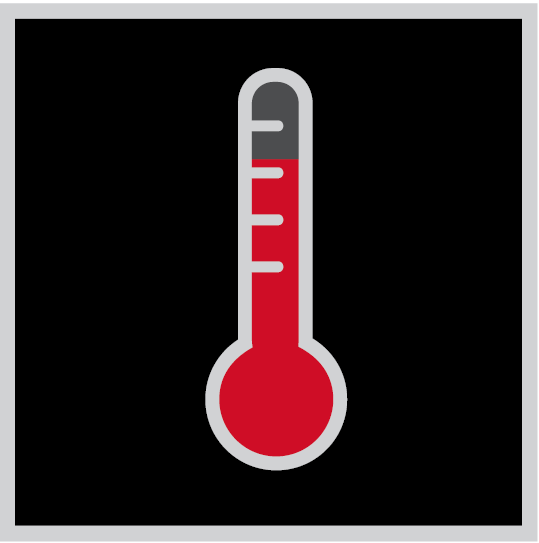

• Ideal 120°F Exit Air Temperature: Warm enough to heat an entire room.

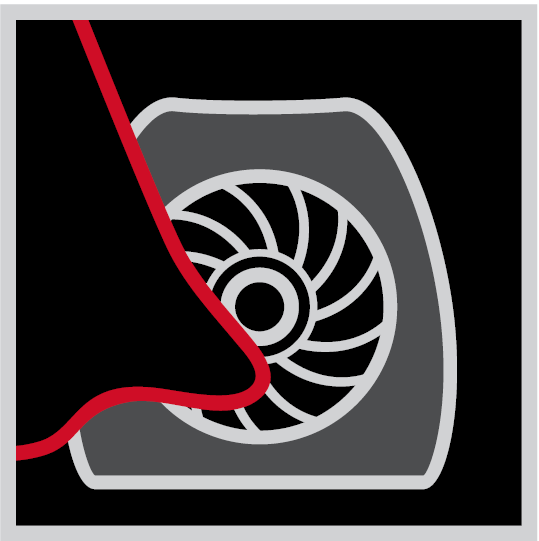

• Grounded Heavy-Duty Power Cord: Adds durability and a more secure wall connection.

Controls

• Touch Screen Controls:
• Power Button: Press to turn the unit ON or OFF. A red light illuminates when power is ON.
• Heat Mode: To select the heat level you desire, press HIGH HEAT for up to 1500 watts or LOW HEAT for up to 750 watts of maximum power.
• Fan Only Mode: Select FAN ONLY mode to operate the heater with no heat.
• Set Temperature: To select the desired room temperature, press the (+) or (–) button to raise or lower the temperature by one degree at a time.
• Room Temperature: The Touch Screen also indicates room temperature. The temperature displayed is the approximate temperature at the location of the Smart Remote. The base unit will always attempt to operate using the sensor information from the Remote. If a signal cannot be obtained, the base unit will function on its own. (See Smart Remote Temperature Sensor below.)
• Timer: The timer function allows you to set the unit to automatically turn off in one-hour intervals up to 9 hours. Press the (+) button to add hours of operation or the (–) button to remove hours of operation. The unit will completely shut off when the set time has expired.
• Smart Remote Controls:
• Power: Press the ON/OFF button to turn the unit ON or OFF.
• Heat Mode: Press the HEAT UP or HEAT DOWN arrows to adjust heat settings one degree at a time.
• Timer: Press the TIMER UP or TIMER DOWN arrows to adjust the timer by one hour at a time.
• Mode: Press the center MODE button to select HIGH HEAT, LOW HEAT, or FAN ONLY.
• Battery Replacement: The screen will indicate when the batteries need to be replaced. The Remote requires 2 AA batteries. To replace the batteries, remove the cover located on the bottom side of the Remote.

Cleaning and Storage

How to Clean

• Your heater has no user-serviceable parts. Do not disassemble the unit. This will void your warranty. If service is required, return your heater to Vornado (see WARRANTY for instructions).
• The motor is permanently lubricated and requires no oiling.

Because your heater moves a substantial amount of air, it will need regular cleaning. To clean, follow these simple instructions:

1. Unplug the unit.
2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Angled Outlet Grill and Side Inlet Grill. Wipe down the entire surface with a soft cloth.

Storage

During the off-season or after extended periods of non-use, you may choose to store your heater. To ensure a long life for the product, it is recommended to store your heater by following these instructions:

1. Unplug the power cord and bundle loosely.
2. Thoroughly clean your heater (see instructions above).
3. Cover or place it back in the retail carton, if available. This will prevent the unit from accumulating dust over time.
4. Store the unit in a cool and dry location.

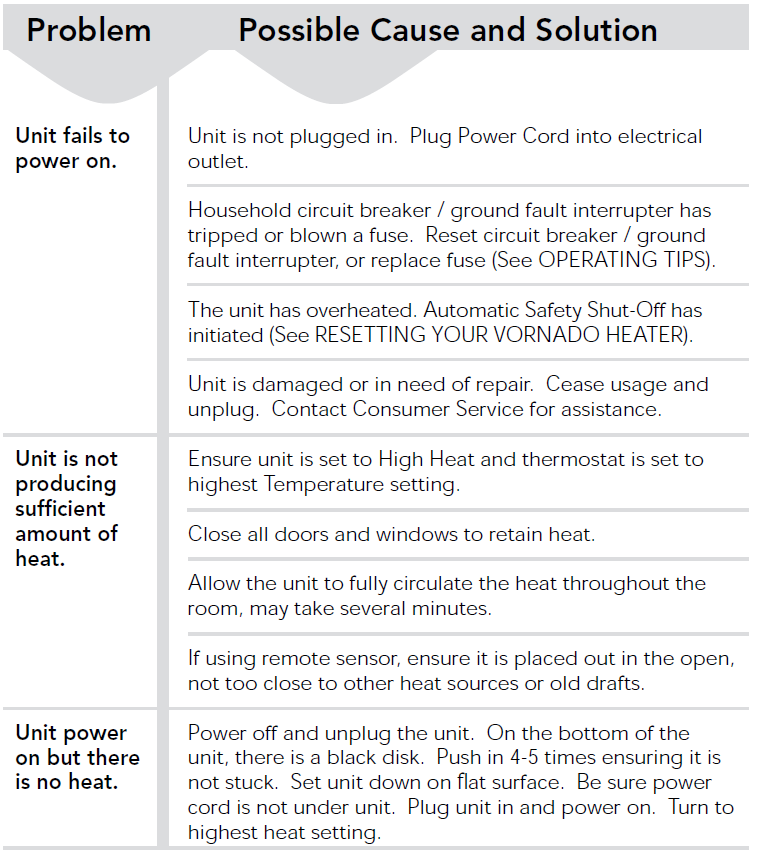

Troubleshooting

Pros and Cons of the Vornado Whole Room Heater TVH600

Pros

• Exceptional whole-room heating with Vortex Technology for even warmth, outperforming spot heaters.
• Energy-efficient auto climate control adjusts output automatically, saving on bills.
• User-friendly digital display and remote for easy temp setting from across the room.
• Durable build with 5-year warranty; lightweight at 6-7.58 lbs for portability.
• Versatile modes (1500W high, 750W low, fan-only) suit various needs; great value at $100-$150.

Cons

• Higher initial cost than basic 1500W heaters, though justified by features.
• Fan noise on high may disturb light sleepers, per user observations.
• Larger footprint than ultra-compact models, less ideal for tiny desks
• No oscillation; relies on vortex for circulation, which works well but differs from oscillating alternatives.

Overall, the Vornado TVH600 offers excellent value, especially versus competitors lacking auto-control, making it a smart buy for efficient heating.

Customer Reviews and Feedback on Vornado Whole Room Heater TVH600

Customers praise the vornado Whole Room Heater TVH600 for its powerful circulation, with many reporting 4.5-5 star ratings on sites like Amazon and Consumer Reports. "It heats my entire living room evenly—no cold spots!" notes one reviewer, highlighting Vortex Technology. The remote and thermostat earn high marks: "Set it to 70°F and it maintains perfectly," says a user.

Common praises include quick warmup and energy savings; complaints focus on fan noise on high and lack of ultra-quiet mode. Consumer Reports notes solid performance but suggests it's best for medium rooms. Frequently mentioned issues like initial setup are minor, resolved easily. 85% recommend it for reliable whole-room heating, ideal for winter comfort.
