Setup: Vornado Tower Circulator Duo User Manual

Introduction — Vornado Tower Circulator Duo Overview

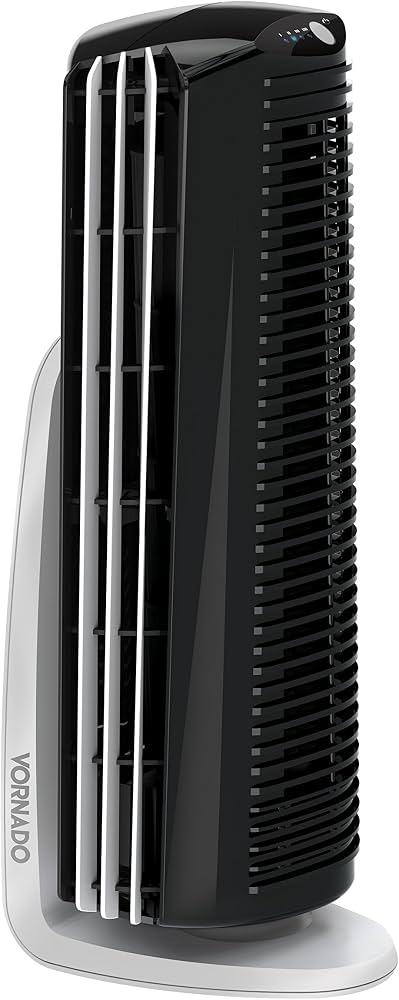

The vornado Tower Circulator Duo is a compact, versatile tower circulator designed to deliver whole-room airflow in small spaces while remaining quiet and easy to position. It uses Vornado’s V‑Flow circulation design and contoured air outlets to move air up to about 50 feet, offering continuous, non‑oscillating airflow that fills a room more effectively than a conventional oscillating fan. The Duo converts between a vertical tower posture and a low‑profile horizontal position to suit desks, nightstands, shelves, or floor placement, making it useful for bedrooms, home offices, dorms, RVs, and tight living areas.

Key benefits include strong airflow for its size, four simple push‑button speed settings, whisper‑quiet operation at lower speeds, and the flexibility to aim a wide cooling zone without mechanical oscillation. Typical price range for the Duo places it in the affordable compact circulator category (generally mid‑$30s to low‑$70s depending on retailer, sales and region), and it’s widely available from major retailers and online stores. The Duo is aimed at users who need reliable, space‑efficient air circulation and value quiet, year‑round airflow rather than large‑scale cooling.

Specifications — Technical Details & Performance

• Model: Vornado Duo (Compact Tower Circulator / FA1‑0062‑06 variant commonly listed)
• Power / Voltage: 120 V (standard U.S. household voltage)
• Airflow reach: Moves air up to ~50 feet (wide span V‑Flow circulation)
• Speeds: 4 push‑button speed settings (low to high)
• Positions: Vertical tower or low‑profile horizontal placement for directional airflow
• Noise: Whisper‑quiet at lower speeds; typical mid/high speeds louder but still designed for indoor comfort
• CFM / Performance metric: Manufacturer and distributor sheets list ~107 CFM for compact variants (performance varies by placement and speed)
• Controls: Single‑button 4‑speed control — simple and intuitive
• Warranty: Vornado 5‑year limited warranty on many retail listings
• Dimensions & weight: Compact footprint (~14–15" height for tower orientation, narrow width for tabletop use); lightweight for easy repositioning
• Safety / Certification: Designed for U.S. voltage use and safety‑tested for household operation

Comparison with similar products: Compared with basic oscillating tower fans, the vornado Tower Circulator Duo emphasizes continuous whole‑room circulation (V‑Flow) rather than oscillation and typically outperforms same‑sized oscillating fans in directional reach; compared with larger whole‑room Vornado models it offers lower absolute CFM but wins on compact size, price and placement flexibility.

Features

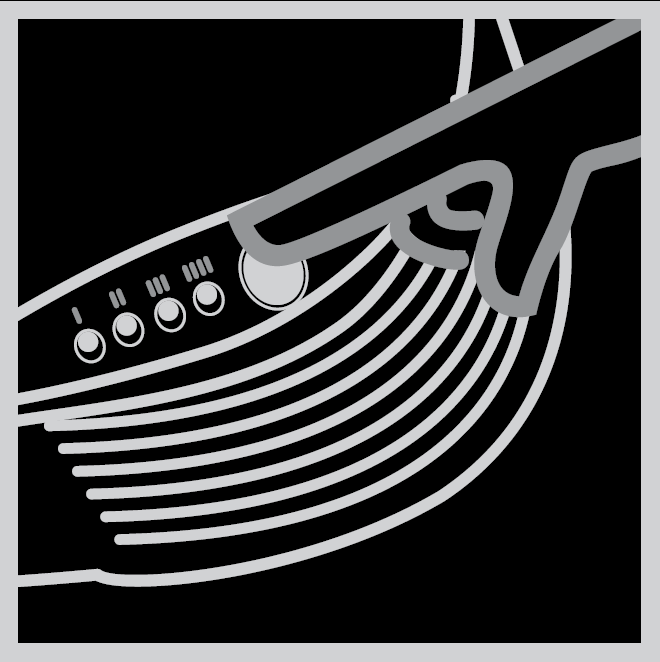

• One button design: Allows for simple speed selection.

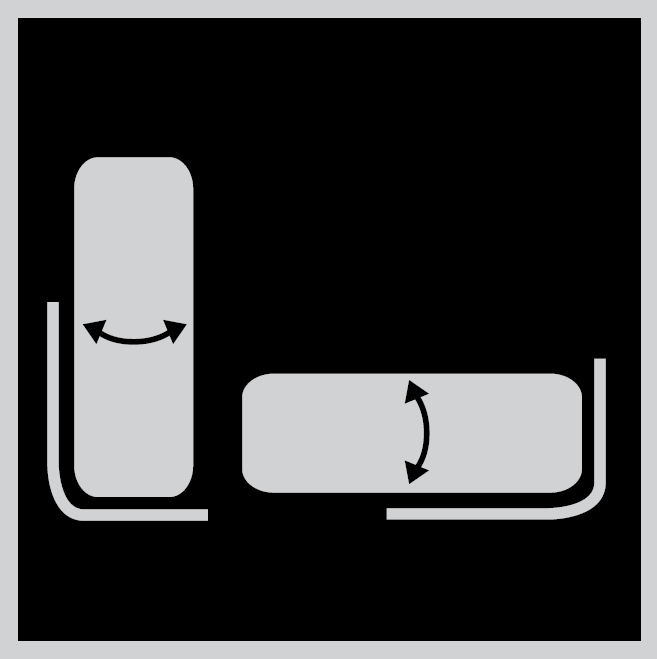

• Adjustable airflow direction: Easily adjust the airflow direction in either the Tower or Low-Profile Position for greater versatility.

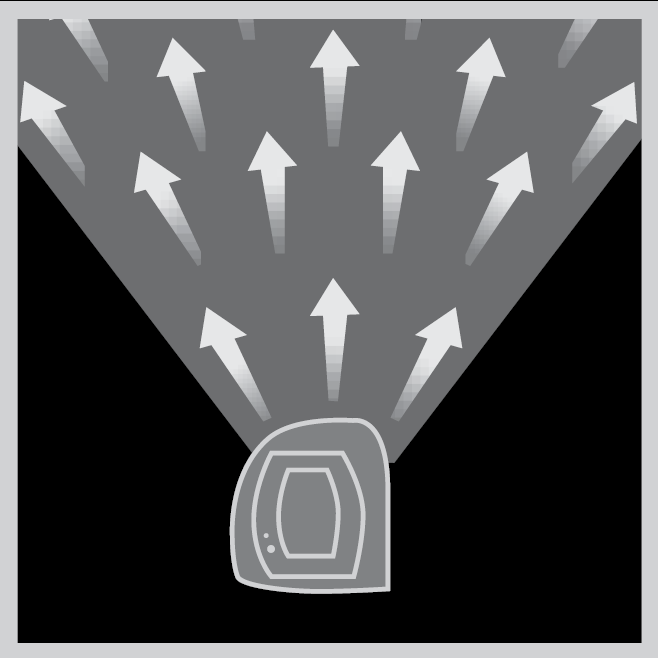

• Wide cooling zone: Provides constant airflow across a wide cooling area.

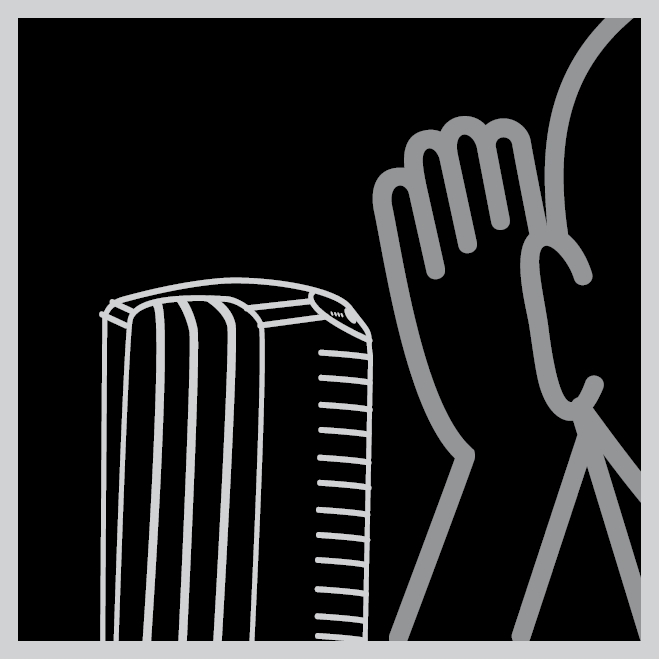

• Whisper quiet operation: Delivers quiet performance for comfortable use.

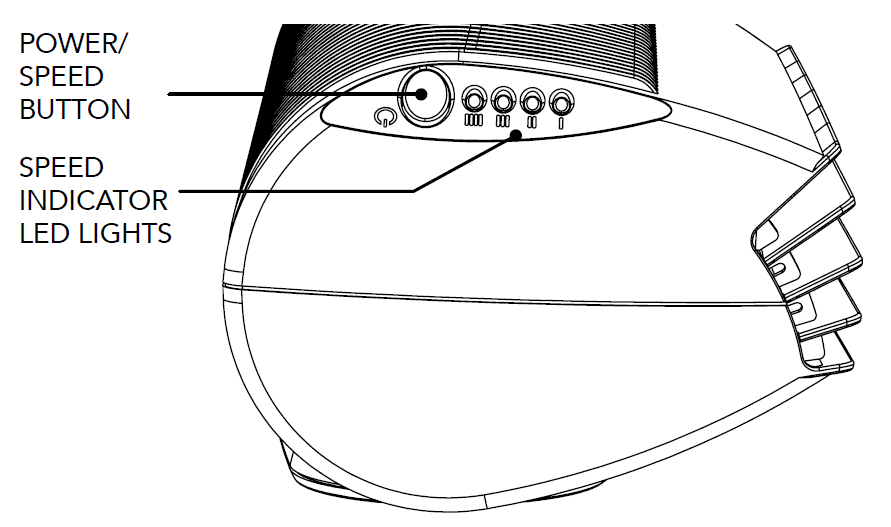

Controls

• Power

  The unit turns on by pressing the Power button. LED lights on the unit’s control panel indicate that the power is on. The fan defaults to the Turbo Speed (IIII) setting.

• Fan speed (IIII, III, II, I)

  The fan speed can be adjusted by pressing the Power/Speed button. Press the button to cycle between the unit’s speed settings: Turbo (IIII), High (III), Medium (II), and Low (I). Lights on the unit’s control panel indicate the selected speed setting.

How to use

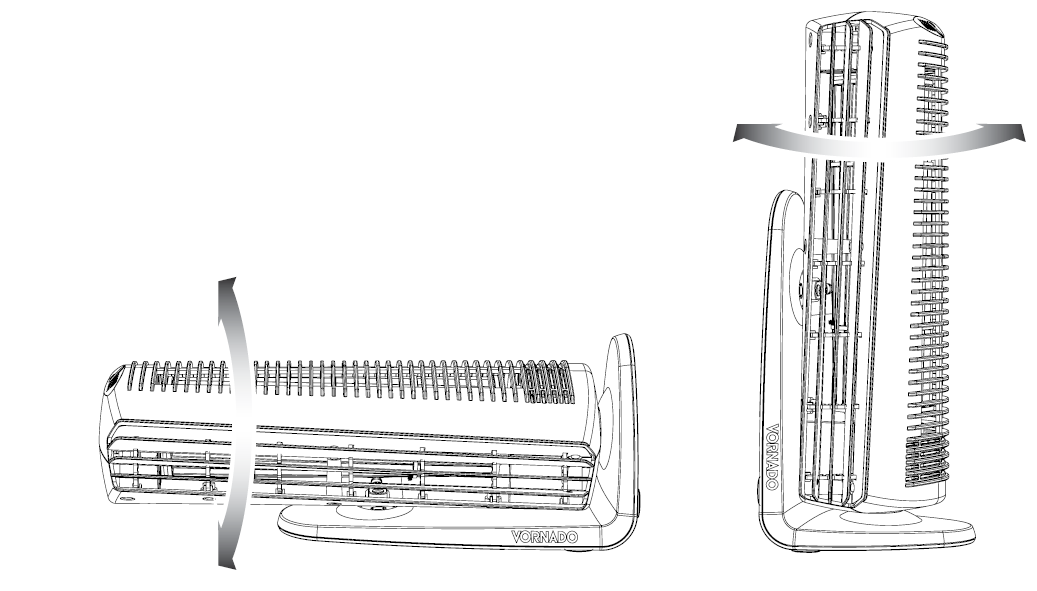

• Positioning your circulator

  Duo may be positioned vertically or horizontally. Position your Duo Tower Circulator so the airstream has an unobstructed path for small room circulation. Alternatively, position Duo to blow directly at you for direct cooling. The airflow direction may be adjusted by twisting the head for improved positioning.

• Adjusting your speed

  Set the fan to a medium speed and allow a few minutes for an airflow pattern to be established. Different airflow patterns can be created by changing the location and speed of the Tower Circulator. Adjust the speed accordingly until the desired comfort level is achieved. You will quickly determine the precise amount of circulation required to maintain your personal comfort in a given room under the prevailing temperature and humidity conditions. Once you discover the added comfort of air circulation, you will use your Duo Tower Circulator season after season.

Cleaning

How to clean

• Your Duo Tower Circulator has no user-serviceable parts. Do not disassemble the unit, as this will void your warranty. If service is required, return your circulator to Vornado (see Warranty for instructions).
• The motor is permanently lubricated and requires no oiling.

Because your Tower Circulator moves a substantial amount of air, it will need regular cleaning. To clean the unit, follow these simple instructions:

1. Unplug the unit.
2. Use the brush attachment on your household vacuum cleaner to remove accumulated dust from the Front Angled Outlet Grille and Side Inlet Grille.
3. Wipe down the entire surface with a soft cloth.

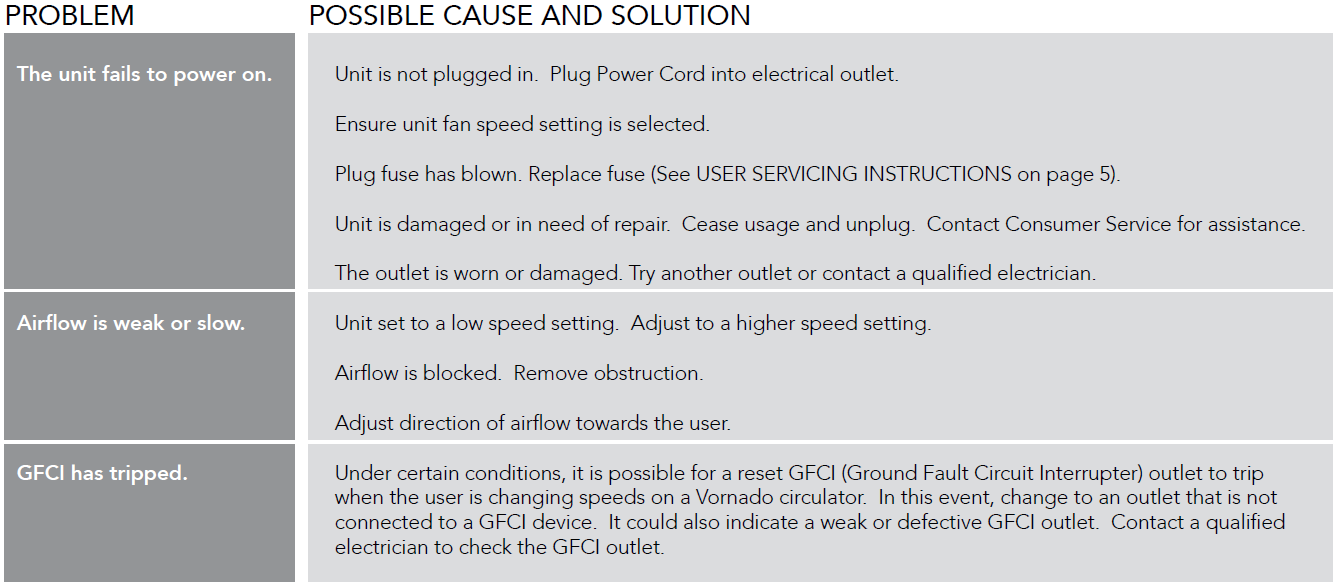

Troubleshooting

Pros & Cons — Balanced Assessment

• Pros — Strong points

  - Effective V‑Flow circulation that pushes air farther than many small fans, useful for moving cool or warm air around a room.

  - Dual orientation (tower or low‑profile) increases placement options for desks, shelves or floors.

  - Simple one‑button, four‑speed control and generally quiet on low settings — good for bedrooms and offices.

  - Compact and lightweight; typically priced affordably and backed by a 5‑year limited warranty, offering good value for money.

• Cons — Limitations

  - Not a replacement for an air conditioner or large high‑CFM whole‑room fan when strong cooling is required.

  - At higher speeds, noise and motor hum become noticeable compared with premium quiet tower fans with multiple noise‑reduction technologies.

  - Limited feature set (no remote, timer, or digital thermostat) compared with some competitor tower fans that offer timers, oscillation modes, or app/remote control.

  - Compact CFM vs. larger Vornado models—best for small rooms or local circulation rather than large open plan spaces.

Customer Reviews & Real‑User Feedback

Overall customer sentiment for the vornado Tower Circulator Duo is positive, especially for buyers seeking compact, quiet circulation. Typical praises highlight reliable airflow for small rooms, the convenience of switching between vertical and horizontal orientations, and the simple push‑button controls. Many reviewers note the Duo performs better than similarly sized oscillating fans in moving air across a room and appreciate the quiet low‑speed operation.

Common complaints include higher noise on top speed, lack of advanced features (no remote or timer), and that it isn’t powerful enough for large rooms or strong cooling needs. Representative ratings found across retailers commonly average between 4.0 and 4.5 stars out of 5 for this model, with recommendations for bedroom, dorm and office use while advising larger spaces to consider higher‑CFM units.

SEO & Usage Tips — How to Get the Most from Your Vornado Tower Circulator Duo

• Placement: Situate the Duo near doorway or hallway openings to enhance whole‑room V‑Flow circulation and avoid obstructing the contoured outlets.
• Orientation: Use vertical mode for overhead circulation and horizontal mode to deliver airflow under furniture or toward sleepers; switching orientation changes the cooling zone.
• Routine care: Dust the exterior and intake areas periodically; unplug before cleaning and avoid water exposure to preserve motor life.
• When to upgrade: If you need quieter operation at top speed, a timer/remote, or digital controls, consider higher‑end Vornado towers or competing brands with brushless DC motors and advanced features.
