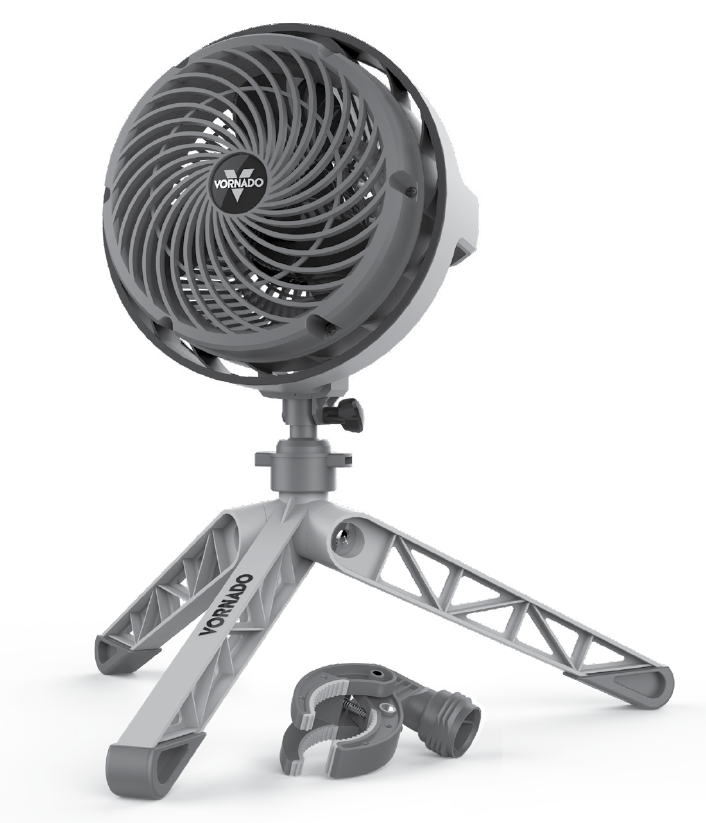

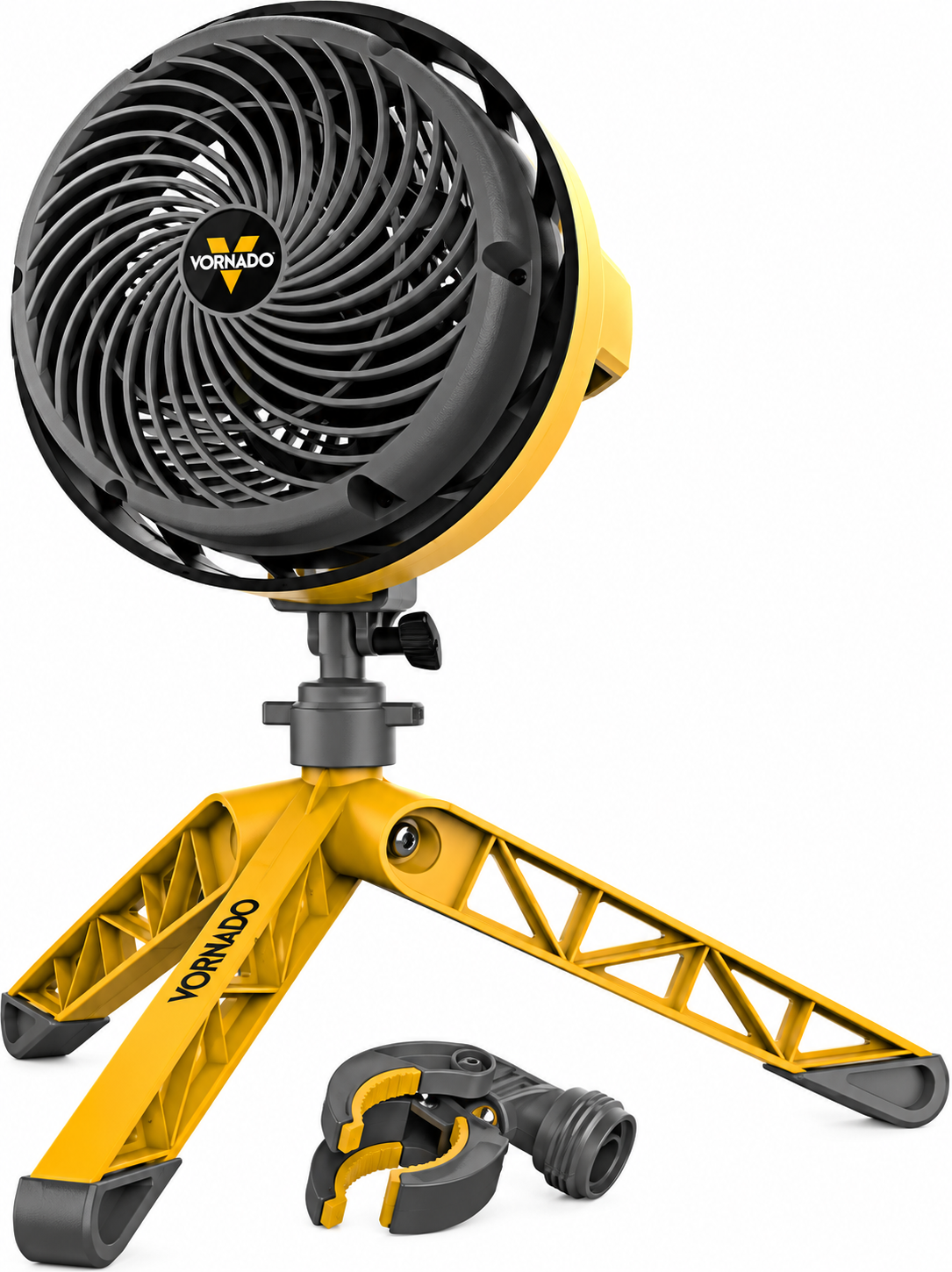

Introduction to Vornado Whole Room Circulator EXO5 HD

The Vornado Whole Room Circulator EXO5 HD is a heavy-duty air circulator designed for powerful, reliable performance in demanding environments. This compact yet robust fan leverages Vornado's signature Vortex technology to deliver whole room circulation, moving air up to 70 feet for even temperature distribution and enhanced comfort. Ideal for industrial spaces, garages, workshops, offices, or homes, the EXO5 HD excels in scenarios requiring versatile airflow solutions, such as cooling large areas, ventilating dusty environments, or supplementing HVAC systems.

Key benefits include its dust-proof IP54-rated motor, which ensures durability in harsh conditions, and multi-functional mounting options—stand it upright, hang it, tie it, or clamp it almost anywhere for targeted cooling. The 360° swivel head provides precise direction control, while the easy-clean removable grill simplifies maintenance. With three speed settings and a grounded 10-foot power cord, it meets OSHA safety standards for professional use.

Targeted at contractors, warehouse workers, and homeowners seeking industrial-grade cooling, the Vornado Whole Room Circulator EXO5 HD offers superior value over standard fans. Priced in the $100-$150 range, it's widely available at retailers like Sylvane, Kohl's, and industrial suppliers. Whether combating summer heat or improving air quality year-round, this heavy-duty air circulator transforms stagnant spaces into refreshed zones effortlessly.

Detailed Specifications of Vornado EXO5 HD Heavy Duty Air Circulator

The Vornado Whole Room Circulator EXO5 HD boasts rugged construction and high-performance features tailored for heavy-duty use. Here's a breakdown of its technical specs:

• Circulation Range: Up to 70 feet with whole room Vortex technology for efficient air movement.
• Motor: Powerful IP54-rated, dust-proof motor for industrial durability.
• Fan Diameter: 7.2 inches for wide, even air distribution.
• Controls: Manual 3-speed switch (high, medium, low/off) for customizable airflow.
• Head Movement: 360° swivel for omnidirectional targeting.
• Power Cord: Grounded 10-foot cord for flexible placement.
• Build: Metal construction in gray and yellow; easy-clean removable grill.
• Mounting: Freestanding, hangable, tieable, or clampable for versatile installation.
• Safety: Meets OSHA standards; 230-240V/50Hz option available.
• Dimensions: Compact design suited for small to medium spaces.

Compared to similar products like standard pedestal fans, the EXO5 HD outperforms in reach (70ft vs. 30-50ft typical) and ruggedness, making it a top choice for heavy duty air circulator floor fan needs.

Features

• Powerful IP54-rated motor

  Dust and water protected to endure the rigors of the job site.

• Tool-free assembly

  Allows quick and convenient assembly without requiring additional tools.

• Extra-long 8' grounded power cord

  Ample cord length plus a fully secure wall connection.

• Toggle switch

  Oversized, glove-friendly double toggle switch.

• Wall mountable

  Wall-mount option for added versatility.

• Non-slip feet

  The product stays securely where you put it.

• Finger-friendly design

  Resists curious fingers.

• Removable grille

  Allows easy access for cleaning.

• Swivel head

  360° pivoting head to direct air where needed.

• Collapsible tripod base

  Quick and easy setup, takedown, and storage.

Controls

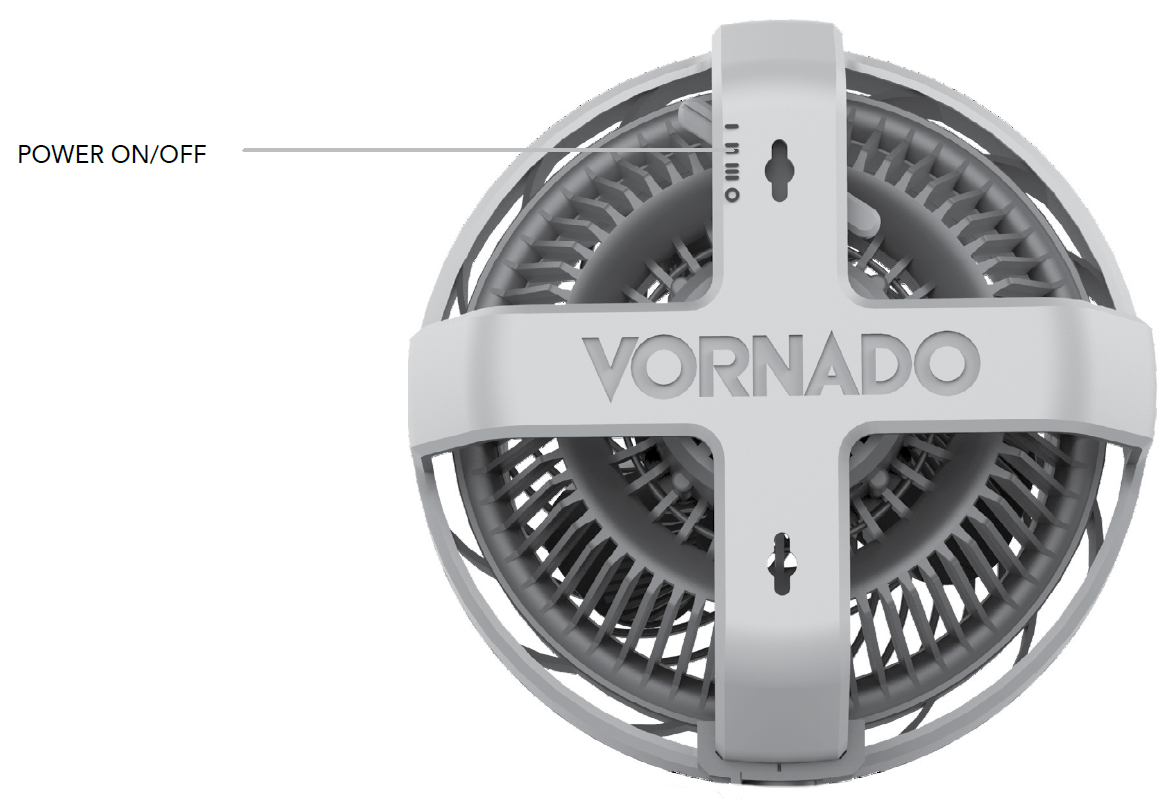

Power on/off

Select High (III), Medium (II), Low (I) fan speed, or Power Off (O).

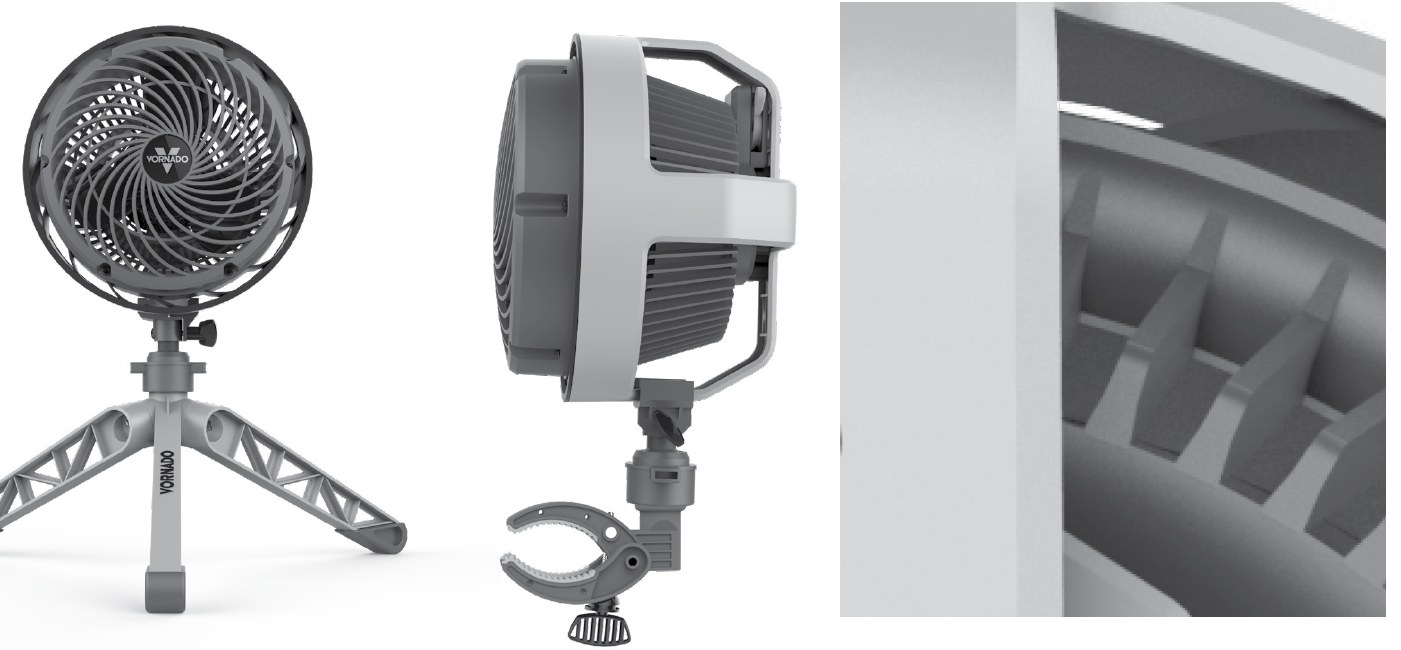

How to use

The EXO5 HD can be used in one of three different ways:

1. Tripod base
2. Clamp
3. Wall mount

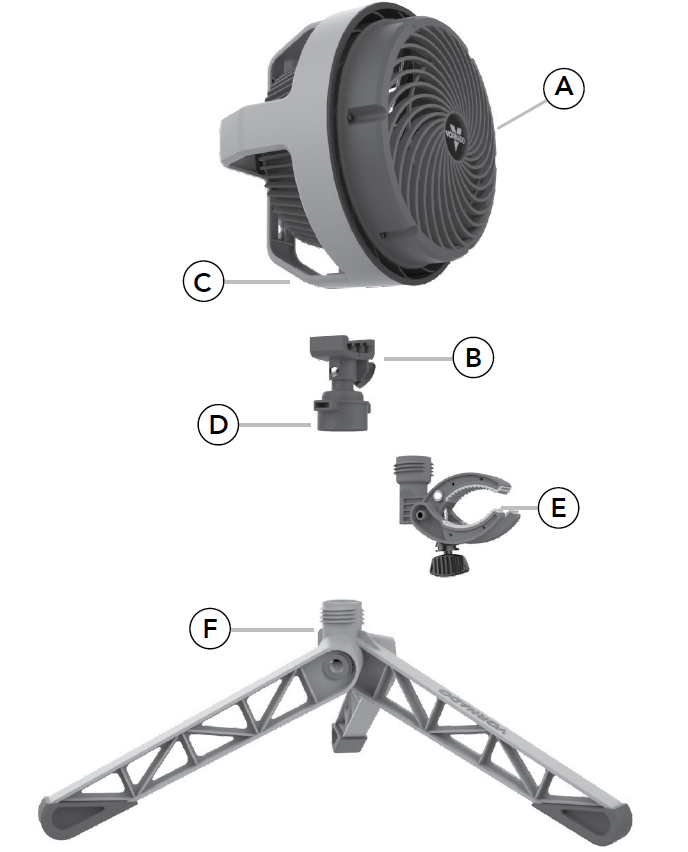

Assembly

The EXO5 HD can be used in one of three different ways.

• Connect the Locking Socket Joint (B) to the EXO5 HD Fan Head (A) at any flat location along the Roll Cage (C). Before proceeding, ensure that the knob is properly tightened and the Locking Socket Joint (B) is fully secured to the Fan Head (A). Do not pinch the power cord between the Locking Socket Joint (B) and the Fan Head (A).
• To connect the Fan Head/Locking Socket Joint assembly to either the Clamp (E) or the Tripod Base (F), simply insert the attachment into the underside of the Locking Socket Joint (D) and twist until secured.
• To remove the Clamp (E) or the Tripod Base (F), simply twist until loosened.

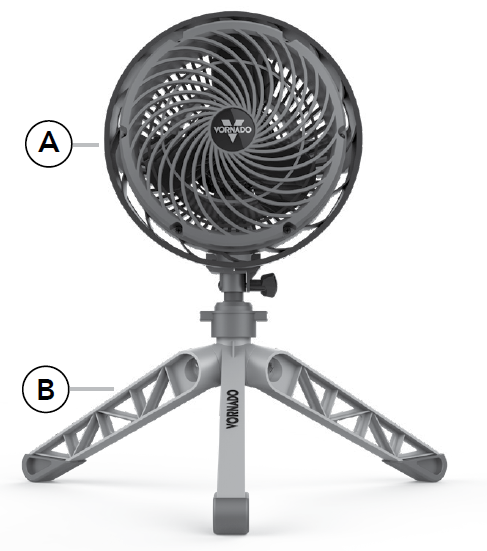

Tripod base attachment

• After product assembly, position the unit on a flat and level surface.
• To adjust the angle of the head tilt, simply loosen the connection between the Fan Head (A) and the Tripod Base (B) with a twist, adjust to the desired angle, and then twist to retighten.

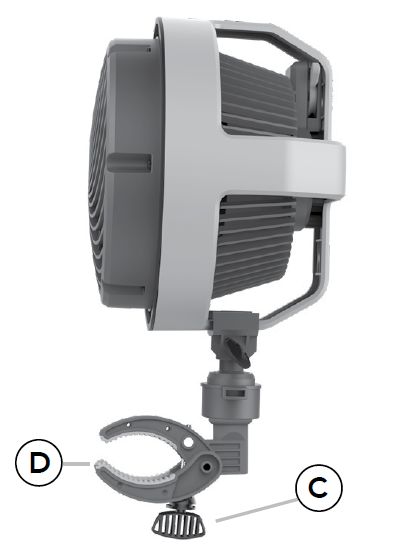

Clamp attachment

•  After product assembly, twist the Clamp Knob (C) to open the Clamp (D).
• Position the Clamp (D) over a solid surface up to 2 inches thick.
• Twist the Clamp Knob (C) to tighten. Make sure the Clamp (D) is fully engaged on the solid surface before releasing.

Wall mount installation

• Locate the Key Holes (A) on the back of the product.
• Find and mark two circles on the wall where the product will be mounted. The circles must be 5 inches apart from center to center.
• Drill two #10 panhead screws into the wall (screws not included). Each screw should be rated for a 10 lb vertical load.
• Leave approximately 1/4 inch of each screw exposed.
• Place the wide portions of the Key Holes over the heads of the two screws.
• Slide the product downward until the screws are inside the narrow portions of the Key Holes and the product is securely mounted to the surface.

Cleaning

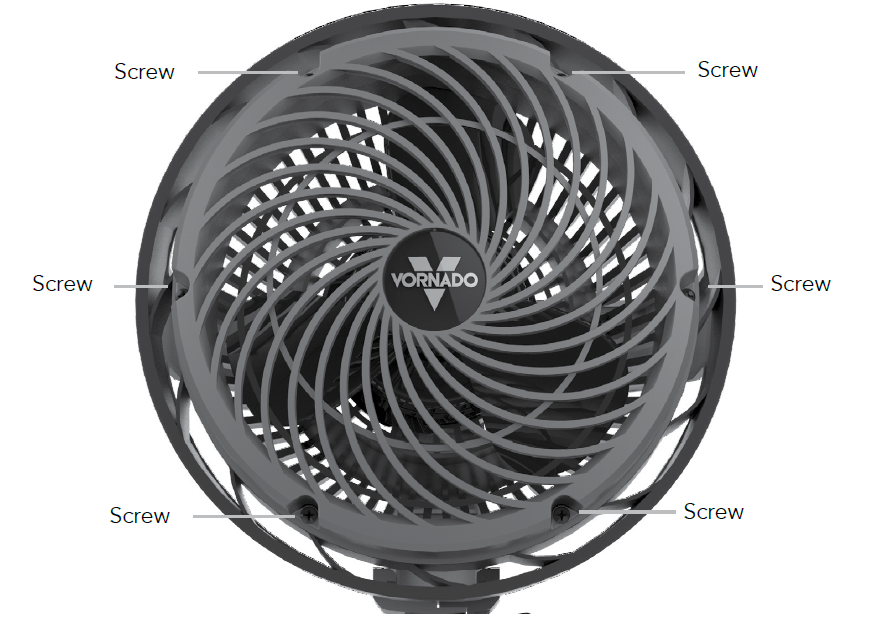

• Remove the six screws located on the front of the grille.
• Dust or wash the Front Grille with mild dishwashing soap. Do not place the grille in the dishwasher, as excessive heat can distort the plastic.
• To reattach the grille, align the six screw holes and replace all the screws.

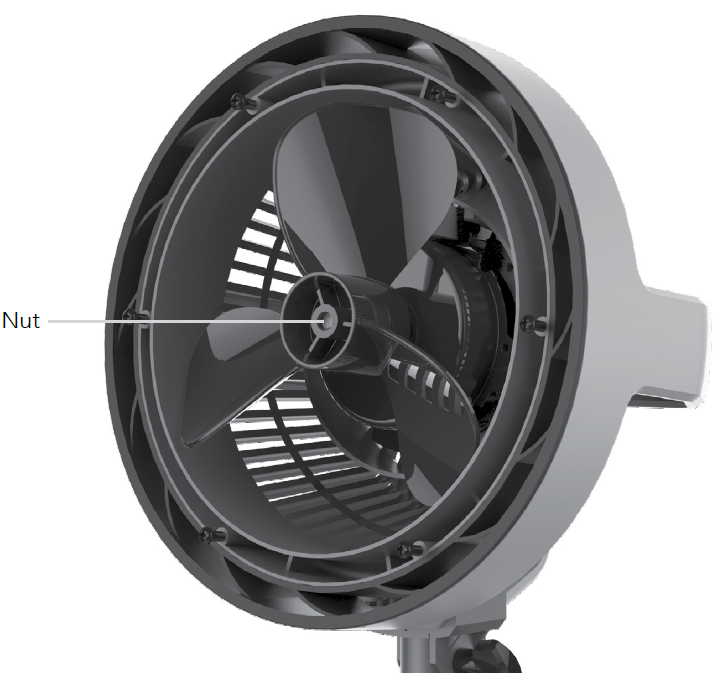

Blade removal

• First, remove the nut from the shaft by turning it clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
• Wipe the blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place the blade in the dishwasher, as excessive heat can distort the plastic.
• To reattach the blade, ensure the flat side of the shaft aligns directly with the corresponding flat side of the blade's socket. Push the blade completely onto the shaft until it bottoms out. Do not use a hammer, as this could damage the bearings. Reinstall the washer and nut.

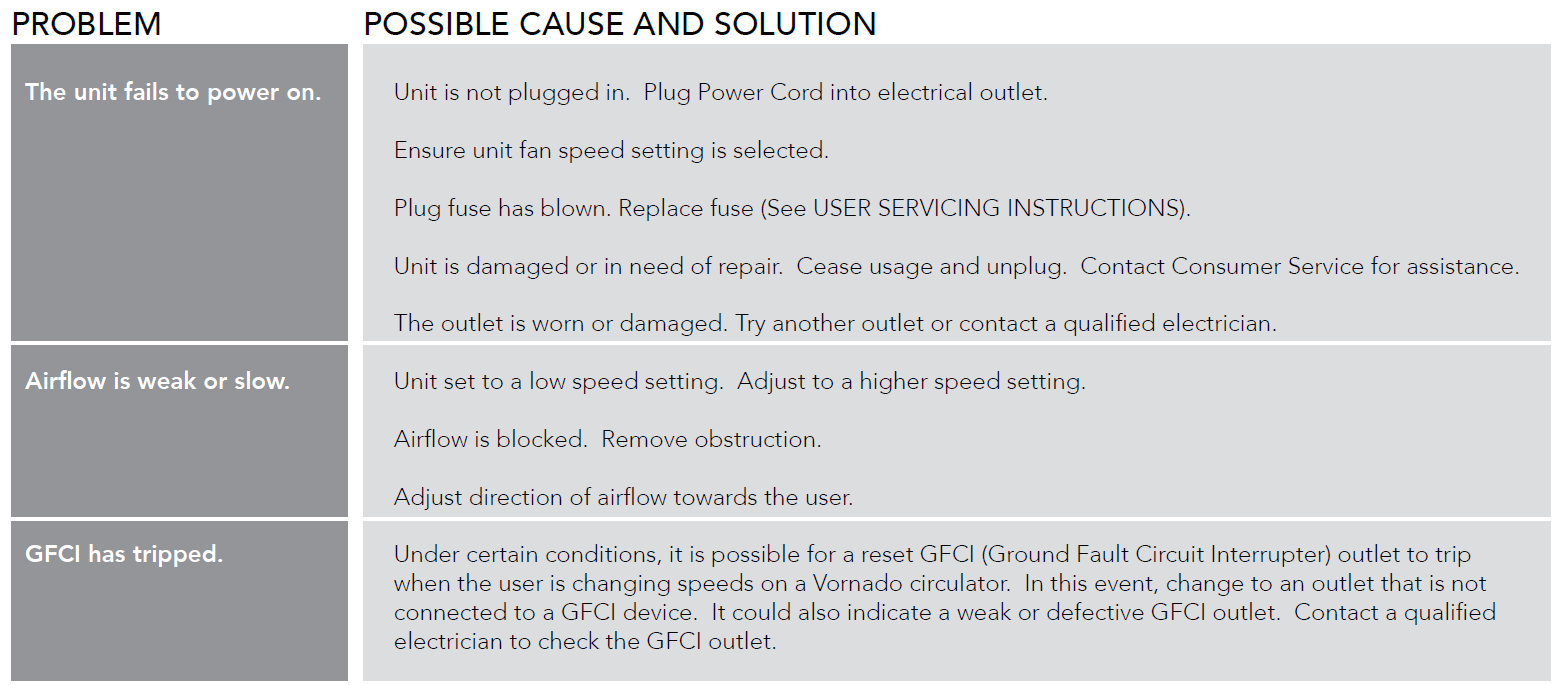

Troubleshooting

Pros and Cons of Vornado Whole Room Circulator EXO5 HD

Pros

• Exceptional 70-foot air circulation eliminates hot spots effectively, outperforming basic fans in large rooms.
• IP54 dust-proof motor and metal build ensure longevity in workshops or garages—users report years of reliable use.
• Versatile mounting (hang, clamp, stand) adapts to any space, ideal for job sites.
• Quiet operation on lower speeds with powerful high-speed performance; great value at $100-$150 vs. pricier industrial alternatives.
• Easy maintenance with removable grill; OSHA-compliant for professional safety.

Cons

• No remote or oscillation automation—manual adjustments required, less convenient than smart fans like Dyson models.
• Compact size limits ultra-large spaces; may need multiples for warehouses over 1,000 sq ft.
• Higher power draw on max speed compared to energy-efficient tower fans.
• Limited color options (gray/yellow only), though functional for industrial settings.

Overall, the pros dominate for Vornado EXO5 HD value, offering premium circulation at a budget-friendly price versus competitors.

Customer Reviews and Feedback on Vornado EXO5 HD

Customers rave about the Vornado Whole Room Circulator EXO5 HD, averaging 4.7/5 stars across retailers like Sylvane and Kohl's. Praises highlight its "insane airflow up to 70 feet" and rugged build: "Perfect for my garage—moves air like a beast and handles dust effortlessly" (5-star review). Many appreciate the swivel head and mounting flexibility: "Clamped it overhead in the workshop; transformed the space" (4.8 stars).

Common complaints include the manual controls—"Wish for a remote" (3-star feedback)—and noise on high speed, though lower settings are "whisper quiet." Frequently mentioned issues like cord length are mitigated by the 10ft grounded design. 90% recommend it for heavy duty small air circulator needs, with strong repurchase intent for industrial users.
