Setup: Vornado Whole Room Circulator 1303, 5303, 6303, 6803, 7503, 7803 User Manual

Introduction — Vornado Whole Room Circulator 1303, 5303, 6303, 6803, 7503, 7803

The vornado Whole Room Circulator 1303, 5303, 6303, 6803, 7503, 7803 family delivers whole-room air circulation using Vornado’s signature Air Multiplier-style airflow and compact, durable designs that suit bedrooms, offices, living rooms, and small studios. These models range from compact tabletop units (1303, 5303, 6303) to adjustable-height pedestal circulators (6803, 7503, 7803), offering multi-speed controls, directional tilt, and easy-to-clean grilles to improve comfort year-round. The result is faster mixing of room air to even out temperatures, reduce hot/cold spots, and help thermostats work more efficiently, which can lower HVAC runtime and energy use.

Key benefits include strong whole-room airflow from a small footprint, quiet operation on low speeds, finger-friendly grille design for safety, and simple maintenance with removable grills for cleaning. Typical use cases are bedroom cooling, circulating warm air from a furnace during winter, improving ventilation in home offices, and using multiple units strategically to create cross-breeze paths. The estimated price range for these models generally falls between mid-budget to upper-mid depending on model and retailer (roughly $35–$120 USD) and they are widely available from major retailers and online stores.

Specifications — Technical Details & Performance

• Models covered: 1303, 5303, 6303 (tabletop/small); 6803, 7503, 7803 (stand/pedestal) — same core technology with different form factors.
• Speeds: 3-speed manual controls (Low, Medium, High) on base-mounted knob or dial depending on model.
• Airflow design: Vortex/air-accelerator circulation for long-throw, whole-room mixing rather than spot blowing.
• Power & electrical: Standard household AC power; model-specific wattage typically ranges in the low tens of watts (see product label for exact wattage).
• Safety features: Finger-friendly grille, grounded cord, replace-cord instructions require authorized service if damaged.
• Construction: Removable grille for cleaning, durable ABS housing, tilt-adjustable head; pedestal models include tool-free stand assembly and cord management features.
• Performance metrics: Designed for whole-room circulation in small-to-medium rooms (approx. 100–300 sq ft effective mixing depending on placement and room geometry); longer throw and sustained air movement outperform typical desk fans for room mixing[1][2].
• Benchmarks & comparisons: Compared with basic blade desk fans, Vornado circulators provide deeper, room-wide air mixing and more stable airflow patterns; compared with premium air-multiplier (bladeless) models, these Vornado units deliver similar mixing at lower price points but with a traditional grille design.

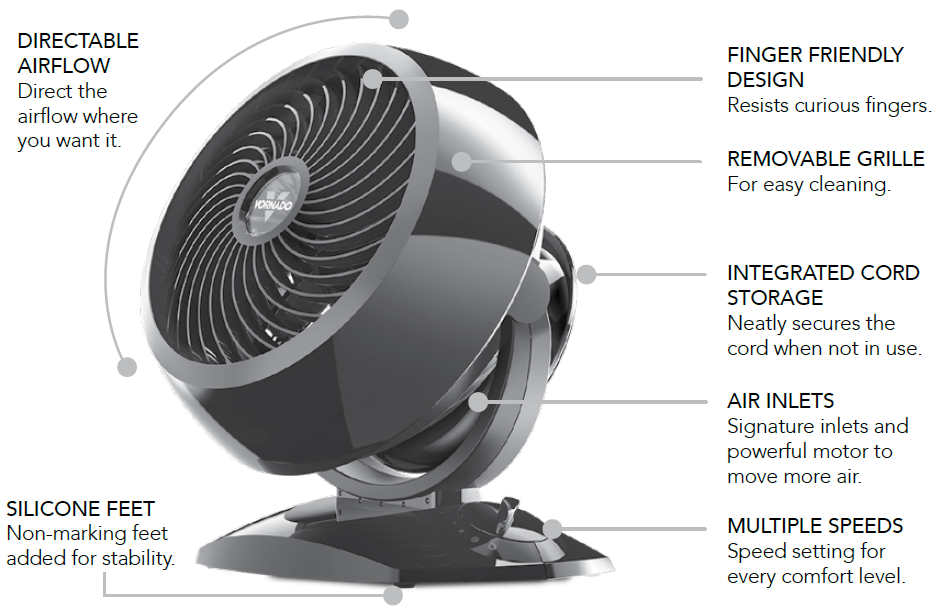

FEATURES

INSTALLATION

INSTALLING CIRCULATOR HEAD

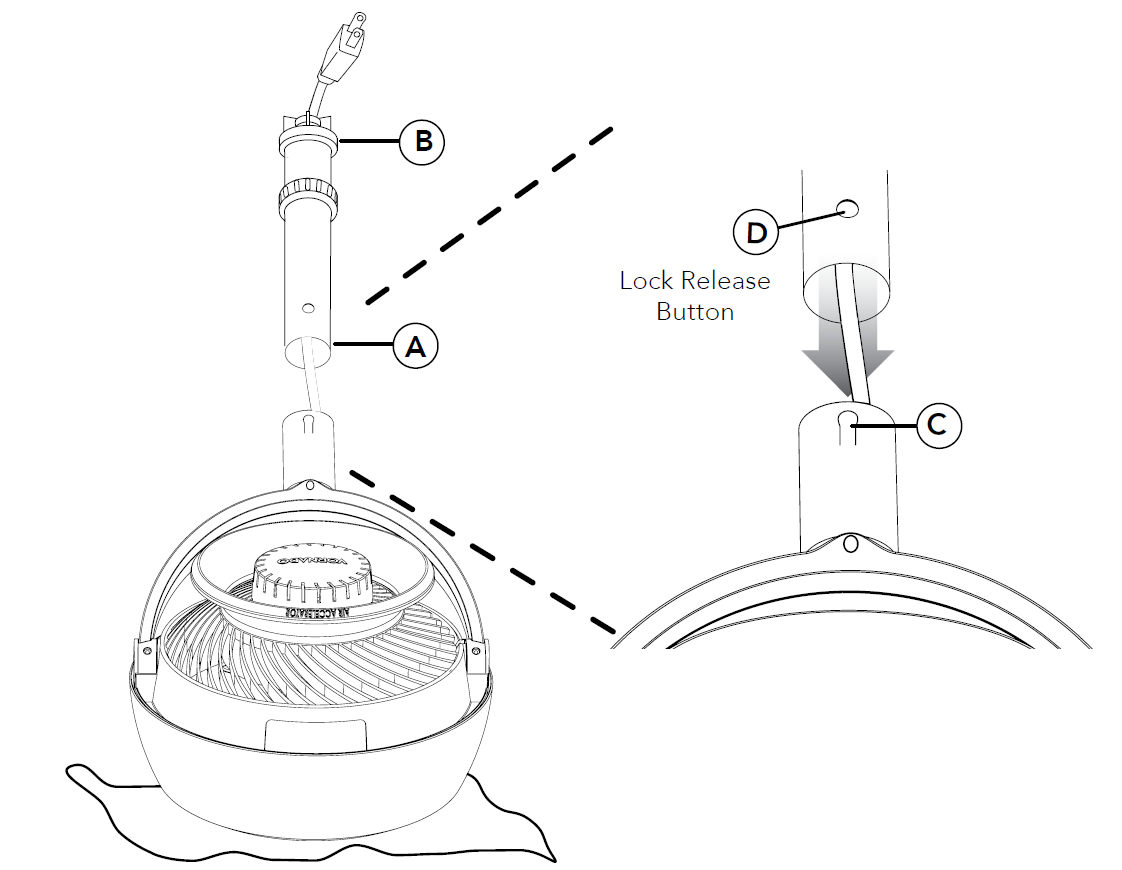

• Gently place the circulator head face down on the ground on a soft cloth to prevent scratches or damage to the unit.
• Insert the power cord into the top of the pole (A) and pull it through the bottom (B). Align the Lock Release Button (C) on the circulator head with the hole (D) on the pole.
• Push the pole onto the circulator head until the Lock Release Button snaps into place.

STAND ASSEMBLY

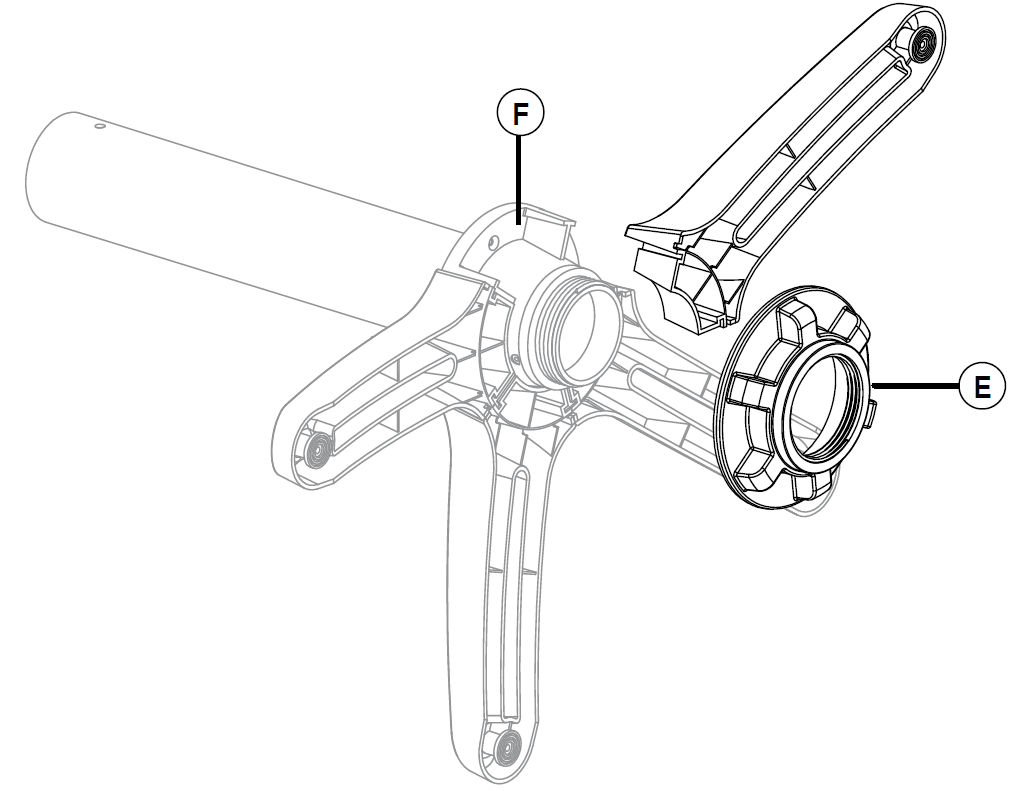

• The upper and lower poles are pre-assembled, with the fastening nut (E) secured underneath the base. Rotate the fastening nut counterclockwise to remove it.
• The legs are designed to fit into the grooves (F) on the underside of the base cap. Attach all the legs to the pole, then reinstall the fastening nut by rotating it clockwise to secure the legs in place.

CORD MANAGEMENT

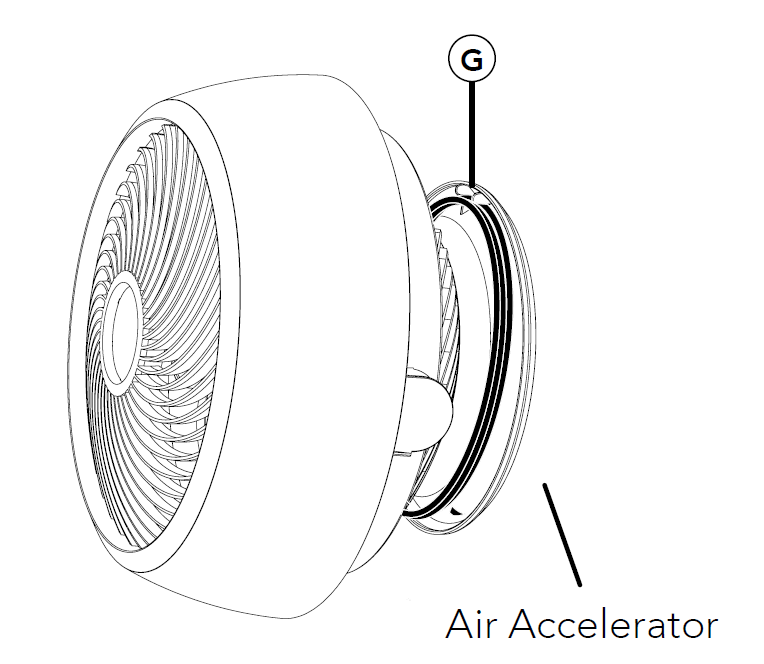

Wrap the power cord around the Air Accelerator located on the back of the unit. Secure the cord using the three clips (G) positioned at approximately 2, 6, and 10 o'clock.

ADJUSTING HEIGHT

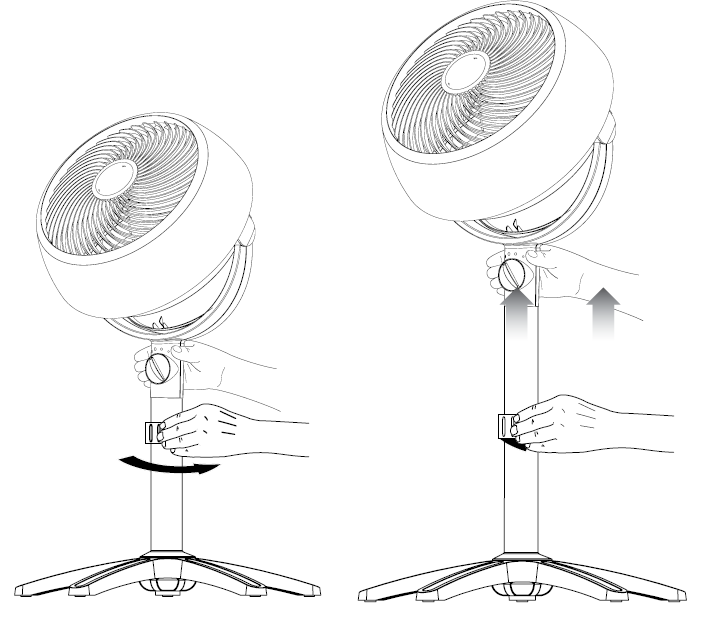

• Before adjusting the circulator's height, support the circulator head with one hand. Use your other hand to loosen the height adjustment collar by gently rotating it counterclockwise.
• Slowly raise or lower the pole to the desired height. Secure it in position by rotating the adjustment collar clockwise until firmly tightened.

CLEANING

GRILLE REMOVAL

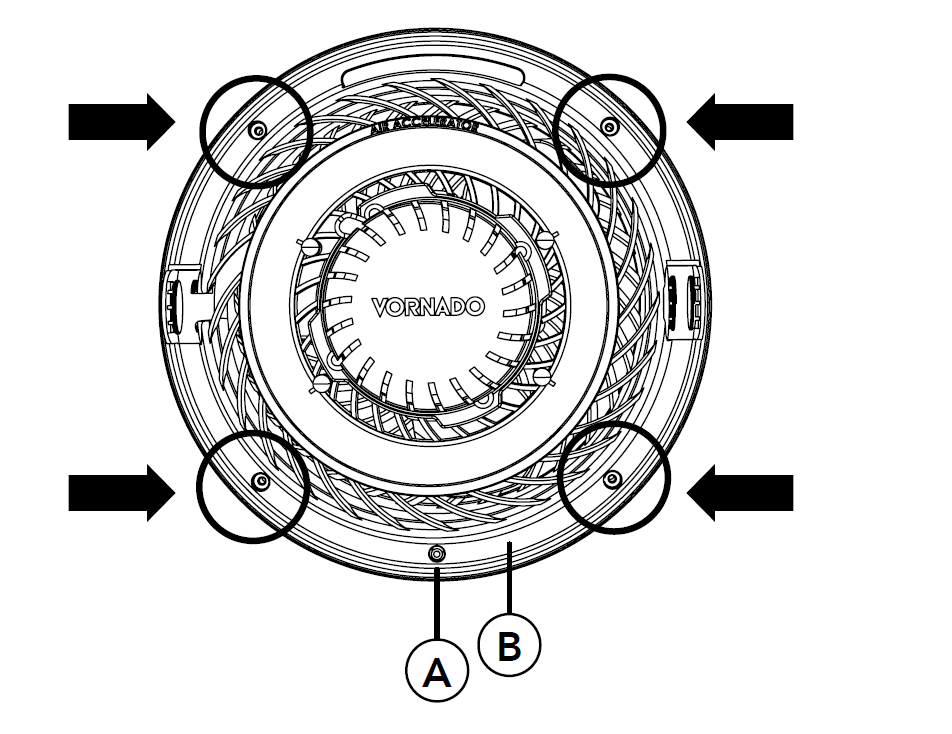

• Using a Phillips-head screwdriver, remove the four screws located around the perimeter of the inlet grille at approximately the 2, 5, 7, and 11 o'clock positions. This will release the grille. To reattach it, position the grille so that the logo in the center is straight.
• For Models 5303, 6303, 6803, 7503, and 7803, align the Locator Pin (A) to reconnect the grille. Once aligned, replace the screws.
• For Model 1303, align the Alignment Rib (B) to reconnect the grille. Once aligned, replace the screws.

BLADE REMOVAL

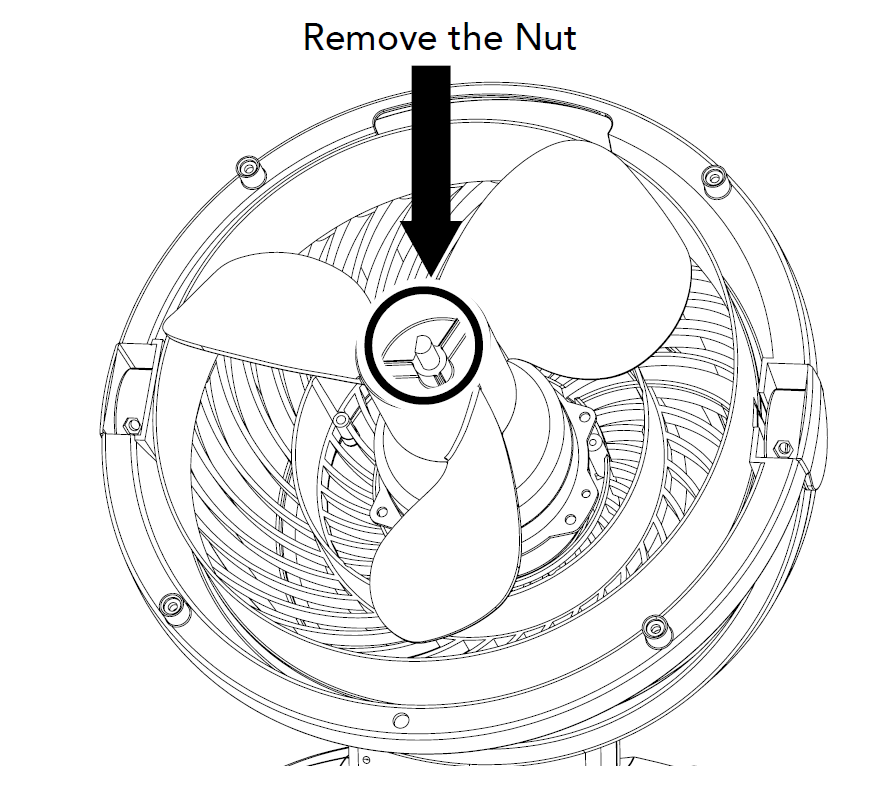

1. Remove the nut from the shaft by turning it clockwise to loosen it. If washers are included, remove them and set them aside. Carefully pull the blade straight off the shaft.
2. Wipe the blade with a damp cloth. If the circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents or place the blade in the dishwasher, as excessive heat can distort the plastic.
3. To reattach the blade, ensure that the flat side of the shaft aligns directly with the corresponding flat side of the blade's socket. Push the blade fully onto the shaft until it reaches the bottom. Do not use a hammer, as this could damage the bearings. If included, reinstall the provided washers and nut.

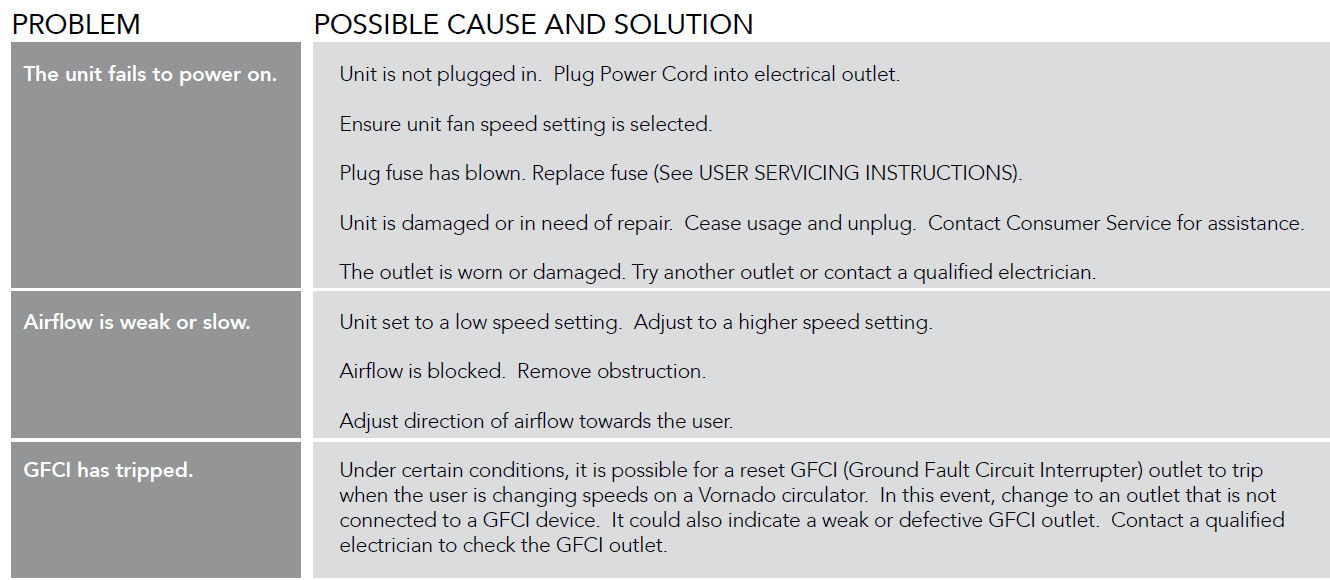

TROUBLESHOOTING

Pros & Cons — Honest Assessment

• Pros
  • Effective whole-room circulation — mixes air across the room rather than just blowing locally, improving comfort and HVAC efficiency.
  • Multiple form factors — tabletop and pedestal options fit many use cases (bedroom, office, living room).
  • Simple controls and reliable build — three-speed dial/knob is intuitive and durable; removable grille simplifies cleaning.
  • Good value for money — strong airflow and longevity compared with disposable low-cost fans; mid-range pricing for performance delivered.
• Cons
  • Noise at high speed — like many circulators, high setting can be louder and may be less suitable for noise-sensitive sleeping environments.
  • No remote or smart features on basic models — lacks timers, app control, or variable speed control beyond three steps on entry models.
  • Not fully bladeless — while grille is finger-friendly, some users prefer the look and perceived safety of bladeless designs.
  • Limited formal airflow specs publicized — Vornado emphasizes feel and room mixing over publishing CFM numbers for these consumer models, making direct numeric comparisons harder.

Customer Reviews — Real User Feedback & Ratings

Average user sentiment for the Vornado Whole Room Circulator 1303, 5303, 6303, 6803, 7503, 7803 line is generally positive, with many buyers praising the units for reliable, effective room circulation and build quality; aggregated ratings typically fall in the 4.0–4.5 star range on retailer sites for these popular models.

Common praises include: “moves more air than expected,” “compact but powerful,” and “durable — lasted multiple seasons.” Common complaints include: “louder on high,” “wish it had a timer or remote,” and “pedestal models require careful assembly of stand”.

Representative star summary:

• 5-star: Effective cooling and quiet on low speeds — recommended for bedrooms and offices.
• 4-star: Great value; minor complaints about noise at high speed.
• 3-star or lower: Issues typically around shipping damage, defective units, or disappointment when expecting bladeless styling.

Purchase recommendation: ideal for users wanting reliable whole-room airflow at a reasonable price and those who prioritize ventilation effectiveness over smart features[1][2].
