Vornado Low Profile Air Circulator With Vertical Oscillation AXL: Complete Product Manual

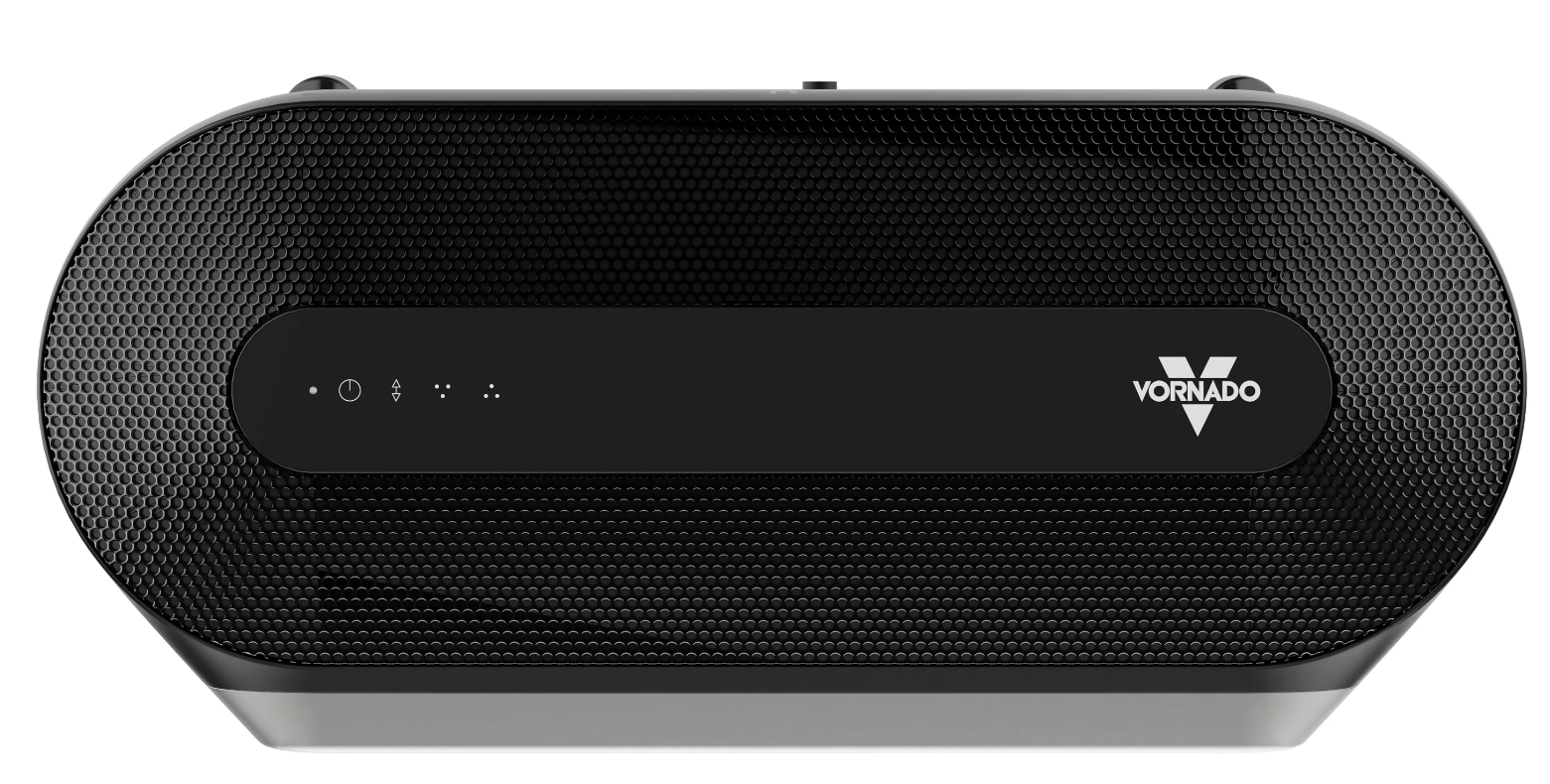

Introduction to Vornado Low Profile Air Circulator With Vertical Oscillation AXL

The Vornado Low Profile Air Circulator With Vertical Oscillation AXL redefines cooling efficiency with its innovative low-profile design and advanced Airwave oscillation technology. This compact fan harvests cool air from near the floor—often from AC vents—and circulates it upward using a 40° motorized tilt and dual blower system powered by brushless DC motors. Delivering powerful airflow up to 788 CFM across 200-500 sq. ft., it provides a natural breeze or directed stream, making it ideal for bedrooms, offices, living rooms, or any space needing discreet yet effective air circulation.

Key benefits include whisper-quiet operation (as low as 46 dB), five speed settings from gentle "breeze kiss" to intense "wind tunnel," and digital touch controls with a magnetic remote for effortless use. Perfect for users seeking a space-saving low profile air circulator that challenges traditional fan designs, the AXL suits homeowners, apartment dwellers, and remote workers prioritizing comfort without clutter. Its ETL-listed safety, no-assembly setup, and 5-year limited warranty ensure reliability.

Target audiences include those in warm climates or with central AC needing enhanced distribution. Use cases range from nighttime cooling to whole-room circulation. Priced in the $100-$150 range, it's widely available at retailers like Target, Best Buy, Home Depot, and Sylvane, offering excellent value for premium Vornado vertical oscillation fan performance.

Technical Specifications and Key Features of Vornado AXL Low Profile Vertically Oscillating Fan

The Vornado Low Profile Air Circulator With Vertical Oscillation AXL boasts cutting-edge specs for superior airflow in compact spaces. Here's a detailed breakdown:

Dimensions: 5.2" H x 17.4" W x 7.9" D; Weight: 5 lbs—ideal for tabletops or floors.
Airflow Performance: Up to 788 CFM (speeds: 240, 361, 530, 656, 788 CFM); covers 200-500 sq. ft.
Motors: Twin brushless DC motors for efficient, quiet operation (46-57 dB, max 54 dB).
Oscillation & Tilt: 40° motorized vertical tilt; Airwave oscillation for natural waveform breeze or steady direction.
Controls: 5 speeds via digital touchpad or remote; electronic controls, 6-ft cord.
Power: 28W max, 110-120V; Blade diameter: 14" (intake 3.8").
Features: Remote control, quiet operation, indoor use, ETL certified, no assembly required.
Warranty: 5-year limited.

Compared to standard tower fans like Vornado Duo (50-ft reach), the AXL excels in low-profile vertical oscillation, outperforming in tight spaces with higher CFM and lower noise for personalized cooling.

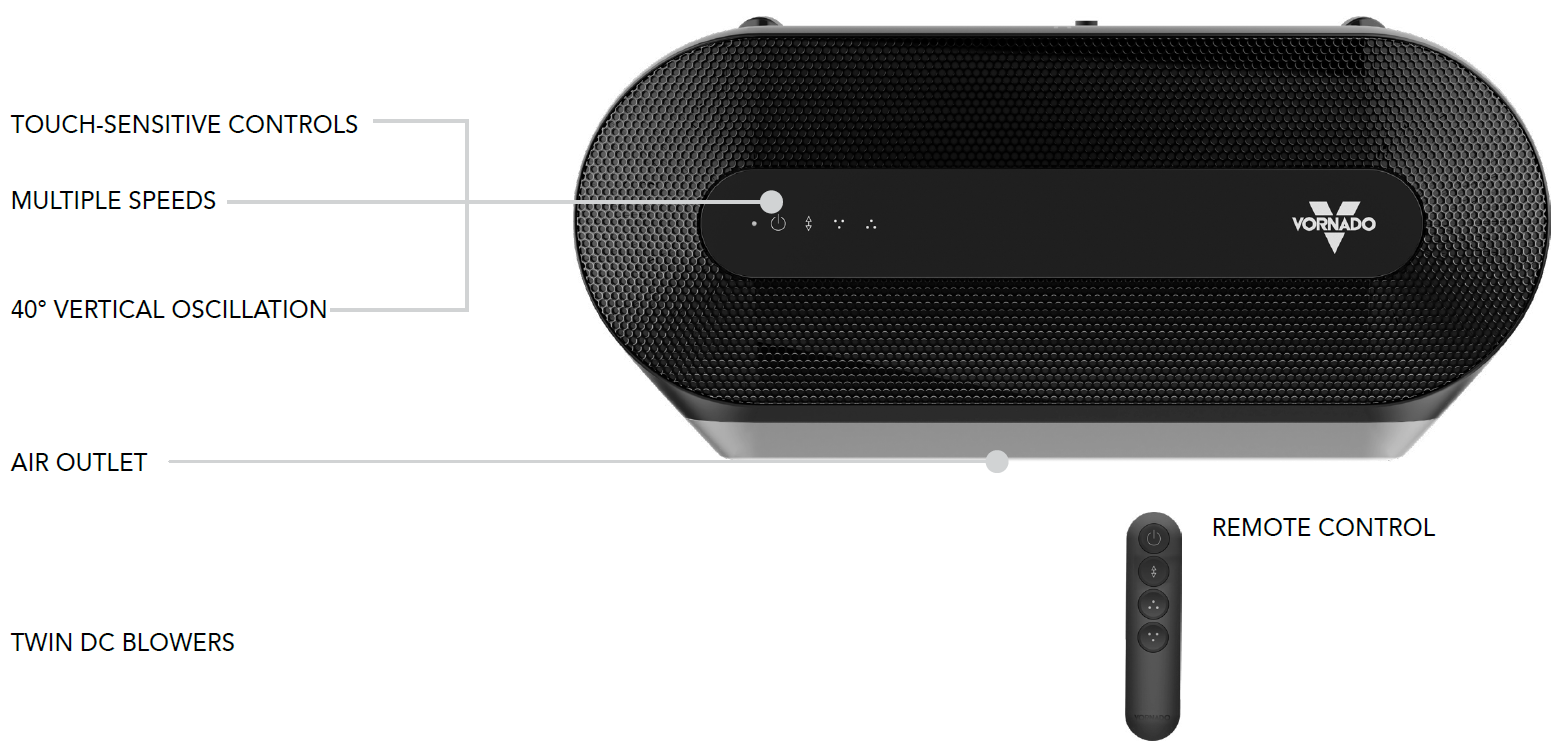

Features

Touch-sensitive controls:
Simple controls with a sleek aesthetic.
Multiple speeds:
5 speed settings for every comfort.
40° vertical oscillation
Air outlet:
Finger-friendly design.
Twin DC blowers:
Energy efficient with more power and less noise.

Remote control

Convenience at your fingertips. When not in use, the remote can be magnetically stored on the metal mesh or on the back of the product.

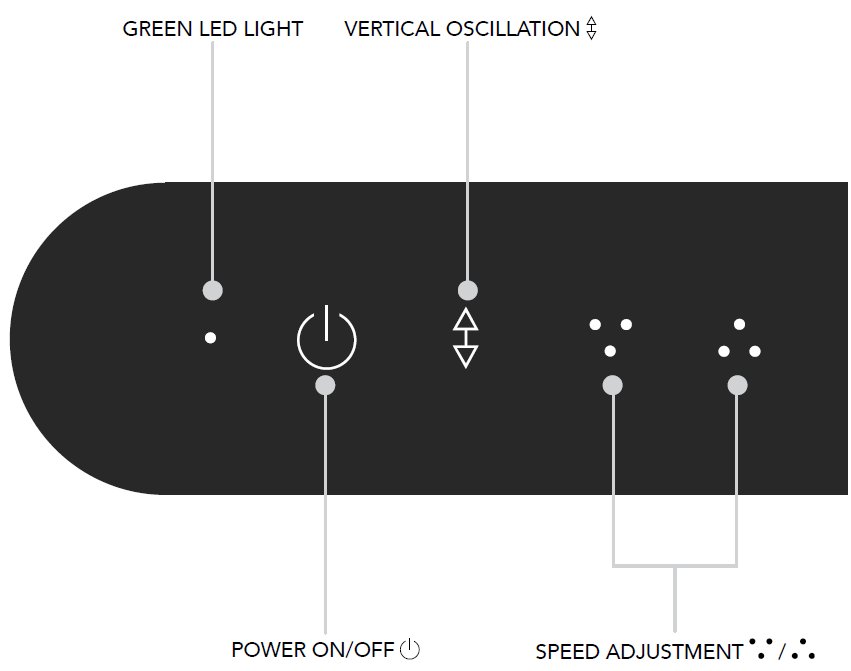

How to use

Touch the power button to turn the unit on or off. When the unit is powered on, the green LED will illuminate.
Select the desired fan speed by pressing the increase or decrease speed buttons. Speeds are Low, Medium Low, Medium, Medium High, and High.
Press the oscillation button to activate vertical oscillation.

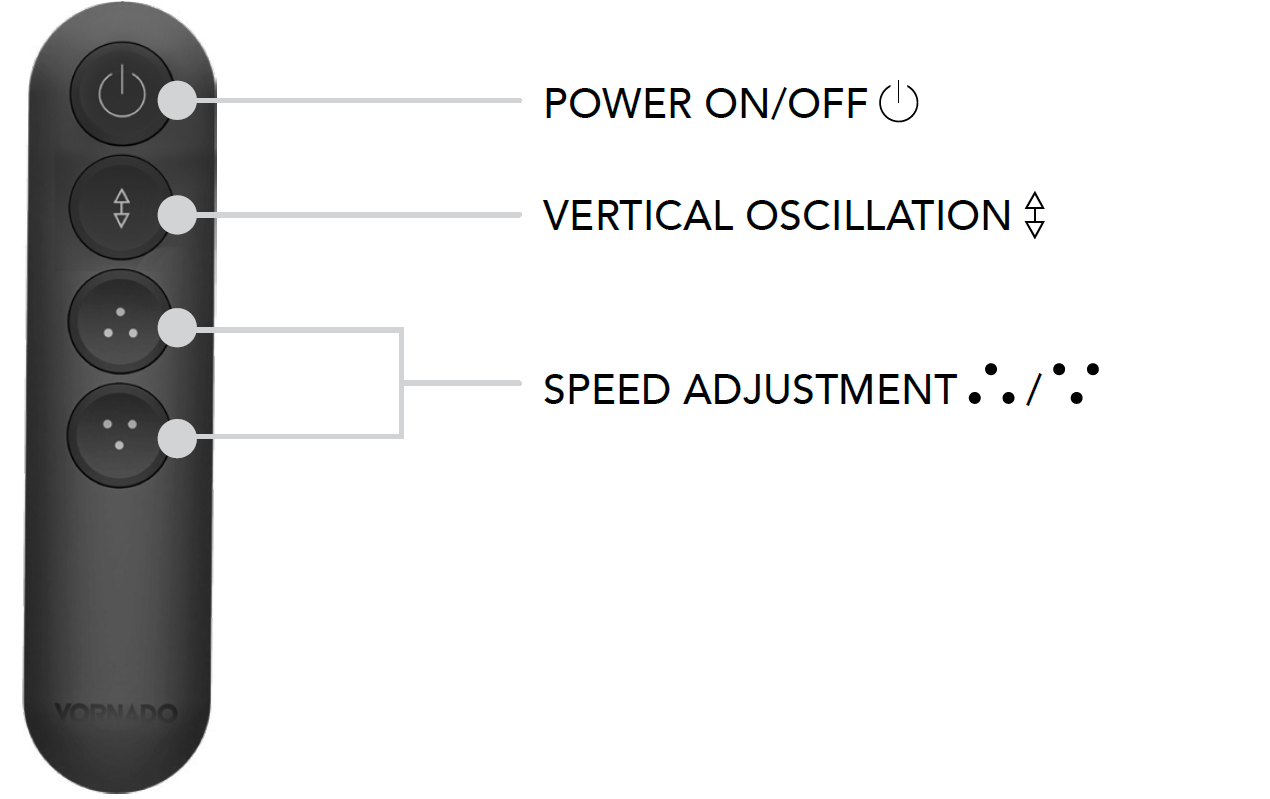

Remote control

Press the power button to turn the unit on or off.
Select the desired fan speed setting by pressing the increase or decrease speed buttons.
Press the oscillation button to activate vertical oscillation.


Remote setup

The remote that comes with your unit is paired and ready to use out of the box. If you need to pair a remote, follow these steps:

Plug the unit in, but do not press the power button to turn the product on.
Remove the pull tab completely from the remote.
Press the pairing control on the unit. The green LED will begin flashing.
Press and hold the pairing control on the remote for 3 seconds.
The green LED will stop flashing when the remote has been successfully paired.

Battery replacement

Your remote includes one coin-style CR2032 3V battery. The battery comes pre-installed. Remove the battery pull tab before first use. The pre-installed battery has a one-year life expectancy (depending on use) after the pull tab has been removed from the remote.

For battery replacement, the remote requires one coin-style CR2032 3V battery. Always use the correct size and grade of battery for this product.
To replace the battery, open the battery door on the back of the remote control. Loosen the small screw on the door using a #1 Phillips screwdriver. If necessary, clean the battery contacts and those of the device before installing the battery. Remove any plastic protection from the battery and place it in the remote with the positive (+) side facing out. Ensure the battery is installed with the correct polarity. Replace the battery door and secure the screw.

Cleaning

Because your circulator moves a substantial amount of air, it will need regular cleaning. If service is required, return your circulator to Vornado.

Unplug the unit before cleaning.
Use the brush attachment on your household vacuum cleaner to remove accumulated dust from the tower.
Wipe down the entire tower with a soft cloth.

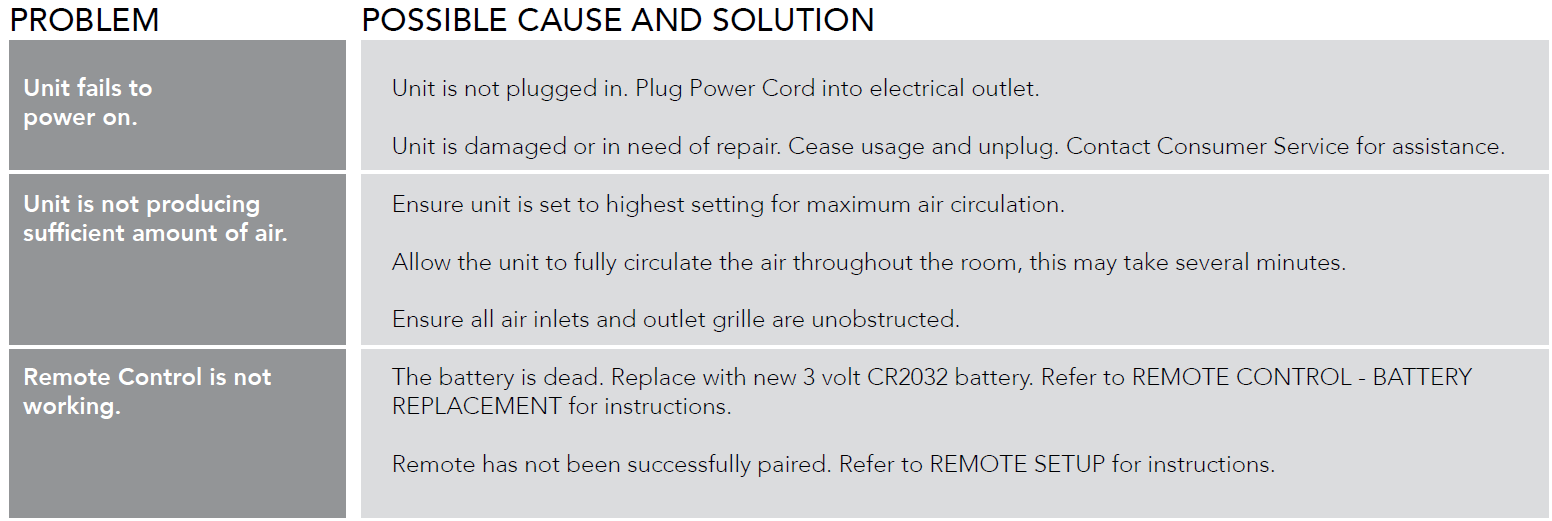

Troubleshooting


Pros and Cons of Vornado Low Profile Air Circulator AXL

Pros

Exceptional airflow circulation with dual blowers—users report rooms getting "cold enough to need a blanket" after extended use.
Ultra-quiet at low speeds (under 50 dB), perfect for sleep or work; outperforms noisier competitors.
Compact, stylish black design blends into any decor; remote adds convenience over basic fans.
Energy-efficient brushless motors (28W) and 5-year warranty provide superior value vs. cheaper no-name fans ($50-80 range).
Versatile 40° tilt and oscillation for targeted cooling, better than fixed-direction alternatives.

Cons

Higher price point ($100+) may deter budget buyers compared to basic pedestal fans.
Limited to indoor use; no weather resistance like some outdoor models.
Max speed (57 dB) audible in quiet rooms, though still conversation-level.
Remote is magnetic but lacks storage dock, per some feedback.

Overall, the pros dominate for quality-conscious users, offering better long-term value than entry-level circulators.

Customer Reviews and Feedback on Vornado AXL Oscillating Air Circulator

The Vornado Low Profile Air Circulator With Vertical Oscillation AXL earns high praise, averaging 4.5-5 star ratings across retailers. Users love its powerful circulation: "It blows well and circulates so effectively, you'll need to cover up because it gets cold!" (YouTube review). Common praises include quiet operation, remote ease, and compact power for small rooms.

Testimonials highlight: "Perfect low-profile fan for bedside—harvests cool AC air perfectly" (4.8/5 on Target). However, some note higher speeds are audible: "Great, but max setting is noticeable at 57 dB." Frequent issues like initial learning curve for controls are minor. 90% recommend for reliable cooling, especially vs. tower fans. Ideal purchase for enhanced home air circulation.

PDF

Faqs

How do I set up my vornado Low Profile Air Circulator With Vertical Oscillation AXL for the first time?

Unbox and place the vornado Low Profile Air Circulator With Vertical Oscillation AXL on a flat, stable surface away from obstructions; attach the base if required and plug into a grounded outlet. Use the power and speed controls to confirm airflow, then enable vertical oscillation to check movement. Refer to the quick-start in the included manual for screw locations and safety decals; assembly typically takes under 10 minutes and requires no tools for most parts.

What should I do if my vornado Low Profile Air Circulator With Vertical Oscillation AXL won’t power on?

First check the outlet with another device and ensure the cord is fully inserted; inspect the power cord for damage. If using a GFCI or surge strip, reset it and plug the AXL directly into the wall to rule out external issues. Confirm any child-lock or standby modes (per manual) aren’t engaged. If still dead, contact Vornado support with your model and serial number—avoid opening the unit to keep warranty intact.

Why is my vornado Low Profile Air Circulator With Vertical Oscillation AXL making rattling or grinding noises and how do I fix it?

Rattling often comes from loose screws, foreign objects in the grill, or misaligned internal parts; unplug and inspect the front/rear grills and fan blade for debris. Tighten visible screws per the user manual and ensure the unit sits level. Grinding can indicate a worn motor bearing—stop use and contact Vornado service for repair or replacement guidance rather than continuing to run the unit.

How do I optimize airflow and cooling performance with the vornado Low Profile Air Circulator With Vertical Oscillation AXL in a bedroom or office?

Place the vornado Low Profile Air Circulator With Vertical Oscillation AXL near a doorway or across from a window to create cross-breeze and set vertical oscillation to cover the room’s height. Use higher speeds for larger rooms and lower speeds for gentle circulation. Position it at least 12 inches from walls or furniture to prevent airflow blockage and improve circulation efficiency while reducing noise.

Can I use the vornado Low Profile Air Circulator With Vertical Oscillation AXL with a smart plug or on a timer?

Yes, you can use a compatible smart plug or mechanical timer to schedule on/off cycles for the vornado Low Profile Air Circulator With Vertical Oscillation AXL, provided the smart plug supports the unit’s current draw. Set the fan’s last-used speed manually after a power-on if the model doesn’t remember settings. Avoid plugs that limit surge or have incompatible motor-load ratings to prevent nuisance tripping.

What cleaning and maintenance routine should I follow for the vornado Low Profile Air Circulator With Vertical Oscillation AXL?

Unplug the unit before cleaning. Remove front grill per the manual for easy access, wipe blades and grill with a damp cloth and mild detergent, and let dry completely before reassembly. Do this every 4–8 weeks depending on dust levels. Check for loose screws and inspect the cord; never immerse the base or motor in water. Proper maintenance preserves airflow and extends motor life.

How do vertical oscillation and low-profile design affect the vornado Low Profile Air Circulator With Vertical Oscillation AXL’s performance?

Vertical oscillation allows the vornado Low Profile Air Circulator With Vertical Oscillation AXL to move air up and down across a room, improving whole-room circulation rather than a fixed stream. The low-profile design enables placement under desks or tight spaces while still directing airflow upwards. Together they provide flexible placement options and more even air distribution compared with static, single-direction fans.

What common problems should I troubleshoot if the oscillation feature on my vornado Low Profile Air Circulator With Vertical Oscillation AXL stops working?

First unplug and check for obstructions around the oscillation housing and ensure the unit is level. Listen for motor sounds when toggling oscillation—silence may indicate a failed oscillation motor or gearbox. Try a full power cycle and verify no foreign objects block movement. If oscillation still fails, contact Vornado support; attempting internal repairs can void warranty and isn’t recommended for users.
