Westinghouse WEC115C2X055 Stainless Electric Water Heater User Manual
Content

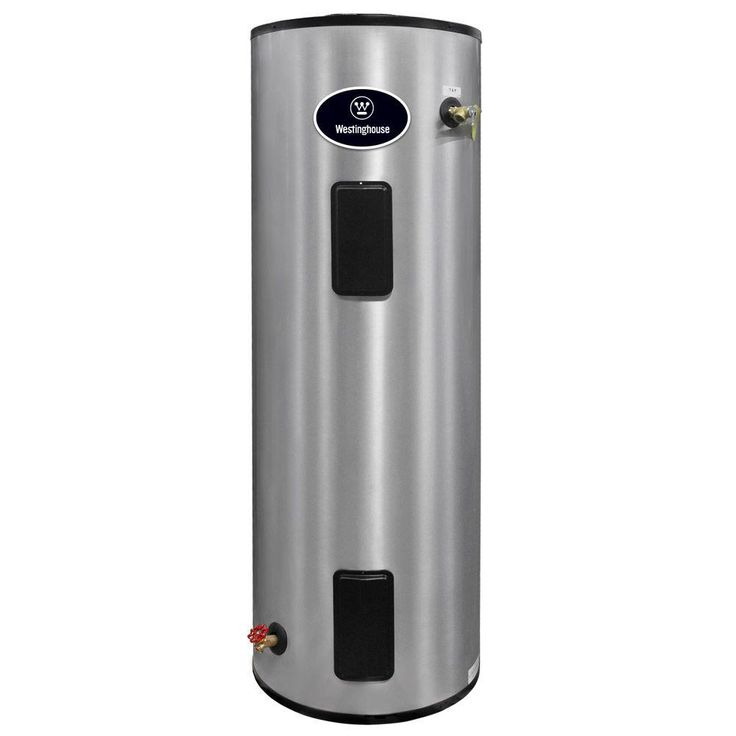

Westinghouse WEC115C2X055 Stainless Electric Water Heater
Introduction of Stainless Electric Water Heater is a high-quality and efficient appliance designed to meet your hot water needs. This water heater features a sleek stainless steel design and is available in various sizes, ranging from 2.5 to 50 gallons, making it suitable for both residential and commercial use. The estimated price of this water heater is $300 to $1,500, depending on the size and model. The launching date of this product is not specified, but it is currently available for purchase online and in-store.
IN THE BOX
- T&P Relief Valve
- Installation Manual
- Brass Full Port Drain Valve
Dimensions & Specifications
LIFETIME Warranty for Residential Unit (10-year warranty if not registered online) Limited 10-year Warranty for Commercial Unit (5-year warranty if not registered online)
| Models | Gal. | A | B | C | D | Minimum Delivered Temp. | Maximum Delivered Temp. | High Temp. Limit |
|---|---|---|---|---|---|---|---|---|
| WER040C2X045 | 40 | 5.75” | 46” | 54.25” | 19.5” | 110°F (43.3°C) | 150°F (65.5°C) | 170°F (76.6°C) |
| WER040C2X055 | 5.75” | 46” | 54.25” | 19.5” | 110°F (43.3°C) | 150°F (65.5°C) | 170°F (76.6°C) | |
| WER052C2X045 | 52 | 5.75” | 58.25” | 66.75” | 19.5” | 110°F (43.3°C) | 150°F (65.5°C) | 170°F (76.6°C) |
| WER052C2X055 | 5.75” | 58.25” | 66.75” | 19.5” | 110°F (43.3°C) | 150°F (65.5°C) | 170°F (76.6°C) | |
| WEC080C2X045 | 80 | 6.5” | 60” | 69” | 23.25” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) |
| WEC080C2X055 | 6.5” | 60” | 69” | 23.25” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) | |
| WEC100C2X045 | 100 | 7.25” | 52” | 61” | 27” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) |
| WEC100C2X055 | 7.25” | 52” | 61” | 27” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) | |
| WEC115C2X045 | 115 | 7.25” | 60.25” | 70.5” | 27” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) |
| WEC115C2X055 | 7.25” | 60.25” | 70.5” | 27” | 120°F (48.8°C) | 180°F (82.1°C) | 200°F (93.3°C) |
Residential Models
| Models | Wattage | Voltage | Safety Listing | First Hour Rating | Recovery @ 90º F Rise | Energy Factor | Shipping Weight |
|---|---|---|---|---|---|---|---|
| WER040C2X045 | 4500 | 240 | UL174 | 59 Gallons | 20 Gallons | .95 | 104 lbs |
| WER040C2X055 | 5500 | 240 | UL174 | 64 Gallons | 25 Gallons | .95 | 104 lbs |
| WER052C2X045 | 4500 | 240 | UL174 | 66 Gallons | 20 Gallons | .94 | 118 lbs |
| WER052C2X055 | 5500 | 240 | UL174 | 71 Gallons | 25 Gallons | .94 | 118 lbs |
Light Commercial Models
| Models | Wattage | Voltage | Safety Listing | First Hour Delivery | Recovery @ 90º F Rise | Thermal Efficiency | Shipping Weight |
|---|---|---|---|---|---|---|---|
| WEC080C2X045 | 4500 | 240 | UL1453 | 84 Gallons | 20 Gallons | 98 % | 151 lbs |
| WEC080C2X055 | 5500 | 240 | UL1453 | 89 Gallons | 25 Gallons | 98 % | 151 lbs |
| WEC100C2X045 | 4500 | 240 | UL1453 | 87 Gallons | 20 Gallons | 98 % | 206 lbs |
| WEC100C2X055 | 5500 | 240 | UL1453 | 92 Gallons | 25 Gallons | 98 % | 206 lbs |
| WEC115C2X045 | 4500 | 240 | UL1453 | 105 Gallons | 20 Gallons | 98 % | 224 lbs |
| WEC115C2X055 | 5500 | 240 | UL1453 | 110 Gallons | 25 Gallons | 98 % | 224 lbs |
STANDARD FEATURES
- Stainless Steel Tank
- Heavy Duty Insulation
- Electrical Connection Box
- Limited LIFETIME Warranty for Residential Unit (10-year warranty if not registered online)
- Limited 10-year Warranty for Commercial Unit (5-year warranty if not registered online)
High Limit Controls
- Residential temp: min 110º F max 150ºF
- Commercial temp: min 120º F max 180ºF
Hot Water Connection
- Outlet connection on the top of the tank (with built-in Heat Traps)
The Finest Protection
- Laser welded through a concentrated heat source producing high-quality, long-lasting, 316L stainless steel tank construction (lightweight)
- Superior corrosion resistance, eliminates the need for anode rods, protects against harsh water conditions for a lifetime of durability against leaks
- Fantastic Limited Warranty
Minimal Heat Loss
- Heavy-duty insulation
Stainless Steel & Incoloy Elements
- Low watt operation
- Stainless steel screw plugs
- Increases corrosion resistance for extended, longer element life
The Westinghouse Electric: Stainless Steel Water Heater
The Westinghouse Electric Water Heater combines high-quality stainless steel construction and energy-efficient operation, providing long draws of hot water without consuming large amounts of energy. A cleverly designed water connection directs cold water to the heating element near the bottom of the tank to minimize the mixing of cold and hot water. Durable components, low standby heat losses, high recovery rates, and the industry’s strongest warranty make the Westinghouse Electric Water Heater an ideal choice for electric water heating needs.
A Closer Look
Our Components are Made of Durable Materials:
- Inlet and Outlet Nipples: Constructed of Durable Brass
- Stainless Steel Incoloy Elements
316L Stainless Steel Tank Construction: Made with High-Grade 316L Stainless Steel Materials
NO Anode Rods Needed!
All coated tanks require anodes to delay the inevitable corrosion and tank failure. The average residential water heater lasts about 13 years. The Westinghouse stainless steel tanks will outlast any coated steel tank in the market
Description
The Westinghouse WEC115C2X055 Stainless Electric Water Heater is made with high-quality materials and is designed to last for many years. The stainless steel construction not only adds to the durability of the appliance but also gives it a modern and sleek look. This water heater features a powerful heating element that quickly heats up the water, ensuring that you always have hot water when you need it. The temperature of the water can be easily adjusted using the temperature control dial, and the water heater also features a reset button for added safety.
Setup Guide
Setting up the Westinghouse WEC115C2X055 Stainless Electric Water Heater is a straightforward process. First, make sure to read the user manual carefully before starting the installation. Next, choose a location for the water heater that is close to a power source and has enough space for proper ventilation. Connect the water heater to the power source and then connect the cold and hot water pipes. Finally, fill the tank with water and turn on the power to start using the water heater.
Troubleshooting
If you are having trouble with the Westinghouse WEC115C2X055 Stainless Electric Water Heater, there are a few common issues that you can check for. If the water is not heating up, make sure that the power is turned on and that the reset button has not been tripped. If the water heater is making strange noises, it may be due to a buildup of sediment in the tank. To fix this, you can drain the tank and clean it out. If you are still having trouble, refer to the user manual or contact Westinghouse customer support for further assistance.
Pros & Cons
Pros
- Durable stainless steel construction
- Powerful heating element for fast hot water
- Adjustable temperature control
- Safety reset button
- Available in various sizes
Cons
- May be more expensive than other water heaters
- May require professional installation
- Sediment buildup may require regular cleaning
Customer Reviews
Customers love the Westinghouse WEC115C2X055 Stainless Electric Water Heater for its durability, efficiency, and modern design. The adjustable temperature control and safety reset button are also popular features among users. However, some users have reported issues with sediment buildup and have noted that the water heater may be more expensive than other models. Overall, the Westinghouse Stainless Electric Water Heater is a high-quality and reliable appliance that is worth the investment.
Faqs
How energy efficient is the Westinghouse WEC115C2X055 Stainless Electric Water Heater compared to other water heaters?
How do I drain the Westinghouse WEC115C2X055 Stainless Electric Water Heater for maintenance or relocation?
How often should the Westinghouse WEC115C2X055 Stainless Electric Water Heater be drained and cleaned?
What is the energy efficiency rating of the Westinghouse WEC115C2X055 Stainless Electric Water Heater?
What materials are used in the construction of the Westinghouse WEC115C2X055 Stainless Electric Water Heater?
What is the voltage requirement for the Westinghouse WEC115C2X055 Stainless Electric Water Heater?
How much water does the Westinghouse WEC115C2X055 Stainless Electric Water Heater hold?
What should I do if the Westinghouse WEC115C2X055 Stainless Electric Water Heater is leaking?
How do I adjust the temperature on the Westinghouse WEC115C2X055 Stainless Electric Water Heater?
What is the warranty on the Westinghouse Stainless Electric Water Heater?
