Introduction of the Whirlpool White Magic Washing Machine W10704450

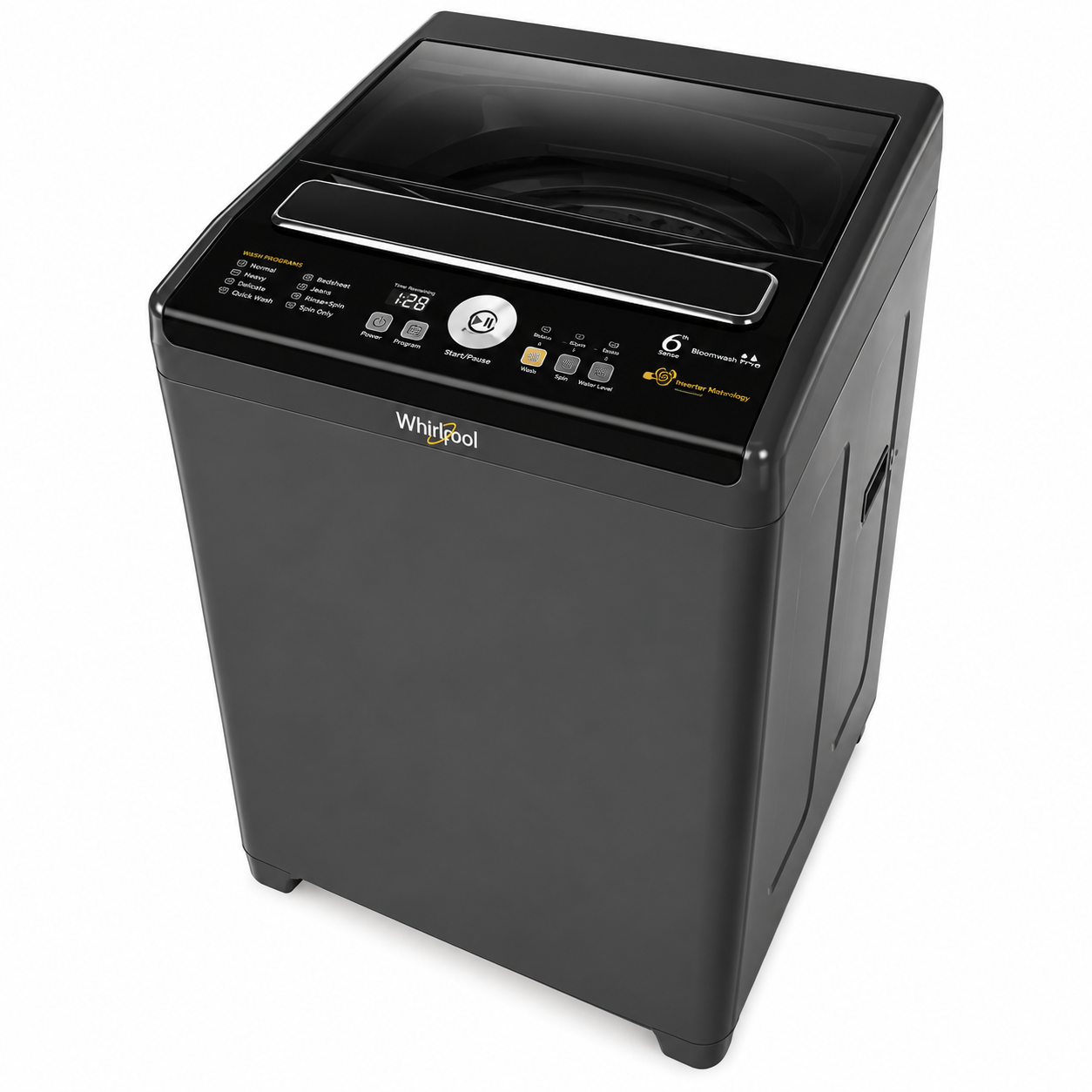

The Whirlpool White Magic Washing Machine W10704450 is a dependable and effective household device that is intended to simplify laundry duties. This tutorial will teach you more about it. This washing machine offers a seamless washing experience by fusing cutting-edge technology with intuitive features. The sturdy construction and creative washing choices of the Whirlpool White Magic guarantee that your clothes are cleaned to the highest standard without sacrificing quality. With its adaptability and performance, this machine can handle even the most delicate textiles and big loads. It's the perfect choice for all your laundry needs.

Specifications

Due to continuous R&D, specifications and features may change without prior notice. Features may vary from model to model.

1. Power Consumption at Normal rated condition is 1 unit (KWHR) for 7 washes Power conditions as specified in IS 12360. Voltage 230V +10%, Frequency 50$3%.
2. Capacity of washers with standard test clothes as specified in IS 14155, Dry weighed as per the name plate, loaded in wet condition.
3. Inlet water temperature considered 15°C.

Know Your Machine

Control Panel and Features

For Model: Classic

No.	Option	Description
1	POWER BUTTON	Press the ‘Power’ button to turn the washer on. The machine switches off automatically at the end of the wash process.
2	PROGRAM	Select the appropriate program depending on the type of clothes being washed and how dirty they are. Press the program button repeatedly to arrive at the desired program option.
3	START/PAUSE	Press Start button to begin the washing process. Pressing this button again will cause the machine to "PAUSE". You can now add clothes/change the selected options if required. Press the button again to restart.
4	WASH OPTIONS	Select ‘Wash’, ‘Rinse’, ‘Spin’ or combination of these options except for Speedy program.
5	WATER LEVEL	Manually select the water level based on your wash loads. Always ensure clothes are submerged well below the water level.
6	CHILD LOCK	Child lock option can be activated only after pressing the START button. Press ‘WASH OPTIONS’ and ‘WATER LEVEL’ buttons together until the LED glows. To unlock, press both buttons again until the LED goes off. During child lock mode, no button can be operated. Note: In case of urgency during child lock mode, Switch off the Main power.
7	CHECK WATER	It indicates no water supply from tap or filter blocked with foreign objects. If yes, ensure the tap is opened else clean the fill hose filter first and inlet valve filter if required.
8	VOLTAGE FLUCTUATION	It indicates, the supply voltage may be too low or too high. Machine will resume automatically when the normal voltage comes back.

Whirlpool White Magic Washing Machine W10704450 Installation

STANDARD INSTALLATION

Installing Electrical Connections

Ensure the earth connection in your electrical supply is proper before connecting the power cord. The socket should be standard and independent: 3pin type of 230V AC, 50Hz. A connection with a separate line fuse or circuit breaker of the value of 6A
Caution: Do not use extension junction box since it may not be property earthed.

• The appliance must be earthed. The Whirlpool of India Ltd. declines any responsibility for damage caused by failure to observe this rule. You are therefore advised to check that your household supply has efficient earthing.
• Do not use manual Stabilizer

DO NOT USE AN EXTENSION CORD

Water Pressure

The water storage tank should correspond to a level of 2 to 80 m above the level of tap and water pressure from 0.2 to 8 kg/cm a In case of inadequate water pressure, the customer has to correct the water supply to improve flow rate or pour water manually.

Suggestion to Improve Water Flow Rate:

• Tank height from the water inlet tap should be >10 ff (Refer to Picture)
• Ensure no blockage in the water line

Installing the Machine

• Do not place the machine on a slanting, uneven, or unstable surface.

• Place the machine on a solid leveled surface to avoid excessive vibration and noise during operation.



• If the power cord is damaged, it must be replaced by the Whirlpool authorized service person in order to avoid hazard
• Discard the cushion balance ring with the cover.

• Unscrew the 2 screws and remove Transit Bracket (Refer Picture)



• Ensure the assembly of rat mesh at the time of installation.

CAUTION: Make sure the drain hose is connected to the washer. A bad installation can cause water leak from the outlet hose

Note: Installation should be done only by a Whitpoof-authorized service engineer. Parts removed during installation like screws, and infect valve plugs should be property disposed of.

Description

The Whirlpool White Magic Washing Machine W10704450 is designed with a sleek and modern look, making it a stylish addition to any laundry room. Its large capacity allows for more clothes to be washed at once, saving you time and energy. This washing machine also has a built-in water faucet, making it easy to pre-treat stains before washing. The Whirlpool White Magic Washing Machine W10704450 is built to provide a deep clean while being gentle on your clothes, ensuring they last longer.

Wiring Diagram

Setup Guide

Setting up the Whirlpool White Magic Washing Machine W10704450 is straightforward.

1. First, ensure the washing machine is level and securely in place.
2. Next, plug in the washing machine and select your preferred language. The washing machine will then run a diagnostic test to ensure it is functioning correctly.
3. Once the diagnostic test is complete, you can select your preferred wash cycle, load your clothes, and start the washing machine.

How To Connect Inlet Water Pipe

The inlet water pipe connection will be demonstrated by the service engineer when he comes to install your washing machine. However, the steps for the connections are given below for your reference.

Steps to follow

CAUTION: Make sure the inlet water pipe is connected to washer. A bad installation can cause water leak from hose inlet and outlet.

Troubleshooting

Warranty

The 2-year warranty will automatically terminate on the expiry of the warranty period of two years from date of purchase as provided in the original invoice, even if the washing machine may not be in use for any time during the warranty period for any reason whatsoever including any technical breakdowns and the time taken for such repairs / replacements of parts and transit, whether under this warranty or otherwise shall not be excluded from the warranty period.
