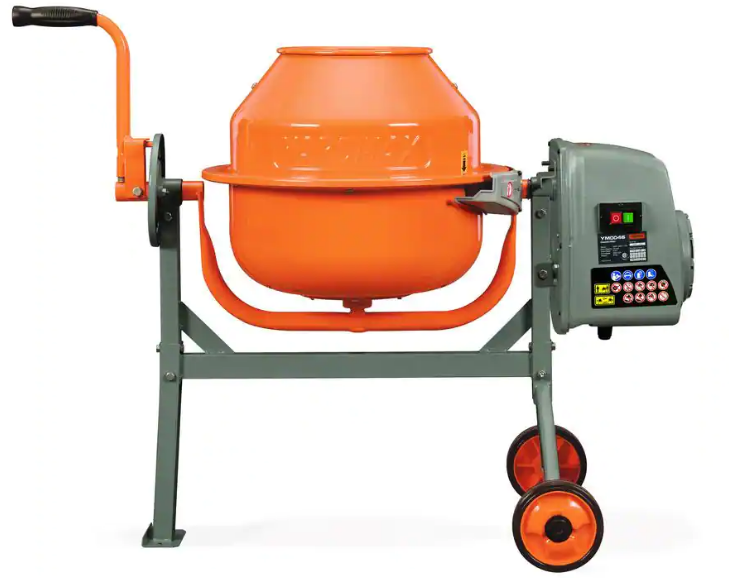

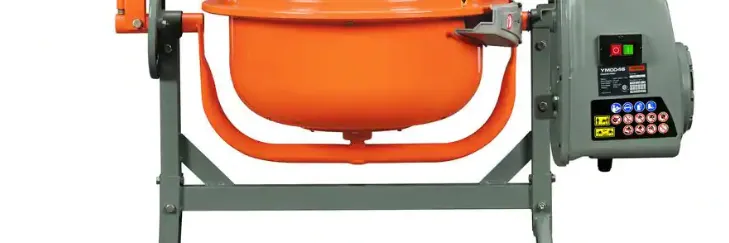

Yardmax Electric Concrete Mixer YM0046

Introducing the Yardmax Electric Concrete Mixer YM0046 is an exceptionally effective and long-lasting apparatus specifically engineered for modest to medium-scale undertakings. Featuring a generous 4.0 cubic foot mixing capacity and a robust 120V motor, this device guarantees comprehensive and uniform mixing of concrete, mortar, and other substances. This mixer is simple to install and run, making it well-suited for both do-it-yourself enthusiasts and professional contractors. The Yardmax YM0046 is a dependable option for construction or restoration projects because to its durable steel drum, safety features, and easy-to-use controls.

CONTENTS SUPPLIED

Your YARDMAX concrete mixer comes partially assembled and contains the following:

SPECIFICATIONS

KNOW YOUR MACHINE

FEATURES AND CONTROLS

Description

All of your concrete mixing demands are met by the dependable and high-performance Yardmax Electric Concrete Mixer YM0046. A strong and steady mix produced by the 1/2 HP motor in this model guarantees reliable results. Small- and medium-sized projects may be mixed effectively with its 4.3 cubic foot drum capacity and 175 RPM motor speed. Built to endure the rigors of heavy-duty operation, the YM0046 features a robust steel frame.

ASSEMBLY

This concrete mixer is partially assembled at the factory. To assemble your machine follow the below instructions.

Warning: Assembly requires two persons (recommended).

STAND

1. Slide each wheel onto each stub axle. Insert each split pin into the axle hole. Bend each of the side pins outward so they do not fall out. Attach the wheel caps.



2. With the frame lying on its side, attach the support legs. Align the 2 holes on the support leg with the frame holes as shown. (See Figure 1b, Illustration 1) Screw M8x40 hex bolt and washer into the upper hole. (See Figure 1b, Illustration 1). Insert M8x60 hex bolt through the lower hole, and secure with flat washer, lock washer, and nut. (See Figure 1b, Illustration 2).



3. Turn the frame over and attach the axle bracket with wheels in the same manner. (See Figure 1c, Illustrations 1-2)



4. Make sure all bolts and nuts are tightened.

BOTTOM DRUM

1. Slide the motor support bracket on the shaft. (See Figure 2, Illustration 1)
2. Carefully place the bottom drum with support arm onto the side supports of the stand as shown. (See Figure 2, Illustration 2). The motor support bracket and support seat should slide into the side support channel on each side. The larger diameter shaft should be at the leg end of the stand.

3. On each side, line up the holes in the side support with those in the motor support bracket and support seat, insert an M8x55 hex bolt from one side, then a flat washer, lock washer, and nut from the other side. Tighten with a wrench. (See Figure 2, Illustration 3)



Yardmax Electric Concrete Mixer YM0046 MIXING BLADES

Mount the mixing blades inside the bottom drum loosely as shown (See Figure 3, Illustration 1). Two holes are provided at the base of the drum into which an M8x20 screw may be inserted from the outside. A leather washer and a nut should be threaded on loosely on the inside. The leather washer should be placed under the blade down against the drum. (See Figure 3, Illustration 2)

Note the arrow labels on your mixer - one on the top drum and one on the bottom. If you have difficulty in correctly positioning the mixing blades, temporarily mount the upper drum on the top of the bottom drum, and rotate the top so the two arrows align.

UPPER DRUM

1. Place the upper drum onto the bottom drum by aligning both the mounting holes, and the labeled arrows. (See Figure 4, Illustration 1 & 2)
2. Insert an M6x16 cross-headed screw into each mounting hole in the rim. Secure each screw from below with a lock washer and nut. Make sure the tightening process is carried out progressively. (See Figure 4, Illustration 3)
3. Secure the mixing blades to the upper drum by inserting two M8x16 cross-headed screws from the outside through the holes in the drum.
4. A leather washer should be positioned inside between the drum and blade. Secure the mixing blade on the inside using a nut. (See Figure 4, Illustration 4)

5. Finally, ensure top and bottom mixing blade mountings are tight.



TIPPING BAR

1. Slide the locking plate over the large diameter shaft (at the "leg side" of the frame) with the rim facing inwards as shown. Insert two M8x25 bolts into the mounting holes, and secure each with a nut and flat washer. (See Figure 5a)



2. Insert the spring into the bar pipe, hold the spring in place with a finger, and place the bar over the larger diameter shaft so the spring stays inside the bar pipe. (See Figure 5b, Illustration 1)
   • Press down on the bar pipe until the holes in the bracket line up with the hole drilled in the shaft. (See Figure 5b, Illustration 2)
   • Insert an M8x55 hex bolt through the hole, place a flat washer on the bolt, and secure with a nut. (See Figure 5b, Illustration 3)
   • Secure the nut against the bracket (do not over-tighten, as this will prevent the bracket from pivoting on the bolt).

     • The bar must be allowed to pivot about the bolt so that the lugs on the bracket can be engaged or disengaged from the slots in the locking plate.



TRANSMISSION & MOTOR

1. Align the pinion shaft with the bushing sleeve in the transmission and slide into place. (See Figure 6, Illustration 1)
2. Align the bolt holes in the frame bracket with the bolt studs and the holes of the lower mount bracket in the motor case and slide into position. (See Figure 6, Illustration 2)

3. Secure the motor case to the frame bracket using four M8 lock nuts. Secure the lower mount bracket to the frame with one M8x60 bolt, two flat washers, and a lock nut. (See Figure 6, Illustration 3)



Yardmax Electric Concrete Mixer YM0046 OPERATION

ELECTRICAL REQUIREMENTS

Confirm that you have a US Standard, 3-pin grounded, Type B, 15AMP (NEMA 5-15) outlet. Check that the electric circuit is grounded, adequately protected, and that it corresponds with the power, voltage, and frequency of the motor.

ELECTRICAL CONNECTION

This mixer is double insulated to Class II protection and IP44D rated. The insulation will only remain effective if the original insulating parts are used for repairs and the spaces between the original insulation are maintained. This mixer is double insulated to Class II protection and IP44D rated. To keep this rating, it is critical that the disassembly and reassembly of the electric control enclosure are performed properly. Only a qualified electrician is allowed to repair the enclosure of electric control.

Double insulation ( [g] ) eliminates the need for the three-pronged, grounded power cord and a grounded power supply system. Double-insulated devices can use either a two- or a three-pronged extension cord.

Warning: Do not connect either cord to the earth pin.

STAKE ON LEVEL GROUND

To secure your YARDMAX concrete mixer during operation, use two longer bolts or stakes through the holes in the front leg of the mixer stand to hold the mixer in place. (See Figure 7) Due to varying ground surfaces, these are not included. Choose the right type of bolt or stake for your surface type or call us for a recommendation.

DRUM TILTING

The spring-loaded tipping bar with locking lugs allows for tipping control of the drum (See Figure 8a), and can be locked in the following positions (see Figure 8b): Loading/Mixing - mortar, Loading/Mixing - concrete, Discharging, and Storage. The drum is locked into the desired position by the lugs on the self-locating tipping bar, which lock into the slots on the locking plate on the mixer frame. (See Figure 8a) To tilt the drum, pull the tipping bar slightly toward you (away from the frame) to disengage the locking lugs. This allows the tipping bar to turn the drum in the desired direction. To lock the drum in position, slightly release the tipping bar (towards the mixer frame) when rotating the drum. The lugs will slide and then lock into the nearest position on the locking plate.

LOADING

Warning: Completely unwind the extension cord. Connect it to the concrete mixer first before plugging in the power supply. Always start the motor before you start loading the drum. The mixer blades should be turning before you start adding the contents. To avoid concrete or mortar sticking to the insides of the mixer drum, slowly pour material into the mixer steadily over the rim.

Note: A built-in thermal protector is installed in the motor to prevent overheating, and will cool automatically as the motor cools.

For best results, always load the mixer in the following order:

1. Add the required amount of gravel into the drum.
2. Add the required amount of cement into the drum.
3. Add the required amount of sand into the drum.
4. Pour the required amount of water into the drum.

EMPTYING

Warning: Do not turn the mixer off (stop rotating arms) if you have content inside the bin. Always empty the drum completely with the mixer arms rotating.

CLEANING

Never put hands or limbs inside the drum while the mixer arms are rotating. Thoroughly clean the mixer at the end of each day's operation. Keep your mixer clean. The slightest trace of material left in the drum will harden and accumulate more each time you use it until the machine no longer will operate. Dried cement should be scraped out of the drum. Do not throw bricks into the mixer drum to clean it out. Do not beat on the drum with a shovel, a hammer or other tools to break up accumulations of dried cement mix, as damage to the mixer may result. The drum may be scoured for approximately 2 minutes, using a 1" gravel and water mixture. Then discharge the gravel/water mixture and hose down the drum assembly inside and out. The IP44D protection class construction of the concrete mixer enables you to hose down the drum assembly safely.

Warning: Do not pour or spray water directly over the motor cover, especially the openings in it.

Caution: Wipe off any external material on the motor cover. Do not use petrol, turpentine, lacquer or paint thinner, dry cleaning fluids, or similar products. The use of chemical products or solvents may affect the properties of the cover which was made of high-density polyethylene PET.

MAINTENANCE

Warning: Ensure the extension cord is always unplugged before the motor cover is removed. The drive belt maintains a constant, even tension provided by the spring-loaded jockey. No adjustment is needed other than an occasional touch of grease on the spindle. The bearings are sealed for life.

Caution: The wiring diagram and parts schematic in this manual are for reference purposes only. Neither the manufacturer nor distributor makes any representation or warranty of any kind to the buyer stating that he or she is qualified to make any repairs to the product, or that he or she is qualified to replace any parts of the product. Only qualified technicians should repair the mixer. Any maintenance and repairs to any of the electric components must be performed by a qualified electrician.

Warning: Parts in a circle should only be fitted by a qualified electrician. Parts in a circle should only be fitted by a qualified electrician.

REPLACING THE BELT

1. Remove the motor. (see Figure 9a)



2. Remove the motor cover. (see Figure 9b, Illustration 1)

3. Turn the idle pulley and pull out the belt. (see Figure 9b, Illustration 2)



4. Assemble the new belt and reattach the cover and motor assembly.

WIRING DIAGRAM

Setup Guide

To operate the Yardmax Electric Concrete Mixer YM0046, follow these steps:

1. Assemble the unit by attaching the wheels, handle, and safety guards according to the user manual.
2. Connect the mixer to a power source using the provided power cord.
3. Fill the drum with the appropriate amount of water and concrete mix.
4. Close and secure the drum using the locking pin provided.
5. Turn on the mixer and slowly increase the speed for even mixing.
6. For safety, always wear protective gear and ensure the work area is free from obstructions.

SAFETY

KNOW YOUR CONCRETE MIXER

Read this manual and all labels to understand your YARDMAX concrete mixer and its limitations and potential hazards.

DRUGS, ALCOHOL, AND MEDICATION

Do not operate your concrete mixer while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

AVOID DANGEROUS CONDITIONS

Secure your concrete mixer on level ground. Keep your work area clean and well-lighted. Cluttered areas may cause injuries. Do not use your concrete mixer in wet or damp areas or expose it to rain. Do not use it in areas where fumes from paint, solvents, or flammable liquids pose a potential hazard.

To prevent the mixer from tipping over, only use or operate the mixer on solid, flat, level ground capable of supporting the weight of both the mixer and its load. Do not attempt to move the mixer when it is loaded and/or in operation. This mixer is intended for the production of concrete, mortar, and plaster. It is not suitable for the mixing of flammable or explosive substances. Do not use it in areas where fumes from paint, solvents, or flammable liquids pose a potential hazard.

INSPECT YOUR CONCRETE MIXER

Check your mixer before turning it on. Keep guards in place and in working order. Do not plug the mixer with the motor cover off. Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive mechanisms. Vibration during mixing may cause these to loosen. Form a habit of checking to see that all the adjusting tools, shovels, hand trowels, and other tools/equipment are removed from the mixer area before turning it on. Replace damaged, missing, or failed parts before using it. Warning labels carry important information. Replace any missing or damaged warning labels.

DRESS PROPERLY

Do not wear loose clothing, gloves, or jewelry (rings, watches) that can be caught in moving parts. Wear protective, non-conductive gloves and non-skid footwear. Pull long hair back or wear a hat to prevent hair from getting caught in the machine.

PROTECT YOUR EYES

Always wear safety glasses. Concrete mixers can throw foreign objects into the eyes, causing permanent eye damage. Everyday glasses do not have impact-resistant lenses and should not replace safety glasses. Z87 rated glasses are recommended.

PROTECT YOUR BODY

Always stand behind the concrete mixer and stay alert.

KEEP VISITORS AND CHILDREN AWAY

Keep unauthorized persons away from the mixer. Do not allow children to handle or climb on or in the mixer.

EXTENSION CORDS

Improper use of extension cords can cause the motor to overheat. Your extension cord should be no longer than 30 feet and a minimum of 12 gauge with a 3-prong grounded plug.

Avoid the use of free and inadequately insulated connections. Connections must be made with protected material suitable for outdoor use. Make sure that any extension cord connections are dry and safe. Ensure that the extension cord is carefully laid out, avoiding liquids, sharp edges, and places where vehicles might run over it. Avoid allowing the extension cord to be trapped underneath the mixer. Unroll it fully or it will overheat and could catch fire.

AVOID ELECTRICAL SHOCK

Do not plug or unplug the motor while standing in or around damp or wet ground. Do not use the mixer in wet or damp areas or expose it to rain. Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator enclosures. Make sure your fingers do not touch the plug's metal prongs when plugging or unplugging the mixer.

Do not touch the electric wires inside the motor cover. For any service, please contact YARDMAX or an authorized service center. Make sure your fingers do not touch the plug's metal prongs when plugging or unplugging the concrete mixer.

WARNING! Stay clear of all moving parts!

DON'T OVERREACH

Keep proper footing and balance at all times when loading or unloading the mixer. Never stand on the mixer. Serious injury could occur if the mixer is tipped or if the moving parts are unintentionally contacted. Do not store anything above or near the mixer where anyone might stand on the mixer to reach them.

AVOID INJURY FROM ACCIDENTS

Keep hands out of the way of all moving parts. Do not place any part of your body or any tool - such as a shovel - in the drum during operation. When operating, do not pass hands through the clearance between the frame and support arm, or through the space between the drum and the support arm.

PROTECT YOUR HANDS

Keep your hands away from all moving parts. Do not place any part of your body in the drum, or under the finger guard, at any time while the motor is on.

DO NOT FORCE TOOL

Do not use the concrete mixer for any other purpose than that for which it was intended. Do not start the motor if the drum is fully loaded. Do not turn the mixer off if it still contains concrete. The mixer is not to be towed.

NEVER LEAVE MACHINE UNATTENDED

Do not leave your concrete mixer until it has come to a complete stop.

DISCONNECT POWER

Unplug your concrete mixer when not in use and before making adjustments, changing parts, cleaning, or servicing. Consult the technical manual before servicing.

PROTECT THE ENVIRONMENT

Take leftover materials to an authorized collection point or follow the stipulations in the country where the mixer is used. Do not discharge into drains, soil, or water.

MAINTAIN YOUR CONCRETE MIXER WITH CARE

Keep your concrete mixer and its parts clean.

CHILDPROOF YOUR WORKSHOP

Store your concrete mixer away from children and others not qualified to use it.
