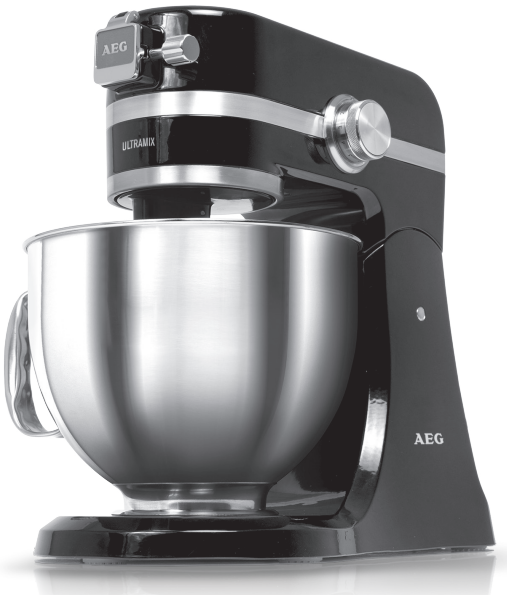

AEG KM4xx UltraMix Stand Mixer

Introduction to the AEG KM4xx UltraMix Stand Mixer

The AEG KM4xx UltraMix Stand Mixer represents a premium kitchen investment for home bakers, cooking enthusiasts, and families who demand professional-grade performance without sacrificing style. This robust stand mixer combines powerful engineering with elegant design, making it an essential addition to any modern kitchen. Whether you're preparing bread for a family of eight, whipping cream for desserts, or tackling heavy dough mixtures, the AEG UltraMix delivers consistent, reliable results that eliminate manual mixing fatigue.

The AEG KM4xx UltraMix Stand Mixer is engineered for durability and versatility, featuring an all-metal construction that ensures longevity and stability during operation. Its powerful motor handles both delicate and demanding mixing tasks with ease, while the innovative planetary stirrer technology guarantees uniform mixing throughout every batch. The inclusion of two stainless steel bowls—a 4.8-liter capacity bowl and a 2.9-liter capacity bowl—allows you to prepare large family meals or smaller portions without compromise.

Ideal for home bakers, pastry enthusiasts, and anyone who regularly prepares dough, batters, and mixed ingredients, this stand mixer caters to both beginners and experienced cooks. The AEG UltraMix is available in multiple attractive finishes, including Watermelon Red and Tungsten Grey, allowing you to match your kitchen décor. Pricing typically ranges from £300 to £400, depending on the specific model variant and retailer, with availability across major UK kitchen appliance retailers and online platforms. The investment pays dividends through years of reliable service and superior mixing performance.

Technical Specifications

Understanding the technical capabilities of the AEG KM4xx UltraMix Stand Mixer helps you maximize its potential and select the right model for your needs.

• Motor Power: 1000W to 1200W depending on model variant (KM4000, KM4100, KM4400, KM4900, KM5560-U)
• Speed Settings: 10 variable speed positions for precise control over mixing intensity
• Bowl Capacity: Primary bowl 4.8 liters with integrated handle; secondary bowl 2.9 liters
• Dimensions: Approximately 21 x 37 x 36 cm (width x height x depth)
• Weight: 10.5kg for optimal stability and durability
• Construction: All-metal body with stainless steel bowls and coated attachments
• Included Attachments: Dough hook (coated), flat beater, wire whisk
• Special Features: LED illumination lights, height-adjustable planetary stirrer, expansion mechanism for optional accessories
• Rubber Feet: Non-slip base prevents movement during operation
• Capacity Rating: Suitable for preparing meals for up to 20 people

The AEG KM4xx UltraMix Stand Mixer's 10-speed motor provides exceptional versatility across mixing tasks. The height-adjustable planetary stirrer ensures that even the tiniest amounts of ingredients are thoroughly incorporated, eliminating the need for manual finishing touches. The expansion mechanism at the front accepts optional attachments, including meat grinders, expanding the mixer's functionality beyond standard mixing applications.

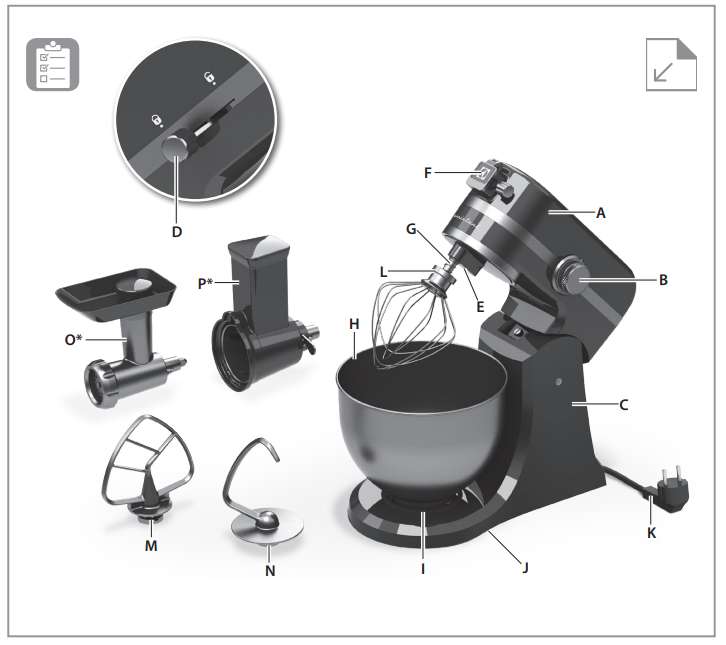

Components

• Motor head (tiltable)
• Speed selector
• Housing
• Tilt head locking lever
• Working light
• Attachment hub
• Attachment shaft
• Stainless steel bowl
• Bowl clamping plate
• Non-slip feet
• Power cord
• Wire whip
• Coated flat beater
• Coated dough hook
• Meat grinder
• Slicer/Shredder

depending on the model

Getting Started

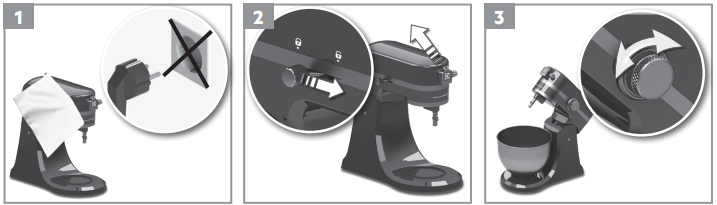

1. Before using the appliance for the first time: Unplug the appliance. The Wire whip, Meat grinder, and Slicer/Shred-der should only be washed by hand in warm soapy water. The bowl, Flat beater, and Dough hook are dishwasher-proof. Clean the motor unit with a damp cloth.
   Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.
2. Place the appliance on a flat surface. Tilting the Motor head up: Move the Tilt head locking lever to “Unlocked” with one hand, tilt the Motor head up with the other hand. Once in the up position, it locks. Warning: Keep fingers and hands away from areas with movable parts.

3. Move the Speed selector to “OFF”. Place the Stainless steel bowl on the bowl clamping plate. Move the bowl clockwise to lock into position. Warning: Never operate an appliance with the attachments, wire whip, flat beater, or dough hook unless the bowl is in place.

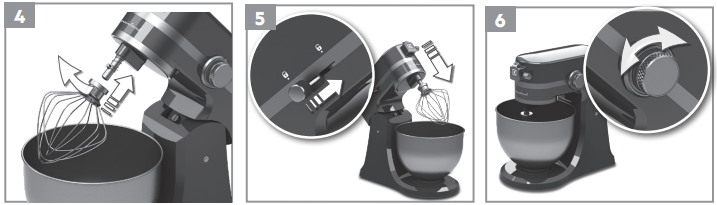

4. Place an attachment on the Attachment shaft: Align the slot at the top of the attachment with the pin on the Attachment shaft. Push the attachment up and turn it counterclockwise until the pin is locked into position. To remove the attachment, move it clockwise and pull off.
5. Tilting the Motor head down: Move the Tilt head locking lever to “Unlocked” with one hand, tilt the Motor head down with the other hand. Insert the plug in the main socket.

6. Move the Speed selector from “OFF” to the desired speed (1-10). Once mixing is complete, turn the Speed selector to “OFF” and unplug the appliance.

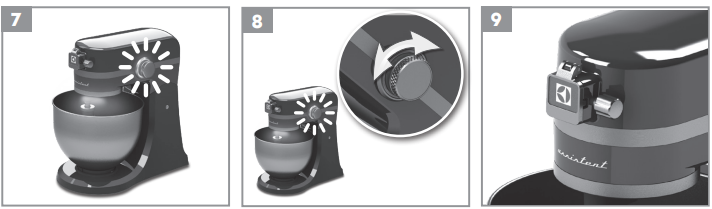

7. Work light and Power indicator light: If the appliance is plugged in and a speed is selected, a blue LED lights up around the Speed selector. A work light will also light up over the working area. If the Speed selector is moved to “OFF”, the working light will automatically shut off after 3 min.
8. Note: If the Speed selector is already turned on before the appliance is plugged in, both the blue Speed selector LED light and the Work light will flash OFF and ON to let you know the Speed selector has been left on. Turn the Speed selector to “OFF,” and the lights will stop flashing. Then resume operating normally.
   OTHER FUNCTIONS

9. Attachment hub: The appliance comes with a built-in multipurpose Attachment hub. Read and carefully follow the instructions that come with each attachment for correct and safe use.

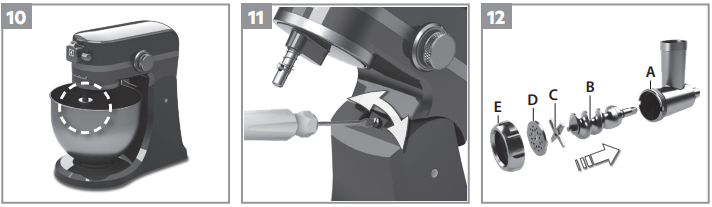

10. Adjusting the Attachment shaft: The appliance is adjusted at the factory so that the Flat Beater clears the bottom of the Bowl. If the Flat Beater hits the bottom of the Bowl or is too far away from the sides, you can adjust it correctly. See 11 for further instructions.
11. Turn the Speed selector to “OFF” and unplug the appliance. Tilt the Motor head back. Use a slotted-point screwdriver to adjust the screw. Turn counterclockwise to raise the Attachment shaft, turn clockwise to lower it.
    HOW TO USE THE MEAT GRINDER

12. How to use the Meat grinder: Insert the Grind screw (B) into the Grinder housing (A). Place the Knife (C) over the square shaft at the end of the Grind screw. Place the Grinding plate (D) (Medium or Coarse) over the Knife.  Tighten the Ring (E) by hand until the Meat grinder is secured.
    Note: Do not over-tighten the ring.

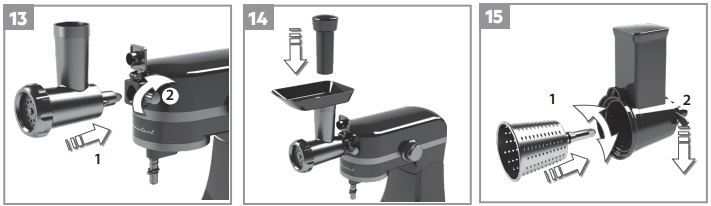

13. Open the Attachment hub lid on the Stand mixer. Fit the Power shaft of the attachment in the Attachment hub socket on the Stand mixer. Rotate the attachment back and forth if necessary. Tighten the Attachment hub knob until the attachment is fully fastened.
    Caution: Before attaching accessories, turn off the appliance and unplug it.
14. Place the Food tray over the Grinder housing. Cut raw meat into small pieces and place it on the Food tray. Plug in the appliance and turn the Speed selector to the desired speed (recommended speed: 6-8). Feed the meat into the Feed chute by using the Pusher.
    Caution: Do not put your fingers or other utensils in the Feed chute. Note: Meat should not contain bones, muscles, or skin.
    HOW TO USE THE SLICER/SHREDDER

15. How to use the Slicer/Shredder: Choose a Slicer or a Shredder knife (Medium or Course). Insert the shaft (square end) of the selected Knife into the Slicer/Shredder housing so the shaft fits into the square hub socket. Secure the Knife by pulling the Locking handle downwards.
    Caution: The blades and inserts are very sharp!

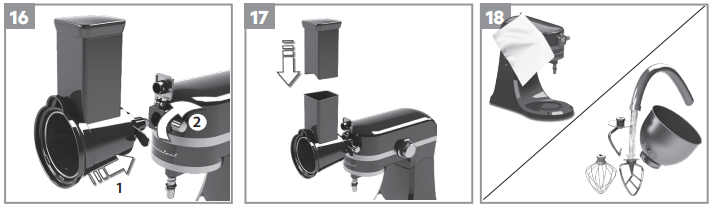

16. Assemble the Slicer/Shredder in the Attachment hub. Place a container under the attachment. Cut the food into
    small pieces. Plug in the appliance and turn the Speed selector to the desired speed (recommended speed: 8).
17. Feed the food into the Feed chute by using the Pusher. When finished using your attachment, turn off the appliance and unplug it. Close the Attachment hub lid and tighten the Attachment hub knob.
    CLEANING AND CARE

18. Unplug the appliance. The Wire whip, Meat grinder*, and Slicer/Shredder* should only be washed by hand in warm soapy water. The bowl, Flat beater,, and Dough hook are dishwasher-proof. Clean the motor unit with a damp cloth.
    Caution: Never immerse the motor unit in water! Let all parts dry thoroughly.



19. Do not use abrasive cleaners or scouring pads when cleaning the appliance.



Enjoy your new AEG product!

Setup and Installation Guide

Preparing your AEG KM4xx UltraMix Stand Mixer for first use requires careful attention to ensure optimal performance and longevity.

• Initial Unboxing and Inspection: Carefully remove the mixer from its packaging and inspect all components for damage. Verify that you have received both mixing bowls, all three standard attachments (dough hook, flat beater, and wire whisk), and the main mixer unit. Check the power cord for any visible damage before plugging the unit into an electrical outlet.
• Positioning Your Mixer: Place the AEG KM4xx UltraMix Stand Mixer on a clean, level, stable work surface away from the kitchen edge. The non-slip rubber feet on the base prevent unwanted movement during operation. Ensure adequate clearance above the mixer for comfortable bowl and attachment removal. Position the unit near a power outlet to avoid extension cord hazards.
• Bowl and Attachment Assembly: Insert the larger 4.8-liter stainless steel bowl into the base unit until it locks securely in place. Select your desired attachment based on your mixing task—use the flat beater for general mixing and cakes, the dough hook for bread and pizza dough, and the wire whisk for whipping cream and meringues. Insert the selected attachment into the motor arm until it clicks into position. Tilt the motor arm upward to access the bowl.
• Safety Precautions: Always ensure the mixer is switched off and unplugged before changing bowls or attachments. Never insert hands or utensils into the bowl while the motor is running. Keep long hair and loose clothing away from rotating attachments. Allow the motor to come to a complete stop before removing the bowl or changing speed settings.

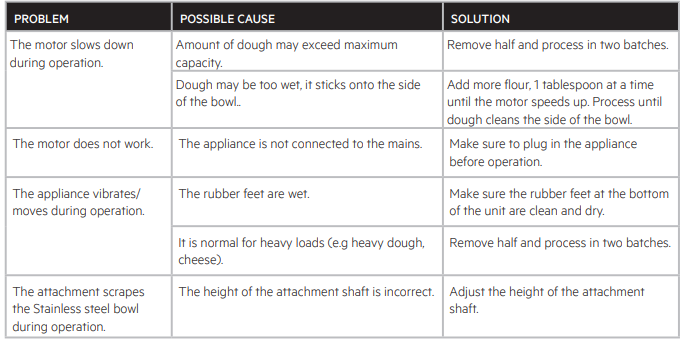

Troubleshooting Common Issues

The AEG KM4xx UltraMix Stand Mixer is engineered for reliability, but understanding common issues helps you maintain peak performance.

• Mixer Wobbles During Operation: This is normal with full loads on the dough hook. The chunky, firm construction ensures stability despite minor movement. Verify that the mixer is positioned on a level surface and that the rubber feet are clean and undamaged. If wobbling seems excessive, check that the bowl is fully secured in the base unit.
• Incomplete Mixing or Unmixed Ingredients: The height-adjustable planetary stirrer should incorporate all ingredients thoroughly. If portions remain unmixed, adjust the stirrer height using the control mechanism, or select a higher speed setting. Ensure you're not exceeding the bowl's capacity limits. For very thick doughs, pause mixing and manually redistribute ingredients, then resume.
• Motor Not Starting: Verify that the power cord is securely plugged into a functioning electrical outlet. Check that the motor arm locking lever is properly engaged. Ensure the bowl is fully inserted and locked before operation. If the motor still fails to start, the unit may require professional service.
• LED Lights Not Illuminating: The LED illumination lights may have burned out after extended use. This does not affect mixer functionality. Contact AEG customer support for replacement bulb specifications and installation instructions.
• Warranty and Support: The AEG KM4xx UltraMix Stand Mixer typically includes a manufacturer's warranty covering mechanical defects. For support, contact AEG customer service or your authorized retailer. Retain your purchase receipt and product manual for warranty claims. Professional repair services are available through AEG service centers.

Advantages and Disadvantages

Key Advantages:

• Exceptional Durability: All-metal construction with stainless steel components ensures the mixer withstands years of regular use without degradation
• Powerful Performance: The 1000W to 1200W motor handles both delicate and heavy mixing tasks with consistent power and minimal strain
• Dual Bowl System: Two stainless steel bowls (4.8L and 2.9L) provide flexibility for family-sized batches or smaller portions
• Uniform Mixing Technology: The height-adjustable planetary stirrer ensures thorough incorporation of all ingredients without manual intervention
• Expandable Functionality: Optional attachments, including meat grinders, extend the mixer's capabilities beyond standard mixing
• LED Illumination: Built-in LED lights illuminate the bowl, allowing you to monitor mixing progress clearly
• Stable Operation: Non-slip rubber feet and a heavy base prevent unwanted movement during operation
• Excellent Value: The comprehensive package delivers professional-grade performance at a reasonable price point

Potential Disadvantages:

• Significant Weight: At 10.5kg, the mixer requires dedicated counter space and is not easily portable for storage
• Minor Wobbling: Full loads on the dough hook produce noticeable wobbling, though this is normal and does not indicate a malfunction
• Limited Speed Feedback: The 10-speed selector operates without a digital display, requiring familiarity with speed positions
• Optional Accessories Cost Extra: Meat grinders and other expansion attachments are not included and require additional purchase.

Authentic Customer Reviews and Feedback

Real users consistently praise the AEG KM4xx UltraMix Stand Mixer for its robust construction and reliable performance. One experienced user noted the mixer's exceptional durability, comparing it favorably to a previous basic mixer that lasted 23 years, stating,, "This is an upgrade of the highest order." Families report successfully preparing large batches for households of eight people in single mixing cycles, with the 4.8-liter bowl capacity eliminating the frustration of working with undersized mixing vessels.

Users particularly appreciate the comprehensive package value, highlighting the inclusion of two mixing bowls and three standard attachments as evidence of genuine customer consideration. The LED illumination feature receives consistent praise for its practical functionality, allowing users to monitor mixing progress without stopping the machine. The planetary stirrer's effectiveness generates enthusiastic feedback, with customers noting that nothing is left unmixed at the bowl's edges.

Common praise focuses on the mixer's solid construction, powerful motor, and ability to produce light, fluffy results—particularly for baking applications. Users report that the machine reduces manual effort significantly, eliminating arm muscle fatigue associated with hand-mixing. The attractive design and available color options make it a welcome kitchen addition rather than a purely utilitarian appliance. Overall satisfaction ratings consistently reflect a strong recommendation for families and serious bakers seeking reliable, durable stand mixer performance.

Final Recommendations

The AEG KM4xx UltraMix Stand Mixer represents an excellent investment for anyone who regularly prepares dough, batters, and mixed ingredients. Its combination of powerful performance, durable construction, and thoughtful design makes it suitable for families, home bakers, and cooking enthusiasts. The dual bowl system and expandable functionality ensure long-term value and adaptability to evolving kitchen needs. Whether you're a beginner seeking an entry-level stand mixer or an experienced baker wanting reliable performance, the AEG UltraMix delivers consistent results that justify its premium positioning in the stand mixer market.
