Setup: Aeg LA-10 Air and Energy Station User Manual

Introduction to the aeg LA-10 Air and Energy Station

The aeg LA-10 Air and Energy Station is a cutting-edge solution designed for efficient air management and energy savings in residential and light commercial environments. Combining advanced air purification with energy-efficient operation, this station offers users improved indoor air quality while minimizing electricity consumption. Its compact and modern design suits homes, offices, and small industrial spaces, making it a versatile choice for those seeking better climate control and energy optimization.

Key benefits include integrated air filtration, real-time energy monitoring, and smart connectivity features that allow users to manage the device remotely via mobile applications. The station is engineered to reduce environmental impact by cutting energy usage up to 15%, contributing to lower utility bills and a smaller carbon footprint. Its user-friendly interface and low maintenance requirements make it accessible even for non-technical users.

Targeted towards environmentally conscious consumers, facility managers, and tech-savvy homeowners, the aeg LA-10 offers practical use cases such as improving air quality in living rooms, enhancing energy efficiency in office spaces, and supporting sustainable building initiatives. With an estimated price range of $500 to $700 depending on retailer and region, the product is widely available through authorized dealers and online platforms.

Specifications of the aeg LA-10 Air and Energy Station

• Airflow Capacity: Up to 350 cubic meters per hour, suitable for medium-sized rooms
• Energy Efficiency Class: Class A, achieving up to 15% energy savings compared to standard units
• Filtration System: Multi-stage filter including HEPA and activated carbon for particulate and odor removal
• Power Consumption: Approximately 65 watts during operation
• Connectivity: Wi-Fi enabled for smart home integration and remote control via mobile app
• Noise Level: Low noise operation at 35 dB on the lowest setting
• Dimensions: Compact footprint — 40 cm (W) x 30 cm (D) x 50 cm (H)
• Additional Features: Real-time air quality sensors, energy consumption dashboard, timer, and automatic mode
• Safety Ratings: IP44 rating for splash resistance and certified to CE and UL standards

Compared to similar products, the aeg LA-10 stands out by integrating both air purification and energy management in one unit, whereas competitors often require separate devices. Its IE4 class motor technology ensures high performance with reduced power loss, positioning it above average in efficiency benchmarks.

Features

• Powerful compressor for conveniently
  inflating vehicle and bicycle tyres, balls, etc.
• Manometer ring with adjustable air pressure guide adjustable on the manometer ring
• Built-in storage battery for portable use
• Portable 12 V power source (vehicle outlet)
• Practical LED light for use at twilight and at night
• Charge indicator
• Accessories: 230 V / 12 V charging mains adapter plus 3 valve adapters for inflating balls, bicycle tyres and recreational products
• Practical storage for cable, plug and accessories

Setup Guide for the aeg LA-10 Air and Energy Station

1. Unbox the aeg LA-10 and place it on a stable, flat surface in the desired room, ensuring clearance of at least 15 cm from walls for optimal airflow.
2. Connect the power cable to a grounded electrical outlet matching the specified voltage (230V AC).
3. Power on the device using the main switch located on the rear panel.
4. Download the aeg SmartAir app from your device’s app store and create an account following the in-app prompts.
5. Enable Wi-Fi on the station by holding the connectivity button for 3 seconds until the indicator blinks.
6. Follow the app instructions to pair the device with your home network and complete setup.
7. Configure operation modes—choose between manual, automatic air quality control, or energy-saving timer modes.
8. Check filters for installation and ensure the filter replacement indicator is reset via the app.

Safety precautions: Avoid placing the unit near heat sources or in direct sunlight. Do not use the station outdoors or in excessively humid environments.

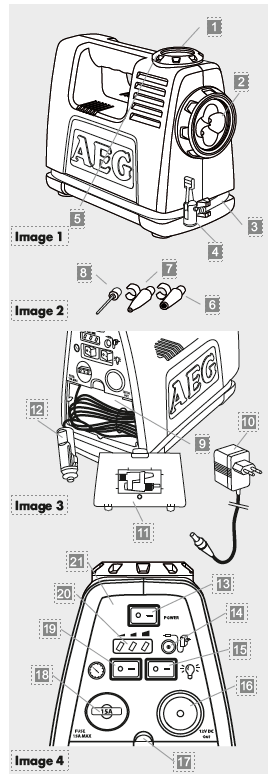

1. Manometer, indicates the air pressure to max. 10 bar / 145.03 PSI (bar and PSI are pressure units, 1 Bar = 14.50 PSI) and dial light
2. Light with 4 LEDs\
3. Compressed air hose, stored inside the lower housing recess
4. Automotive valve connector with valve quick disconnect
5. Adjusting ring for marking a specific air pressure value
6. 1 Valve adapter approx. 8.0 mm in diameter
7. 1 Valve adapter approx. 4.5 mm in diameter
8. 1 Valve adapter approx. 2.0 mm in diameter (ball needle)
9. Storage compartment for 12 V vehicle plug with cable and 230 V charging mains adapter.
10. 230 V charging mains adapter
11. Cover for the valve adapter storage compartment
12. 12 V vehicle plug with cable and 15 A
13. (Ampere) fuse
14. O / I, On / Off power switch
15. Receptacle for the charging mains adapter O / I, On / Off light switch for LEDs
16. 12 V automotive jack with cover
17. Storage compartment clip closure; press clip down to open
18. Fuse15 A (Ampere)
19. O / I, compressor On / Off switch
20. LEDs indicating the battery capacity of the storage battery during operation as well as whilst charging.
    1. Green LED = Storage battery fully charged. Yellow LED = Storage battery charged halfway
    2. Red LED = Storage battery almost empty, must be recharged.

21. Housing unit for control elements.



SAFETY INSTRUCTIONS

• Keep the unit away from children and adolescents under age. Children and adolescents under age 16 do not understand or recognise the potential dangers of electrical devices. Keep the unit out of the reach of children. Small parts could be swal-lowed by children, possibly resulting in suffocation. Children and adolescents could become injured when using the unit. Also keep the packaging away from children.
• Please retain the operating instructions for the life of the unit.
• Do not expose the unit to mechanical stress, high temperatures, oils, greases, solvents, moisture or shock!
• Only operate the unit if no damage or malfunctions of the unit, cables or accessories are present!

Attention: risk of property damage and injuries!

• Avoid using the unit near open fire or explosive areas.
• Verify all plugs, power cables, and the unit are dry. Never touch or operate the unit with moist or wet hands!
• Check the unit for damage before every use. Do not use a defective unit!

In emergencies

• Secure the accident area and protect the injured and all other individuals from further injuries.
• Perform the necessary first aid for personal injuries.
• When requesting help or emergency calls (doctor, fire department, police) provide the following information:
  • Accident location (if necessary, description of the environment)
  • Type of accident
  • Number injured
  • Types of injuries

OPERATION

Powering the unit On/Off

• Set the On / Off switch to ( I ). The unit is now operational and the manometer lighting is activated. The LED lights indicate the current capacity of the storage battery.
• In operational mode the 12 V vehicle outlet is powered.
• To switch the unit off set the On / Off switch to ( O ).

Automatic start warning!

On / Off switch for compressor power is set to ( I ) before switching the unit on, the compressor will automatically start and compressed air will be supplied to the compressed air hose. Risk of property damage and personal injury!

Operating the lighting

• Set the On / Off switch to ( I ). The unit is now operational.
• To turn the lighting on set the lighting On / Off switch to ( I ).
• To turn the LED lights off set the light switch to ( O ).
• To power the unit off set the On / Off switch to ( O ).

Operating the compressor

The unit can be operated with the built-in storage battery or the built-in 12 V vehicle plug.

Attention! Always wear suitable ear protectors and safety goggles during operation!.

Check the unit and compressed air hose for damage before every use! Do not operate damaged units! Review the manufacturer instructions for the item to be inflated before every use. Select the appropriate valve adapter. Open the valve quick disconnect by pressing the quick disconnect lever away from the compressed air hose . Now attach the valve adapter and press the lever toward the compressed air hose to close it.

Do not operate the compressor for more than 10 minutes. After this time, allow the unit to cool down for 10 minutes!

• No valve adapter required to inflate car tyres. First, remove the cap from the tyre valve.
• Open the quick disconnect and attach the automotive valve plug as far as possible onto the tyre valve. Close the valve quick disconnect when doing so.
• Verify the automotive valve lever plug is firmly attached to the tyre valve by carefully pulling on it.

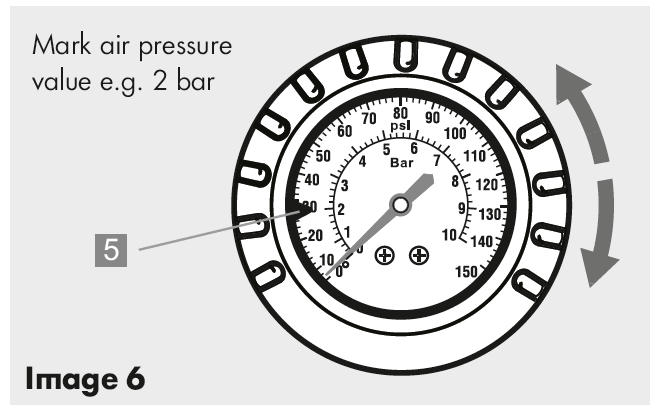

• As a guide, set the arrow marker on the manometer adjusting ring to the desired air pressure value
• Set the On / Off switch to ( I ). The unit is now operational.
• To activate the compressor, set the compressor On/Off switch to ( I ).

Note: the compressor can be switched off at any time by setting the compressor swit or the operating switch to ( O ).

• Once the air pressure marked on the adjusting ring has been reached, switch the compressor off using the compressor switch . To do so, set the compressor switch to ( O ).
• To switch off the unit, the operating switch on the unit must be switched off.
• Open the valve quick disconnect and remove the auto valve connector from the tyre valve.
• Also check the air pressure with a second pressure gauge to determine the accurate value. Repeat the process if the desired air pressure has not been reached.

• Then replace the valve cap on the tyre valve. Inflating sporting goods, toys and recreational products.



Do not operate the compressor for more than 10 minutes. After this time, allow the unit to cool down for 10 minutes!

• First read the product manufacturer's instructions for inflating and the approved maximum air pressure before inflating the product. Open the product's valve cover.

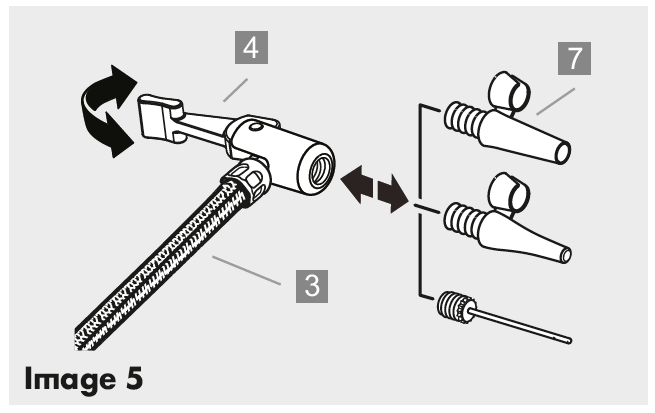

• Using the valve quick disconnect, secure the correct valve adapter and press it into the item's valve. If the valve adapter detaches from the valve whilst inflating, use your hand to press it into the valve whilst inflating.
• Verify the valve adapter is securely connected to the valve by carefully pulling on it.
• As a guide, set the arrow on the manometer adjusting ring to the desired air pressure value.
• Set the operating switch to ( I ). The unit is now operational.
• To activate the compressor, set the compressor switch on the compressor to ( I ).

Note: the compressor can be switched off at any time by setting the compressor switch or the operating switch to ( O ).

• Observe and check the firmness of the item whilst inflating. If the item has already been overinflated, immediately interrupt the process and switch the compressor off!

Attention! Excessive air pressure may cause the item to burst! Risk of personal injury and property damage!

• Once the air pressure marking on the adjusting ring has been reached, use the compressor switch to power the compressor off.
• Remove the valve adapter from the item's valve and close the item's valve cap.

Non-binding pressure guidelines

• Automotive tyre approx. 1.9 – 3.5 bar
• Trailer tyre approx. 2.4 – 3.4 bar
• Motorcycle tyre approx. 1.7 – 2.9 bar
• Bicycle tyre approx. 2.0 – 4.0 bar
• Football approx. 0.6 – 1.1 bar
• Volleyball approx. 0.18 – 0.22 bar

Attention! Please note the manufacturer specifications for the item. Do not use the compressor to inflate swimming aids!

Charging the storage battery

Charging with a 230 V charging mains adapter

The storage battery should be fully charged prior to first use.

• Connect the small round plug on the charging mains adapter to the receptacle .
• Plug the charging mains adapter into a 230 V power socket.
• Set the operating switch to ( I ). The unit will now switch to charging mode.
• The LED display will light up, and the blinking LED will indicate the current storage battery capacity. The charging time is approx. 10 - 12 hours. The green LED must stay on when the storage battery is fully charged.
• After charging, use the operating switch to power the unit off and disconnect the 230 V charging mains adapter from the unit and the 230 V outlet.

Note! Do not operate the compressor or the light whilst charging!

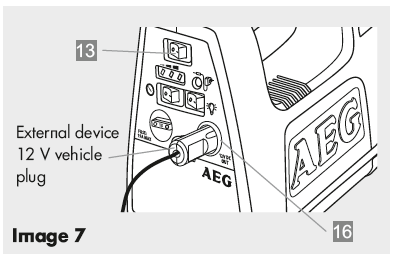

Using the 12 V vehicle outlet

• Remove the cover from the 12 V vehicle jack.
• Connect the 12 V vehicle plug of the external device to the unit's 12 V vehicle jack.
• Set the operating switch to ( I ).
• The unit's 12 V vehicle jack is now live, and the connected 12 V external device can be operated.

• After using the external device, unplug the 12 V vehicle plug from the 12 V vehicle jack on the unit.



Replacing fuses

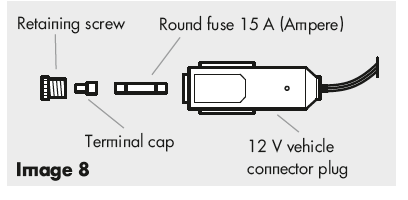

12 V Vehicle plug

• Unscrew the retaining screw.
• Remove the terminal cap and the 15 A (Ampere) round fuse.

• Assemble all parts with the new 15 A fuse in the order shown and replace the retaining screw

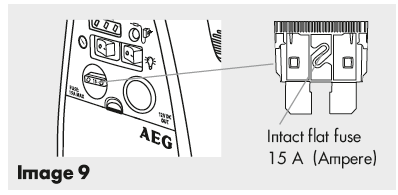

Fuse

• Using a pair of flat-nose pliers, carefully pull the flat fuse inside the housing unit for the controls.

• Replace the defective fuse with a new 15 A flat fuse by carefully pushing the new fuse into the fuse holder with your thumb until it is flush with the unit housing.



MAINTENANCE AND CARE

• Warning! Power off the unit using the operating switch and disconnect it from the 230 V charging mains adapter before cleaning.
• Clean the unit with a dry cloth. Do not use liquids or harsh cleaners as these may cause discolouration and damage the unit´s surface, and possibly damage the unit! Do not allow liquids to enter the unit! Do not immerse the unit in liquids! Only operate the unit when dry.
• Only keep/store the unit in dry environ-ments! Moisture can damage the unit's electronics!
• Do not store the unit in extreme temperature fluctuations! This will result in condensation, which can damage the electronics!

Troubleshooting Common Issues with the aeg LA-10 Air and Energy Station

• Device won’t power on: Confirm the power outlet is functioning and the cable is securely connected; check the fuse or circuit breaker.
• Wi-Fi connection errors: Restart the device and router; ensure firmware is up-to-date; move closer to the router if signal is weak.
• Reduced airflow: Clean or replace filters as indicated by the maintenance alert; remove any obstructions near vents.
• Error codes: E01 indicates filter replacement is required; E02 signals sensor malfunction—contact support.
• Preventive measures: Regular filter maintenance every 3-6 months and firmware updates via the app enhance longevity and performance.

The AEG LA-10 comes with a 2-year manufacturer warranty covering defects and hardware failures. For assistance, users can contact aeg customer support via email at support@aeg.com or by phone at 1-800-AEG-HELP.

WARRANTY AND  SERVICE

Please contact your retailer or a qualified professional for damage, repairs or other product issues.
The general warranty terms pertain to defects in manufacturing and material defects. Please return defective products to the retailer.
To ensure speedy processing of your claim, you will also need:

• A copy of the receipt of purchase indicating the date of purchase.
• Reason for the return (description of the error.

Pros & Cons of the aeg LA-10 Air and Energy Station

• Pros:
  • Efficient dual-function design combining air purification and energy savings
  • Smart connectivity with intuitive mobile app controls
  • Quiet operation suitable for bedrooms and offices
  • Compact and aesthetically pleasing design
  • Certified safety standards and durable build quality
• Cons:
  • Price point is slightly higher than basic air purifiers without energy monitoring
  • Wi-Fi setup can be challenging in congested network environments
  • Replacement filters may have limited availability in some regions
  • Not intended for large industrial spaces due to airflow limits

Overall, the aeg LA-10 Air and Energy Station offers excellent value for users prioritizing both indoor air quality and energy efficiency, positioning it competitively against alternatives that often lack integrated energy management.

Customer Reviews & Feedback on aeg LA-10 Air and Energy Station

Users consistently praise the aeg LA-10 for its effective air filtration and noticeable reduction in energy consumption, often highlighting the convenience of smart app controls. Many report improved indoor comfort, especially in allergy-prone environments. The unit receives an average rating of 4.5 out of 5 stars across major retail platforms.

Common complaints include initial Wi-Fi connectivity difficulties and the cost of replacement filters. Some users recommend purchasing directly from authorized dealers to ensure warranty coverage and genuine parts. Despite minor issues, most customers strongly recommend the aeg LA-10 Air and Energy Station for households seeking reliable air quality improvement combined with energy savings.
