Introduction

Modern homes will find the Agaro Oven Toaster Griller Marvel 19L to be a useful and small kitchen gadget. Its 19-liter capacity and strong 1280-watt heating element allow for effective baking, grilling, toasting, and frying. Six different heating settings, a 60-minute timer, and temperature control up to 250°C in the oven provide accuracy and ease of use for your cooking chores. With rotisserie set, oven rack, and bake pan among other necessary accessories, it offers a whole solution for different cooking requirements. Any kitchen would be better off with the Agaro Marvel 19L because of its practicality and user-friendly design.

TECHNICAL SPECIFICATIONS

• Capacity: 19L
• Wattage: 1280 Watts
• Rated Power: 230V/50Hz
• Timer: 60 Min.
• Temperature control up to 250°C
• Auto shut off and ready bell

Agaro Oven Toaster Griller Marvel 19L ACCESSORIES

• Bake Pan
• Oven Rack
• Tray Handle
• Rotisserie Rod
• Rotisserie Handle

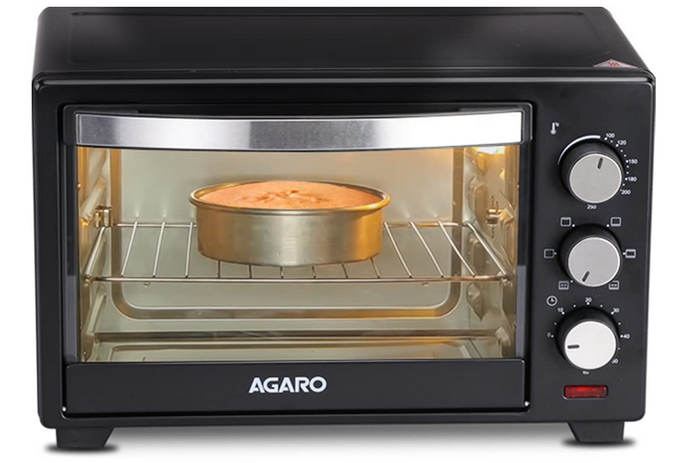

KNOW YOUR PRODUCT

1. Indicator Light
2. Timer
3. Function Knob
4. Temperature Knob
5. Door Handle
6. Oven Rack
7. Bake Pan
8. Tray Handle
9. Heating Rods
10. Rotisserie Rod
11. Rotisserie Handle

OPERATION SELECTOR DIAL

1. OFF
2. Top Heating
3. Bottom Heating
4. Top & Bottom Heating
5. Bottom Heating and Rotisserie
6. Top & Bottom Heating and Rotisserie

TIMER DIAL

• When the timer is turned on, the inside lamp is ON.
• When the timer is turned off, the inside lamp is OFF.
• It sets time up to 60 minutes as per recipe requirement.

Description

Superior stainless steel used to make the Agaro Oven Toaster Griller Marvel 19L guarantees longevity and durability. You may set the oven's thermostat to up to 250 degrees Celsius and its timer to run for up to 60 minutes. Along with a removable crumb bin for simple cleaning, the product has a see-through glass window and a cool-touch handle. Tongs, a grill rack and a baking sheet are included with the oven toaster griller.

HOW TO USE Agaro Oven Toaster Griller Marvel 19L

• Turn the temperature knob clockwise to the desired temperature.
• Turn the function knob to the desired position.
• Turn the timer dial clockwise to set the desired cooking time.
• The power light will light up once the timer is turned on and will turn off when the timer is turned to OFF.
• When the cooking time is over, the timer unit will auto shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.
• When used for the first time, there might be some light smoke coming out from the oven which is normal. After 5-10 minutes the smoke will disappear automatically.
• In order to get better cooking performance, it is recommended to pre-heat the oven for about 10-15 minutes.

ROTISSERIE USE

• Place one skewer through the pointed end of the spit, making sure the points of the skewer face towards the spit's pointed end. Slide the skewer towards the square end of the spit.
• Insert the spit directly through the center of the food which you want to roast.
• Put the other skewer through the pointed end of the spit, making sure the points of the skewer face the spit's square end.
• Put the two skewers into the food, then secure both skewers with the thumbscrews.
• Make sure the food is centered on the spit.
• Insert the pointed end of the spit into the drive socket, making sure the square end of the spit rests on the spit support.
• Plug in the oven.
• Set the thermostat to the desired temperature.
• Turn the timer to the desired cooking time. The power indicator will light up.
• Set the function knob as per your cooking requirement.
• Once the cooking is done, the ready bell will ring.
• After the oven is cooled down, place the hooks of the rotisserie handle under the grooves on both sides of the spit. Lift the right side of the spit first, move it towards the right side a little bit, so that the left side of the spit goes out of the drive socket. Then carefully move out the roasted food from the oven.
• Take the food off the spit.
• Switch off the oven after use.

GRILLING

• Turn the function knob to the top heating position.
• Set the temperature knob to the desired temperature.
• Set the timer to the desired time.
• When the cooking is done, turn back the timer to OFF to turn off the oven.

Setup Guide

To operate the Agaro Oven Toaster Griller Marvel 19L, follow these steps:

1. Plug in the appliance and turn the thermostat control to the desired temperature.
2. Place the baking tray or grill rack inside the oven, depending on what you are cooking.
3. Put the food items on the tray or rack, making sure they are not overcrowded.
4. Close the oven door and set the timer.
5. Once the cooking is done, turn off the oven and wait for it to cool down before removing the food.

MAINTENANCE AND CLEANING

• Unplug the appliance and allow it to cool before cleaning.
• All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.

Caution

• Close supervision is necessary while using the appliance near children.
• Do not immerse the power cord, plug, or any part of the appliance in water or other liquids.
• Do not let the power cord hang over the edge of the table or counter.
• Do not operate the appliance with a damaged power cord or plug.
• While using the oven, keep at least four inches of space on all sides of the oven to allow adequate air circulation.
• To disconnect, turn the control to OFF before removing the plug.
• Extreme caution must be maintained while moving the appliance containing hot oil or food.
• Do not cover any part of the oven to prevent overheating of the oven.
• Do not use any accessories other than those recommended by the manufacturer.
• This appliance is for HOUSEHOLD USE only.
• The glass door is heavy. Please hold the handle until the door is completely open. Do not let the door fall itself.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given enough supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Troubleshooting

Here are some common problems and solutions for the Agaro Oven Toaster Griller Marvel 19L:

• Problem: The oven is not heating up.
  Solution: Check if the appliance is properly plugged in and the thermostat control is set to the right temperature.
• Problem: The food is not cooking evenly.
  Solution: Make sure the food items are evenly distributed on the tray or rack, and rotate them halfway through the cooking.
• Problem: The oven is smoking.
  Solution: This could be due to overheating or burning of food particles. Turn off the oven and let it cool down before cleaning the inside.

Pros & Cons

Pros

• Spacious capacity
• Adjustable thermostat and timer
• Cool-touch handle and see-through glass window
• Removable crumb tray
• Comes with baking tray, grill rack, and tongs

Cons

• May take some time to heat up
• The exterior can get hot during use
• May not cook large items evenly

Customer Reviews

Customers have given positive reviews for the Agaro Oven Toaster Griller Marvel 19L, praising its spacious capacity, adjustable temperature, and easy-to-clean design. However, some have complained about the uneven cooking of large items and the exterior getting hot during use.
