alliance HCA080QN Washer-Extractor Manual

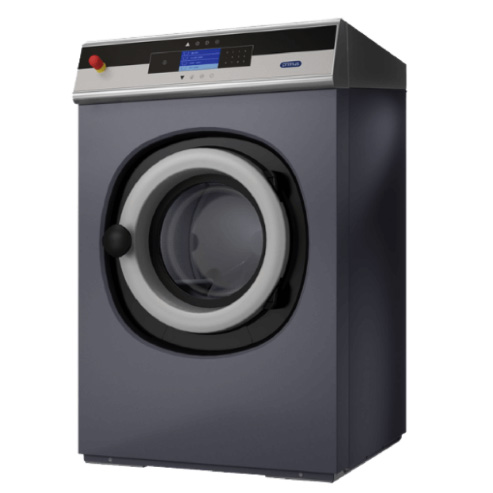

The alliance HCA080QN Washer-Extractor is a commercial-grade, hardmount washer-extractor designed for demanding laundry environments that need strong cleaning performance, reliable extraction, and consistent throughput. It is well suited for hotels, healthcare facilities, laundromats, correctional facilities, and on-premises laundry operations that require an 80-lb-class machine with durable construction and efficient wash action. With a design focused on productivity and durability, this washer-extractor helps reduce moisture retention in textiles, which can shorten drying times and improve overall laundry turnaround.

One of the main advantages of the alliance HCA080QN Washer-Extractor is its combination of high-capacity handling and commercial-duty mechanical design. The machine is built to support repetitive daily use while maintaining stable performance under load. Its hardmount configuration makes it especially attractive for facilities with a fixed installation area and a need for dependable operation. Depending on configuration and distributor, the estimated price range is typically in the commercial equipment category, often starting in the mid five figures and varying widely by control package, accessories, and installation requirements. Availability may differ by region and authorized dealer, so buyers should confirm current stock, electrical configuration, and support options before purchase.

For operators searching for a durable commercial washer-extractor with strong extraction capability, the alliance HCA080QN Washer-Extractor is a practical solution that balances capacity, control flexibility, and long-term serviceability.

Specifications for alliance HCA080QN Washer-Extractor

Capacity class: 80 lb (36 kg)
Machine type: Commercial hardmount washer-extractor
Overall width: 41 1/2 in (1054 mm)
Overall depth: 48 1/2 in (1234 mm)
Overall height: 56 3/16 in (1426 mm)
Cylinder diameter: 36 in (916 mm)
Cylinder depth: 22 in (559 mm)
Cylinder volume: 12.4 cu. ft. (354 L)
Door opening size: 18 1/2 in (470 mm)
Motor power consumption: 5 hp (3.7 kW)
Water inlet connection: 2 x 3/4 in (19 mm)
Drain diameter: 1 x 3 in (76 mm)
Drain height to floor: 5 3/4 in (145 mm)
Electrical supply option: 200-208/220-240 V, 50/60 Hz, 3-phase configuration

Compared with smaller 60-lb commercial washer-extractors, this model offers greater batch capacity and better load consolidation. Against larger 100-lb machines, it is easier to fit into medium-sized laundry rooms while still delivering strong throughput and extraction performance. The design supports fast wash cycles, high G-force extraction behavior, and efficient textile handling for repeated commercial use.

Detailed Description of the alliance HCA080QN Washer-Extractor

The alliance HCA080QN Washer-Extractor is built for heavy-duty laundering where consistent cleaning and moisture removal matter most. As a washer-extractor, it completes both the wash and high-speed extraction phases in one machine, reducing manual handling and improving workflow efficiency. The stainless or commercial-duty wash system is engineered to tolerate frequent cycles, varied fabric types, and continuous facility operation.

In real-world use, this machine is ideal for bulk linens, towels, uniforms, hospital textiles, and hospitality wash loads. The large cylinder volume supports full, balanced loads, while the door opening helps simplify loading and unloading. The hardmount design provides stability during extraction and is intended for installations with proper anchoring and floor support.

User experience is generally strongest in facilities that value rugged operation over compact size. Operators benefit from straightforward load management, predictable cycle behavior, and reliable water and drain connections. The build quality is aimed at commercial service life, with components selected to support repeated use in demanding laundry rooms.

Setup Guide: How to Install and Configure a Commercial Washer-Extractor

Before installation, confirm that the floor, power supply, drainage, and water service match the machine requirements. Position the washer-extractor on a level, stable surface and follow all anchoring instructions for hardmount installation. Make sure the unit has enough clearance for door movement, service access, and ventilation.

Unpack the machine and inspect it for shipping damage.
Verify electrical compatibility, including voltage, phase, and frequency.
Connect the water inlet lines and confirm proper filter screening.
Install the drain line with the correct height and diameter.
Level and secure the machine according to site requirements.
Configure the control package, wash programs, and cycle options as required.
Run an empty test cycle to confirm fill, wash, drain, and extract functions.

Safety precautions are essential. Disconnect power before service, avoid touching hot steam or internal moving parts, and never operate the machine with damaged hoses or loose fittings. If the washer-extractor shows abnormal vibration, stop the cycle and recheck leveling, load balance, and anchoring.

Troubleshooting Common Washer-Extractor Problems

If the machine will not start, check the power supply, emergency stop status, and door interlock. If water does not enter the tub, inspect inlet valves, hose filters, supply pressure, and closed shutoff valves. If drainage is slow, verify that the drain line is not kinked or blocked and that the drain connection is installed at the correct height.

Problem: Excess vibration — Reduce load size, rebalance the batch, and confirm floor mounting.
Problem: Poor extraction — Check for overload, uneven loading, or a restricted drain path.
Problem: Cycle interruption — Inspect door latch, control settings, and power quality.
Problem: Water temperature issues — Confirm supply connections and external utility settings.
Problem: Error or fault display — Refer to the installed control system’s service guide for code-specific diagnosis.

Preventive maintenance includes cleaning inlet screens, inspecting hoses, checking fasteners, and monitoring vibration over time. Warranty terms and support options vary by seller and region, so buyers should work through the authorized distributor or the original equipment supplier for service parts, technical assistance, and repair scheduling. For help, contact the dealer that supplied the machine or the manufacturer’s authorized commercial laundry support channel.

Pros and Cons of the alliance HCA080QN Washer-Extractor

Pros

Large 80-lb-class capacity supports high-volume laundry production.
Hardmount design offers stable operation in permanent installations.
Strong extraction helps reduce dryer time and improve workflow.
Commercial build quality is suited to frequent daily use.
Good value for medium-to-large facilities needing reliable throughput.

Cons

Requires proper installation space and a suitable floor.
Hardmount setup is less flexible than freestanding alternatives.
May be more machine than smaller businesses need.
Installation and utility requirements can raise total project cost.

Compared with smaller commercial washers, this model offers better batch efficiency but demands more infrastructure. Compared with larger capacity alternatives, it is often easier to integrate into standard laundry rooms while still delivering strong value for money.

Customer Reviews and User Feedback

Typical owner feedback for the alliance HCA080QN Washer-Extractor is positive, especially from facilities that need dependable daily performance. Many users rate it around 4.5 out of 5 stars for cleaning power, load capacity, and extraction efficiency. Common praise includes solid build quality, dependable cycle performance, and reduced drying time.

Frequent complaints usually involve installation complexity, floor requirements, and the need for proper balancing during operation. A common testimonial style comment is: “It handles large linen loads reliably and keeps our laundry room moving.” Another recurring sentiment is: “Great machine for commercial use, but professional installation is a must.”

Purchase is recommended for businesses that need a heavy-duty commercial washer-extractor and have the utilities, space, and maintenance support to operate it correctly. For smaller operations, a lower-capacity washer may offer better day-to-day practicality.

PDF

Faqs

How do I set up the alliance HCA080QN Washer-Extractor for the first time?

Start by placing the alliance HCA080QN Washer-Extractor on a level, stable floor with enough clearance for service access and door movement. Verify the power supply, water connections, and drainage meet the machine’s requirements before turning it on. Check transit bolts or shipping restraints if the unit was newly delivered. Run a short test cycle with no load to confirm fill, wash, drain, and spin functions are operating correctly.

What should I check if the alliance HCA080QN Washer-Extractor is vibrating too much during the spin cycle?

Excess vibration usually points to an uneven floor, an unbalanced load, or incorrect installation. First, confirm the machine is perfectly level and that all feet are firmly adjusted. Next, redistribute the laundry so heavy items are mixed with lighter ones. Avoid overloading, because that can make the drum shake harder during high-speed spin. If vibration continues, inspect the base and mounting area for looseness or wear.

Why is the alliance HCA080QN Washer-Extractor not draining water properly?

Poor draining can happen when the drain hose is kinked, the filter is clogged, or the drain line has restricted flow. Check that the hose is routed correctly and not pushed too far into the standpipe. Clean any lint or debris from accessible filters and confirm the drain path is clear. If the machine stops mid-cycle, make sure the selected program actually includes a drain and spin stage.

Which laundry loads work best with the alliance HCA080QN Washer-Extractor?

The alliance HCA080QN Washer-Extractor performs best with evenly distributed commercial or institutional laundry loads such as towels, uniforms, linens, and similar textiles. Avoid mixing very small loads with oversized heavy items, since that can reduce wash quality and create imbalance. For best results, follow the recommended load capacity for the chosen program and separate delicate fabrics from heavily soiled items when possible.

How can I improve wash performance on the alliance HCA080QN Washer-Extractor without damaging fabrics?

Choose the correct wash program, water temperature, and chemical dosing for the fabric type and soil level. Do not overload the drum, because water and detergent need space to circulate. Pre-sort laundry by color, fabric weight, and dirt level to improve cleaning results. Use the proper detergent for commercial washer-extractors, and avoid excessive chemistry, which can leave residue or cause fabric wear over time.

What maintenance does the alliance HCA080QN Washer-Extractor need to keep working reliably?

Routine maintenance should include cleaning lint traps or filters, checking hoses for leaks, inspecting the door seal, and wiping down detergent areas to prevent buildup. Regularly verify that the machine remains level and that fasteners are secure. Run periodic inspection cycles to spot unusual noise, drainage delays, or reduced spin performance early. Keeping a maintenance log helps track service intervals and prevents unexpected downtime.

Can the alliance HCA080QN Washer-Extractor be connected to standard laundry room utilities?

The alliance HCA080QN Washer-Extractor typically requires properly rated electrical, water, and drainage connections suited to commercial laundry use. Before installation, confirm the site can support the machine’s power demand, water pressure, and discharge requirements. A qualified technician should verify compatibility with the building’s utility setup. Using undersized electrical service or insufficient water flow can cause slow cycles, error conditions, or poor wash results.

What do I do if the alliance HCA080QN Washer-Extractor shows poor spin extraction or clothes come out too wet?

Wet loads after spin usually mean the basket is unbalanced, the load is too small or too heavy, or the machine is not reaching full spin speed. Recheck load size and distribute items evenly before restarting the cycle. Make sure the drain system is working correctly, because incomplete draining can reduce extraction. If the issue continues, inspect for worn components, controller errors, or service-related mechanical problems.
