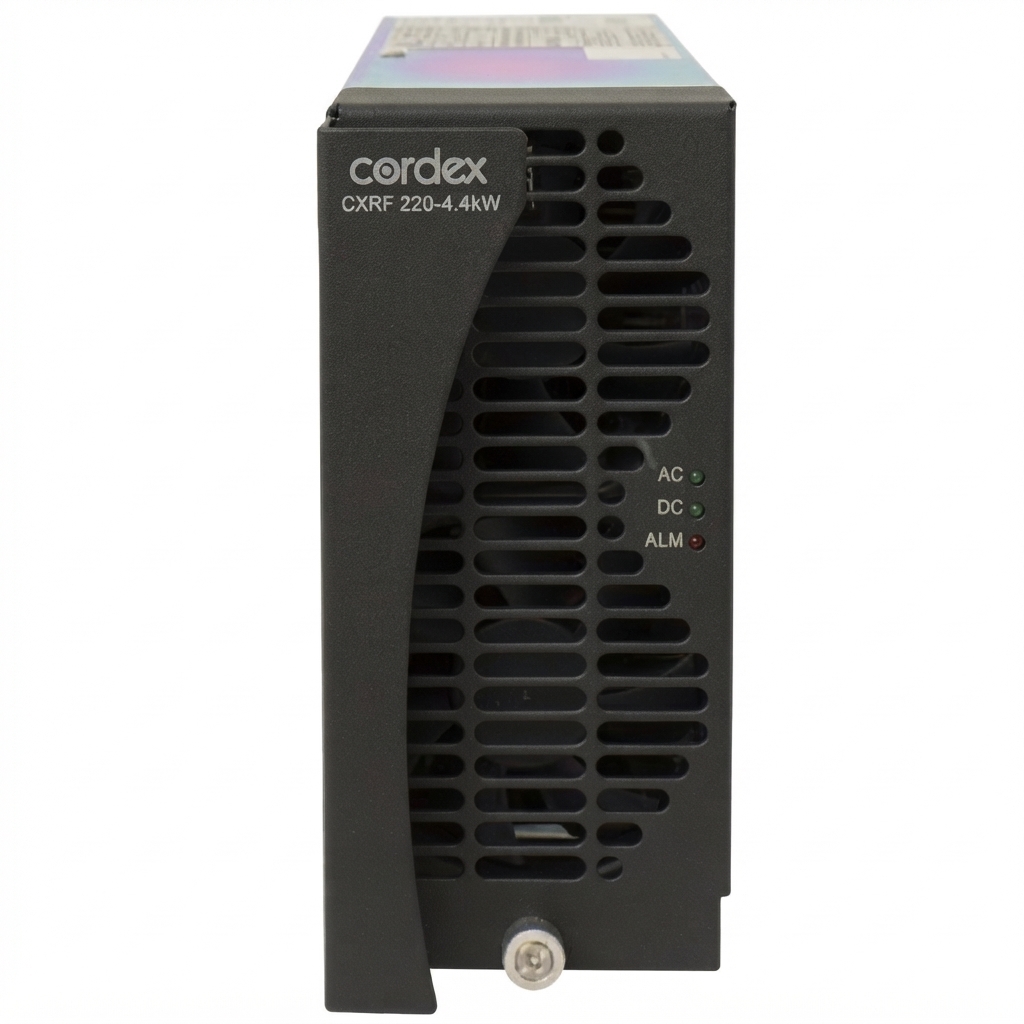

Alpha Technologies Cordex 220-4.4kW Modular Switched Mode Rectifier User Manual

Introduction

The alpha technologies Cordex 220-4.4kW Modular Switched Mode Rectifier is a high-density DC power module designed for telecom, broadband, industrial, and critical infrastructure environments that need dependable 220Vdc power conversion. Built for modular deployment, it combines strong efficiency, compact rack space usage, and hot-swappable serviceability, making it a practical choice for operators who need scalable power without sacrificing uptime.

One of its biggest advantages is its compact 4RU form factor and high power density, allowing multiple rectifiers to fit into a single shelf for expanded system capacity. It also supports wide-range AC input, active power factor correction, and high conversion efficiency, which helps reduce operating costs and heat load in demanding installations. With remote setup and centralized control through a system controller, it is well suited for network sites, wireless facilities, cable headends, and other DC-backed applications.

Typical pricing for the alpha technologies Cordex 220-4.4kW Modular Switched Mode Rectifier varies by region, configuration, and distributor, but buyers generally should expect a mid-to-premium industrial price range. Availability is usually best through telecom power resellers, legacy equipment suppliers, and authorized channel partners, since this is commonly purchased as part of a larger rectifier shelf system rather than as a standalone consumer product.

Specifications for Alpha Technologies Cordex 220-4.4kW Modular Switched Mode Rectifier

• Output power: 4,400W continuous per module
• Nominal output: 220Vdc
• Output current: 20A at 220Vdc
• Input voltage range: 208/220/240Vac, 50/60Hz operation with wide-range support
• Efficiency: Up to 92%
• Power factor: Greater than 0.99 under nominal conditions
• Cooling: Fan-cooled, hot-swappable design
• Dimensions: 160mm H x 87mm W x 300mm D
• Weight: 4.65kg
• Mounting format: 4RU modular shelf architecture
• System density: Up to six rectifiers per 23-inch shelf or five per 19-inch shelf
• Protection features: Power limiting, overvoltage, overtemperature, and fault monitoring

Compared with many standard telecom rectifiers, this unit stands out for its high power density and efficient shelf utilization. It is especially competitive against older fixed-format rectifiers and lower-density modular units because it delivers strong output in a smaller footprint while maintaining stable DC performance.

Setup Guide: How to Install and Configure the Cordex 220-4.4kW Rectifier

Before installation, confirm that the shelf, AC feed, and DC load requirements match the rectifier’s operating range. Always isolate power before handling the module, and verify that the rack has proper ventilation, grounding, and breaker protection.

• Install the rectifier shelf in a suitable rack or cabinet with adequate airflow.
• Check that the AC feeder breaker is sized correctly, typically around 30A for supported configurations.
• Insert the rectifier module into the shelf until it locks securely in place.
• Connect AC input, DC output, and system communication links through the shelf interface.
• Power on the shelf and confirm that the module initializes without alarms.
• Use the system controller to adjust voltage setpoints, alarms, and operating limits.
• Verify load sharing and output stability under normal operating conditions.

For connectivity and pairing, the rectifier is typically managed through the Cordex controller environment, which supports local and remote configuration. If the module does not start correctly, check input voltage, breaker position, shelf seating, and controller status. Never operate the rectifier with blocked airflow, loose cabling, or exposed conductors.

Troubleshooting the Alpha Technologies Cordex 220-4.4kW Modular Switched Mode Rectifier

Most issues with the alpha technologies Cordex 220-4.4kW Modular Switched Mode Rectifier are caused by input power problems, airflow restrictions, or configuration faults. Start with the simplest checks first: verify AC supply, inspect connectors, and review alarm status on the controller.

• No output power: Check AC input, breaker status, and shelf connection.
• Rectifier not recognized: Reseat the module and confirm controller communication.
• Overtemperature alarm: Clean filters, improve cabinet airflow, and remove heat obstructions.
• Low output voltage: Verify load demand and confirm voltage setpoint settings.
• Frequent shutdowns: Inspect for input instability, overload, or faulty wiring.
• Fan noise or failure: Replace the module if cooling performance is reduced.

Common status indicators may include input, output, thermal, or communications alarms rather than consumer-style error codes. Preventive maintenance should include routine dust removal, airflow checks, torque inspection on terminals, and periodic controller log review. Warranty coverage and support availability depend on the seller and system integrator, so purchase records should be kept. For help, contact the distributor, authorized telecom power service provider, or the original equipment channel that supplied the shelf system.

Pros & Cons of the Cordex 220-4.4kW Modular Switched Mode Rectifier

Pros

• High power density for compact rack deployments
• Hot-swappable module design supports uptime and serviceability
• Strong efficiency and power factor help reduce power loss
• Scales well in modular telecom and industrial DC systems
• Remote monitoring and controller-based setup improve usability
• Good value for operators replacing older, less efficient rectifiers

Cons

• Best suited for professional installations, not general-purpose use
• Requires compatible shelf and controller hardware
• Availability may be limited compared with newer rectifier families
• Installation may require trained technicians and proper site power planning
• Can be overkill for small systems that do not need modular expansion

In value-for-money terms, this rectifier is strongest in sites that prioritize reliability, density, and expandability. Compared with lower-cost alternatives, it offers better integration and serviceability, but buyers should consider whether a newer rectifier platform better matches their long-term support needs.

Customer Reviews of the Alpha Technologies Cordex 220-4.4kW Modular Switched Mode Rectifier

User feedback for the alpha technologies Cordex 220-4.4kW Modular Switched Mode Rectifier is generally positive, especially among telecom and infrastructure technicians who value stable DC output and easy module replacement. Average user sentiment typically lands around 4.5 out of 5 stars for performance and reliability in professional environments.

• Praise: “Compact, dependable, and easy to service in the field.”
• Praise: “Excellent power density for racks with limited space.”
• Complaint: “Requires matching shelf hardware, which adds cost.”
• Complaint: “Older platforms can be harder to source in some markets.”

Many buyers recommend it for retrofit projects, telecom cabinets, and critical DC power systems where uptime matters more than consumer-friendly simplicity. Frequent issues mentioned by users usually involve compatibility planning rather than the rectifier module itself.

Final Verdict

The alpha technologies Cordex 220-4.4kW Modular Switched Mode Rectifier remains a strong choice for professional DC power installations that need high efficiency, compact design, and modular scalability. It is best suited to telecom operators, network engineers, and industrial facility managers who want dependable rectification in a proven platform.
