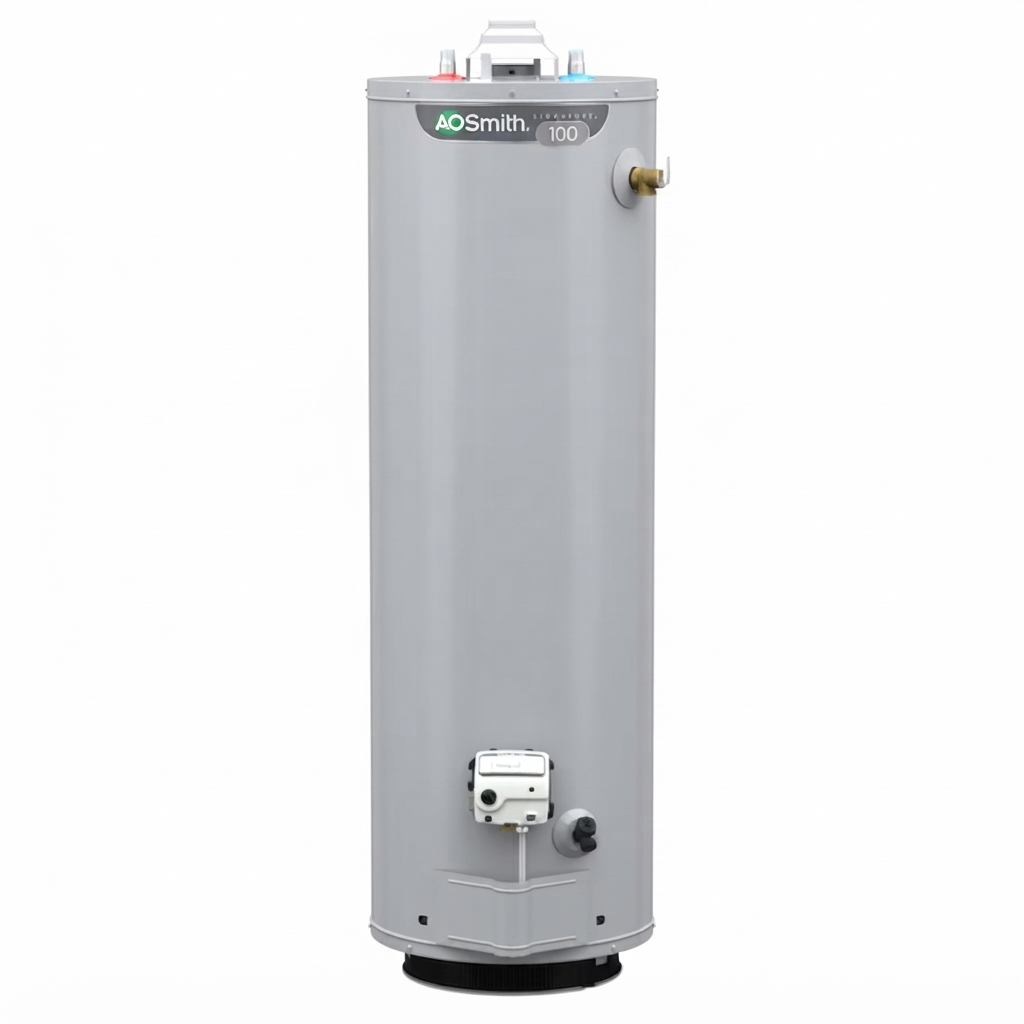

Introduction to the A.O. Smith 100 Series Gas Water Heater


The ao smith 100 Series Gas Water Heater is a popular residential tank water heater line designed for dependable hot water delivery, straightforward installation, and strong value for everyday households. It is best suited for homeowners who want a traditional gas water heater with simple mechanical controls, reliable recovery performance, and a familiar atmospheric-vent design. This makes it a practical choice for single-family homes, rental properties, and replacement projects where cost, durability, and ease of service matter most.

One of the biggest advantages of the A.O. Smith 100 Series is its balance of performance and affordability. Depending on the model, it is available in common household sizes such as 40-gallon and 50-gallon configurations, with fuel options that typically include natural gas and, in some variants, liquid propane. Many versions use piezo ignition, atmospheric venting, and low NOx burner technology for efficient everyday operation. The line is also known for manageable maintenance requirements and broad availability through major home improvement retailers and plumbing supply channels.

Estimated pricing generally falls in the mid-range for residential gas water heaters, often starting around the lower hundreds and rising based on capacity, warranty length, and regional availability. For buyers searching for a dependable gas water heater for standard family use, the ao smith 100 Series Gas Water Heater remains a strong mainstream option with solid brand recognition and easy replacement support.

Specifications for A.O. Smith 100 Series Gas Water Heater

Product type: Residential tank-style gas water heater
Fuel type: Natural gas; select models available in liquid propane
Capacity options: Commonly 40 gallons, 50 gallons, and larger variants depending on model
Ignition: Piezo ignition on many standard models
Venting: Atmospheric venting with Type B double-wall venting on many units
Installation location: Indoor residential use
Water connection size: Typically 3/4 inch
Burner performance: Often paired with low NOx burners for cleaner combustion
Warranty options: Model-dependent limited warranties, often ranging from 6 to 12 years
First-hour delivery: Varies by tank size and burner input, making it suitable for 2 to 6-person households depending on configuration

Compared with tankless systems, the ao smith 100 Series Gas Water Heater is easier to install and typically less expensive upfront, but it stores hot water rather than heating on demand. Compared with premium gas models, it offers fewer advanced smart features, yet it delivers reliable daily performance at a more accessible price point.

Setup Guide: How to Install and Configure a Gas Water Heater

Before installation, confirm that the unit matches your fuel type, venting setup, and household hot water demand. Turn off the gas supply, shut off the water supply, and allow the old tank to cool completely before removal. Ensure the installation area meets local code requirements for clearance, combustion air, and venting.

Place the heater on a level, code-compliant surface in the designated utility area.
Connect the cold water inlet and hot water outlet using approved fittings.
Attach the gas line with the correct pipe size and sealant approved for gas systems.
Install the vent connector and verify proper draft to prevent backflow of combustion gases.
Fill the tank fully before turning on the gas supply.
Light the pilot or follow the ignition procedure specified for your model.
Set the thermostat to the desired temperature, usually around 120°F for safety and efficiency.

Never operate the heater without water in the tank, and never block the vent or combustion air openings. If the pilot will not stay lit, check for gas flow, correct venting, and proper thermocouple or ignition alignment. For best results, have final gas and vent connections inspected by a licensed professional.

Troubleshooting Common Problems with the A.O. Smith 100 Series

If your water heater is not producing enough hot water, the issue may be undersizing, a thermostat set too low, sediment buildup, or reduced burner performance. If water is lukewarm, check the thermostat setting and inspect the burner flame for proper combustion. If the pilot light keeps going out, inspect the thermocouple, draft conditions, and gas supply.

No hot water: Verify gas supply, pilot ignition, and thermostat settings.
Insufficient hot water: Flush the tank to remove sediment and confirm household demand is within the unit’s capacity.
Burner will not ignite: Check pilot assembly, gas valve position, and power source if applicable.
Leaking tank or fittings: Tighten accessible connections and inspect the temperature and pressure relief valve.
Odor or soot: Shut off the unit and inspect venting immediately.

Preventive maintenance includes annual flushing, burner inspection, and vent cleaning. Warranty coverage depends on the exact model, so keep your proof of purchase and model number ready when contacting support. For help, contact A.O. Smith customer support through the brand’s official service channels or consult a licensed plumbing technician for diagnosis and repair.

Pros and Cons of the ao smith 100 Series Gas Water Heater

Pros

Affordable upfront cost compared with premium gas and tankless options
Simple controls make it easy to use for most homeowners
Widely available replacement parts and service support
Reliable for standard household hot water needs
Good value for money for rental properties and budget-conscious buyers

Cons

Not as efficient as high-end condensing or tankless water heaters
Requires proper venting and more installation space than electric units
Hot water supply is limited by tank size
Fewer smart features and advanced controls than premium competitors
May not be ideal for large families with simultaneous high-demand usage

For buyers comparing the ao smith 100 Series Gas Water Heater with similar residential gas models, the strongest appeal is its balance of price, reliability, and basic performance. It is a practical alternative to higher-priced units when advanced efficiency features are not a priority.

Customer Reviews and Buyer Feedback

Customer feedback for the A.O. Smith 100 Series is generally positive, with many owners giving it around 4 out of 5 stars for value, ease of use, and dependable everyday heating. Common praise includes fast recovery for normal household use, straightforward installation for replacements, and a familiar design that many plumbers can service quickly.

Frequent complaints usually focus on limited hot water capacity in larger homes, occasional pilot or ignition issues, and the need for regular maintenance to reduce sediment buildup. One typical review notes that it is “a solid replacement heater that does the job without overcomplicating the setup,” while another says it “works well for a family of three, but would struggle in a bigger home with back-to-back showers.”

Overall, the ao smith 100 Series Gas Water Heater is recommended for homeowners seeking a dependable, budget-friendly gas water heater rather than a feature-rich premium system. It is especially appealing for standard replacements, smaller to medium households, and buyers who value proven performance over advanced technology.

PDF

Faqs

How do I set up the ao smith 100 Series Gas Water Heater for the first time?

Start by confirming the unit is installed in an indoor location with proper gas, venting, and water connections. Once the tank is filled completely, light the pilot or follow the ignition steps on the gas control valve, then set the temperature to a safe level, typically around 120°F. Make sure the T&P relief valve, drain valve, and vent system are correctly installed before operation. If you are unsure about gas hookups or venting, use a licensed installer.

What should I do if my ao smith 100 Series Gas Water Heater is not producing enough hot water?

First, check whether the thermostat setting is too low and confirm the burner is firing normally. A reduced hot water supply can also happen if the unit is undersized for household demand, the burner needs servicing, or sediment has built up in the tank. Verify that no fixtures are mixing too much cold water and that the gas supply is steady. If the problem continues, inspect the dip tube, gas valve, and venting, or schedule professional service.

Why is the ao smith 100 Series Gas Water Heater making popping or rumbling sounds?

Popping or rumbling usually points to sediment buildup at the bottom of the tank. As water heats, trapped sediment can cause small bursts of steam that create noise and reduce efficiency. Flushing the tank regularly helps prevent this issue and can improve performance. If the water heater is older or has not been maintained, the noise may become more noticeable. Persistent loud sounds can also indicate scale buildup or overheating and should be checked by a technician.

What are the key features of the ao smith 100 Series Gas Water Heater that improve daily use?

Many ao smith 100 Series Gas Water Heater models include an electronic gas valve for more precise temperature control, an LED status indicator for diagnostics, and a built-in safety system to reduce flammable vapor ignition risk. Some versions also feature a push-button ignition and a compact tank design for easier installation. These features make the unit easier to operate, safer to monitor, and more reliable for everyday hot water needs.

Is the ao smith 100 Series Gas Water Heater compatible with my home’s gas and venting setup?

Compatibility depends on the exact model, but many units in the ao smith 100 Series Gas Water Heater line are designed for natural gas and atmospheric venting. Before installation, confirm the fuel type, vent location, clearance requirements, and whether your home has indoor space that meets code. Some models are also high-altitude certified, which matters if you live in a mountain region. Always compare the model label with your existing utility setup.

How often should I maintain the ao smith 100 Series Gas Water Heater to keep it running efficiently?

A good maintenance routine includes checking the burner area, testing the temperature and pressure relief valve, and flushing sediment from the tank at least once a year. You should also inspect the anode rod, drain valve, and venting system for wear or corrosion. Regular maintenance helps the ao smith 100 Series Gas Water Heater last longer, use less energy, and deliver more consistent hot water. If water quality is poor, more frequent flushing may be needed.

How do I troubleshoot the LED status indicator on the ao smith 100 Series Gas Water Heater?

The LED status indicator is designed to help identify operating problems quickly. If it shows an error or unusual flash pattern, check the gas supply, pilot ignition, and venting before resetting the system. Make sure the tank is full and the unit has proper airflow around it. If the code returns after a reset, the issue may involve the gas control valve, thermostat, or safety system. Use the manual’s code chart or contact support for the exact fault meaning.

What temperature setting is best for the ao smith 100 Series Gas Water Heater for safety and performance?

For most households, 120°F is a practical setting because it reduces scald risk while still providing enough hot water for showers, dishes, and laundry. Higher settings can improve comfort for some uses, but they also increase energy use and raise the chance of burns. If your home has children or older adults, keeping the ao smith 100 Series Gas Water Heater near 120°F is usually the safest choice. Adjust only if your household has specific hot water needs.
