Introduction

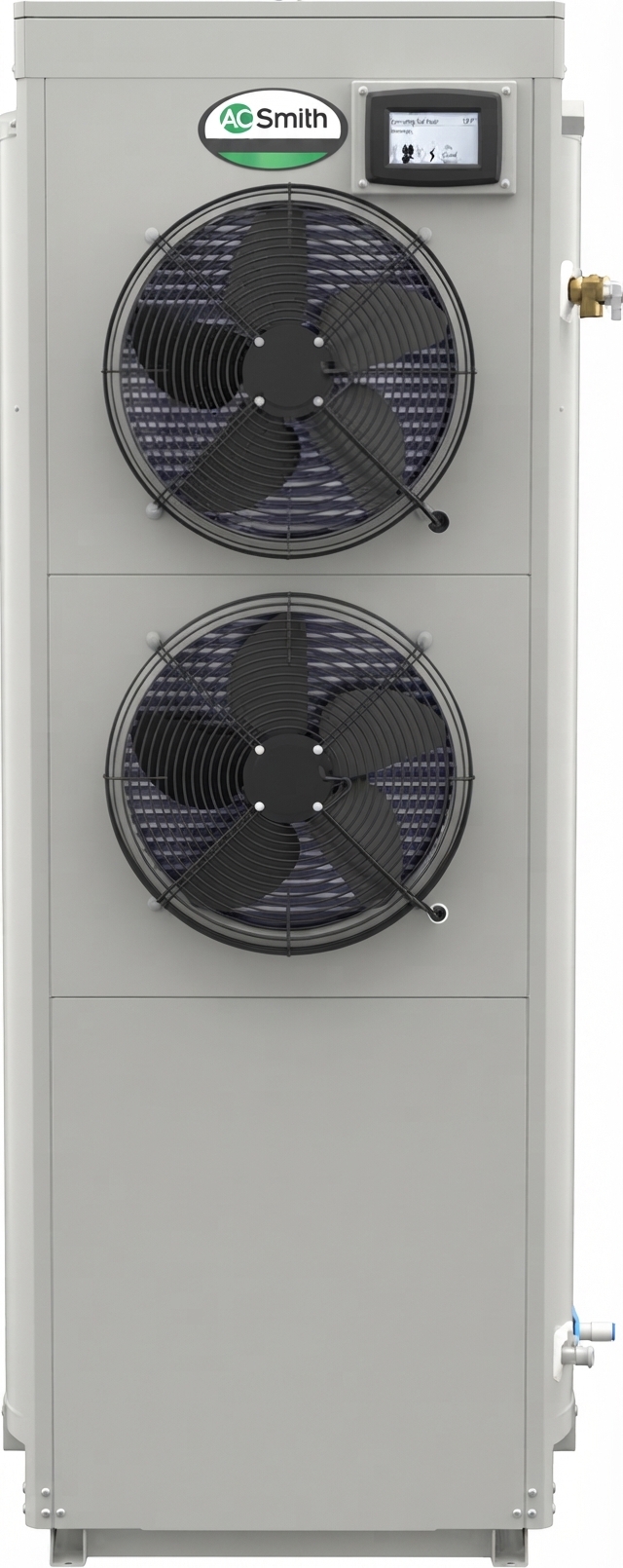

The AO Smith CHP-120 Electric Heat Pump Water Heater is a commercial-grade hot water solution designed for businesses that need high efficiency, dependable recovery, and large storage capacity. Built for light commercial environments such as hotels, restaurants, schools, retail spaces, and multi-occupancy facilities, this fully integrated heat pump system uses ambient air to heat water instead of relying only on resistance elements. That approach helps reduce operating costs while supporting more sustainable building operations.

One of the biggest advantages of the AO Smith CHP-120 Electric Heat Pump Water Heater is its high performance in a compact, all-in-one format. It combines heat pump efficiency with electric backup capability, giving facility managers flexibility during peak demand. The unit is commonly positioned as a premium alternative to standard commercial electric water heaters because it delivers strong recovery rates, multiple operating modes, and ENERGY STAR-qualified efficiency.

For buyers comparing commercial heat pump water heaters, this model stands out for its large tank size, hybrid operation, and front-access service design. The expected price range is typically in the upper commercial bracket, often around several thousand dollars depending on supplier, accessories, and installation requirements. Availability is generally through commercial plumbing distributors, HVAC suppliers, and professional water heater dealers. For organizations prioritizing energy savings, lower utility bills, and reliable hot water delivery, the AO Smith CHP-120 Electric Heat Pump Water Heater is a strong long-term investment.

Specifications

• Model type: Integrated commercial heat pump water heater
• Tank capacity: Approximately 119 to 120 gallons
• Power supply: 208/240 VAC, single phase, 60 Hz
• Maximum current: 67 A
• Heating capacity: Around 74,624 Btu/hr in hybrid operation
• Heat pump coefficient of performance: Up to 4.3 COP
• Electric backup heating capacity: Up to 12.0 kW at 240V, 9.0 kW at 208V
• Operating modes: Efficiency, Hybrid, and Electric
• Refrigerant: R-134a
• Pressure rating: 160 psi
• Recovery rate: About 90 gallons per hour at 100°F rise
• Water connection: 3/4-inch NPT
• Warranty: 3-year limited tank, 1-year limited parts/compressor

Compared with standard commercial electric tank water heaters, the CHP-120 offers much better energy efficiency and lower operating costs. Compared with smaller commercial heat pump water heaters, it provides more storage and stronger high-demand performance, making it well suited for facilities with uneven hot water usage.

Setup Guide

Before installation, verify that the electrical service, breaker sizing, plumbing layout, and floor load capacity match commercial requirements. The unit should be placed in an area with adequate airflow, since heat pump performance depends on surrounding air conditions. Keep clearance around the cabinet for servicing and airflow access.

• 1. Inspect the unit for shipping damage and confirm all accessories are included.
• 2. Position the water heater on a level surface with proper drain access.
• 3. Connect cold water inlet and hot water outlet lines using approved fittings.
• 4. Install a properly sized electrical circuit and disconnect switch according to local code.
• 5. Fill the tank completely before energizing the system.
• 6. Set the operating mode to Efficiency, Hybrid, or Electric based on demand.
• 7. Test water temperature, recovery, and leak-free operation.

For pairing and connectivity, follow the control interface on the unit and any optional monitoring or accessory setup provided by the installer. If startup fails, check power supply, water level, and breaker status first. Never energize the heater when the tank is empty, and always follow lockout/tagout procedures during service. Because this is a high-voltage commercial appliance, installation should be performed by a licensed professional.

Troubleshooting

Common issues with commercial heat pump water heaters usually involve power, airflow, temperature settings, or water delivery. If the unit is not heating, confirm that the breaker is on, the tank is full, and the control panel is set to the correct mode. If recovery is slow, check for blocked airflow, unusually cold ambient conditions, or excessive hot water demand.

• No hot water: Verify electrical supply, thermostat settings, and tank fill status.
• Reduced efficiency: Clean air pathways and ensure proper room ventilation.
• Water too hot or too cold: Adjust setpoint and confirm sensor operation.
• Noise or vibration: Check leveling, mounting, and nearby obstructions.
• Leak detected: Inspect inlet/outlet fittings, drain valve, and pressure relief valve.

Typical fault codes on commercial heat pump water heaters often relate to airflow, sensors, refrigerant circuit issues, or overheating. If an error code appears, power-cycle the system only after checking the manual and verifying safe conditions. Preventive maintenance should include periodic filter cleaning, airflow inspection, leak checks, and annual professional servicing. For warranty support, contact AO Smith customer service at 800-527-1953 or email help@hotwater.com. Support hours may vary by day, so confirm current availability before calling.

Pros & Cons

Pros

• High efficiency with up to 4.3 COP, which can significantly reduce utility costs.
• Large 120-gallon-class storage, ideal for commercial hot water demand.
• Three operating modes provide flexibility for changing usage patterns.
• Strong recovery performance helps support hotels, kitchens, and multi-user buildings.
• Integrated design simplifies installation and service access.
• Better long-term value than many standard electric commercial water heaters.

Cons

• Higher upfront cost than conventional electric tank water heaters.
• Requires adequate electrical capacity and professional installation.
• Heat pump performance depends on ambient air conditions.
• Large footprint may be challenging in tight mechanical rooms.
• Annual maintenance is important to preserve efficiency.

For buyers comparing the AO Smith CHP-120 Electric Heat Pump Water Heater with basic electric models, the main tradeoff is price versus operating savings. It is best for facilities that value efficiency, predictable hot water output, and long service life.

Customer Reviews

Customer feedback for the AO Smith CHP-120 Electric Heat Pump Water Heater is generally positive, with many users giving it around 4 to 5 stars for efficiency and reliability. Facility managers often praise the lower energy use, fast recovery, and ability to handle busy demand periods. One common comment is that the operating modes make it easier to balance comfort and energy savings.

Frequent complaints usually focus on installation complexity, space requirements, and the need for proper electrical service. Some users note that maintenance and airflow management are essential for best results. A typical testimonial sounds like this: “Excellent hot water capacity for our property, and utility bills dropped noticeably after installation.” Another common remark is: “Great performance, but plan the installation carefully.”

This model is a smart purchase for commercial buyers who want a premium heat pump water heater and are prepared for professional installation. It is especially attractive for businesses looking to replace aging electric storage tanks with a more efficient solution.
