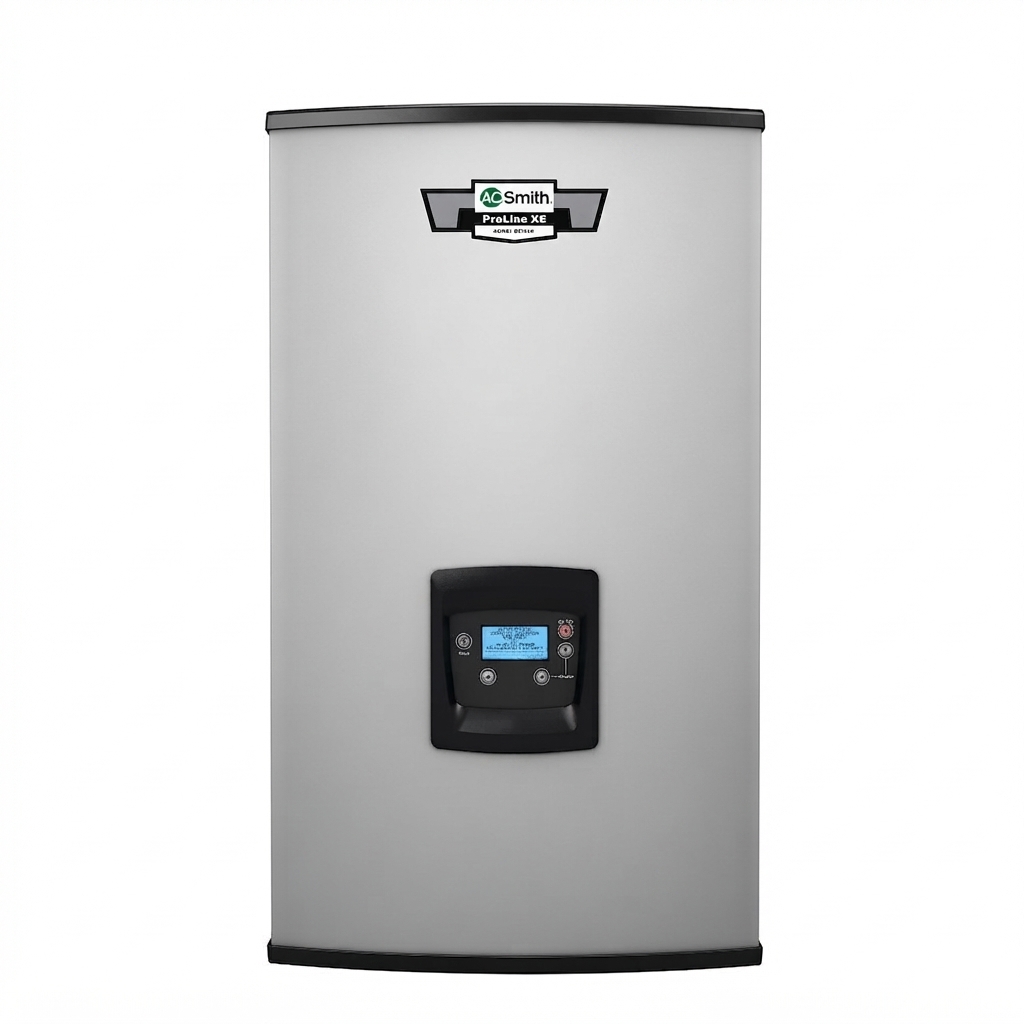

AO Smith Series 100 ProLine XE Combi Boiler Overview

The AO Smith Series 100 ProLine XE Combi Boiler is a high-efficiency residential heating and domestic hot water solution designed for homeowners who want one compact unit to handle both space heating and hot water production. The line includes ultra-low NOx natural gas and propane models, with the ACB-110S-N and related Series 100 variants offering up to 110,000 BTU/hr input, 95% AFUE efficiency, and ENERGY STAR certification. That combination makes it a strong fit for smaller to mid-sized homes, remodels, and replacement projects where installation flexibility and lower energy use matter.

One of the biggest advantages of the AO Smith Series 100 ProLine XE Combi Boiler is its direct-vent design, which supports long vent runs and multiple vent materials for easier retrofits. Homeowners also benefit from a sealed combustion system, integrated combi functionality, and a compact indoor footprint that helps save mechanical-room space. The boiler is built for regular- or low-altitude residential applications and is backed by a 10-year limited heat exchanger warranty plus a 5-year limited parts warranty, which adds confidence for long-term use.

Typical buyers include homeowners replacing an aging boiler, contractors working on energy-efficient upgrades, and property owners seeking reliable hot water and hydronic heating in one system. Estimated pricing generally falls in the mid-range residential boiler market, often around $3,000 to $6,500 for the unit depending on model, dealer pricing, and region, with installed cost varying significantly. Availability is strongest through plumbing and HVAC distributors, authorized dealers, and professional installers.

Specifications for AO Smith Series 100 ProLine XE Combi Boiler

Product type: Residential combi boiler for hot water and space heating
Fuel options: Natural gas and propane versions available
Input capacity: Up to 110,000 BTU/hr on Series 100 configurations
Efficiency: 95% AFUE for high-efficiency operation
Certification: ENERGY STAR certified
Emissions: Ultra-low NOx design for cleaner combustion
Venting: Direct vent with support for PVC, CPVC, polypropylene, or AL29-4C stainless steel
Installation type: Indoor residential installation
Heat exchanger warranty: 10-year limited residential warranty
Parts warranty: 5-year limited warranty

Compared with many standard non-condensing residential boilers, the AO Smith Series 100 ProLine XE Combi Boiler offers better energy performance and more flexible venting. Against larger 150,000 BTU or 199,000 BTU ProLine XE combi models, it is better suited for smaller homes or lower heating loads where oversizing would be inefficient.

Setup Guide: How to Install and Configure the Combi Boiler

Installation should always be performed by a licensed HVAC or plumbing professional because the boiler involves gas, venting, combustion, and hydronic connections. Start by confirming that the site has the correct gas supply, electrical service, and venting path for the selected model. Next, mount the unit level on a solid wall or approved floor-mounted platform, following the manufacturer’s clearances.

Connect the domestic water lines, space-heating loop, condensate drain, gas supply, and venting components. After the piping is complete, configure the control settings for heating demand, water temperature, and system mode. If the model includes a digital interface, use it to set target temperatures and verify operating status. Some installations may also require thermostat pairing or zone control setup through external controls.

Before firing the system, purge air from the lines, inspect all fittings for leaks, and confirm that intake and exhaust terminations are unobstructed. Never power the boiler until venting and gas connections are fully checked. If startup fails, verify gas pressure, polarity, condensate drainage, and ignition sequence before attempting another restart.

Troubleshooting Common AO Smith ProLine XE Combi Boiler Problems

Common issues with a combi boiler include no ignition, low hot water output, error lockouts, noise from trapped air, and poor heating performance. If the boiler will not start, check gas supply, electrical power, thermostat demand, and condensate drainage. If hot water is lukewarm, confirm that temperature settings are correct and that there is no buildup in the heat exchanger or domestic water filter.

Error codes vary by model and control board, but most fault conditions relate to ignition failure, flame sensing, overheating, or blocked venting. Reset the unit only once after correcting the underlying issue. Repeated resets can worsen the fault and may indicate a more serious problem that needs service.

Preventive maintenance includes annual inspection, cleaning of vents and condensate components, checking for leaks, and verifying combustion performance. For warranty support, contact AO Smith through an authorized service provider or dealer network. Homeowners should keep the model and serial number available when requesting help, and they should use the manufacturer’s residential support channels for parts, manuals, and service guidance.

Pros and Cons of the AO Smith Series 100 ProLine XE Combi Boiler

Pros

High 95% AFUE efficiency helps reduce fuel consumption and operating cost
Combi design combines domestic hot water and space heating in one unit
Direct-vent flexibility supports easier installation in retrofit projects
Ultra-low NOx performance is better for emissions-conscious buyers
ENERGY STAR certification may help qualify for utility rebates
Strong warranty coverage adds value for long-term ownership

Cons

Professional installation is required, which increases upfront cost
Combi systems may not match the output of larger dedicated boiler and water-heater setups
Maintenance is more technical than with a standard tank water heater
Best suited to homes with moderate demand rather than very large households

Overall, the AO Smith Series 100 ProLine XE Combi Boiler delivers solid value for homeowners who want efficient heating and hot water in a single appliance. Compared with cheaper conventional boilers, it offers better efficiency and lower emissions. Compared with larger combi units, it is a smarter fit for smaller spaces and lighter load profiles.

Customer Reviews and Owner Feedback

Average customer sentiment for the AO Smith Series 100 ProLine XE Combi Boiler is typically positive, often landing around 4.3 out of 5 stars in owner and contractor discussions. Users commonly praise the compact design, reliable hot water delivery, and noticeable energy savings after replacing older equipment.

Frequent complaints usually involve installation complexity, higher upfront cost, and the need for a qualified technician during startup or service. Some users also mention that performance depends heavily on correct sizing and venting. Homeowners who pair the boiler with proper maintenance often report the best results.

Typical testimonial themes include quiet operation, strong winter heating performance, and convenience from having one unit handle two jobs. This model is a strong purchase recommendation for buyers who value efficiency, warranty coverage, and space-saving design over the lowest possible purchase price.

PDF

Faqs

How do I set up the ao smith Series 100 ProLine XE Combi Boiler for the first time?

Start by confirming the gas type, venting layout, and system piping match the model specifications before powering the unit on. The ao smith Series 100 ProLine XE Combi Boiler is designed for fast setup with a user-friendly touchscreen and plain-text controls, so initial configuration is usually straightforward. Have a qualified installer verify gas pressure, condensate drainage, and combustion air requirements. After installation, run a full test cycle for space heating and domestic hot water to check for leaks, correct temperatures, and stable operation.

What should I do if my ao smith Series 100 ProLine XE Combi Boiler is not producing enough hot water?

If hot water output drops, first check whether multiple fixtures are running at once, since demand can exceed the boiler's domestic hot water capacity. Review the temperature setting, inlet water pressure, and any error messages on the display. A partially blocked filter, scale buildup, or incorrect gas supply can also reduce performance. If the problem continues, schedule service to inspect the burner, heat exchanger, and flow sensor. Regular maintenance helps restore consistent hot water delivery.

How do I read the touchscreen diagnostics on the ao smith Series 100 ProLine XE Combi Boiler?

The ao smith Series 100 ProLine XE Combi Boiler uses a plain-language touchscreen interface that makes diagnostics easier than number-code systems. When an alert appears, read the message carefully and note whether it relates to ignition, water flow, venting, or temperature control. Use the screen to confirm operating mode, setpoints, and fault history. If the message points to gas, venting, or combustion issues, stop resetting the unit repeatedly and contact a licensed technician for a proper inspection.

Can the ao smith Series 100 ProLine XE Combi Boiler work with both space heating and domestic hot water systems?

Yes, the ao smith Series 100 ProLine XE Combi Boiler is built as a combi boiler, so it can provide both space heating and domestic hot water from one compact unit. This makes it a good fit for homes that want to reduce equipment footprint while keeping separate heating and hot water functions in one system. For best results, the installation should be matched to the home’s heating load, hot water demand, and distribution layout so the boiler can operate efficiently.

What venting and installation requirements should I know for the ao smith Series 100 ProLine XE Combi Boiler?

The ao smith Series 100 ProLine XE Combi Boiler uses power direct venting, so installation must follow the approved vent materials and maximum vent length listed for the model. Common venting options include PVC, CPVC, polypropylene, or stainless steel, depending on the configuration and local code. The installer should also confirm clearances, condensate drainage, combustion air supply, and proper slope on vent runs. A professional installation is essential to avoid combustion problems and efficiency loss.

Why does my ao smith Series 100 ProLine XE Combi Boiler keep cycling on and off?

Frequent cycling can happen when the boiler is oversized for the heating load, the thermostat is placed poorly, or the system has low water flow. The ao smith Series 100 ProLine XE Combi Boiler includes modulating controls, so it should adjust output smoothly under normal conditions. Check for clogged strainers, closed valves, or a thermostat that is rapidly calling for heat. If cycling continues, a technician should inspect the system design, pump operation, and control settings.

How often should I maintain the ao smith Series 100 ProLine XE Combi Boiler?

Plan annual maintenance for the ao smith Series 100 ProLine XE Combi Boiler to keep efficiency high and reduce breakdowns. A yearly service visit should include cleaning the heat exchanger, checking the burner, inspecting venting, testing safety controls, and flushing the condensate system. Homeowners should also watch for leaks, unusual noises, or changes in hot water performance between service visits. Regular maintenance helps preserve the boiler’s efficiency, reliability, and long-term lifespan.

What are the most useful efficiency features of the ao smith Series 100 ProLine XE Combi Boiler?

The ao smith Series 100 ProLine XE Combi Boiler includes several efficiency-focused features, such as a modulating burner, fire-tube heat exchanger, and high-efficiency combustion design. These features help the boiler match output to demand instead of running at full power all the time. The compact combi design also reduces the need for separate water-heating equipment. For the best savings, keep temperature settings reasonable, maintain the system yearly, and make sure the home’s insulation and controls are working well.
