Ariete Handy Force RBT Vacuum Cleaner 2759

Introduction

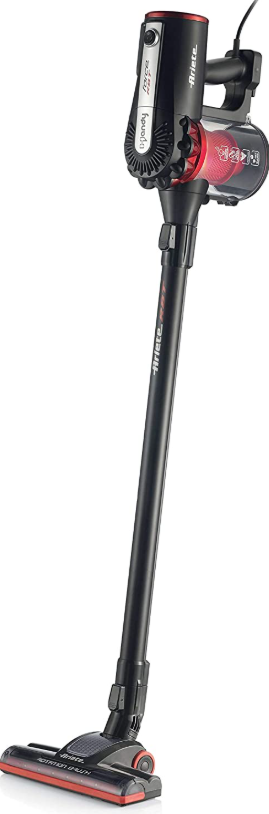

The ariete Handy Force RBT Vacuum Cleaner 2759 is a versatile and efficient cleaning appliance designed to meet the needs of modern households. Combining the convenience of an upright electric broom with a detachable handheld vacuum, it delivers a powerful cleaning experience with a 600-watt motor. Ideal for users seeking an all-in-one solution, this model excels at cleaning various surfaces including floors, carpets, sofas, and even car interiors, making it perfect for families, pet owners, and allergy sufferers alike.

Its unique selling points include a motorized brush with two-speed suction, a HEPA filtration system that traps fine dust and allergens, and front lights for enhanced visibility during cleaning. The device’s lightweight design (weighing just under 3 kg) and ergonomic build facilitate easy maneuverability around tight spaces and delicate surfaces.

The ariete Handy Force RBT Vacuum Cleaner 2759 is typically available at an estimated price range of around £80-£120, depending on the retailer and region. It is widely available through online platforms and select electronics or home appliance stores, offering great value for an effective, multi-functional vacuum cleaner tailored for everyday household use.

Specifications of Ariete Handy Force RBT Vacuum Cleaner 2759

• Power Source: Corded electric, 600 W motor power for strong suction
• Dust Collector: Cyclone system with 0.5-liter dustbin capacity
• Filtration System: High-efficiency HEPA filter to capture dust, mites, and allergens
• Design: Dual-use as upright broom and detachable handheld vacuum
• Accessories: Multi-purpose floor/carpet brush, wall support, combined 2-in-1 spout
• Weight & Dimensions: 2.92 kg; 27 cm length, 26 cm width, 100 cm height
• Additional Features: Motorized brush with 2 suction speeds, front LED lights for enhanced cleaning visibility

Compared with similar cordless or stick vacuums, the Ariete 2759 stands out with its robust 600 W power, integrated HEPA filter, and versatile detachable design. While some competitors offer larger dust bins, its compact size supports easy handling and quick cleaning sessions.

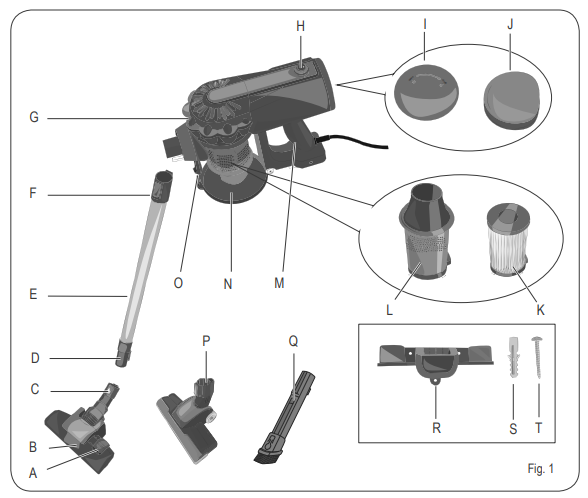

DESCRIPTION OF THE APPLIANCE

1. Brush position switch
2. Brush
3. Brush release button
4. Electrical connections
5. Tube
6. Motor body release button
7. Motor body
8. On/Off button
9. Lid
10. Air outlet filter
11. HEPA filter
12. Motor protection filter
13. Handle
14. Dust container
15. Lever for unlocking the dust container lid
16. Motorized brush
17. Nozzle
18. Wall mount
19. Wall plugs (x 3)
20. Screws (x 3)|

Identification data

On the label under the base of the appliance are reported the following identifications data of the appliance:

• manufacturer and CE marking
• model (Mod.)
• serial number (SN)|
• electrical supply voltage (V) and frequency (Hz)
• electrical power consumption (W)
• assistance toll-free phone number
• When ordering at Authorized Service Centers, indicate the model and serial number.

INSTRUCTIONS FOR USE

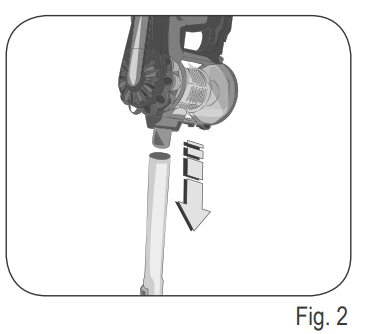

• Remove the packaging materials from inside and outside of the appliance. Remove all the stickers. Grab the motor body (G) by the handle (M). Assemble the tube (E) on the motor body (Fig. 2).

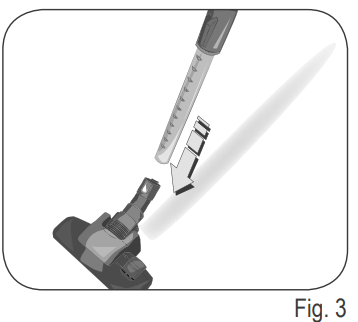

• Assemble the tube on the brush (B) (Fig. 3).



• Applance al danger. The appliance, once that is assembles, camot stand on the brush in vertical position.

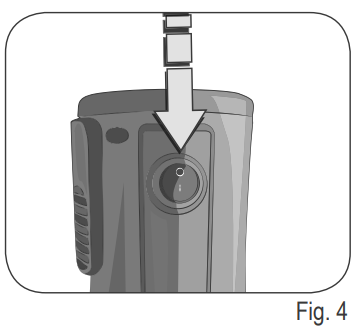

• Insert the plug into a power outlet. Press the ON/OFF button (H). The appliance starts working at the maximum power.

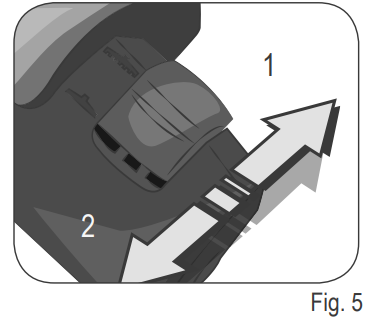

• Press the brush switch (A) to position (2) for cleaning hard surfaces such as floors (Fig. 5).



• Press the brush switch (A) to position (1) for the cleaning soft surfaces such as carpets (Fig. 5)
• A Swich the spliance of immediately in the event that something gels taped inside the brush, such as a piece of cloth, the fringes of a carpet, etc. Before tuming on the appliance again, remove anything that caused the obstruction of the aspiration ducts.
• When the dust reaches the MAX lever you need to empty the dust container (N).
• Switch off the appliance. Disassemble the tube.

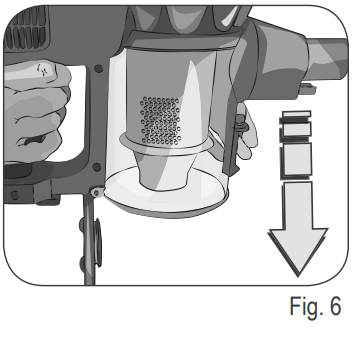

• Take the motor body on a trash bin. Push the unlocking lever of the dust container lid (O). Empty all the dust (Fig. 6).



Close the dust container lid.

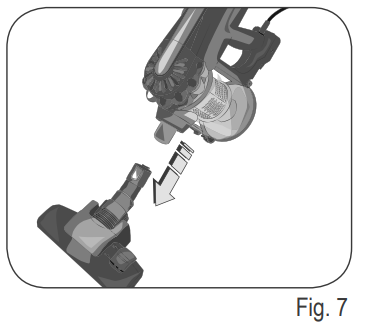

• The appliance can be used with the tube and the brush or with the brush built directly on the motor body (Fig. 7).

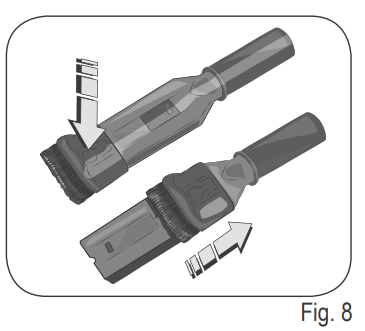

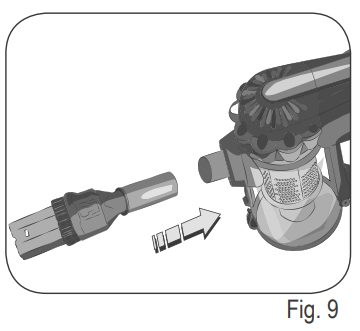

• The accessories can be directly built on the motor body to clean windows, the interior of a car (Fig. 9) or the staircase. The nozzle can be also built on the tube to reach the highest points to be vacuumed. The motorised brush includes LED lights to easily find dirt and is perfect to be used for carpet cleaning.





AFTER USING

• Switch off the appliance. Empty the dust container.
• Disassemble the motor body from the tube.
• Put the appliance in a dry place and away from the reach of children.
• Alternatively, use the wall mount to fasten the appliance to the wall. The wall mount (R) is supplied with specific screws (T) and specific wall plugs (S).

• Place the wall mount against the wall. Adjust the height of the wall mount according to the height of the appliance. Using a pencil, make marks on the wall in line with the three holes of the wall mount. Remove the wall mount. Drill the wall in line with the marks. Insert the supplied wall plugs (S) into the holes. Place the wall mount on the wall keeping the holes in line with wall plugs. Insert the supplied screws (T) into the holes. Tighten the screws with a screwdriver. Fasten the appliance to the wall mount (Fig. 17).



APPLIANCE CLEANING

• A cring operations described below must be caried out with the appliance off and with the plug disconnected from the outlet. Never place the motor body, plug, or power cord in water or other liquids - wipe clean using a damp cloth only. Do not use direct jets of water.
• A Reguai maintenance and leaning preserve and maintain the apiance ficient for a longer period.
• The dirt enters in the dust container (N). The air is cleaned by a Hepa filter (K) which is inside the dust container, by a motor protection filter (L) and by an air outlet filter (J), placed in the upper part of the motor body.
• A Never use the appliance without after or with a damaged filer. The aspired dust could go inside the appliance and damage the motor.
• Appliance body cleaning

A Warning!

• Clean the fixed parts of the appliance using a non-abrasive damp cloth to prevent damaging the body.
• Cleaning the motorised brush
• Do not lubricate or grease the rotating parts to avoid that hair and lint gets stuck.
• The motorised brush (P) can be removed from its seat to clean the bristles.
• Remove the brush (P) from the tube. Press the brush release button (C).

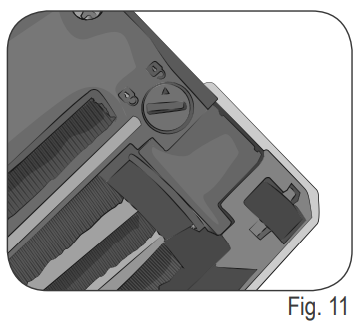

• Turn the brush upside-down. On the blocking screw of the brush there are two symbols (Fig. 11).





• With a key or a coin, turn the blocking screw on the "open" position (7).
• Lift the motorised brush on the blocking screw side. Remove the motorised brush completely.
• Clean the bristles from the dirt.
• To reassemble the rotating brush, insert first the side opposed to the blocking screw.

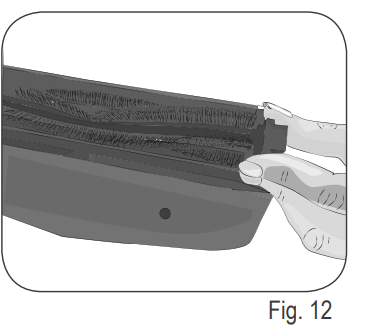

• Lower the motorised brush from the side of the blocking screw and insert the motorised brush support into its seat in the vertical direction (Fig. 12).



• With a key or a coin, turn the blocking screw on the "closed" position (® ) (Fig. 11).
• Air outlet filter cleaning

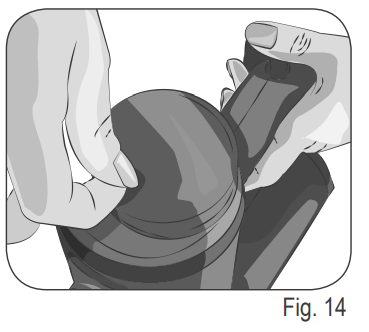

• The air outlet filter (Fig. 14) is positioned under the lid (I), on the motor body.

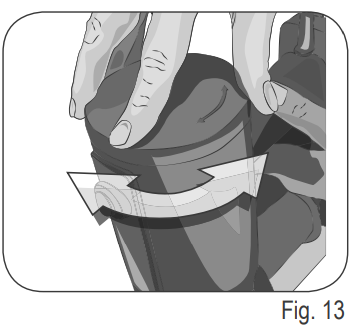

• Open the lid (I) by turing it counter-clockwise (Fig. 13). Remove the air outlet filter (J).



Warning!

• Wash the air outlet filter only with clean water without soap or detergent.
• Insert the outlet filter in its seat. Close the lid on the motor body tuming it clockwise.
• Hepa filter and motor protection filter cleaning
• The Hepa filter (K) is a high efficiency filter which removes the impurities and filters particles and bacteria. The
• Hepa filter is in the dust container.
• Take the motor body on a trash bin. Push the unlocking lever of the dust container lid. Remove all the dust.

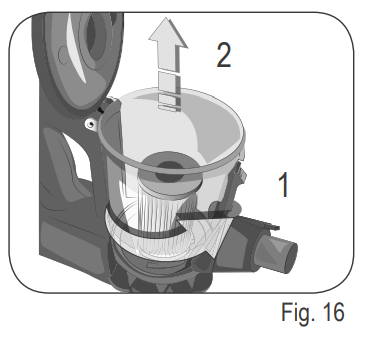

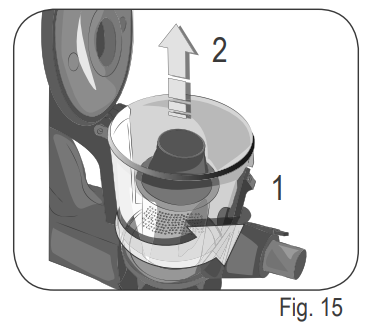

• Remove the motor protection filter from the dust container (Fig. 15). Remove the Hepa filter from the dust container (Fig. 16). Wash the filters with water.

Warning!

• Wash the Hepa filter only with clean water without soap or detergent.
• Often change the Hepa filter (every 4-6 months) to avoid the circulation of the bacteria in the air.

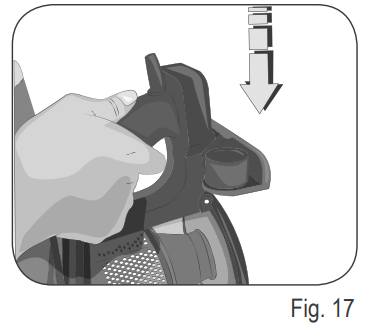

• Insert the Hepa filter within the dust container. The motor protection filter has joints which have to coincide with the seat on the dust container. Insert the motor protection filter into the dust container with the large part facing the motor body.

SETTING THE MACHINE OUT OF SERVICE

• In the case of decommissioning of the appliance, it must be electrically disconnected. Empty the dust contain- er. In case of scrapping you will be required to separate the various materials used in the construction of the appliance and dispose of them according to their composition and to the applicable laws in the country of use.

Troubleshooting for Ariete Handy Force RBT Vacuum Cleaner 2759

• No suction or reduced suction: Check and empty the dust container; clean or replace the HEPA filter; look for blockages in the hose or brush.
• Vacuum not powering on: Confirm the power cord is plugged in securely and the outlet is functional; inspect for cord damage.
• Unusual noises: Remove any debris caught in the motorized brush or suction path.
• Error indications: No specific error codes, but persistent issues should be addressed by authorized service.
• Preventive measures: Regular filter cleaning, careful debris handling, and storing the unit in a dry place extend its lifespan.

The Ariete Handy Force RBT Vacuum Cleaner 2759 typically comes with a manufacturer warranty covering parts and defects. For support, customers can contact Ariete’s customer service via their official website or authorized retailers.

Pros & Cons of Ariete Handy Force RBT Vacuum Cleaner 2759

• Pros:
  • Powerful 600 W motor ensures effective suction on multiple surfaces.
  • Dual-use design offers flexibility as an upright broom or handheld vacuum.
  • HEPA filtration system is excellent for allergy sufferers by trapping fine dust and allergens.
  • Lightweight and ergonomic, easy to maneuver and store.
  • Incorporates front LED lights to illuminate dark areas for thorough cleaning.
• Cons:
  • Small dustbin capacity (0.5 L) requires frequent emptying during larger cleaning tasks.
  • Corded design limits mobility compared to cordless vacuum cleaners.
  • No advanced smart connectivity or app integration features.
  • May be less suitable for very large homes requiring extensive cleaning sessions without unplugging.

Overall, the ariete Handy Force RBT Vacuum Cleaner 2759 offers strong value for those prioritizing powerful suction, versatility, and air quality. For alternatives, cordless models offer greater freedom but often at higher price points.

Customer Reviews of Ariete Handy Force RBT Vacuum Cleaner 2759

Users consistently praise the ariete Handy Force RBT Vacuum Cleaner 2759 for its strong suction power and versatility in transitioning from an upright broom to a handheld cleaner. Many highlight the HEPA filter’s effectiveness in reducing dust and allergens around the home. The lightweight design and ease of use receive positive feedback, particularly for quick spot cleaning and car interiors.

Common complaints include the limited dustbin capacity requiring frequent emptying, and the corded power source restricting movement during cleaning. Some users mention the lack of cordless convenience as a drawback in comparison with competing models.

On average, this vacuum cleaner holds a 4 out of 5-star rating in customer reviews, with recommendations centering on its value for money and performance in small to medium living spaces.
