Ariete Garment Steamer 4167

Introduction

The ariete Garment Steamer 4167 is a versatile and efficient steaming device designed to remove wrinkles and refresh garments with ease and speed. Ideal for busy households, frequent travellers, and professionals who need quick fabric care, this steamer offers a lightweight, compact design combined with powerful steam output that gently smooths various textiles without the need for an ironing board.

One of the standout benefits of the ariete Garment Steamer 4167 is its rapid heat-up time, allowing users to start steaming within seconds. It features a generous water tank capacity to ensure extended steaming sessions, perfect for home use, hotels, or on-the-go touch-ups. The ergonomic handle and safety features such as automatic shutoff enhance user experience and safety.

Target audiences include individuals seeking a practical alternative to traditional ironing, small business owners in the fashion or hospitality industries, andtravellerss needing compact garment care solutions. The steamer suits a wide range of fabrics—from delicate silks to heavy cottons and upholstery.

The ariete Garment Steamer 4167 is available through major online retailers and specialty appliance stores, with an estimated price range of approximately $70 to $120, representing excellent value in its category.

Specifications of the ariete Garment Steamer 4167

• Power: 1500 watts for fast heating and strong steam production
• Water Tank Capacity: 300 ml detachable reservoir for continuous steaming up to 15 minutes
• Heat-up Time: Ready to use in under 45 seconds
• Steam Output: Adjustable steam flow for delicate to heavy fabrics
• Safety Features: Automatic shutoff after inactivity and overheating protection
• Weight & Portability: Lightweight design around 1.1 kg, with ergonomic grip for easy maneuvering
• Accessories Included: Fabric brush attachment, measuring cup for water filling, and protective glove for safe handling
• Voltage: 220-240V suitable for European markets

Compared to similar garment steamers in the market, the ariete 4167 offers a balanced mix of power and portability, standing out for its rapid heat-up and safety mechanisms. While some competitors may offer larger tanks or dual-voltage features, the ariete excels in user-friendly design and consistent steam performance.

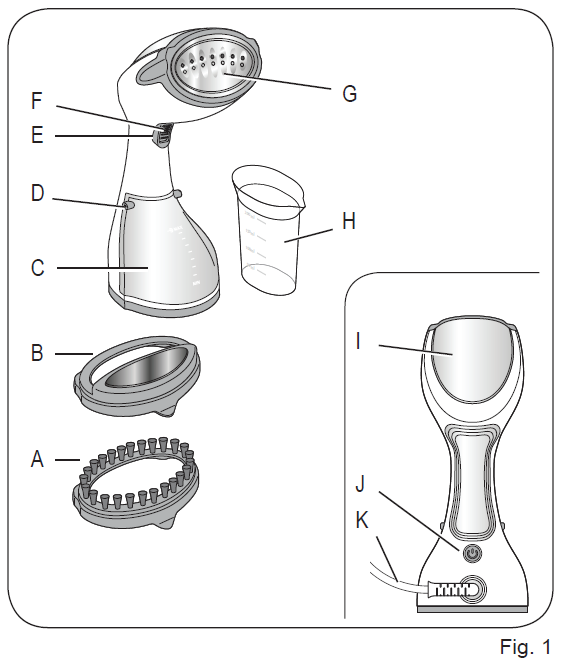

DESCRIPTION OF THE APPLIANCE

1. Brush
2. Accessory for lint
3. Water tank
4. Tank release buttons
5. Steam button
6. Continuous steam lock slider
7. Plate with nozzles
8. Measuring cup
9. Operation indicator
10. On-off switch
11. Power cord

INSTRUCTIONS FOR USE

1. Filling the tank before use
2. Danger - Risk of electric shock
3. A Remove the plug from the electrical outlet before filling the tank with water.

Do not put the tank in its seat if it is wet. Clean the tank with a dry cloth.

1. Remove the components from the box.
2. Place the appliance on a horizontal and stable surface.
3. Totally unwind the power cord.

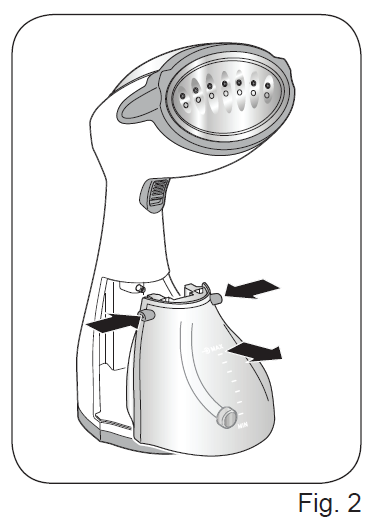

4. Press the tank release buttons. Remove the tank from its seat (Fig 2).

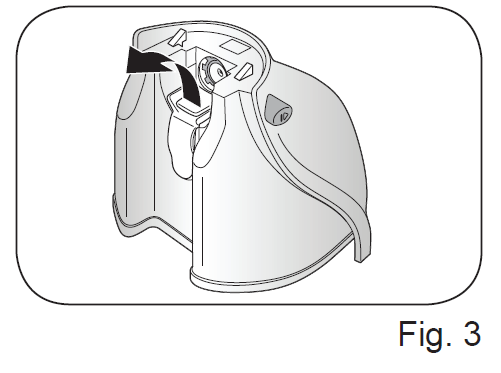

5. Open the tank cap.

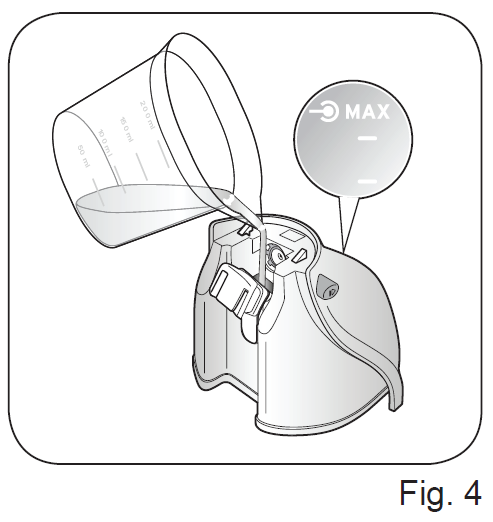

6. Fill the tank with fresh natural water up to the MAX level (Fig 4). In the case of particularly calcareous waters (with hardness greater than 20° f) use a mixture composed of 50% of tap water and 50% odemineralizeded water.

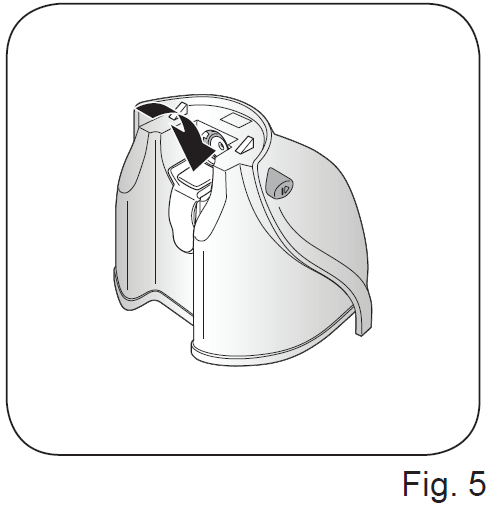

7. Close the tank cap.

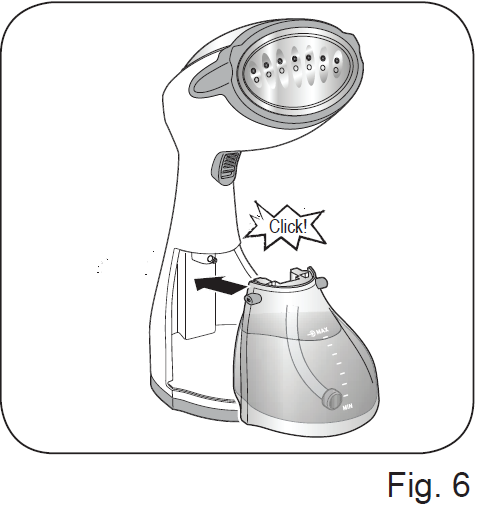

8. Fit the tank into its seat. The correct insertion is done with a "click" (Fig 6).
9. NEVER fill the tank beyond the MAX level. The product functions with normal tap water.
10. Never use pure demineralized water.
11. Caution - Risk of material damage
12. Never use the appliance without water in the tank.
13. Do not add any additives or chemicals (such as for example, amides, starches, perfume or other):
14. Otherwise, the warranty may be revoked.

Switching on the appliance

1. The first time the appliance is switched on, it is possible to see a light emission of smoke:
2. This transitory effect is perfectly normal and will disappear very soon.

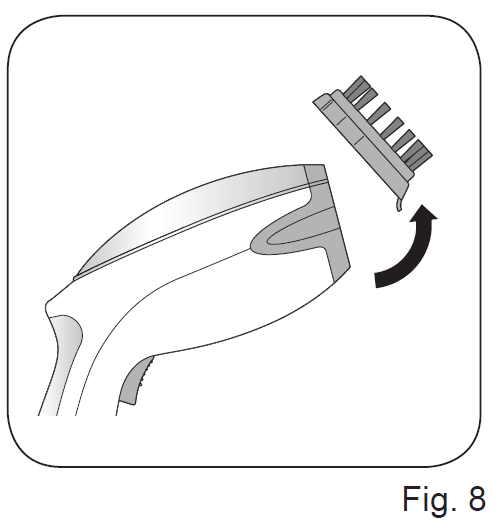

3. Remove the brush or the lint accessory (Fig 8).



4. Plug into the mains socket.



5. Press the on switch (J). The button light starts flashing. The plate starts to warm up. When theon/off switch light remains on, the appliance has reached the temperature and is ready for use.
6. Before using the appliance, clean the soleplate on an old cloth. Make sure that the soleplate and the tank are clean.
7. After 8 minutes, if you did not press the steam button (E), the appliance goes into standby. The light on the on/off button starts flashing. Press the steam button to reactivate the device again.
8. Press the steam button (E) repeatedly until steam comes out. Steam does not come out im- mediately after pressing the steam button, because the water has to pass from the tank to the steam generator.
9. Pass the appliance on the cloth.

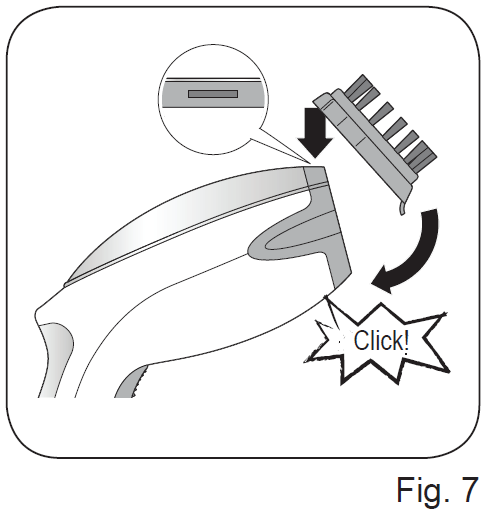

10. Install the brush or lint accessory. The correct insertion is done with a "click" (Fig 7).



    1. Place the garment on a hanger. Pass the appliance on the garment. Press the steam button (E) several times.

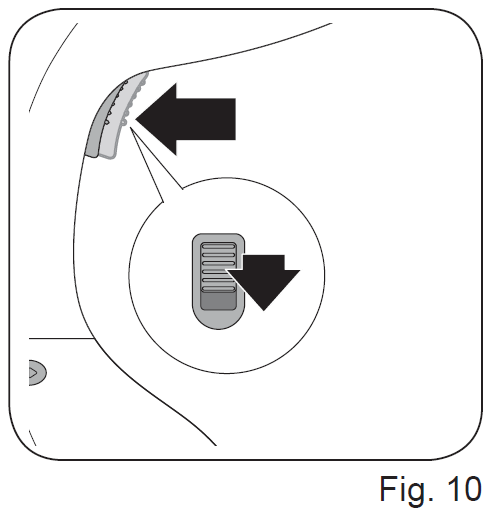

    2. To emit a continuous and constant jet of steam, press the steam button. Move the continuous steam lock slider downwards (Fig 10).



    3. Caution - Risk of burns. Risk of fire
    4. A Use the appliance only with vertical movements from the bottom upwards and vice versa.

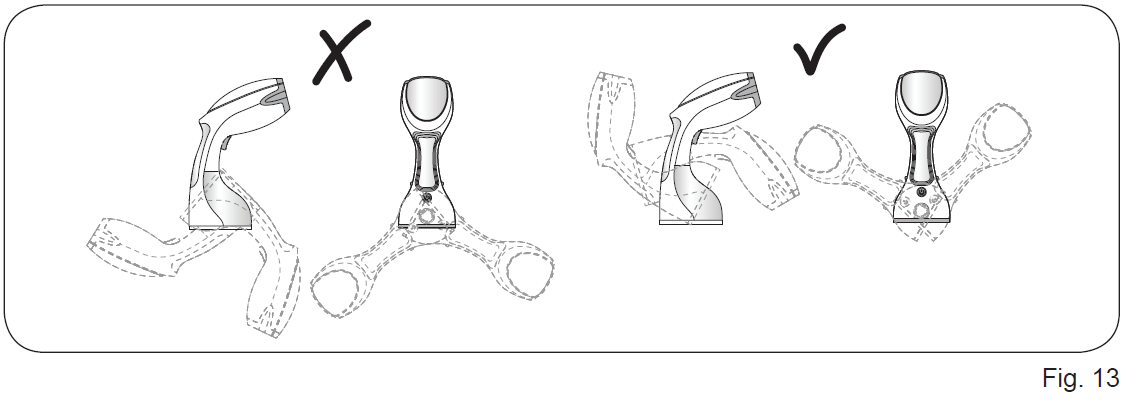

    5. Do not use the appliance horizontally or upside down, with the nozzles downwards (Fig 13).



    6. Danger of hot water leakage from the nozzles. Danger of fire
    7. Caution - Risk of burns
    8. Do not use the appliance on fabrics that are held by other people.

Filling the boiler during use

• Always check the level of water in the tank while you are ironing.
• Press the on/off switch (J) to switch off the appliance. unplug it from the electric outlet. Let the appliance to cool down for a few minutes.

Remove the tank.

Fill the tank with fresh natural water up to the MAX level (Fig 4).

1. Close the tank cap.
2. Fit the tank into its seat. The correct insertion is done with a "click" (Fig 6).
3. Plug into the mains socket.
4. Press the on switch (J).

Revive the garments with the steamer

1. Caution - Risk of burns I Before proceeding with the accessories installation or removal, turn off the appliance. Wail until the appliance has completely cooled.
2. Attach the brush. The correct insertion is done with a "click" (Fig 7).
3. Place the garment on a hanger. Pull the garment with your free hand. Place the appliance on the garment folds. Press the steam button (E) and then release it. Move the appliance from the top downwards and brush. Press the steam button (E) several times.
4. To emit a continuous and constant steam jet, move the continuous steam lock slider down- wards (Fig 10).|
5. To obtain a more powerful steam jet, remove the brush from the appliance.
6. At the end of the work, allow to dry clothes on the hanger.

Remove lint from the garment

1. Remove the brush (Fig 8).
2. Fit the lint accessory. The correct insertion is done with a "click" (Fig 7). Place the garment on a hanger. Pull the garment with your free hand. Place the appliance on the garment folds. Press the steam button (E) and then release it. Move the appliance from right to left. Press the steam button (E) several times.

Small horizontal final touches

Garments ironing is possible only for those fabrics that have the throe-point mark (***) label.

1. Remove the brush (Fig. 8)

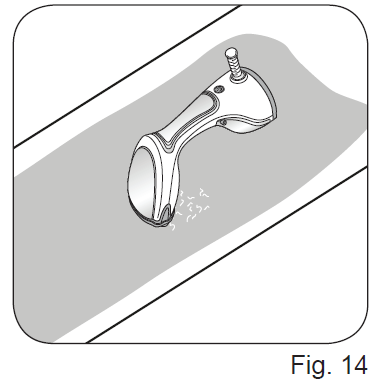

2. Place the fabric on an ironing board. The appliance must be used holding it horizontally, and with the nozzles downwards (Fig. 14).

Upholstery, curtains and fabrics
The tents and garments can be treated when they are hanging. Tablecloths and upholstery fabrics must be hung on a rod, like a curtain rod. Before you start ironing delicate fabrics, it is recommended to test it in a hidden part of the garment such as a flap.

Steam ironing
Garments ironing is possible only for those fabrics that have the three-point mark (***) label.

1. Remove the brush (Fig 8).
2. Place the fabric on an ironing board. The appliance must be used holding it vertically, and with the nozzes downwards (Fig 13)

AFTER USING THE DEVICE

1. Press the on/off switch (J) to switch off the appliance.
2. unplug it from the electric outlet. Let the appliance to cool down for a few minutes.
3. Empty the water tank completely so as to prevent the water from stagnating, which may form lime deposit.
4. Put the appliance in a dry place and away from the reach of children.

CLEANING AND MAINTENANCE

Caution - Risk of burns.

• Before deaning or maintenance, always disconnect the plug from the mains supply. Let th= appliance to cool down for a few minutes.
• Caution - Risk of material damage
• Do not wind the power cord around the appliance
• Do not store the appliance resting on the brush bristles.

Cleaning the appliance

• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth. Do not use abrasive products to dean the device.

Tank cleaning

• To clean the tank, insert fresh water, rinse and drain.
• Caution - Risk of material damage
• Do not put vinegar, decalcifying agents or other fragrant substance inside the tank: Other wise, the warranty may be revoked.

The warranty does not cover damage caused by clogging due to lime.

Cleaning the accessories

1. Remove accessories from the appliance.
2. To clean the brush, remove the dust with your hands.
3. To clean the lint accessory, move the accessory from right to left on a clean towel.

Troubleshooting the ariete Garment Steamer 4167

• Steamer Not Heating: Ensure the unit is plugged in and the power light is on. Check that the water tank is properly filled and attached.
• Weak or No Steam: Water tank might be empty or clogged. Refill with clean water and descale if necessary.
• Auto Shutoff Activation: This is a safety feature to prevent overheating. Allow the unit to cool down for 10-15 minutes before restarting.
• Water Leakage: Verify that the water tank cap is tightly closed and the tank is properly seated.
• Error Codes: The ariete 4167 does not display error codes but responds to malfunctions via indicator light blinking patterns; refer to the user guide for specifics.

Preventive measures include using distilled water to reduce scaling and cleaning the steamer after every 10 uses. The product typically comes with a 2-year manufacturer warranty covering defects and malfunctions.

For further assistance, contact ariete customer support via their official website or authorized retailer helpline.
