 Ariete Evo 2 in 1 Cordless Vacuum Cleaner 2765

Introduction

The Ariete Evo 2-in-1 Cordless Vacuum Cleaner 2765 is a versatile and powerful cleaning solution designed for modern homes. Combining the convenience of cordless operation with a dual-function design, this vacuum cleaner serves both as a lightweight broom and a handheld device, making it ideal for cleaning floors, carpets, upholstery, and hard-to-reach corners. Its bagless technology and cyclonic suction maximize cleaning efficiency while maintaining filter longevity, providing a thorough clean without the hassle of frequent maintenance.

Key benefits include an 18V power system delivering 600W of suction strength, a washable HEPA E10 filter that traps fine dust and allergens, and a 0.8-liter dirt container offering ample capacity for extended cleaning sessions. The vacuum offers up to 30 minutes of cordless cleaning time, allowing users to move freely without being tethered to a power outlet. Its ergonomic design features a foldable handle for compact storage and a lightweight build of just 2.41 kg, making it suitable for daily use by busy households, pet owners, and allergy sufferers alike.

Priced competitively in the range of approximately $170 to $180, the Ariete Evo 2 in 1 Cordless Vacuum Cleaner 2765 is widely available through leading online retailers and specialty appliance stores. Its blend of performance, convenience, and portability makes it a compelling choice for anyone seeking an efficient, multipurpose vacuum without the clutter of cords.

Specifications of Ariete Evo 2 in 1 Cordless Vacuum Cleaner 2765

• Power: 600W motor with 18V cordless battery system (Ni-MH 1800 mAh)
• Cleaning Time: Up to 30 minutes on a full charge
• Charging Time: 12 to 14 hours for a full battery recharge
• Dirt Capacity: 0.8 liters bagless cyclonic dust tank
• Filter: Washable HEPA E10 hypoallergenic filter for fine dust retention
• Weight: Lightweight at 2.41 kg for easy handling
• Design: 2-in-1 function (upright broom and detachable handheld vacuum)
• Accessories: Includes crevice nozzle and fabric brush for versatile cleaning
• Additional Features: Foldable handle, stands upright independently, manual cable reel (for corded variants)
• Dimensions: 119 cm height × 29 cm length × 22.5 cm width

Compared to similar cordless vacuums in the segment, the Ariete Evo 2 in 1 stands out with its cyclonic technology that maintains suction power and filter life longer than conventional models. Its HEPA filtration surpasses basic dust filters, making it a strong candidate for allergy-conscious users.

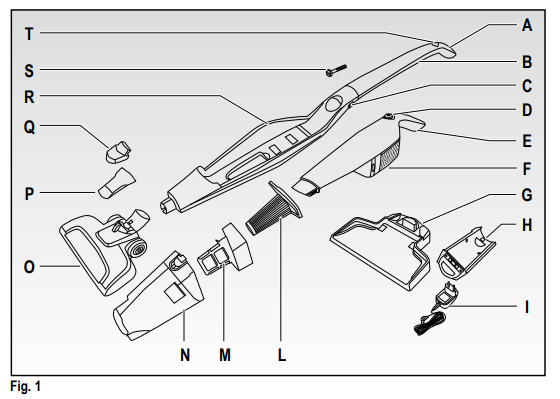

APPLIANCE DESCRIPTION (Fig. 1)

1. Grip
2. Upper handle
3. Unlocking the buttons of the removable body
4. ON/OFF button of the removable body
5.  Recharge light
6. Removable body grip
7. Removable body / handheld vacuum cleaner
8. Recharging base
9. Recharging the base upper side
10. Charging adapter
11. Filter
12. Filter support
13. Dust container
14. Brush for floors/carpets
15. Crevice nozzle
16. Vacuum cleaner with a brush
17.  Appliance body
18. Locking screw upper handle
19. ON/OFF button

The product works in two modes:

1. As a standard electric broom with a brush for floors (O) and, by tilting the appliance body (R) backwards, in the normal position for use
2. As a handheld vacuum cleaner, by taking off the removable part (C), suitable for cleaning surfaces and working tables through the vacuum cleaner with the brush (Q) or the crevice nozzle (P) in case of narrow spaces.

APPLIANCE ASSEMBLY

Before use, assemble the upper handle (B) on the appliance body (R), proceeding as follows:

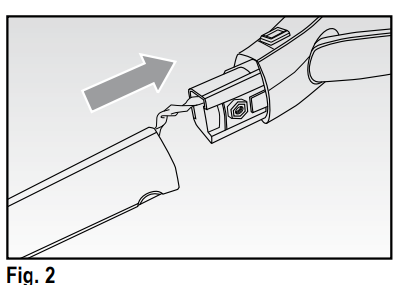

• Assemble the upper handle (B) to the appliance body (R), by slightly pressing it until it stops, making sure the wire is properly inserted into the appliance body (Fig. 2)

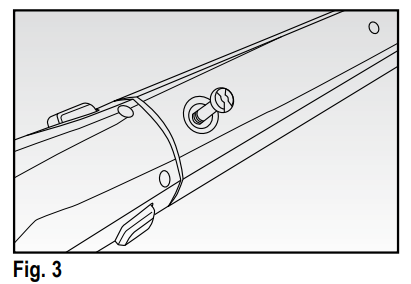

• Insert the supplied screw (S) into the opposite hole on the handle (B) and, by means of a screwdriver, tighten it (Fig. 3).

ATTENTION:

• Be careful when using the screwdriver to avoid injury.
• Make sure the appliance is properly installed before use. BATTERY CHARGING

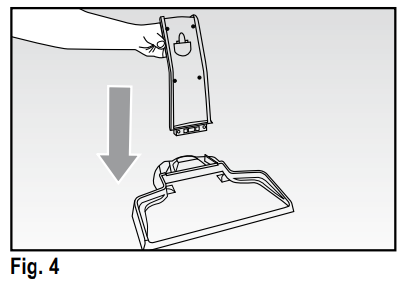

• Assemble the recharging base (G) by positioning the upper side (H) (Fig. 4).

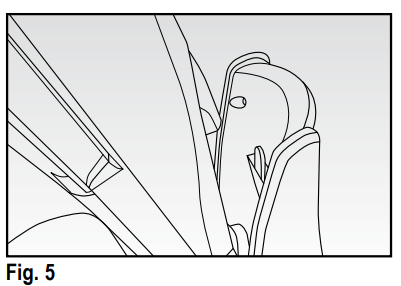

• Position the assembled appliance on the recharging base (G), making sure it properly locks on the hook on the upper side (H) of the recharging base (G) (Fig. 5).

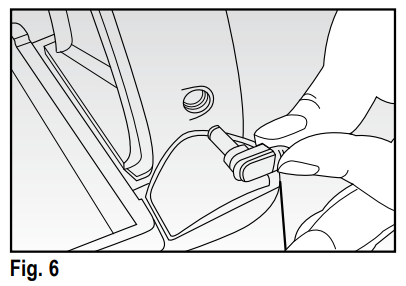

• Insert the the charging adapter (I) into a mains power socket and the plug into the corresponding jack situated on the recharging base (G) (Fig. 6).
• The recharge light (D) situated on the removable body (F) will start flashing slowly, signalling that the appliance is being charged.
• When the light (D) is steady, the recharge is complete, and the broom is ready for use.

ATTENTION:

• Fully recharge the battery before any use.
• Do not start the appliance during recharge.
• Fully discharge the battery before a new recharge.
• The recharge light (D) starts blinking quickly signals a failure in the recharge circuit. Contact an authorized Service Centre Ariete.
• The adapter (I) and the base upper part (H) may warm up during recharge; this is normal.
• Avoid recharging at a temperature below 5°C (40°F) or above 40°C (105°F) to prevent dama-ges of batteries.
• If the appliance does not work, check that it is properly inserted in its recharging base (G), is powered, and correctly plugged in.

ATTACHMENTS

• Brush for floors/carpets (O)
• Suitable for cleaning any kind of surface, including carpets.

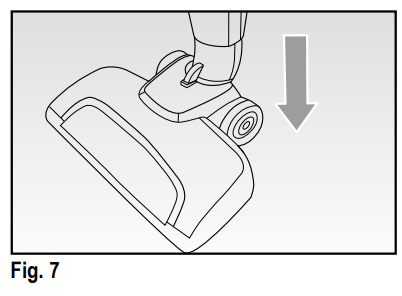

• Insert the brush into the appliance body (R), by slightly pressing it until it locks in place (Fig. 7).



• Take the brush outwards to remove it.
• Vacuum cleaner with brush (Q) - for handheld vacuum cleaner only. Suitable for cleaning surfaces and working tables, as well as couches and fabrics.
• Crevice nozzle (P) - for handheld vacuum cleaner only
• Suitable for cleaning corners, crevices,, or areas hard to reach.

HOW TO OPERATE

• Before using the appliance, make sure the battery is fully charged.
• With the handheld part (F) properly assembled in the appliance body (R), press the switch-on button (T) and tilt the handle backwards in the standard position of use.
•  Clean the wide surfaces by pushing with the brush (O) forwards.
• This allows the vacuum cleaner to collect the fragments and the dirt on the floor.
• For cleaning the corners and small surfaces, rotate the broom in the opposite direction. The fragmentsand dirt can be moved to be collected.

ATTENTION: Switch the broom off immediately when something remains stuck inside the brush, such as some fabric, carpet fringes, etc.

• After cleaning, switch the broom off by pressing the switch-off button (T) once more.

Handheld vacuum cleaner

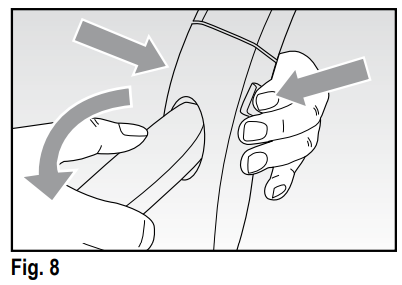

• By holding the handle of the appliance body (R), simultaneously press the unlocking buttons (C) and remove the handheld vacuum cleaner (F) - Fig. 8.

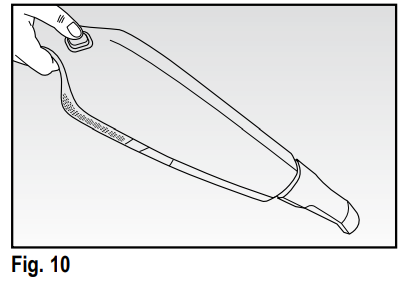

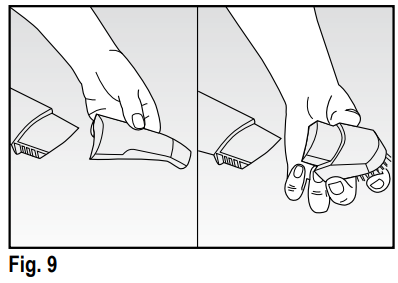

• At the end of the dust container (F), apply the required attachment (Fig. 9); press the switching on button (D) to start the appliance by means of the appropriate handle (E) - Fig. 10.

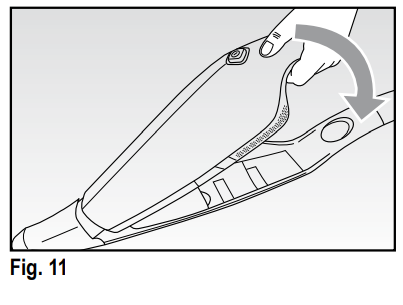

• For positioning the handheld vacuum cleaner back into the appliance body (R), remove the installed attachment first, by removing it outward, position the end in the lower side of the opposite housing in the appliance body (R), and slightly push backward the handheld vacuum cleaner until it clicks into place (Fig. 11).

WARNING:

• Make sure the handheld vacuum cleaner is properly installed before proceeding with a new use.

CLEANING

• Clean the appliance body (R) and the removable body (F) by using only a damp cloth with mild detergent, if necessary.
• Proceed with care to prevent any kind of liquid from getting into the appliance.
• Never use strong cleaning agents (stain removers, solvents) that may corrode the plastic.
• How to empty the dust container (N)
• WARNING: Clean the dust container (N) and the filter (L) in due time. The suction power is reduced when the container is full or the filter is obstructed.
•  From the back of the appliance, check whether the dust container (N) is full.
• Remove the handheld vacuum cleaner as previously described.

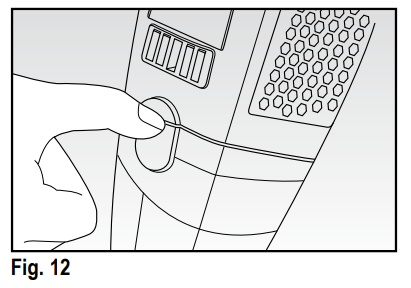

• Press the unlocking button and remove the complete container (Fig. 12).

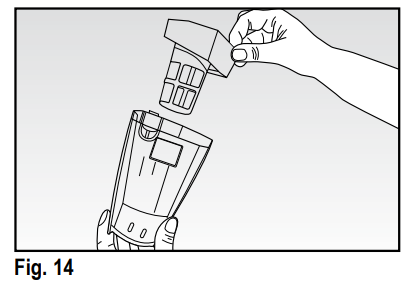

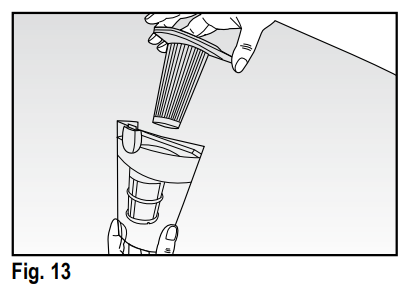

• Remove the filter (L) outwards (Fig. 13) and the related support (M) (fig. 14) to clean them. WARNING: Wash the filter (L) only with fresh water without using soap or detergents.
• Empty the dust container (N) into an appropriate plastic bag and wash it with water, if necessary.
• Let the components dry and reassemble.
• WARNING: Properly assemble the support (M), the filter (L), and the dust container (N) before starting the appliance.
• Mount the complete container back on the removable body (F) by inserting the notches on the container into the apposite slots on the removable body and pushing it until it clicks into place (Fig. 15).

How to clean the floor brush (O)

• WARNING: Clean the floor brush (O) only after having removed it from the appliance.

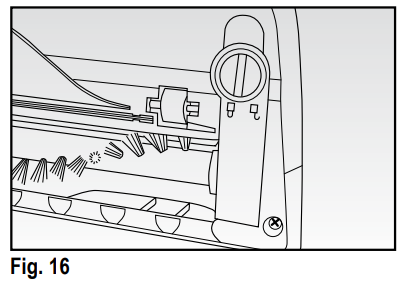

• Rotate the plastic screw towards the sign “ ” and remove the lid (Fig. 16).
• Remove the rotating brush, proceed with cleaning, and mount it properly.
• Reassemble the lid and rotate the plastic screw towards the sign “ ”.

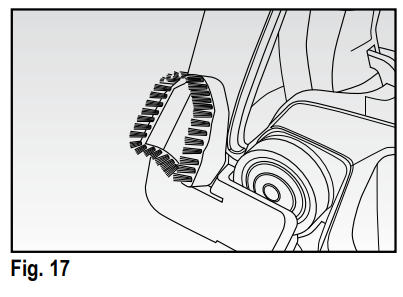

• After cleaning and maintenance, store the complete appliance on the recharging base (G), unplugged from power mains, and insert the attachments into the appropriate side slots on the base itself (Fig. 17).

Troubleshooting Common Issues for Ariete Evo 2 in 1 Cordless Vacuum Cleaner 2765

• Loss of suction: Clean or replace the washable HEPA filter; empty the dust container to avoid blockages.
• Vacuum won’t power on: Ensure battery is fully charged; check for battery connection; try resetting by turning off and on.
• Battery drains quickly: Fully charge the battery; avoid partial charges; if the issue persists, battery replacement may be needed.
• Error codes: This model does not display error codes; observe indicator lights or unusual noises for clues.
• Preventive Tips: Clean the filter monthly, avoid vacuuming large debris, and store it in a dry place.

Warranty: Comes with a standard 1-year manufacturer’s warranty covering defects and malfunctions.

Support: For further assistance, customers can contact Ariete customer service through their official website or authorized dealers.

Pros & Cons of Ariete Evo 2 in 1 Cordless Vacuum Cleaner 2765

Pros:

• Powerful suction: 600W motor and cyclonic technology provide strong cleaning performance.
• Versatile 2-in-1 design: Converts easily between upright and handheld modes for varied cleaning needs.
• HEPA filtration: Captures fine dust and allergens, suitable for allergy sufferers.
• Lightweight and ergonomic: Easy to maneuver and store with a foldable handle.
• Decent cordless runtime: Approximately 30 minutes of cleaning per charge.

Cons:

• Long charging time: 12-14 hours to fully recharge is longer than some competitors.
• Battery capacity: Ni-MH battery technology is less efficient compared to newer lithium-ion alternatives.
• Dirt capacity: The  0.8L bin may require frequent emptying during large cleaning tasks.
• Availability of parts: Replacement filters and batteries may be less accessible in some regions.
