Setup: Ariete Handy Force Stick Vacuum Cleaner 2761 User Manual

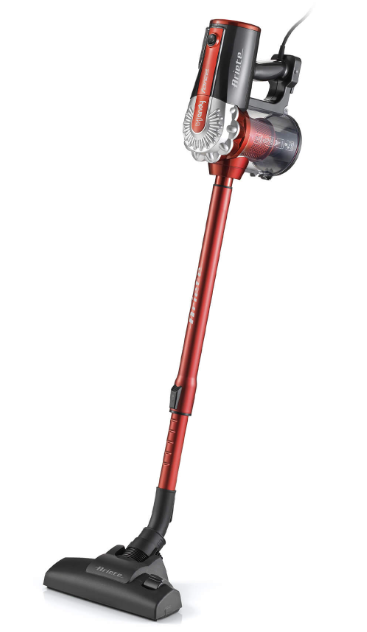

Ariete Handy Force Stick Vacuum Cleaner 2761

Introduction

The Ariete Handy Force Stick Vacuum Cleaner 2761 is a versatile, powerful cleaning appliance designed to meet the needs of modern households. Combining the benefits of a vertical stick vacuum and a portable handheld unit, this model offers convenience and efficiency for everyday cleaning tasks. Its lightweight and ergonomic design make it ideal for various surfaces, including hard floors, carpets, sofas, and even car interiors, ensuring a thorough, dust-free environment.

One of the key selling points of the Ariete Handy Force 2761 is its bagless cyclonic technology paired with a high-efficiency HEPA filter, which guarantees strong suction power and effective trapping of dust, mites, and allergens without releasing them back into the air. This feature makes it particularly suitable for allergy sufferers. The product is equipped with a telescopic tube and multiple accessories, enhancing its adaptability for different cleaning needs.

Targeted at busy households and pet owners seeking a reliable and easy-to-use vacuum cleaner, the Ariete Handy Force excels in quick clean-ups and deep cleaning alike. It is typically available in retail and online stores within the price range of approximately €80 to €120, making it a competitive option in the mid-range vacuum cleaner market.

Specifications of the Ariete Handy Force Stick Vacuum Cleaner 2761

• Power source: Corded electric, 600W motor
• Weight: 2.24 kg, ensuring easy maneuverability
• Dimensions: 122 cm height, 27 cm length, 23 cm width
• Dust capacity: 0.5 liters bagless dust container
• Filtration system: HEPA filter for trapping microdust, mites, and pollen
• Technology: Bagless cyclonic suction system for consistent performance
• Brushes: Multifunctional universal brush suitable for delicate surfaces, hard floors, and carpets
• Accessories included: Telescopic rod, multifunction brush, nozzle, wall mount, and screws
• Noise level: Approximately 80 dB
• Additional features: Switchable brush position for different floor types, handheld vacuum mode for spot cleaning

Compared to similar models, the Ariete Handy Force 2761 offers a unique combination of a strong 600W motor, cyclonic technology, and HEPA filtration in a lightweight design, making it more practical and hygienic than many basic stick vacuums that lack advanced filters or dual-use functionality.

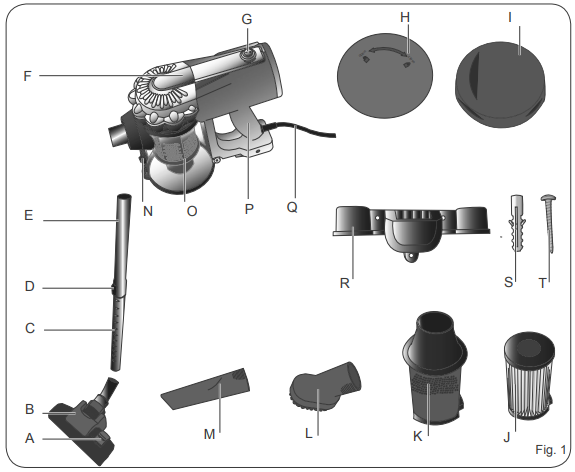

DESCRIPTION OF THE APPLIANCE

• Brush position switch
• Brush
• Telescopic rod
• Telescopic rod adjustment hook
• Tube
• Motor body
• On/Off button
• Lid
• Air outlet filter
• HEPA filter
• Motor protection filter
• Multifunction brush
• Nozzle
• Lever for unlocking the dust container lid
• Dust container
• Handle
• Power cord + Plug
• Wall support
• Screws (x 3)
• Wall plugs (x 3)

Identification data
On the label under the base of the appliance are reported the following identification data of the appliance:

• manufacturer and CE marking
• model (Mod.)
• serial number (SN)
• electrical supply voltage (V) and frequency (Hz)|
• electrical power consumption (W)
• assistance toll-free phone number

When ordering at Authorized Service Centers, indicate the model and serial number.

INSTRUCTIONS FOR USE

Remove the packaging materials from inside and outside of the appliance. Remove all the stickers. Grab the motor body (F) by the handle (P). Assemble the tube (E) on the motor body (Fig. 2).

Assemble the tube on the brush (B) (Fig. 3).

Warning

• Appliance at danger. The appliance, once that it is assembled, cannot stand on the brush in a vertical position.
• Insert the plug into a power outlet. Press the ON/OFF button (G). The appliance starts working at the maximum power.
• Press the brush switch (A) to position (2) for cleaning hard surfaces such as floors (Fig. 4).
• Press the brush switch (A) to position (1) for the cleaning soft surfaces such as carpets (Fig. 4).

Warning

• Swich the appliance off immediately if something gets trapped inside the brush, such as a piece of cloth, the fringes of a carpet, etc. Before turning on the appliance again, remove anything that caused the obstruction of the aspiration ducts.
• When the dust reaches the MAX lever, you need to empty the dust container (0).
• Switch off the appliance. Disassemble the tube.
• Take the motor body to a trash bin. Push the unlocking lever of the dust container lid (N). Empty all the dust (Fig. 5).

• Close the dust container lid.
• The appliance can be used with the tube and the brush or with the brush built directly on the motor body (Fig. 6).

• The appliance is provided with two accessories, a multifunction brush (L) and a nozzle (M). The accessories can be built on the tube to reach the highest points.

The accessories can be built directly on the motor body to clean the windows and the interior of the car (Fig. 7-8).

AFTER USING

• Switch off the appliance. Empty the dust container.
• Disassemble the motor body from the tube.
• Put the appliance in a dry place and away from the reach of children.
• Alternatively, use the support to hook the appliance to the wall. The support is supplied (R) with the specific screws (S) and the specific wall plugs (T).
• Place the support on the wall. Adjust the height of the support on the wall according to the height of the appliance. Using a pencil, make marks on the wall corresponding to the three holes in the support. Remove the support from the wall. Drill the wall with the drill at the markings. Insert the supplied wall plugs (T) into the holes. Place the wall support with the holes at the wall plugs. Insert the supplied screws (S) into the holes.

• Tighten the screws with a screwdriver. Hook the appliance to the support (Fig. 12).



APPLIANCE CLEANING

Warning!
All cleaning operations described below must be carried out with the appliance off and with the plug disconnected from the outlet. Never place the motor body, plug, or power cord in water or other liquids - wipe clean using a damp cloth only. Do not use direct jets of water.

Warning!
Regular maintenance and cleaning preserve and maintain the appliance efficiently for a longer period.
The dirt enters in the dust container (O). The air is cleaned by a HEPA filter (J), which is inside the dust container, by a motor protection filter (K), and by an air outlet filter (L), placed in the upper part of the motor body.

Warning!
Never use the appliance without a filter or with a damaged filter. The aspired dust could go inside the appliance and damage the motor.

Appliance body cleaning
A Neanine fixed parts of the appliance using a non-abrasive damp cloth to prevent damaging the body.

Brush cleaning

• Do not lubricate or grease the rotating parts to avoid that hair and lint getting stuck.
• The brush can be removed from its seat to clean the bristles.
• Remove the brush (B) from the tube.
• Turn the brush upside-down.
• Clean the bristles from the dirt.

Air outlet filter cleaning

• The air outlet filter (Fig. 9) is positioned under the cover (H), on the motor body.



• To open, turn the lid H) counter-clockwise. Remove the air outlet filter.

Warning.

• Wash the air outlet filter only with clean water without soap or detergent
• Insert the outlet filter in its seat. Close the lid on the motor box by turning it clockwise.

Hepa filter and motor protection filter cleaning

• The Hepa filter (J) is a high-efficiency filter that removes the impurities and filters particles and bacteria. The
• HEPA filter is in the dust container.
• Take the motor body to a trash bin. Push the unlocking lever of the dust container lid. Remove all the dust.

• Remove the motor protection filter from the dust container (Fig. 10).



• Remove the HEPA filter from the dust container (Fig. 11). Wash the filters with water.



Warning!

• Wash the HEPA filter only with clean water without soap or detergent.
• Often change the Hepa filter (every 4-6 months) to avoid the circulation of the bacteria in the air.
• Insert the Hepa filter within the dust container. The motor protection filter has joints that have to coincide with the seat on the dust container.
• Insert the motor protection filter into the dust container with the large part facing the motor body.

SETTING THE MACHINE OUT OF SERVICE
In the case of decommissioning of the appliance, it must be electrically disconnected. Empty the dust container er. In case of scrapping, you will be required to separate the various materials used in the construction of the appliance and dispose of them according to their composition and to the applicable laws in the country of use.

Setup Guide for the Ariete Handy Force Stick Vacuum Cleaner 2761

1. Assembly: Attach the telescopic rod (C) to the motor body (F) and connect the desired brush or nozzle accessory.
2. Adjusting brush position: Use the brush position switch (A) to select position 1 for carpets or position 2 for hard floors, ensuring optimal suction and cleaning.
3. Power connection: Insert the plug into a suitable electrical outlet and press the On/Off button (G) to start the vacuum.
4. Handheld usage: Detach the telescopic rod to use the motor body with the multifunction brush for cleaning furniture, car interiors, or hard-to-reach areas.
5. Wall mounting: Use the included wall support (R), screws (S), and wall plugs (T) to secure the vacuum for convenient storage.

Troubleshooting tips: If suction power decreases, check and clean the HEPA filter (J) and motor protection filter (K). Avoid letting the dust container (O) exceed its capacity to maintain performance.

Safety warnings: Do not use the appliance on wet surfaces. The vacuum cannot be stored standing vertically on its brush head to prevent falling. Always unplug before cleaning or maintenance.

Troubleshooting the Ariete Handy Force Stick Vacuum Cleaner 2761

• Problem: The Vacuum loses suction power.
  Solution: Empty the dust container and clean the HEPA and motor protection filters to remove blockages.
• Problem: The  Motor does not start.
  Solution: Check that the power cord is properly plugged in and inspect the On/Off button. If issues persist, contact customer support.
• Problem: The Brush does not rotate.
  Solution: Confirm the brush position switch is correctly set and remove any debris obstructing the brush roller.
• Preventive measures: Regularly clean filters and dust container; avoid vacuuming large debris or liquids.

The Ariete Handy Force 2761 comes with a standard warranty (varies by region), and customer support is accessible via the official Ariete service centers. For assistance, users should provide the model and serial number found under the appliance base.

Pros & Cons of the Ariete Handy Force Stick Vacuum Cleaner 2761

Pros

• Dual function: Acts as both a stick vacuum and a handheld cleaner for versatile use.
• Effective filtration: HEPA filter traps allergens, ideal for allergy sufferers.
• Bagless cyclonic technology: Maintains strong suction without loss of power.
• Lightweight and ergonomic: Easy to maneuver and store, with an included wall mount.
• Good value for money: Competitive price point with strong features for daily cleaning.

Cons

• Corded operation: Limits mobility compared to cordless alternatives.
• Noise level: At around 80 dB, it is louder than some competing models.
• Small dust container: 0.5 liters capacity requires frequent emptying for larger cleaning tasks.
• No battery runtime: Not suitable for cordless use or extended cleaning without power outlet access.

Customer Reviews of the Ariete Handy Force Stick Vacuum Cleaner 2761

Users praise the Ariete Handy Force Stick Vacuum Cleaner 2761 for its lightweight design, powerful suction, and the convenience of switching between stick and handheld modes. Many highlight its excellent performance on both hard floors and carpets, as well as its effectiveness in reducing household allergens thanks to the HEPA filter.

Common complaints include the limitation of a corded design restricting movement, and the relatively small dust container size requiring frequent emptying. Some users also note the noise level as being higher than expected for a home appliance.

Overall, the vacuum receives positive star ratings averaging around 4 out of 5, with recommendations particularly for those seeking an affordable, multipurpose vacuum cleaner for quick and effective daily cleaning tasks.
