Ariete Steam Mop 10-in-1 4164

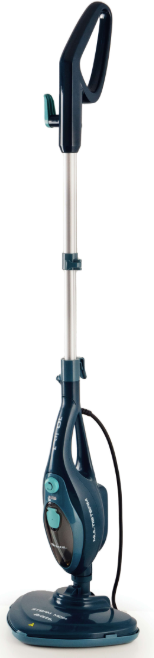

Introduction

The Ariete Steam Mop 10-in-1 4164 is a versatile and powerful home cleaning tool designed to simplify and enhance your floor care routine. Combining the convenience of steam cleaning with multiple functionalities, this 10-in-1 steam mop tackles a variety of surfaces, such as hardwood, tile, laminate, and carpets, with ease. Its ability to sanitise using only water and steam makes it an eco-friendly choice, protecting your home from bacteria and allergens without harsh chemicals.

Key benefits include quick heat-up times, adjustable steam levels, and interchangeable attachments that extend its use beyond floors to upholstery, windows, and grout cleaning. Ideal for busy households, pet owners, and allergy sufferers, the Ariete Steam Mop 10-in-1 4164 delivers a deep clean with minimal effort.

Available at major retail outlets and online stores, its price typically ranges from €70 to €100 depending on the vendor and ongoing promotions. This steam mop stands out as a cost-effective alternative to more expensive professional cleaning systems, offering excellent value for its multifunctional performance.

Specifications

• Power Output: 1500 Watts for rapid steam generation
• Water Tank Capacity: 350 ml, allowing up to 20 minutes of continuous steam cleaning
• Steam Control: Adjustable steam flow with multiple settings to suit delicate to robust surfaces
• Attachments: Includes mop head, carpet glider, window cleaning tool, nozzle brush, and several microfiber pads
• Heating Time: Approximately 15-20 seconds for fast readiness
• Weight: Lightweight design at about 1.3 kg for easy manoeuvrability
• Cable Length: 6 meters for extended reach without frequent unplugging
• Unique Selling Points: 10-in-1 multifunctionality, chemical-free sanitisation, ergonomic design
• Performance: Comparable to other mid-range steam mops, such as the Shark Steam Pocket Mop, but with more accessory options

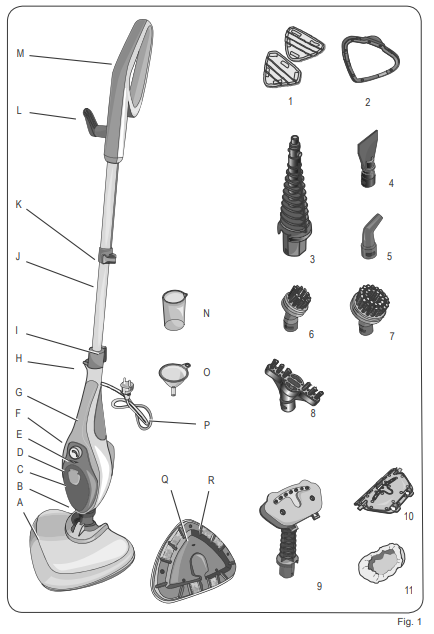

DESCRIPTION OF THE APPLIANCE

• Steam head
• Water tank
• Tank cap
• Steam ready light
• Steam adjustment knob
• Appliance body
• Handle
• Handle release button
• Cord storage hook
• Telescopic rod
• Telescopic rod adjustment hook
• Cord storage hook
• Handle
• Measuring cup
• Funnell
• Power cord + plug
• Steam discharge nozzle
• Washable cloth velcro couplings

1. Washable cloths
2. Carpets cleaning accessory
3. Extension/nozzle
4. Paddle
5. 90° tilted nozzle
6. Small round brush
7. Round large brush
8. Brush for grout joints
9. Accessory for fabrics
10. Squeegee brush
11. Cloth for fabrics

Identification data

In the label located under the support base of the machine there is the following identification data of the machine:

• manufacturer and CE marking
• model (Mod.)
• serial number (SN)
• electrical supply voltage (V) and frequency (Hz)
• electrical power consumption (W)
• assistance toll-free phone number

When ordering at Authorised Service Centres, indicate the model and serial number.

ASSEMBLING THE APPLIANCE

• Remove the packaging materials from the appliance.

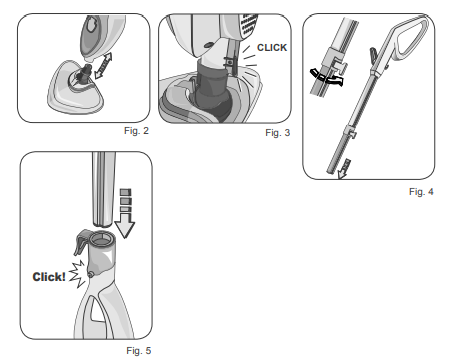

• Assemble the appliance body (F) to the steam head (Fig. 2). The correct installation occurs with a "click" (Fig. 3).
• Assemble the telescopic rod (J) to the appliance body (Fig. 5). Open the adjustment hook (K) and extend the telescopic rod to the desired level (Fig. 4). The telescopic rod can be inserted into the appliance body (F) in one direction only. The correct installation occurs with a "click" (Fig. 5).

INSTRUCTIONS FOR USE

Totally unwind the power cord.
Remove the cap from the tank (C). Fill the water tank with 350 ml of fresh cool water (Fig. 6). Use the funnel (L) and the measuring cup (K) supplied: 350 ml correspond to a measuring cup and a half. Close the tank again.

Warning!
NEVER fill the tank beyond 350 ml. In the case of particularly calcareous waters (with hardness greater than 20°t), use a mixture composed of 50% of tap water and 50% of demineralised water.
Place the cloth under the steam head (Fig. 7). Set the cloth above the velcro couplings.

Warning!
Make sure that the tank has been adequately filled to prevent dry operation. Before using the appliance, make sure that the objects, surfaces, and fabrics to be treated are resistant to or compatible with high-temperature treatment. In particular for brick floors, wood surfaces, delicate fabrics such as leather, silk, or velvet, it is recommended to consult the manufacturer's instructions and do a test on a hidden part or on a sample.

Warning!
If the appliance is left standing on the floor during operation, you may notice the formationof a whitish halo. Do not be alarmed because you can remove it with a normal descalingproduct or with a few drops of vinegar. Insert the plug into the socket, which must be earthed. Turn the steam control knob (E). The indicator lamp (D) will turn on, indicating that the appliance is on and that the internal boiler is starting to heat up. After a few seconds,, steam will start to come out from the steam head. Turn the steam control knob (E) from a minimum to a maximum depending on the amount of steam required (Fig. 8).

Be sure to have firstremove the dust from the floor. Use the appliance on the floor. For the most delicate floors such as parquet, wood,, or laminate, it is advisable to adjust the steam flow to a lower level, while the surfaces that need depth cleaning,, such as marble, brick, tile ,,  or stone, it is recommended to adjust the steam flow to a higher level.
The appliance produces steam continuously, until the water in the tank is not finished. A full tank corresponds to about 15-18 minutes of continuous steam. If the tank remains without water, you will notice a vibration and a louder noise.

Warning!
Do not use the steam head without the cloth. The cloth can be purchased at an Authorised Service Centre. Use the appliance in well-lit rooms.

Warning!
Danger of burns! Do not turn the steam head upside-down during the use to remove the cloth.
You can remove the cloth during use to rinse it. Turn the steam control knob (E) to OFF. Unplug it from the socket-outlet. Wait at least 5 minutes until the steam head and the cloth are well cooled.

Filling the boiler during use
No special operation is required when there is no more water in the tank. Unplug it from the socket- outlet. Fill the water tank with 350 ml of fresh cool water (Fig. 6). Use the funnel (L) and the measuring cup (K) supplied: 350 ml corresponds to a measuring cup and a half. Close the tank again.

After use
Turn the steam control knob (E) to OFF. Remove the power cable from the socket-outlet. Empty the water tank completely so as to prevent the water from stagnating, which may form a lime deposit (Fig. 16).

Warning!
Wait at least 5 minutes until the steam head and the cloth are well cooled. Remove the cloth. Tilt the appliance forward to close the rod on the steam head. The correct insertion is done with a "click" (Fig. 17). Pull out and turn the cord storage hook (L) (Fig. 18). The hook (I) is fixed. Wind the power cable on the two hooks (Fig. 19). Leave the unit at rest, in vertical position.

Warning!
For the appliance to be stable in a vertical position,, it is necessary to lock the rod on the steam head (Fig. 17).
Put the appliance in a dry place and away from the reach of children.

USING THE ACCESSORIES

Accessory for cleaning carpets
This accessory is especially useful for cleaning carpets and similar soft surfaces. Do not use on hard surfaces.
Make sure that the cloth is positioned under the steam head. Place the accessory with the flat part in contact with the floor. Thread the steam head in the accessor byapplying light pressure. To remove the tool, simply push it with your foot.

Extension and smaller accessories
To use smaller accessories, it is necessary to remove the steam head (A) and the telescopic rod (J).
Press the steam head connection hook (Fig. 3). Remove the steam head. Press the handle release button (H). Remove the telescopic rod.
Insert the extension (3) onto the appliance body connection. The correct installation occurs with a "click" (Fig. 10).

Insert one of the smaller accessories from the extension nozzle side (Fig. 11).
Smaller accessories can be assembled on the extension only in one direction.
Rotate the accessory until the arrow on the accessory is aligned with the arrow on the extension (Fig. 12).

This accessory is useful to thoroughly clean all surfaces where the most stubborn dirt has settled, and is useful for cleaning sinks, gas stoves, microwave ovens, hoods and all the hard-to-reach areas.

This accessory is useful to scrape debris, dirt and grease from surfaces.
This accessory is especially useful for reaching and sanitising difficult points, such as dirt which settles on radiators, shutters, bathroom fixtures, eliminating it in a simple and fast way.

These accessories help to remove the hardest scale deposits,, such as those that form on the cooker hob. It can be used for cleaning bathroom fixtures, sinks, cooking grills, shower or bath tubs, and removing all traces of limestone.

This accessory is especially useful for cleaning the spaces between tiles, both smooth and rough.

Accessory for fabrics (9)
To use the accessory for fabrics, it is necessary to remove the steam head (A) and the telescopic rod (J). Press the steam head connection hook (Fig. 3). Remove the steam head. Press the handle release button (H). Remove the telescopic rod.
Insert the fabric accessory (9) onto the appliance body connection. The correct installation occurs with a "click" (Fig. 10).
This accessory is especially useful for removing creases from sofas, tablecloths and clothes (Fig. 13).

This accessory is particularly useful for cleaning windows, mirrors, and shower boxes.
To use the squeegee brush, it is necessary to insert the tabs at the base of the fabric accessory, inside the hooks located at the base of the squeegee brush (Fig. 14). Attach the brush to the accessory on the other side (Fig. 15).

Setup Guide for the Ariete Steam Mop 10-in-1 4164

1. Unbox all components and ensure all accessories are present according to the manual.
2. Fill the water tank with clean tap water or distilled water to avoid mineral buildup, up to the indicated maximum level.
3. Attach the desired cleaning pad or accessory depending on the cleaning task—mop head for floors, nozzle brush for grout, etc.
4. Plug the mop into a working electrical outlet and switch it on. Wait about 15-20 seconds for the unit to heat up and begin producing steam.
5. Adjust the steam level control to suit the surface you intend to clean.
6. For carpet cleaning, attach the carpet glider accessory before use.
7. Periodically check the water level during use and refill when necessary, ensuring the unit is unplugged before refilling.

Safety Tips: Do not use cleaning chemicals with the steam mop, always unplug before maintenance, avoid directing steam at electrical outlets or appliances, and keep out of reach of children.

Troubleshooting: If the mop does not heat or steam properly, check the power connection, ensure the water tank is filled, and inspect for possible blockages in the steam vents.

CLEANING AND MAINTENANCE

Warning!
Always unplug the appliance before cleaning it. Let the appliance to cool down for a few minutes.

Warning.
Never immerse the appliance in water or other liquids.

Warning!

• Check the state of the power cable of your appliance on a regular basis before using it, and if it is damaged, take it to the service centre closest to you to have it replaced only by specialised personnel.
• Do not use abrasive products for cleaning the appliance.
• Do not pour vinegar or other scented substances into the tank: otherwise, the warranty may be revoked.

Cleaning the appliance

• To prevent lime residue from forming, empty the tank following use and after having turned off the appliance and unplugged it from the socket outlet.
• Clean the water tank from time to time by putting fresh water in it.
• Clean plastic parts with a damp, non-abrasive cloth and dry them with a dry cloth.
• Follow the instructions on the label to clean the washable cloth.

Limestone cleaning

• Damage caused by limescale is not covered by warranty.
• Good maintenance and regular cleaning preserve and maintain the appliance efficiently for a longer period, greatly reducing the risk of scale formation.
• If,, despite this, after some time, the appliance's function should be compromised, due to constant use of hard and very hard water, it is possible to carry out a descaling operation to eliminate the malfunction.
• Perform the cleaning once every three months. If very hard water is used, clean it every month.

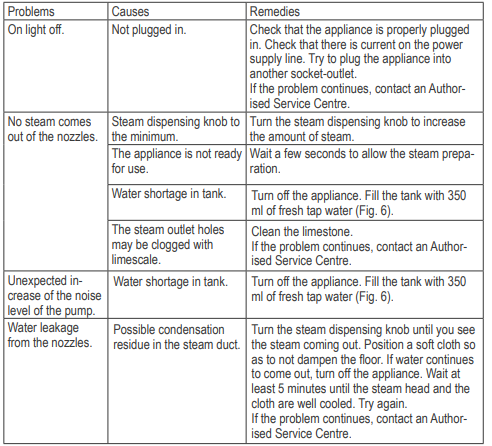

Troubleshooting Common Issues with the Ariete Steam Mop 10-in-1 4164

• Device won't Turn On: Verify electrical outlet functionality and power cable integrity. Try a different socket to rule out outlet failure.
• No Steam or Low Steam Output: Check water level; clean steam nozzles if mineral deposits are suspected (use distilled water to prevent buildup).
• Excess Water Left on Floors: Ensure cleaning pads are properly attached and not overly saturated. Replace or wash pads regularly.
• Steam Levels Not Adjustable: Reset the unit by unplugging and plugging back in; if persistent, contact customer support.
• Preventive Measures: Use distilled or filtered water, clean nozzles monthly, and store the device properly.

Warranty and Support: The Ariete Steam Mop 10-in-1 4164 generally includes a 1-2 year manufacturer's warranty covering defects. For assistance, customers can contact Ariete's official customer service via their website or authorised retailers.

Pros & Cons of the Ariete Steam Mop 10-in-1 4164

• Pros:
  • Multi-functional 10-in-1 design suitable for diverse cleaning tasks
  • Fast heat-up time and adjustable steam control enhance usability
  • Lightweight and ergonomic for effortless handling
  • Includes a variety of accessories expanding cleaning versatility
  • Good value for money compared to higher-end steam mops
• Cons:
  • Water tank capacity may require frequent refills for large areas
  • Steam pressure is moderate, less powerful than some professional models
  • Some users report minor issues with steam consistency over time due to mineral deposits
  • Lacks digital controls or advanced smart features present in premium alternatives

Customer Reviews and Feedback on the Ariete Steam Mop 10-in-1 4164

Users frequently praise the Ariete Steam Mop 10-in-1 4164 for its versatility and ease of use, highlighting how the multiple attachments allow for comprehensive home cleaning beyond just floors. Many appreciate the quick steam generation and lightweight design, which make regular cleaning less of a chore.

Common complaints include the need for frequent water refills when cleaning large spaces and occasional steam inconsistencies, often linked to hard water buildup. However, customers note that proper maintenance, such as using distilled water and cleaning nozzles, mitigates these issues effectively.

Overall, the product receives average ratings around 4 out of 5 stars, with strong recommendations for users seeking a budget-friendly, multifunctional steam mop. Buyers emphasise the value for money and the convenience of chemical-free sanitisation as major selling points.
