Introduction

The Astro Portable Mini Refrigerator is a game-changer for anyone who needs a compact and efficient cooling solution. This mini fridge is perfect for road trips, camping, boating, office use, and even for keeping your skincare products cool. With an estimated price range of $100 to $150 and a launching date set for late 2023, this product is definitely worth the wait.

SPECIFICATIONS

1. Capacity: 9L
2. Input voltage
   • DC12V
     cool mode:50W
     warm mode:42W
   • AC110V (USA/CA/JP)
     cool mode:65W
     warm mode:55W
   • AC220V (DE/UK/FR)
     cool mode:65W
     warm mode:55W
3. Operating temperature: Ambient Temp- 32°F (0°C) Chill 150°F (66°C) Heat
4. Certifications: CE, FCC, ETL, RoHS

PARTS DIAGRAM

1. Door Handle
2. Carrying Handle
3. Warm/Cool/Off  Switch
4. Cooling Function Indicator Light
5. Warming Function Indicator Light
6. AC Cord and Plug
7. DC Cord and Plug
8. Removable Shelf

Operating Instructions about Astro Portable Mini Refrigerator

Connecting to 12V Cigarette Lighter

1. Set the MODE switch to the OFF position before connecting to the 12V outlet.



2. Secure the fridge in place and plug the power cable into the 12V outlet.



3. Plug the power cable into the DC POWER input at the rear of the fridge.



4. Turn the MODE switch to either WARM or COOL



WARNING: Running the portable fridge while your vehicle is off may drain the vehicle's battery.

CONNECTING TO A WALL OUTLET

1. Set the MODE switch to the OFF position before connecting to the wall



2. Plug the power cable into the AC POWER input at the rear of the fridge.



3. Secure the fridge in place and plug the power cable into the wall outlet.



4. Turn the MODE switch to either WARM or COOL.



Cold Mode Tips
To achieve the quickest cooling, fill the fridge with beverages which have already been refrigerated. The lowest possible temperature depends on the surrounding environment. The cooler the ambient temperature, the colder the compact fridge can become.
NOTE: Ambient temperature refers to the temperature of the surrounding air. For example, if unit is used for cooling, and your immediate surroundings is 75°F, then the unit will keep contents cool anywhere between 35°- 40°F.
Warm Mode Tips
The fridge is designed to keep items warm. It is not designed to heat up cold items. Hot items will stay warm for several hours after the portable fridge has been turned off, provided that the door is closed properly

SAFETY INFORMATION

• The fridge can be connected to a 110V power supply. (Select products  with corresponding voltages per countries with different voltages)
• When using the 12V car adapter, the compact fridge should NOT be left connected for a long time when the engine is not running.
• DO NOT connect directly to a 24V lighter socket on a heavy-duty vehicle.
• Unplug this device during possible power surges or when not in use for xtended periods of time.
• DO NOT open or remove covers, doing so may expose you to dangerous voltages or other hazards.
• To prevent the risk of fire or electric shock, avoid overloading wall outlets, extension cords, or other devices that carry electrical loads.
• Only use suitable power sources - plug the product into a suitable power source, as described in the operating instructions or as marked on the product.
• The supply voltage should be the same as that indicated in the technical specifications and the appliance rating plate.
• In order to turn off the device completely, switch off the outlet and remove the plug.
• Do not bend, stretch or pull the power cable in order to avoid electric shock.
• When installed, the power socket must be within easy reach.
• Avoid using in places where dust or other airborne contamination may be drawn into the fan.
• Leave at least 2 inches of distance from the back and sides of the device to allow proper air circulation and heat dispersal.
• NEVER leave the fridge running in poorly ventilated areas, e.g. a car’s trunk.
• This item cools up to 32°F below room temperature. If left in a cold room this may freeze the contents. The lowest possible temperature is 32°F.
• DO NOT use your compact fridge to store anything that must be stored at a constant temperature.
• Allow 30 minutes for the fridge to return to room temperature before switching from heating to cooling mode, or vice versa.
• Do not sit on the fridge.
• Do not expose the fridge to rain, humidity, or other sources of liquid.
• Keep the fridge away from corrosive gases and liquids.
• Disconnect the power supply when not in use for an extended period of time.
• Store in a cool, dry, and well-ventilated environment.
• Avoid exposing the device to direct sunlight.
• Not for children. Device should be used with adult supervision.

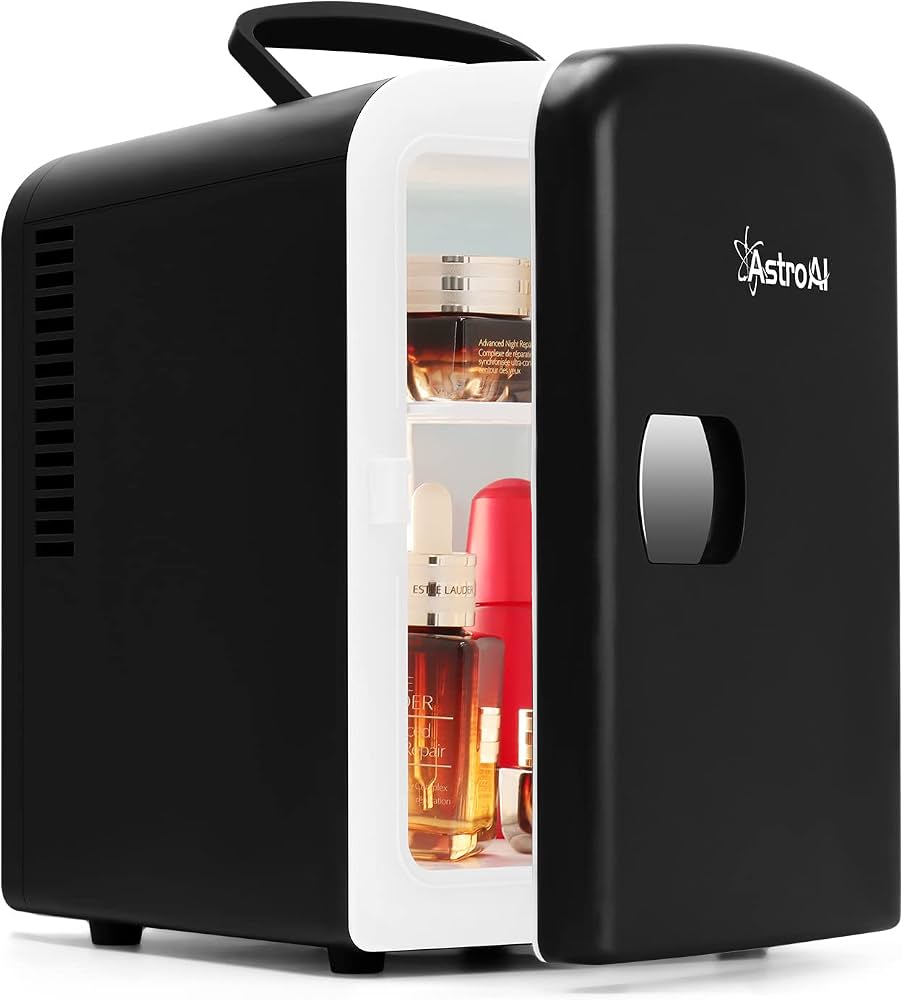

Description of Astro Portable Mini Refrigerator

The Astro Portable Mini Refrigerator is a compact and lightweight cooling device that can hold up to 6 cans of soda or beer. It has a sleek and modern design, making it a great addition to any space. This mini fridge is equipped with a powerful and energy-efficient cooling system that can cool down to 32°F (-6°C) below the ambient temperature. It also has a removable shelf for easy organization and cleaning. The Astro Portable Mini Refrigerator is made with high-quality and durable materials, ensuring that it can withstand the wear and tear of everyday use.

SIZE DESCRIPTION

DIMENSION

Setup Guide

Setting up the Astro Portable Mini Refrigerator is easy and straightforward. Here's how to operate, assemble, and configure your new mini fridge:

1. Plug in the power cord into a standard 110-120V electrical outlet.
2. Set the temperature using the digital control panel.
3. Wait for 15-30 minutes for the fridge to reach the desired temperature.
4. Place your items inside the fridge and organize them using the removable shelf.
5. Close the door tightly to ensure that the cool air stays inside.

Astro Portable Mini Refrigerator Care and Maintenance

1. Ensure you disconnect the plug fully before performing regular maintenance.
2. Use a vacuum cleaner and/or brush to clean the fan monthly.
3. Clean the case with a damp cloth and mild cleaner.
4. Ensure the inside is completely dry before storing when not in use.

TROUBLESHOOTING

3 Year Warranty From AstroAl

Each AstroAl Portable Mini Refrigerator will be free from defects in material and workmanship. This warranty does not cover damage t misuse, contamination, alteration, accident, only and is not transfer to Operation or handling, This warranty covers the original purchaser AstroAl always wants to provide our customers with excellent products as well as customer service. To know more about us please visit https://www.astroai.com/.

Pros & Cons

Pros

• Compact and lightweight design
• Powerful and energy-efficient cooling system
• Removable shelf for easy organization and cleaning
• Sleek and modern design
• High-quality and durable materials

Cons

• May not be large enough for some users' needs
• Can be a bit noisy when the compressor is running
• May not maintain temperature in extremely hot environments
• Limited color options
