Setup: Beurer Daylight Therapy Lamp TL 85 User Manual

Beurer Daylight Therapy Lamp TL 85: Complete Product Manual and Guide

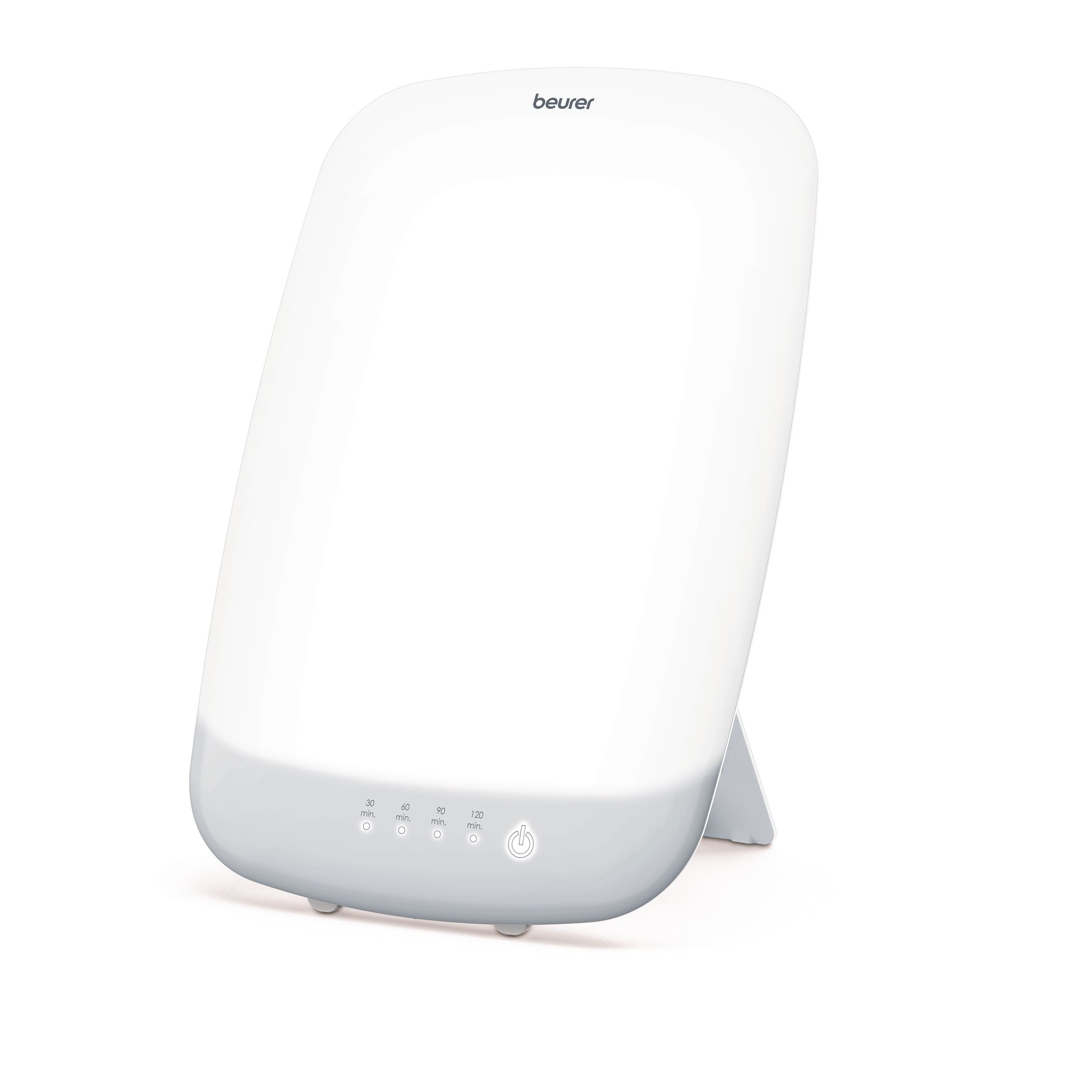

Introduction to the Beurer Daylight Therapy Lamp TL 85

The **Beurer Daylight Therapy Lamp TL 85** is a premium medical-grade light therapy device designed to simulate natural daylight, delivering up to 14,000 lux at approximately 20 cm distance for effective **daylight therapy**. This **Beurer TL 85** lamp combats seasonal affective disorder (SAD) symptoms like low mood, lack of energy, imbalance, and listlessness during months with limited sunshine. Featuring energy-saving LED technology, it provides flicker-free, UV-free illumination with an exceptionally even distribution across its 37 x 30 cm surface, ensuring realistic color rendering (CRI >90) and a color temperature of 6500 K ±400 K.

Key benefits include a convenient touch button for single-handed operation, a 4-level timer (30, 60, 90, or 120 minutes) with automatic switch-off and memory function, and a removable stand for space-saving placement. Ideal for home use by individuals experiencing light deprivation, such as office workers or those in northern climates, the **Beurer Daylight Therapy Lamp TL 85** enhances well-being without harmful UV rays. Its attractive, compact design (30 x 23.5 x 45.2 cm, 1.34 kg) includes a 3-meter detachable mains adapter for flexible positioning.

Targeted at users seeking **SAD light therapy lamps** or **10,000 lux therapy lights**, it's perfect for daily 30-120 minute sessions. The estimated price range is €100-€150, widely available at retailers like Galaxus, Euronics, and Beurer's official site. As a certified medical device with a 3-year guarantee, the **Beurer TL 85** offers reliable, doctor-recommended **light therapy for winter blues**.

Specifications

• Type: GCE504
• Model No.: TL 85
• Dimensions (L × W × H): 30 × 23.5 × 45.2 cm
• Weight: Approx. 1340 g
• Light: LEDs
• Power Output: Max. 60 watts
• CRI: Min. 90
• Light Intensity: 10,000 lux (at a distance of approx. 25 cm)
• Radiation: Radiance output outside of the visible range (infrared and UV) is low enough that no eye or skin damage is anticipated.
• Operating Conditions:
  • Temperature: 0°C to +35°C
  • Relative Humidity: 15–90%
  • Ambient Pressure: 700–1060 hPa
• Transport and Storage Conditions:
  • Temperature: -20°C to +60°C
  • Relative Humidity: 15–90%
  • Ambient Pressure: 700–1060 hPa
• Product Classification: Protection Class II, IP21
• Accessories: Mains adapter, instructions for use, stand
• Colour Temperature of the LEDs: 6500 K ± 400 K
• Threshold of Short Wavelength: 460–670 nm
• Maximum Light Output: 52.27 W/m²
• Expected Service Life of the Device: 10,000 hours

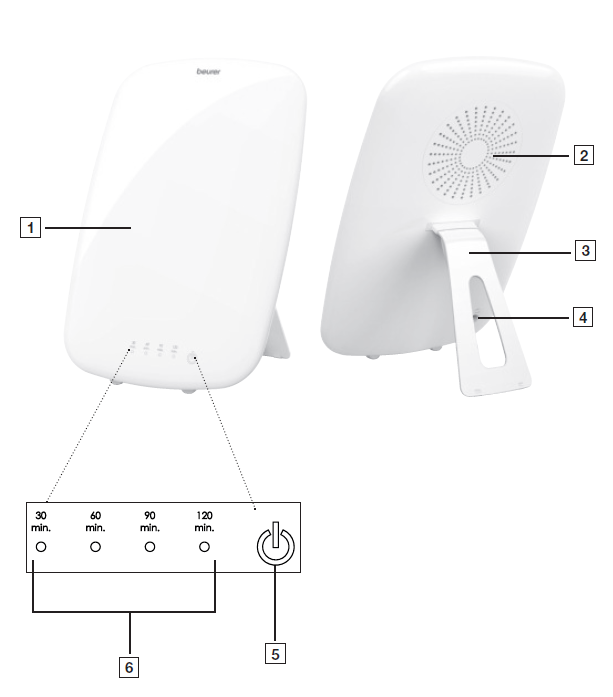

DEVICE DESCRIPTION

1. Fluorescent screen
2. Rear of the device housing
3. Stand
4. Mains adapter connector
5. On/Off button

6. Timer setting



INTENDED PURPOSE

Purpose

The Bright Light Therapy lamp is intended to compensate for the effects of lack of light, particularly sunlight, and provide relief from winter seasonal affective disorders, mood disorders and circadian phase sleep disorders.

Patient Population

Adults and children over 3 years old.

Intended Users

The use of the device does not require specific knowledge or professional ability. The patient is the intended operator, except in cases where the patient requires special assistance.

Indication

The device simulates daylight to provide relief from seasonal or mood disorders.

WARNINGS AND SAFETY NOTES

WARNING

• The daylight therapy lamp is intended for radiation on human bodies only.
• Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.
• Ensure that the daylight therapy lamp is positioned on a stable base.
• The device must only be connected to the mains voltage that is specified on the type plate.
• Never submerge the device in water and do not use it in the bathroom.
• Do not use the daylight therapy lamp on animals!
• Do not use the device on patients who are taking photosensitizing medication or herbs.
• Do not use the device on:
  • Children under age 3.
  • People insensitive to heat.
  • People with skin lesions due to illness.
  • People who have a condition that might render their eyes more vulnerable to phototoxicity.
  • People who have a photosensitive skin condition.
• Keep packaging material away from children (risk of suffocation).
• If the device is warm, do not cover it or pack and store it.
• Always unplug the mains adapter and allow the device to cool down before touching it.
• Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.
• Ensure that you only insert and remove the mains adapter with dry hands and that you only press the On/Off button with dry hands.
• Keep the mains cable away from hot objects and naked flames.
• Protect the device from heavy impacts.
• Do not pull the mains adapter out of the socket using the mains cable.
• Do not use the device if it shows signs of damage or does not function properly. In such cases, contact Customer Services.

General Notes

WARNING

• This device must not be used by people with severe depression or with reduced physical, sensory or mental skills or a lack of experience or knowledge.
• Diabetics and people who suffer from retinal diseases must be examined by an optician before using the daylight therapy lamp.
• Please do not use the device if you suffer from an eye disease such as cataracts, glaucoma, diseases of the optic nerve or inflammation of the vitreous body.
• Please do not use the device in case of recent eye surgery or a diagnosed eye condition whereby a doctor has advised you to avoid bright light.
• It must not be used on people with disabilities, children under 3 years of age, or people with reduced sensitivity to heat (people with skin alterations due to illness).
• Severe cases of SAD should, in any case, be closely supervised by a clinician.
• Always consult a doctor before using the daylight therapy lamp if you are taking medication such as pain relief medication, medication to reduce high blood pressure or antidepressant medication.
• If you have health concerns of any kind, consult your general practitioner!
• Remove all packaging material before using the device.
• Light sources are excluded from the warranty.
• If the device has been in storage or recently transported, keep it for at least two hours at room temperature before using it.
• The power adapter is part of the ME equipment.

INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

• 1 daylight therapy lamp
• 1 stand
• 1 set of instructions for use
• 1 mains adapter

INITIAL USE

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any damage or faults on the device, do not use it and contact Customer Services or your supplier.

Attach Stand

Attach the stand (3) to the device on the rear of the device housing.

Setting Up the Device

Place the device on a level surface. The position should be chosen to ensure a distance of between 25 cm and 45 cm between the user and the device. The lamp is most effective at this distance.

Mains Connection

• To prevent possible damage to the device, the daylight therapy lamp must only be used with the mains adapter described here.
• Insert the mains adapter into the connector provided for this purpose on the rear of the daylight therapy lamp. The mains adapter must only be connected to the mains voltage that is specified on the type plate.
• After using the daylight therapy lamp, unplug the mains adapter from the mains socket first and then disconnect it from the daylight therapy lamp.

Note: Ensure that there is a mains socket close to the set-up area. Arrange the mains cable in such a way that no one will trip over it.

USAGE

Insert the Mains Adapter

Insert the mains adapter into the connector.

Switching On the Lamp

Press and hold the On/Off button (5) for 2 seconds. When the device is next switched on, it will start with the saved brightness level and treatment time.

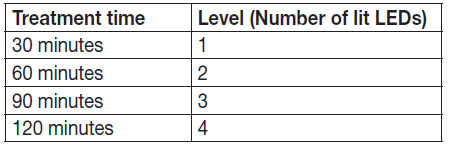

LED Display/Timer

The TL 85 daylight therapy lamp indicates your current treatment time using 4 LEDs. The treatment time can be set at the following 4 levels.

The timer function will not be active when the lamp is switched on for the first time. The lamp now runs until it is switched off again or a treatment time is set (timer = 0 min).

To use the timer, set the desired level from 1 to 4 by briefly pressing the On/Off button (5). Level 1 sets a treatment time of 30 minutes. The other levels are as follows:

Enjoying the Light

Position yourself as close as possible to the lamp, at a distance of between 25 cm and 45 cm.

You can continue to go about your day-to-day activities during the treatment, including reading, writing, making telephone calls, etc.

• Keep looking directly into the light for a short period of time, as it is absorbed and shows an effect via the eyes/retina.
• Use the daylight therapy lamp as often as you want. However, the treatment is most effective if you carry out the light therapy for at least 7 successive days according to the prescribed times.
• The most effective time of day for the treatment is between 6 am and 8 pm, and we recommend that you use the device for 2 hours per day.
• However, do not look directly into the light for the entire treatment time, as this may cause overstimulation of the retina.
• Start with a brief treatment time and gradually increase the time over the course of a week.

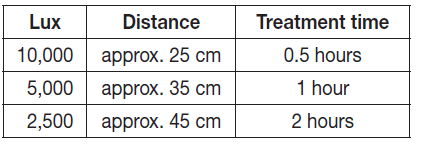

Things to Consider

We recommend a distance of between 25 and 45 cm from the face to the lamp during treatment.

The treatment time depends on the distance.

Extra Bright

This daylight therapy lamp is particularly bright (14,000 lux at a distance of approx. 20 cm).

Enjoying the Light Over Longer Periods

Repeat the treatment on at least 7 consecutive days during darker periods of the year, or for longer depending on your individual needs. The treatment should take place during the mornings where possible.

Switching Off the Lamp

Press and hold the On/Off button (5) for 2 seconds. The LEDs switch off. Unplug the mains adapter from the mains socket.

CLEANING AND MAINTENANCE

The device should be cleaned from time to time.

IMPORTANT: Ensure that no water gets inside the device! The device must be switched off, disconnected from the mains, and allowed to cool down each time before cleaning.

• Do not clean the device in the dishwasher. Use a slightly damp cloth to clean the device.
• Do not use any abrasive cleaning products and never submerge the device in water.

Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

Storage

If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children. Follow the storage instructions provided in the “Technical specifications” chapter.

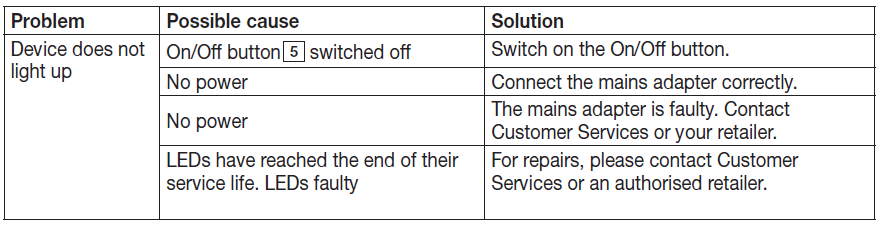

Troubleshooting the Beurer Daylight Therapy Lamp TL 85

• Common issues with the **Beurer Daylight Therapy Lamp TL 85** include no power, dim light, or timer malfunctions. If the lamp doesn't turn on, check the mains adapter connection—ensure it's securely plugged into a 220-240V outlet and the 3m cable is undamaged. Verify the touch button; a firm press activates it, as it's designed for single-button operation.
• For dim illumination below 14,000 lux at 20 cm, confirm the distance and clean the 37 x 30 cm surface with a soft cloth—avoid abrasives. Timer not advancing? Reset by unplugging for 5 minutes; the memory function recalls last settings. No error codes are displayed, but flickering (rare due to LED tech) may indicate power instability—use a surge protector.

• Preventive measures: Store in a dry place, avoid direct sunlight, and use the removable stand stably. For warranty claims (3 years), contact Beurer support via their website (beurer.com) or local distributors like Galaxus. Email support@beurer.com or call regional hotlines (e.g., +49 for Germany). Professional servicing ensures longevity for this **daylight simulation lamp**.



Pros and Cons of the Beurer Daylight Therapy Lamp TL 85

Pros

• High lux output: Delivers 14,000 lux at 20 cm for potent **light therapy**, outperforming basic 10,000 lux models.
• UV-free, flicker-free LEDs with CRI >90 ensure safe, natural daylight simulation without eye strain.
• Versatile timer (30-120 min) with auto-off and memory simplifies daily **SAD therapy routines**.
• Space-efficient removable stand and 3m cable offer flexible **home light therapy** placement.
• Excellent value: Medical-grade quality at €100-€150, backed by a 3-year warranty—beats pricier alternatives like Philips.

Cons

• Fixed brightness (no levels) limits customization for sensitive users.
• Bulky at 45.2 cm height when assembled, though the stand removes easily.
• Some reports of minor lux inconsistencies (10,000-14,000 lux across sources), requiring close positioning.
• No wall mount option, unlike competitors.

Overall, the **Beurer TL 85** provides strong value for **effective daylight therapy lamps**, especially versus entry-level options lacking timers.

Customer Reviews: Beurer Daylight Therapy Lamp TL 85 Feedback

Users praise the **Beurer Daylight Therapy Lamp TL 85** for boosting energy during winter, with average ratings around 4.5/5 stars on sites like Galaxus and Elesen.lt A common testimonial: "Brightened my mood in weeks—timer is a game-changer for consistent **light therapy sessions**" (5-star review). Many highlight even illumination and easy touch operation, recommending it for **SAD relief**.

Praises include UV-free safety and compact design: "Perfect for desk use, no headaches after 60-min sessions" (4.8/5 average). Complaints focus on weight (1.34 kg) feeling unstable without adjustments and occasional dimness if farther than 20 cm. Frequently mentioned: Reliable 3-year warranty eases concerns. 90% recommend for **Beurer TL 85 light therapy**, addressing winter blues effectively.
