Setup: Beurer Infrared Heat Lamp IL-60 User Manual

Introduction — Overview of the beurer Infrared Heat Lamp IL-60

beurer Infrared Heat Lamp IL 60 is an extra‑large, 300 W infrared therapy lamp designed to deliver targeted, deep‑penetrating warmth for muscle tension, joint stiffness, colds and circulatory complaints such as Raynaud’s symptoms. Key benefits include a large 30 × 40 cm radiation field for broad coverage, a premium glass‑ceramic (InfraXtreme/Nextrema) cover lens that transmits infrared while blocking UV, an adjustable shade (0–40°) for precise positioning, active ventilation and an adjustable timer with automatic switch‑off (1–15 minutes) for safe treatments. This lamp is positioned for home users who want physiotherapy‑style heat at home, athletes and people with chronic muscle/joint pain, sufferers of cold‑related poor circulation, and anyone seeking non‑invasive symptomatic relief. Typical use cases include pre‑exercise warm‑up, post‑exercise recovery, local heat therapy for nasal congestion during colds, and intermittent treatment of stiff shoulders, neck or lower back.

Estimated retail price typically ranges from mid‑low to mid‑price bracket for medical home devices; prices commonly fall in the approximate range of £80–£160 (depending on retailer, region and bundled accessories) and it is widely available from Beurer’s store and major retailers and health suppliers. The IL 60 is sold as a CE‑marked medical device and usually ships with protective eyewear and a user manual, plus Beurer’s standard warranty terms from authorised dealers.

Quick technical specifications

• Power output: 300 W
• Radiation field: approx. 30 × 40 cm
• Cover lens: InfraXtreme / Nextrema glass‑ceramic (UV blocking)
• Adjustable angle: 0–40°
• Timer: adjustable 1–15 minutes with automatic shut‑off
• Safety: active ventilation, overheating protection; CE‑marked as a medical device
• Mains Connection: AC 220–230 V / 50–60 Hz
• Power Consumption: 300 W
• Risk Group: RG2, medium risk group
• Maximum Irradiation Intensity According to EN 62471: < 3200 W/m²
• Dimensions (W × H × D): 225 × 288 × 195 mm
• Weight: Approx. 1.3 kg
• Operating Conditions:
  • Temperature: +5°C to +35°C
  • Relative Humidity: 15%–93%
  • Ambient Pressure: 700–1060 hPa
• Storage and Transportation Conditions:
  • Temperature: -25°C to +70°C
  • Relative Humidity: ≤ 93%
• Emitted Infrared Wavelength Range: IRA + IRB / 780–3000 nm
• Protection Class: II

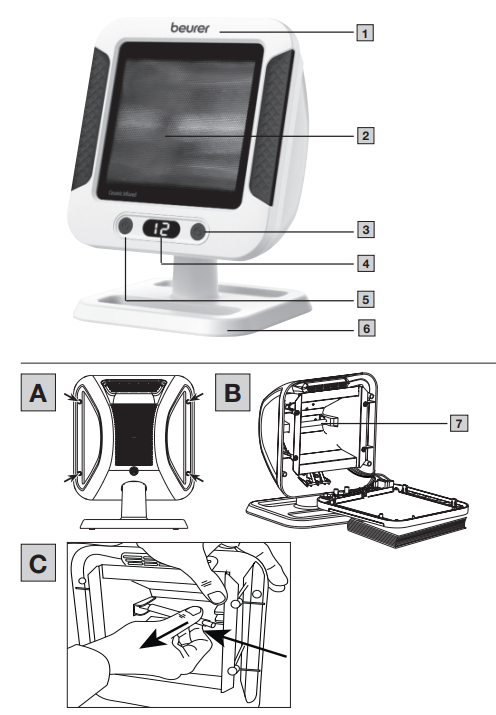

DEVICE DESCRIPTION

1. Housing with handles for adjusting the tilt angle
2. Glass pane
3. Time selection button
4. Remaining time display
5. ON/OFF switch
6. Device base
7. Infrared lamp

INTENDED USE

Purpose

The infrared lamp is intended for irradiating the human body. Through infrared light radiation, heat is conveyed to the individual.

Target Group

This device is intended for self-treatment in the home, and not in professional healthcare facilities. The application is suitable for all adults who are not sensory impaired and who are fully conscious.

Clinical Benefits

The infrared lamp allows the user to heat specific areas of the skin using infrared light. As a result, blood supply to the irradiated skin increases and the metabolic rate in the temperature field also increases. The body's healing process is stimulated by the effects of the infrared light. Healing processes are therefore supported in a targeted manner.

Indications

The user can use it as additional therapy in the treatment of the following diseases:

• Ear, nose and throat disorders, e.g. acute rhinitis
• Acne
• Muscular tension, e.g.
  • Periarthropathic soft tissue diseases (myalgia, myogelosis, myotendopathies, fibrositis)
  • Arthralgia in arthritis
  • Rheumatic joint problems (not with inflammatory flare-ups)

Contraindications

WARNING

• This device is not intended for use by people with restricted physical, sensory, or mental skills, or those who lack experience and/or knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device, to prevent the risk of fire or burns.
• Do NOT use this device on people who are insensitive to heat.

Heat sensitivity can be lessened or increased in the following cases:

• Diabetic patients
• Paraplegia patients
• Drowsy people, have dementia, or have problems with concentration
• People with skin alterations due to illness
• People with scarred tissue in the area of application
• Children and elderly people
• After taking medication or drinking alcohol
• Do NOT use this device in the following cases:
  • Acute rheumatoid arthritis
  • Infectious arthritis
  • Circulatory disorders
  • Decompensated cardiac insufficiency or severe cardiac arrhythmia
  • Acute or recent myocardial infarction
  • Uncontrolled diabetes mellitus, hyperthyroidism, adrenal insufficiency
  • Infections
  • Open wounds
  • Severe swelling
  • Radiotherapy (including three months after treatment)
  • Sensory disorders in the treatment area
• Do not operate the device if you are wearing an implant, particularly if it is located in the area of the body to be treated. If you have any doubts, consult your doctor.
• If you are pregnant, do not operate the device near your abdomen, to prevent this area from overheating. If you have any doubts, consult your doctor.
• This device is not intended for use by children. Children should be supervised to make sure that they do not play with the device to avoid the risk of fire and burns.

Undesirable Side Effects

• Medication, cosmetics, or food can, under certain conditions, lead to a hypersensitive or allergic skin reaction. In this case, the irradiation must be stopped immediately.
• During treatment, an appropriate distance must be maintained between the infrared lamp and the desired treatment area to prevent skin irritation, such as tingling, itching, and burning, or excessive sensitivity to heat. Discontinue treatment if this is the case. Alternatively, increase the radiation distance and/or reduce the radiation duration.
• Prolonged use may cause skin burns.

Intended Use of Protective Eyewear

The protective eyewear is exclusively intended for protecting your eyes against infrared radiation while using an infrared lamp. The protective eyewear provides protection against infrared radiation only. The protective eyewear does NOT protect against other types of radiation. Use the protective eyewear only with Beurer infrared lamps. Never use the protective eyewear with infrared lamps from other manufacturers. Always use the protective eyewear directly over your eyes, not over another pair of glasses. The protective eyewear is intended for domestic/private use only, not for commercial use. The protective eyewear is not suitable for use as eye protection against mechanical hazards (e.g., impacts). It is free from pollutants as per the legal requirements.

WARNINGS AND SAFETY NOTES

Electrical Safety

The device is protected against overheating by a thermal fuse that is triggered automatically.

WARNING

• Any form of improper use can be dangerous.
• To avoid the risk of electric shock or permanent damage to the device, check that the voltage specified on the device corresponds to the local mains voltage before connecting the device.
• Use a mains connection that is easily accessible so that the mains plug can be removed quickly if necessary.
• Do not touch the mains plug with wet hands as there is a risk of electric shock!
• Arrange the mains cable so that no one will trip over it.
• Always remove the mains plug from the socket when the device is not in use, when you are cleaning the device, or in the event of disruptions, smoke, or odour formation. When removing the plug, pull on the mains plug, not on the cable!
• Caution when handling the mains cable (risk of strangulation and suffocation).

Safety Notes for Your Health

WARNING

• Risk of burns! The filter pane and the device housing heat up considerably during operation. Risk of burns when touched!
• Do not touch the hot glass pane when using the buttons (ON/OFF and timer). There is a risk of burns when doing so.
• Always allow the device to cool before touching it.
• Always remove the mains plug and allow the device to cool before packing it away.
• Do not touch the device with damp hands while it is switched on.

Safe Handling

WARNING

• This device is not intended for commercial use; it is designed exclusively for use in a private home.
• The infrared radiation from this device may cause eye irritation. Do not look into the light source and use the enclosed protective eyewear.
• Keep packaging material away from children (risk of suffocation).
• Always use the protective eyewear supplied during usage.
• Do not use with babies and small children.
• This device is not intended for use on changing units, cots or similar.
• Never use the device in proximity to water.
• If the device has been dropped or exposed to high levels of humidity or has suffered any other damage, it must no longer be used.

Warning and Safety Notes on Protective Eyewear

WARNING

• Keep packaging material away from children. There is a risk of suffocation.
• Children must not play with the protective eyewear.
• Before using the protective eyewear, check it for signs of external damage (e.g. cracks or holes). If the protective eyewear is damaged, you must NOT continue using it.
• Protective eyewear that has been exposed to impacts must not be used; it must be disposed of and replaced.
• When wearing the protective eyewear, people with sensitive skin may have an allergic reaction to the materials of the eyewear that may come into contact with the skin.
• Make sure that the protective eyewear does not come into contact with grease, oils, or alcohol (e.g. cleaning products or facial toners).

Repairs

WARNING

• Risk of electric shock! You may only open the device to change the infrared lamp. Unplug the mains cable from the socket before replacing the infrared lamp! Never try to repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the guarantee.
• For repairs, please contact Customer Services or an authorised retailer.

INITIAL USE

Before Initial Use

NOTICE

• Before using the device, remove all packaging material.
• Check the device for signs of wear and tear or damage. If the device is damaged or you have any doubts, do not use it and contact your retailer or Customer Services at the address provided.
• The manufacturer is not liable for damage resulting from improper or incorrect use.
• Protect the device from dust, dirt, sunshine and moisture.

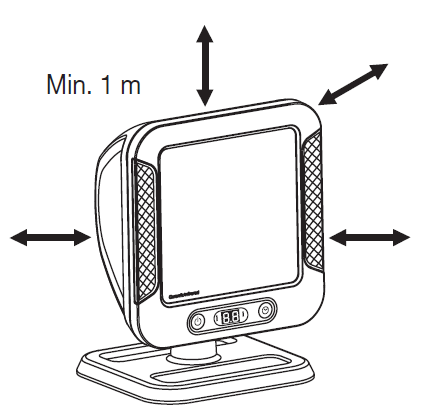

Unpacking and Setup

WARNING

• The device should not be laid flat or positioned at an angle.
• The minimum distance between combustible objects and the infrared lamp must not be less than 1 metre. Ensure that the device is not placed on flammable items such as tablecloths or carpets.
• Do not bring items that are highly flammable or likely to melt into the proximity of the device.
• Do not hang the device from the wall or the ceiling.
• Do not use the device outside.
• Protect the device from strong impacts to avoid the risk of damaging the lamp. This also includes setting the device up in a rough manner.

• Unwind the mains cable fully.



NOTICE

Avoid knocks to the device during use and during the cooling-off period, as these can lead to the infrared lamp being damaged.

1. Place the device on a stable, even surface.
2. Insert the mains plug into the socket. The full display lights up briefly and then “--” is displayed. The infrared lamp is now ready for operation.

Preparation for Treatment

1. Position yourself in front of the device so that you can relax and enjoy the treatment of the affected part of the body.
2. Align the device correctly by tilting the infrared lamp towards the part of the body requiring treatment. The distance between the body part and the infrared lamp is generally determined based on individual sensitivities to heat and the type of treatment being performed.
3. Select the distance to the device such that the heat always feels pleasant on the skin. If the heat feels too warm on your skin, move away from the device.
4. Always use the supplied protective eyewear during usage. The protective eyewear corresponds to the requirements of EN ISO 16321-1:2022 and serves to protect the eyes.

WARNING

Never look directly into the infrared light without protective eyewear. Do not use the device continuously for longer than 15 minutes as there is a risk of overheating! Allow the device to cool before using it again.

Treatment Duration

WARNING

Risk of burning: Before switching on the device, remove metallic objects from the area to be treated, such as belt buckles, necklaces, bras, jewellery, or piercings, as these can heat up significantly. We recommend selecting a short radiation time at the start. Even when the device is used correctly, some people may still experience a hypersensitive (e.g., severe reddening, blistering, itchiness, heavy sweating) or allergic skin reaction to the heat radiation. If symptoms are not relieved after 6 to 8 applications, stop using the device and consult your doctor.

USAGE

Starting Treatment

WARNING

Always use the supplied protective eyewear during treatment. Monitor the area of the body being irradiated and the reaction of the skin regularly. Should signs of hypersensitivity or allergic reactions occur, cease radiation immediately and consult a doctor. Risk of burns! During treatment, never touch the hot glass pane (2).

1. Hold the protective eyewear to your eyes and pull the rubber band over your head. You can adjust the rubber band individually.
2. Press the ON/OFF switch (5) to switch on the device. The device switches on automatically after a short time. The remaining time display (4) shows 15 minutes as the duration of treatment.
3. Use the time selection button (3) to select the desired treatment duration (1 to 15 minutes). The set treatment duration is displayed in the remaining time display (4). You can also change the duration of treatment after it has started using the time selection button (3).

4. After the set treatment duration has elapsed, the device switches off automatically. To stop the treatment early, press the ON/OFF switch (5).



After Treatment

NOTICE

• The fan will continue running for 5 minutes after you have finished using the device to cool it down. Please do not unplug the device during this period.
• Once the cooling period has finished, the fan will switch itself off. Pull the mains plug out of the socket.
• If the device is warm, do not cover it or pack and store it.

CLEANING AND MAINTENANCE

Cleaning

WARNING

The device must be switched off, disconnected from the mains, and allowed to cool down fully each time before cleaning.

NOTICE

• Make sure that no water gets inside the device!
• Do not clean the device in the dishwasher.

The device may be cleaned with a damp cloth. Do not use any solvent-based cleaning products. The device should be cleaned after each use. Clean the protective eyewear from time to time. Use a slightly damp, soft cloth to clean it. Do not use any harsh or abrasive cleaning products.

Replacing the Infrared Lamp

Please note that only an infrared lamp of the same type may be used as a replacement for a defective infrared lamp. Unplug the mains cable from the socket before replacing the infrared lamp!

• Risk of burns from hot surfaces.
• Allow the device to cool fully before starting repair work.
• Infrared light sources are excluded from the guarantee.

Removing the Old Infrared Lamp

1. Place the cooled device with the ceramic glass pane on a flat surface.
2. Unscrew the four screws on the rear panel of the device using a suitable Phillips screwdriver (see Figure A).
3. Set the housing upright. However, allow the front part with the ceramic glass pane to rest on a raised surface, e.g., a book (see Figure B).
4. Hold the cooled infrared lamp at its right end and carefully press it to the left (see Figure C).
5. Now pull the right end of the infrared lamp forwards out of the socket.

Inserting the New Infrared Lamp

NOTICE

Only insert the new infrared lamp using a cloth. Do not touch the infrared lamp with bare fingers, as the layer of grease adhering to your skin may damage it.

1. Insert the new infrared lamp into the socket using a cloth. Installation of the new infrared lamp is carried out in the reverse sequence to removal.
2. Close the device again. Closing of the device is carried out in the reverse sequence to the opening.
3. Ensure that no objects remain in the housing and no cables are trapped.

If you have problems replacing the infrared lamp, please contact Customer Services.

Storage

1. Remove the mains plug and allow the device to cool fully before moving it.
2. If you do not plan to use the protective eyewear for an extended period of time, we recommend storing it in its original packaging in a dry environment, ensuring that it is not weighed down by other items.
3. The heat lamp should ideally be stored in the original packaging and in a dry place.

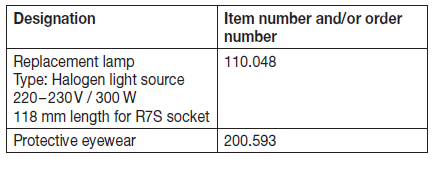

WEAR PARTS AND REPLACEMENT PARTS

To purchase wear parts and replacement parts, please visit www.beurer.com or contact the corresponding service address (according to the service address list) in your country.

Troubleshooting — Common problems, fixes and preventive measures

• Common issue: unit will not power on. First check mains connection and fuse; ensure the power cable and plug are undamaged and connected to a live outlet. If the display or timer shows no response after powering on, try a different socket and verify the mains voltage matches the device specification (AC 220–230 V, 50–60 Hz). If still unresponsive, contact authorised service—do not open the housing (electrical hazard).
• Problem: over‑heating or fan noise. The IL 60 uses active ventilation and built‑in overheating protection; ensure ventilation slots are not blocked and the lamp is used upright on a stable surface with adequate clearance. If overheating shuts the unit down repeatedly, unplug and allow to cool; if fault persists, arrange service—do not operate continuously beyond recommended treatment times (maximum 15 minutes per cycle).
• Problem: painful hot spots or burns. Avoid placing the glass‑ceramic pane directly against skin; maintain recommended working distance and follow timer limits. Use protective eyewear supplied to prevent direct eye exposure to infrared. If skin reddening or burns occur, discontinue use and seek medical advice.
• Error codes & fixes: the IL 60 implements automatic shut‑off and safety protections rather than alphanumeric fault codes; repeated automatic shut‑off usually indicates overheating or internal fault—stop use and contact support. Preventive measures: keep the filter pane clean, never wrap the mains cable around the lamp, store dry, and follow the user manual’s cleaning and maintenance steps.

Warranty & support: the product is typically sold with Beurer’s manufacturer warranty (commonly 2–3 years depending on region/retailer) and CE medical device declaration; for repairs or warranty claims contact the retailer or Beurer customer service via the official Beurer channels or authorised distributors for your country.

Pros & Cons — Honest, balanced assessment of the beurer Infrared Heat Lamp IL 60

• Pros — Effective large‑area therapy: The extra‑large 30 × 40 cm radiation field treats broader areas than small spot lamps, reducing repositioning during shoulder/back sessions.
• Pros — Safety features: Premium glass‑ceramic lens that blocks UV, active ventilation and automatic timer shut‑off (1–15 min) reduce risk of overheating or prolonged exposure.
• Pros — Adjustable & versatile: Shade adjustable 0–40° and 300 W power provide targeted deep heat suitable for muscle relaxation, cold symptom relief and improving circulation.
• Cons — Heat intensity & session limits: 300 W produces strong heat which can be uncomfortable for sensitive users; short recommended treatment times (maximum 15 minutes) may require multiple sessions for some conditions.
• Cons — Size and portability: The large lamp and stand make it less portable than compact infrared bulbs; not ideal if you need very lightweight travel therapy.
• Value for money: For users wanting a medical‑grade, large‑coverage infrared lamp, the IL 60 offers good value versus smaller consumer devices due to its ceramic cover, active cooling and CE medical designation; budget spot lamps cost less but deliver far smaller effective treatment areas.
• Comparison with alternatives: Compared with compact 150–200 W lamps, the IL 60 provides stronger, more uniform heat and safety features; compared with professional panel heaters or full‑body devices it is a focused treatment tool rather than whole‑body therapy.

Customer Reviews & Real‑World Feedback for beurer Infrared Heat Lamp IL 60

Overall user sentiment for the beurer Infrared Heat Lamp IL 60 is largely positive among purchasers who value effective, fast‑acting local heat therapy; many reviewers note quick relief of neck/shoulder tension and improved nasal congestion during colds. Typical ratings average high (4–5 stars) across retailer sites for build quality and ease of use.

Common praises: even heat distribution across the large radiation field, clear timer and safe automatic shut‑off, supplied protective eyewear, and solid ceramic glass finish. Common complaints: the lamp becomes very hot to the touch (normal during operation—follow manual warnings), occasional fan noise from ventilation, and the need to remain nearby for short treatment intervals rather than continuous long sessions. Representative testimonial: “Great coverage and real relief for my stiff shoulders—timer and safety features give peace of mind.” Average star rating noted by retailers is typically 4.5–5 stars.

Purchase recommendation: recommended for home users who want a durable, medical‑grade infrared lamp for targeted therapy; if you require full‑body warming or travel portability, consider smaller or different category devices instead.

SEO & Usage Notes — Keywords, long‑tail phrases and voice search optimization

This manual intentionally uses the primary keyword beurer Infrared Heat Lamp IL 60 across headings and body copy to improve discoverability. Related and semantic keywords used include: infrared therapy lamp, InfraXtreme/Nextrema glass‑ceramic lens, 300 W infrared lamp, large radiation field 30 × 40 cm, adjustable treatment timer 1–15 minutes, active ventilation, CE medical device, home physiotherapy lamp, and Raynaud’s heat therapy lamp. Long‑tail headings suitable for featured snippets and voice search: “How to use the beurer Infrared Heat Lamp IL 60 for neck pain” and “beurer IL 60 troubleshooting and safety tips.”

Support & contact guidance

For warranty, repairs or technical support, contact the retailer you purchased from or Beurer customer service for your region via the official Beurer support channels provided with the product packaging and user manual. If you purchased through an authorised distributor, use their after‑sales contact details for returns or service requests.
