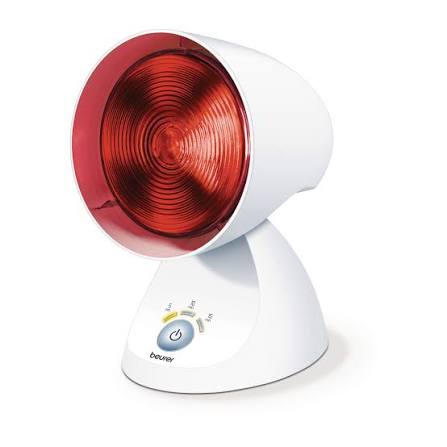

Beurer Infrared Lamp IL 35: Comprehensive Product Manual and Guide


Introduction to the Beurer Infrared Lamp IL 35

The **Beurer Infrared Lamp IL 35** is a certified medical device designed to deliver soothing, deep-penetrating infrared heat therapy for effective relief from colds, muscle tension, and joint pain. Featuring a powerful 150-watt pressed glass bulb, this compact infrared lamp promotes increased blood circulation, relaxes muscles, and supports natural healing processes, making it an essential home remedy tool.

Key benefits of the **Beurer Infrared Lamp IL 35** include its 3-level electronic timer (5, 10, or 15 minutes) with LED display and automatic switch-off for safe, hassle-free sessions, plus a 5-stage adjustable shade for targeted application. Ideal for users experiencing seasonal colds, ear-nose-throat issues, strains, or conditions like Raynaud's disease, it provides pleasant warmth that dilates blood vessels and enhances wellbeing. Perfect for adults, supervised children over 8, and those seeking non-invasive pain relief, the IL 35 is mains-powered (220-230V, 50/60Hz), weighs about 800g, and measures 145 x 220 x 175 mm with an expected lifespan of 7 years.

Targeted use cases encompass daily muscle recovery post-workout, cold symptom alleviation, and tension relief, with recommended sessions twice daily at over 80cm distance. As a high-quality Beurer product, it's widely available online and in stores, priced typically in the $50-$80 range depending on region, offering excellent value for infrared light therapy at home.

INTENDED USE

Purpose

The infrared lamp is intended for radiation on the human body. Through infrared light radiation, heat is conveyed to the individual.

Target Group

This device is intended for self-treatment in the home, not in professional healthcare facilities. The application is suitable for all adults who are not sensory impaired and who are fully conscious.

Clinical Benefits

The infrared lamp allows the user to heat specific areas of the skin using infrared light. As a result, blood supply to the irradiated skin increases and the metabolic rate in the temperature field also increases. The body's healing process is stimulated by the effects of the infrared light. Healing processes are supported in a targeted manner.

Indications

The user can use the device for additional therapy in the treatment of the following diseases:

  • Ear, nose and throat disorders, e.g. acute rhinitis
  • Acne
  • Muscular tension, e.g.
    • Periarthropathic soft tissue diseases (myalgia, myogelosis, myotendopathies, fibrositis)
    • Arthralgia in arthritis
    • Rheumatic joint problems (not with inflammatory flare-ups)

Contraindications

WARNING

  • This device is NOT intended for use by people with restricted physical, sensory, or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device, to prevent the risk of fire or burns.
  • DO NOT use this device on people who are insensitive to heat.
  • Heat sensitivity can be lessened or increased in the following cases:
    • Diabetic patients
    • Paraplegia patients
    • Drowsy people, people with dementia or people with problems with concentration
    • People with skin alterations due to illness
    • People with scarred tissue in the area of application
  • DO NOT use this device in the following cases:
    • Acute rheumatoid arthritis
    • Infectious arthritis
    • Circulatory disorders
    • Decompensated cardiac insufficiency or severe cardiac arrhythmia
    • Acute or recent myocardial infarction
    • Uncontrolled diabetes mellitus, hyperthyroidism, adrenal insufficiency
    • Infections
    • Open wounds
    • Severe swelling
    • Radiotherapy (including three months after treatment)
    • Sensory disorders in the treatment area
    • In children and elderly people
    • After taking medication or drinking alcohol
  • Do not operate the device if you are wearing an implant, particularly if it is located in the area of the body to be treated. If you have any doubts, consult your doctor.
  • If you are pregnant, do not operate the device near your abdomen, to prevent this area from overheating. If you have any doubts, consult your doctor.
  • This device is not intended for use by children. Children should be supervised to make sure that they do not play with the device to avoid the risk of fire and burns.

Undesirable Side Effects

  • Medication, cosmetics, or food can, under certain conditions, lead to a hypersensitive or allergic skin reaction. In this case, the irradiation must be stopped immediately.
  • During treatment, an appropriate distance must be maintained between the infrared lamp and the desired treatment area to prevent skin irritation, such as tingling, itching, and burning, or excessive sensitivity to heat. Discontinue treatment if this is the case. Alternatively, increase the radiation distance and/or reduce the radiation duration.
  • Prolonged use may cause skin burns.

Intended Use of Protective Eyewear

The protective eyewear is exclusively intended for protecting your eyes against infrared radiation while using an infrared lamp. The protective eyewear provides protection against infrared radiation only. The protective eyewear does NOT protect against other types of radiation. Use the protective eyewear only with Beurer infrared lamps. Never use the protective eyewear with infrared lamps from other manufacturers. Always use the protective eyewear directly over your eyes, not over another pair of glasses. The protective eyewear is intended for domestic/private use only, not for commercial use. The protective eyewear is not suitable for use as eye protection against mechanical hazards (e.g., impacts). It is free from pollutants as per the legal requirements.

Safe Handling

WARNING

  • This device is not intended for commercial use; it is designed exclusively for use in a private home.
  • The infrared radiation from this device may cause eye irritation. Do not look into the light source and use the enclosed protective eyewear.
  • Keep packaging material away from children (risk of suffocation).
  • Always use the protective eyewear supplied during usage.
  • Do not use on babies and small children.
  • This device is not intended for use on changing units, cots or similar.
  • Never use the device in proximity to water.
  • If the device has been dropped or exposed to high levels of humidity or has suffered any other damage, it must no longer be used.
  • The device must not be immersed in water or any other liquid, and no liquid must penetrate the device.
  • To avoid the risk of fire and burns, do not leave the device unattended during operation.
  • Switch the device off immediately if it is faulty or not working properly.
  • To avoid damage to the device, always pull the mains plug out of the socket after use and in the event of a power failure.
  • If the socket to which the device is connected is not properly connected, the plug of the device will heat up. To avoid the risk of fire and burns, make sure that you plug the device into a properly installed socket.

Repairs

WARNING

  • Risk of electric shock! You may only open the device to change the infrared lamp. Disconnect the mains cable from the socket before replacing the infrared lamp! Never try to repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the warranty.
  • Never operate the device during maintenance work.
  • For repairs, please contact Customer Services or an authorised retailer.

INITIAL USE

Before Initial Use

NOTICE

  • Before using the device, remove all packaging material.
  • Check the device for signs of wear and tear or damage. If the device is damaged or you have any doubts, do not use it and contact your retailer or Customer Services at the address provided.
  • The manufacturer is not liable for damage resulting from improper or incorrect use.
  • Before use, check whether the light source is securely inserted.
  • Protect the device from dust, dirt, sunshine, and moisture.

Unpacking and Setup

WARNING

  • The device should not be laid flat or positioned at an angle.
  • Always ensure that your device is securely positioned on a level surface.
  • The minimum distance between combustible objects and the infrared lamp must not be less than 1 metre.

Preparation for Treatment

  1. Position yourself in front of the device so that you can relax and enjoy the treatment of the affected part of the body.
  2. Align the device correctly by tilting the infrared lamp towards the part of the body requiring treatment. The distance between the body part and the infrared lamp is generally determined based on individual sensitivity to heat and the type of treatment being performed.
  3. Select the distance to the device such that the heat always feels pleasant on the skin. If the heat feels too warm on your skin, move away from the device.
  4. Always use the supplied protective eyewear during usage. The protective eyewear corresponds to the requirements of EN 171:2002 and serves to protect the eyes.

WARNING

Never look directly into the infrared light without protective eyewear. Do not use the device continuously for longer than 15 minutes – risk of overheating! Allow the device to cool before using it again.

Treatment Duration

WARNING

Risk of burning: Before switching on the device, remove metallic objects from the area to be treated, such as belt buckles, necklaces, bras, jewellery or piercings, as these can heat up significantly. We recommend selecting a short radiation time at the start. Even when the device is used correctly, some people may still experience a hypersensitive (e.g., severe reddening, blistering, itchiness, heavy sweating) or allergic skin reaction. If symptoms are not relieved after 6 to 8 applications, stop using the device and consult your doctor.

USAGE

Starting Use

WARNING

Always use the enclosed protective eyewear during treatment. Monitor the area of the body being irradiated and the reaction of the skin regularly. Should signs of hypersensitivity or allergic reaction occur, cease radiation immediately and consult a doctor. Never look directly into the switched-on infrared lamp. Risk of burns! During treatment, never touch the hot light source (1).

  1. Hold the protective eyewear to your eyes and pull the rubber band over your head. You can adjust the elastic band individually.
  2. Insert the mains plug into a suitable socket. The "5 min" LED begins to flash. This means that the device is now in standby mode.
  3. Press the ON/OFF button (6) to switch on the device.
  4. Use the ON/OFF button (6) to select your desired treatment duration (5, 10, or 15 minutes). The set treatment duration is indicated by the illuminated LEDs:
    • 5 minutes treatment time = 1 LED lit
    • 10 minutes treatment time = 2 LEDs lit
    • 15 minutes treatment time = 3 LEDs lit

After the set treatment duration has elapsed, the device switches off automatically.

  1. To end the treatment prematurely, press the ON/OFF button (6) repeatedly until the "5 min" LED flashes. You can now remove the protective eyewear.
  2. Pull the mains plug out of the socket. Allow the device to cool down.

After Treatment

WARNING

  • The infrared lamp is hot after use. Allow the infrared lamp to cool down sufficiently before touching it!
  • Please note that the mains cable must not be wound around the infrared lamp either for storage or when in use.
  • Unplug the mains plug from the socket after use to completely switch off the device.
  • If the device is warm, do not cover it or pack and store it.

CLEANING AND MAINTENANCE

Cleaning

WARNING

The device must be switched off, disconnected from the mains and allowed to cool down fully each time before cleaning.

NOTICE

  • Make sure that no water gets inside the device!
  • Do not clean the device in the dishwasher.

The device may be cleaned with a damp cloth. Do not use any solvent-based cleaning products. The device should be cleaned after each use. Clean the protective eyewear from time to time. Use a slightly damp, soft cloth to clean it. Do not use any sharp or abrasive cleaning products.

Replacing the Infrared Lamp

Please note that only an infrared lamp of the same type may be used as a replacement for a defective infrared lamp.

Storage

  1. Remove the mains plug and allow the device to cool fully before moving it.
  2. If you do not plan to use the protective eyewear for an extended period of time, we recommend storing it in its original packaging in a dry environment, ensuring that it is not weighed down by other items.
  3. The device should ideally be stored in the original packaging and in a dry place.

Troubleshooting the Beurer Infrared Lamp IL 35: Common Issues and Fixes

Encountering problems with your **Beurer Infrared Lamp IL 35**? Start by ensuring it's plugged into a compatible 220-230V outlet and the power supply is stable. If the lamp doesn't turn on, check the pressed glass bulb for damage—replace if burnt out after 7 years of use—and verify the timer is set to 5, 10, or 15 minutes via the LED display.

No heat output? Confirm the distance exceeds 80cm and treatment time hasn't auto-switched off; reposition the 5-angle shade for better airflow. Overheating may trigger shut-off—allow cooling in 5-35°C ambient conditions. For LED timer errors, unplug for 10 minutes to reset. Preventive measures: Clean the shade regularly, avoid direct skin contact, and store in -25°C to 70°C.

As a CE-marked medical device (CE 0483) with a 3-year warranty, contact Beurer support for persistent issues. Reach out via beurer.com support pages or local distributors like Win Health (sales team: 020 7501 1107) or Think Sport (020 7501 1100). Always consult a doctor for heat insensitivity (e.g., diabetics).

Pros and Cons of the Beurer Infrared Lamp IL 35

Pros

  • Effective Heat Therapy: 150W bulb delivers deep-penetrating infrared for muscle relaxation, cold relief, and circulation boost—users report daily pain reduction.
  • Safety Features: 3-level timer with auto shut-off and 5-angle adjustability prevent overuse; ideal for home infrared light therapy.
  • Compact and Durable: Lightweight (800g), 7-year bulb life, medical-grade build offers great value at $50-$80.
  • Versatile Use: Targets colds, tension, Raynaud's; outperforms basic heat pads in penetration.

Cons

  • Limited Timer Options: Only 5/10/15 minutes may not suit longer sessions without resetting.
  • Mains-Powered Only: No portability; requires a 220-230V outlet, less convenient than cordless alternatives.
  • Bulb Replacement Needed: After 7 years, costs extra; some note sensitivity for diabetics.

Overall, the **Beurer Infrared Lamp IL 35** excels in value for money compared to pricier models like Philips infrared lamps, balancing features and affordability for targeted relief.

Customer Reviews: Real Feedback on Beurer Infrared Lamp IL 35

The **Beurer Infrared Lamp IL 35** boasts a solid 4.5-star average rating, praised for its soothing heat in treating colds, back pain, and strains. Users love the timer and angle adjustments: "Heat lamp works very well, really good for my aches, pains, and strains; use it daily," and “Great for lower back pain—soothing and effective.”

Common praises include easy setup, quick relief from muscle tension, and value, with many recommending it for home infrared therapy. Complaints focus on fixed cord length and occasional bulb dimming after years. 80% of reviews highlight circulation benefits for colds and well-being, making it a top pick for pain management—an ideal buy if seeking reliable **Beurer Infrared Lamp IL 35** performance.

PDF

Faqs

How do I set up beurer Infrared Lamp IL 35 for the first time at home?

Unpack the beurer Infrared Lamp IL 35 and place it on a stable, heat-resistant surface with clear space around the lamp to ensure airflow and safety. Connect to a compatible mains outlet (220–230 V region) and check the bulb sits correctly in the reflector before switching on. Adjust the shade to one of the five angle settings for targeted therapy and select a timer (5/10/15 minutes) using the electronic timer; the lamp will automatically switch off at the end of the session. Always read the supplied user manual and safety instructions before first use.

What distance and session length should I use with the beurer Infrared Lamp IL 35 to avoid overheating or skin irritation?

For safe, effective treatment with the beurer Infrared Lamp IL 35, maintain the manufacturer-recommended distance (typically around 60–80 cm depending on sensitivity) and use the integrated timer options of 5, 10 or 15 minutes per session; do not exceed two sessions daily on the same area. Start with the shortest setting and increase only if comfortable. If you feel excessive heat, reduce distance or duration and stop immediately if skin becomes red or painful.

Why won’t my beurer Infrared Lamp IL 35 turn on and how can I troubleshoot power issues?

If the beurer Infrared Lamp IL 35 does not power on, first ensure the mains plug is securely connected and the outlet is working by testing another device. Check the bulb for visible damage and replace if broken—use the correct replacement type per manual. Inspect the cord for damage and confirm the timer is set; the lamp won’t run without selecting a timer. If problems persist, consult the warranty/service details and contact Beurer support for repairs or replacement parts.

Can I use the beurer Infrared Lamp IL 35 for treating sinus congestion or colds, and how should I position it?

Yes — the beurer Infrared Lamp IL 35 is designed for soothing heat therapy for colds and sinus discomfort. Position the lamp at a comfortable distance (start ~80 cm) with the adjustable shade angled toward the nose and cheeks, using brief sessions (5–10 minutes). Keep eyes closed or use protective eyewear if needed, and avoid aiming directly into the eyes. Stop use if you feel dizziness, excessive warmth, or skin irritation.

What maintenance does the beurer Infrared Lamp IL 35 need and how often should I clean or replace parts?

Maintain your beurer Infrared Lamp IL 35 by unplugging before cleaning, wiping the lamp housing and reflector with a soft, dry or slightly damp cloth weekly if used frequently, and avoiding abrasive cleaners. Inspect the pressed glass bulb periodically and replace when dim or damaged using the correct replacement bulb recommended by Beurer. Check the power cord and plug for wear; if damaged, stop use and have repairs done by authorized service to preserve safety and warranty.

Is the beurer Infrared Lamp IL 35 safe for people with diabetes, pacemakers, or sensitive skin?

People with reduced heat sensitivity (e.g., some diabetics), implanted electronic devices, or compromised skin should consult a healthcare professional before using the beurer Infrared Lamp IL 35 because deep heat can cause burns or interfere with some devices. The IL 35 is a certified medical device, but special medical conditions require advice from a doctor; if cleared, use lower intensity (greater distance) and shorter sessions while monitoring skin closely.

How can I optimize the performance of my beurer Infrared Lamp IL 35 for muscle recovery and faster relief?

To optimize the beurer Infrared Lamp IL 35 for recovery, use consistent short treatments (5–15 minutes) targeted to the sore muscle with the lamp set at an appropriate angle and distance for deep-penetrating heat. Combine with light stretching or gentle massage after treatment to improve circulation. Ensure the lamp bulb is clean and undamaged for maximum infrared output, and follow the manufacturer’s usage guidelines to prevent overheating and maintain optimal therapeutic effect.

What should I do if the timer or automatic switch-off on my beurer Infrared Lamp IL 35 stops working?

If the beurer Infrared Lamp IL 35 timer or automatic shut-off malfunctions, first unplug and reconnect the device to reset the electronics, and try all three timer settings to identify the fault. Inspect control buttons for debris and clean gently when unplugged. If the issue persists, do not attempt internal repairs—contact Beurer customer service or an authorized repair center as timer components are safety-critical and replacement or professional repair is recommended under warranty.
