Setup: Beurer Infrared lamp IL-21 User Manual

Beurer Infrared Lamp IL-21: Comprehensive Product Manual and Guide

Introduction to Beurer Infrared Lamp IL 21

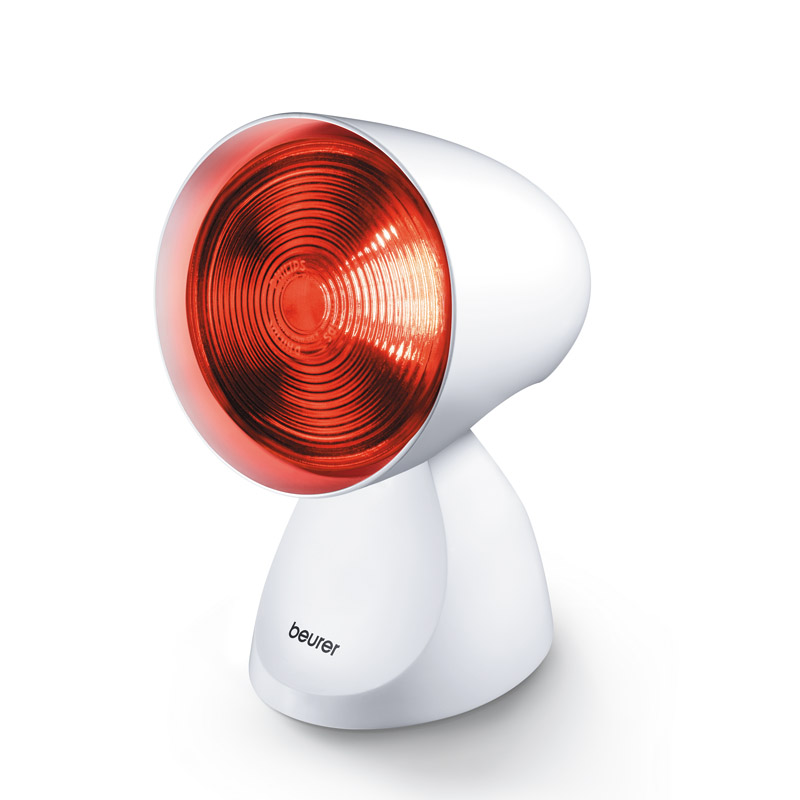

The Beurer Infrared Lamp IL 21 is a certified medical device designed to deliver soothing infrared heat therapy for effective relief from colds, muscle tension, and joint pain. Featuring a powerful 150-watt pressed glass bulb, this compact infrared heat lamp penetrates deep into the skin to boost circulation, promote natural healing, and ease discomfort without medication. Its standout feature is the adjustable shade with 5 precise angle settings, allowing users to direct targeted warmth exactly where needed for optimal results.

Ideal for home use, the Beurer Infrared Lamp IL 21 suits individuals suffering from muscle soreness, colds, arthritis, or conditions like Raynaud's disease, where improved blood flow is essential. Target audiences include athletes recovering from strains, office workers with tension, and families seeking drug-free remedies. Use it for 12 minutes at an 80 cm distance from the skin to achieve a pleasant warming sensation that relaxes muscles and enhances well-being.

This portable infrared therapy lamp measures approximately 14.5 x 22 x 17.5 cm, weighs around 600-675 g, and includes a non-slip base for stability. Powered by mains (230 V ~ 50 Hz), it offers continuous operation without timers or auto shut-off. Priced affordably in the €30-€60 range depending on retailers, it's widely available online and in pharmacies, backed by a 3-year warranty (excluding bulbs). Experience the benefits of infrared heat therapy at home with this reliable, user-friendly device from Beurer, a trusted name in health products.

Specifications

• Mains Connection: AC 220–230 V / 50–60 Hz
• Power Consumption: 150 W
• Risk Group: RG2 (Medium Risk Group)
• Maximum Irradiation Intensity (According to EN 62471): <3200 W/m²
• Dimensions (W × H × D): 145 × 175 × 220 mm
• Weight: Approx. 600 g
• Operating Conditions:
  • Temperature: 5°C to 35°C
  • Relative Humidity: 15%–93%
  • Ambient Pressure: 700–1060 hPa
• Storage and Transportation Conditions:
  • Temperature: -25°C to +70°C
  • Relative Humidity: ≤93%
• Emitted Infrared Wavelength Range: IRA + IRB / 780–3000 nm
• Protection Class: Class II
• Expected Burn Time of Light Source: 300 hours
• Safety Distance to the Eyes: 18.5 cm
• IP Protection Class: IP20
• Expected Service Life of the Device: Information on the service life of the product can be found on the manufacturer's homepage.

INTENDED USE

Purpose

The infrared lamp is intended for radiation on the human body. Through infrared light radiation, heat is conveyed to the individual.

Target Group

This device is intended for self-treatment in the home, not in professional healthcare facilities. The application is suitable for all adults who are not sensory impaired and who are fully conscious.

Clinical Benefits

The infrared lamp allows the user to heat specific areas of the skin using infrared light. As a result, blood supply to the irradiated skin increases and the metabolic rate in the temperature field also increases. The body's healing process is stimulated by the effects of the infrared light. Healing processes are supported in a targeted manner.

Indications

The user can use the device for additional therapy in the treatment of the following diseases:

• Ear, nose and throat disorders, e.g. acute rhinitis
• Acne
• Muscular tension, e.g.
  • Periarthropathic soft tissue diseases (myalgia, myogelosis, myotendopathies, fibrositis)
  • Arthralgia in arthritis
  • Rheumatic joint problems (not with inflammatory flare-ups)

Contraindications

WARNING

• This device is NOT intended for use by people with restricted physical, sensory or mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a person who has responsibility for their safety or they receive instructions from this person on how to use the device, to prevent the risk of fire or burns.
• DO NOT use this device on people who are insensitive to heat.
• Heat sensitivity can be lessened or increased in the following cases:
  • Diabetic patients
  • Paraplegia patients
  • Drowsy people, people with dementia or people with problems with concentration
  • People with skin alterations due to illness
  • People with scarred tissue in the area of application
• DO NOT use this device in the following cases:
  • Acute rheumatoid arthritis
  • Infectious arthritis
  • Circulatory disorders
  • Decompensated cardiac insufficiency or severe cardiac arrhythmia
  • Acute or recent myocardial infarction
  • Uncontrolled diabetes mellitus, hyperthyroidism, adrenal insufficiency
  • Infections
  • Open wounds
  • Severe swelling
  • Radiotherapy (including three months after treatment)
  • Sensory disorders in the treatment area
  • In children and elderly people
  • After taking medication or drinking alcohol
• Do not operate the device if you are wearing an implant, particularly if it is located in the area of the body to be treated. If you have any doubts, consult your doctor.

Undesirable Side Effects

• Medication, cosmetics, or food can, under certain conditions, lead to a hypersensitive or allergic skin reaction. In this case, the irradiation must be stopped immediately.
• During treatment, an appropriate distance must be maintained between the infrared lamp and the desired treatment area to prevent skin irritation, such as tingling, itching and burning, or excessive sensitivity to heat. Discontinue treatment if this is the case. Alternatively, increase the radiation distance and/or reduce the radiation duration.
• Prolonged use may cause skin burns.

Intended Use of Protective Eyewear

The protective eyewear is exclusively intended for protecting your eyes against infrared radiation while using an infrared lamp. The protective eyewear provides protection against infrared radiation only. The protective eyewear does NOT protect against other types of radiation. Use the protective eyewear only with Beurer infrared lamps. Never use the protective eyewear with infrared lamps from other manufacturers. Always use the protective eyewear directly over your eyes, not over another pair of glasses. The protective eyewear is intended for domestic/private use only, not for commercial use. The protective eyewear is not suitable for use as eye protection against mechanical hazards (e.g. impacts). It is free from pollutants as per the legal requirements.

WARNINGS AND SAFETY NOTES

Electrical Safety

• Any form of improper use can be dangerous.
• To avoid the risk of electric shock or permanent damage to the device, check that the voltage specified on the device corresponds to the local mains voltage before connecting the device.
• Use a mains part connector that is easily accessible so that the mains plug can be removed quickly if necessary.
• Do not touch the mains plug with wet hands – risk of electric shock!
• Arrange the mains cable so that no one will trip over it.
• Always remove the mains plug from the socket when the device is not in use, when you are cleaning the device or in the event of disruptions, smoke or odour formation. When removing the plug, pull on the mains plug, not on the cable!
• Caution when handling the mains cable (risk of strangulation and suffocation).

Safety Notes for Your Health

WARNING

• Risk of burns! The light source and the device housing heat up considerably during operation. Risk of burns when touched!
• Always allow the device to cool before touching it.
• Always remove the mains plug and allow the device to cool before packing it away.
• Do not touch the device with damp hands while it is switched on.
• To avoid the risk of electric shock, do not use this device in a wet environment (e.g. in the bathroom or near a shower or swimming pool).
• Risk of electric shock!
  • Do not allow water to run into the device.
  • Do not allow water to spray onto the device.
  • Only operate the device if it is completely dry.

Safe Handling

WARNING

• This device is not intended for commercial use; it is designed exclusively for use in a private home.
• The infrared radiation from this device may cause eye irritation. Do not look into the light source and use the enclosed protective eyewear.
• Keep packaging material away from children (risk of suffocation).
• Always use the protective eyewear supplied during usage.
• Do not use on babies and small children.
• This device is not intended for use on changing units, cots or similar.

Warning and Safety Notes on Protective Eyewear

WARNING

• Keep packaging material away from children. There is a risk of suffocation.
• Children must not play with the protective eyewear.
• Before using the protective eyewear, check it for signs of external damage (e.g., cracks or holes). If the protective eyewear is damaged, you must NOT continue using it.
• Protective eyewear that has been exposed to impacts must not be used; it must be disposed of and replaced.
• When wearing the protective eyewear, people with sensitive skin may have an allergic reaction to the materials of the eyewear that may come into contact with the skin.

Repairs

WARNING

• Risk of electric shock! You may only open the device to change the infrared lamp. Disconnect the mains cable from the socket before replacing the infrared lamp! Never try to repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to comply with this instruction will void the warranty.
• Never operate the device during maintenance work.
• For repairs, please contact Customer Services or an authorised retailer.

INITIAL USE

Before Initial Use

NOTICE

• Before using the device, remove all packaging material.
• Check the device for signs of wear and tear or damage. If the device is damaged or you have any doubts, do not use it and contact your retailer or Customer Services at the address provided.
• The manufacturer is not liable for damage resulting from improper or incorrect use.
• Before use, check whether the light source is securely inserted.
• Protect the device from dust, dirt, sunshine, and moisture.

Unpacking and Setup

WARNING

• The device should not be laid flat or positioned at an angle. Always ensure that your device is securely positioned on a level surface.
• The minimum distance between combustible objects and the infrared lamp must not be less than 1 metre.
• Ensure that the device is not placed on flammable items such as tablecloths or carpets.
• Do not bring items that are highly flammable or likely to melt into proximity of the device.
• Do not hang the device from the wall or the ceiling.

Preparation for Treatment

1. Position yourself in front of the device so that you can relax and enjoy the treatment of the affected part of the body.
2. Align the device correctly by tilting the infrared lamp towards the part of the body requiring treatment. The distance between the body part and the infrared lamp is generally determined based on individual sensitivity to heat and the type of treatment being performed.
3. Select the distance to the device such that the heat always feels pleasant on the skin. If the heat feels too warm on your skin, move away from the device.
4. Always use the supplied protective eyewear during usage. The protective eyewear corresponds to the requirements of EN ISO 16321-1:2022 and serves to protect the eyes.

Treatment Duration

WARNING

Risk of burning: Before switching on the device, remove metallic objects from the area to be treated, such as belt buckles, necklaces, bras, jewellery or piercings, as these can heat up significantly. We recommend selecting a short radiation time at the start. Even when the device is used correctly, some people may still experience a hypersensitive (e.g. severe reddening, blistering, itchiness, heavy sweating) or allergic skin reaction. If symptoms are not relieved after 6 to 8 applications, stop using the device and consult your doctor.

USAGE

Starting Use

WARNING

Always use the enclosed protective eyewear during treatment. Monitor the area of the body being irradiated and the reaction of the skin regularly. Should signs of hypersensitivity or allergic reaction occur, cease radiation immediately and consult a doctor. Never look directly into the switched-on infrared lamp.

1. Hold the protective eyewear to your eyes and pull the rubber band over your head. You can adjust the elastic band individually.
2. Insert the mains plug into a suitable socket. The infrared lamp begins to light up.
3. You are now ready to start treatment.
4. To end treatment, pull the mains plug out of the socket.
5. Remove the protective eyewear. Allow the device to cool down.

After Treatment

WARNING

• The infrared lamp is hot after use. Allow the infrared lamp to cool down sufficiently before touching it!
• Please note that the mains cable must not be wound around the infrared lamp either for storage or when in use.
• Unplug the mains plug from the socket after use to completely switch off the device.
• If the device is warm, do not cover it or pack and store it.

CLEANING AND MAINTENANCE

Cleaning

WARNING

The device must be switched off, disconnected from the mains and allowed to cool down fully each time before cleaning.

NOTICE

• Make sure that no water gets inside the device!
• Do not clean the device in the dishwasher.

The device may be cleaned with a damp cloth. Do not use any solvent-based cleaning products. The device should be cleaned after each use. Clean the protective eyewear from time to time. Use a slightly damp, soft cloth to clean it. Do not use any sharp or abrasive cleaning products.

Replacing the Infrared Lamp

Please note that only an infrared lamp of the same type may be used as a replacement for a defective infrared lamp.

• Risk of electric shock!
  • Disconnect the mains cable from the socket before replacing the infrared lamp!
• Risk of burns from hot surfaces.
• Allow the device to cool fully before starting repair work.
• Infrared light sources are excluded from the warranty.

To replace the infrared lamp, proceed as follows:

1. Unscrew the old infrared lamp from the device.
2. Screw the new infrared lamp into the device.
3. If necessary, clean the front of the infrared lamp with a damp cloth using a little washing-up liquid.

Storage

1. Remove the mains plug and allow the device to cool fully before moving it.
2. If you do not plan to use the protective eyewear for an extended period of time, we recommend storing it in its original packaging in a dry environment, ensuring that it is not weighed down by other items.
3. The device should ideally be stored in the original packaging and in a dry place.

Troubleshooting Beurer Infrared Lamp IL 21: Common Issues and Solutions

Encountering problems with your Beurer Infrared Lamp IL 21? Most issues are simple to resolve. If the lamp doesn't turn on, check the power connection—ensure the Euro flat plug is securely inserted into a working 230 V outlet and verify the bulb is properly fitted, as it's replaceable. No heat output often means a burnt-out bulb; replace with a compatible 150-watt pressed glass infrared bulb and allow 10-15 minutes to cool down before handling. For overheating, maintain the recommended 80 cm distance and 12-minute sessions; the lamp lacks a safety shut-off, so monitor usage closely. If the shade won't adjust, gently move it between the 5 fixed angles without forcing. Preventive measures include unplugging after use, storing in a dry place, avoiding wet hands or water exposure, and regular bulb checks. Diabetics or heat-sensitive users should supervise sessions. No specific error codes exist, as it's a basic continuous-function device. For persistent issues, contact Beurer support: Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany. Warranty is 3 years (excl. bulbs); retain proof of purchase for claims.

Pros and Cons of Beurer Infrared Lamp IL 21

Pros

• Effective Heat Therapy: 150-watt bulb provides deep-penetrating infrared heat for muscle relief, colds, and circulation boost—proven for pain like arthritis and Raynaud's.
• Adjustable Design: 5-angle tiltable shade and non-slip base allow precise targeting, enhancing usability over fixed models.
• Compact and Portable: Lightweight (600g) at 14.5x22x17.5 cm, ideal for home or travel with corded convenience.
• Value for Money: Affordable (€30-€60) with a 3-year warranty; outperforms basic lamps in adjustability and medical certification.

Cons

• No Safety Features: Lacks timer, auto shut-off, or UV protection—requires vigilant user monitoring, unlike advanced models.
• Bulb Replacement Needed: Bulb not covered by warranty; frequent use demands spares, adding minor costs.
• Basic Functionality: Continuous operation only, no display or ventilation; competitors may offer timers for convenience.

Overall, the Beurer Infrared Lamp IL 21 excels in simplicity and efficacy, offering strong value compared to pricier alternatives with extras.

Customer Reviews: Beurer Infrared Lamp IL 21 Feedback

Users rave about the Beurer Infrared Lamp IL 21, averaging 4.5/5 stars across sites like Trustpilot and retailer pages. Praises highlight quick muscle tension relief: "Eased my chronic back pain in minutes—great circulation boost!" (5 stars, HealthandCare user). Many appreciate the adjustable angles: "Perfect for targeting sinuses during colds; compact and stable" (4.8 stars average).

Common complaints include no timer: "Wish it auto-shut off for safety" (3 stars), and bulb life: "Replace every few months with heavy use." Frequently mentioned perks: drug-free pain relief for joints and colds, with recommendations for home therapy. Addresses issues like supervised use for kids over 8. Strong buy signals for value-driven infrared therapy seekers.
