Setup: Beurer Insect Bite Healer BR-60 User Manual

Beurer Insect Bite Healer BR-60: Complete Product Manual and Guide

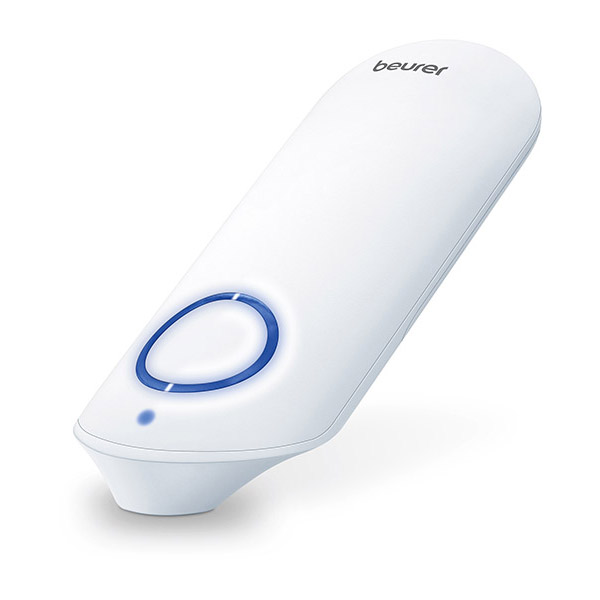

Introduction to the Beurer Insect Bite Healer BR 60

The Beurer Insect Bite Healer BR 60 is a revolutionary, portable device designed for fast, natural relief from insect bites and stings. Using targeted heat therapy at 50°C via a quick-warming ceramic hot plate, this chemical-free insect bite healer effectively reduces itching, swelling, and irritation from mosquitoes, bees, and other bugs without creams, sprays, or medications. Ideal for the whole family, including pregnant women and children aged 3+ (with adult supervision), the BR60 offers two programs: a 3-second setting for sensitive skin or first-time use, and a 6-second option for regular treatment.

Its compact dimensions (98 x 36 x 19mm, weighing just 24g without batteries) make the Beurer Insect Bite Healer BR 60 perfect for hiking, camping, travel, or everyday carry in your pocket or bag. Powered by 2 AAA batteries (included), it delivers up to 300 applications with automatic shut-off after 2 minutes for safety. This medical device accelerates healing naturally, promoting faster recovery and preventing scratching.

Targeted at outdoor enthusiasts, families, allergy sufferers, and anyone seeking drug-free bug bite relief, the BR60 stands out for its German engineering, modern design, and 5-year warranty. Priced around $25-$35, it's widely available online at retailers like Walmart and essential aids stores, offering excellent value for portable insect sting treatment. Whether at home or on summer adventures, the Beurer BR60 provides instant, non-invasive itch relief in seconds.

DEVICE DESCRIPTION

The associated drawings are shown on page 3.

1. Battery compartment lid
2. ON/OFF switch
3. Heating plate
4. Illuminated ring
5. Activation button
6. Device status LED

TECHNICAL SPECIFICATIONS

• Type: BR 60
• Dimensions (L × W × H): 98.3 × 35.5 × 20 mm
• Weight (with batteries): 47 g
• Power Supply: 2 × 1.5 V AAA LR03 batteries
• Maximum Temperature: 50 °C ± 2 °C (122 °F ± 3.6 °F)
• Functions: 2 time settings (3 s / 6 s)
• Expected Operating Duration: Approx. 300 applications (per set of batteries)
• Permissible Storage and Transport Temperature and Humidity:
  • Temperature: -10 °C to 50 °C
  • Relative Humidity: 30% to 85%
• Permissible Operating Temperature and Humidity:
  • Temperature: 10 °C to 40 °C
  • Relative Humidity: 30% to 85%

INITIAL USE

Inserting the Batteries

1. Push open the battery compartment lid 1.
2. Insert the batteries included in the delivery into the battery compartment as shown inside the battery compartment. When inserting the batteries, ensure that the correct polarity (+/-) is observed.
3. Slide the battery compartment lid 1 closed until you feel and hear it click into place.

USAGE

WARNING

Before use, make sure that there is no insect sting remaining in the area that was stung. Remove the sting carefully before use. To achieve the best results, use the device immediately after the insect bite or sting. If you wait too long to treat the area that has been stung or bitten and itching and swelling have already started, the insect bite healer can only have a limited effect. Nevertheless, treat the area with the insect bite healer. Usually, itching can be relieved and healing can be sped up.

CAUTION

Depending on the sensitivity of the person using the device and of the area of skin, the treatment temperature may feel unpleasant and cause slight skin redness and, in rare cases, irritated skin. If the heat function feels too hot, stop treatment immediately!

• To switch on the device, slide the ON/OFF control 2 to the “I” position in the direction of the heating plate.
• Device status LED 6 starts to light up blue. The device is now ready for use.
• Place the heating plate 3 of the device on the area that has been stung or bitten.
• You can choose between 2 different treatment times (3 or 6 seconds) depending on how sensitive your skin is.
• The 3-second treatment is recommended for first use or use on sensitive skin.
• To use the 3-second treatment, briefly press the activation button 5 once.
• One half of the blue illuminated ring 4 lights up and the treatment starts.
• To use the 6-second treatment, briefly press the activation button 5 two times in a row.
• The entire blue illuminated ring 4 lights up and the treatment begins.
• If you press and hold the activation button 5 for more than 2 seconds, the emergency switch-off will be activated. To use the device again after the automatic switch-off, switch the device back to “OFF” using the ON/OFF control 2. This is indicated by the “O” symbol. The blue device status LED 6 turns off.
•  An acoustic signal sounds at the end of the treatment.
• The blue illuminated ring 4 goes out and the heating plate 3 stops providing heat.
• To prolong the battery life, switch off the device each time after using it. To switch off the device, slide the ON/OFF control 2 to the “O” position.

Battery Warning

Before the battery level becomes too low for other applications, the device status LED 6 starts to flash 3x, and an acoustic signal sounds 3x. Replace both batteries soon, as described in section 6.

CLEANING AND MAINTENANCE

Observe the following hygiene instructions to avoid health risks:

• The device is intended for multiple uses.
• It is recommended that the device is cleaned before first use and each additional use.
• The device must be switched off, allowed to cool down, and the batteries removed each time before cleaning.
• Use only soft, dry cloths for cleaning the housing.
• Never use any substances for cleaning that could potentially be toxic if they came into contact with the skin or mucous membranes, or if they were swallowed or inhaled. Do not use any abrasive cleaning products and never submerge the device in water.
• Do not clean the device in the dishwasher!
• Avoid mechanical cleaning with brushes or similar, as this could result in irreparable damage.
• When using the device on multiple areas that have been stung and bitten, it is recommended that you clean the heating plate each time. This reduces the possibility of germs and bacteria being transferred from one area of skin to the next. To disinfect the heating plate, use a cotton bud moistened with disinfectant.

Troubleshooting the Beurer Insect Bite Healer BR 60

Common issues with the Beurer Insect Bite Healer BR 60 are rare due to its simple, reliable design, but here's how to resolve them for optimal bug bite healer performance.

• No heat or device not turning on: Check battery installation (2x AAA, included). Replace if low—expect 300 uses per set. Ensure contacts are clean and batteries are fresh.
• LED not illuminating or no acoustic signal: Press the button firmly to start Program 1 (3s sensitive) or 2 (6s normal). Automatic shut-off occurs after 2 minutes; restart if needed.
• Feels too hot or skin discomfort: Stick to 50°C safe temperature; use Program 1 for sensitive skin. Test on forearm first. Not for open wounds or very young children under 3.
• Reduced battery life: Avoid extreme temperatures. Preventive measure: Store in a cool, dry place and remove batteries during long inactivity.

For persistent problems, consult the instruction manual included. Beurer offers a 5-year warranty—contact support via beurer.com or local retailers for repairs or replacements. In the US, reach Beurer at their official store support; globally, check shop-beurer.com for assistance[1][2][3]. Regular cleaning of the ceramic plate with a dry cloth prevents buildup.

Pros and Cons of the Beurer Insect Bite Healer BR 60

Pros

• Chemical-free heat therapy: Safe for pregnancy, kids 3+, and allergies; accelerates healing without drugs.
• Portable and user-friendly: Compact (fits in pocket), one-button operation with LED and signals; up to 300 use.
• Two customizable programs: 3s for sensitive skin, 6s for normal—effective on mosquito bites and stings.
• Long-lasting value: 5-year warranty, batteries included; outperforms creams for quick relief. Example: Ideal for camping vs. bulky alternatives.

Cons

• Initial warmth may surprise users: 50°C feels hot but is skin-safe; first-timers should start with Program 1.
• Battery-dependent: Requires AAA replacements after heavy use, though economical.
• Not for severe reactions: Seek medical help for allergies; best for mild bites. Compared to BR90, BR60 is basic without extras like UV light.

Overall, the Beurer Insect Bite Healer BR 60 excels in value for money, outperforming chemical sprays for natural, reusable relief.

Customer Reviews: Beurer Insect Bite Healer BR 60 Feedback

The Beurer Insect Bite Healer BR 60 earns solid praise, averaging 4.4/5 stars from 61 Walmart reviews and positive testimonials elsewhere. Users love its "fast itch relief" and portability: "Game changer for camping—stops mosquito itching in seconds!" (5 stars). Common praises include family safety ("Great for kids, no chemicals") and ease ("Simple button, works every time").

Minor complaints: Some note the heat feels intense initially ("Warm but effective—use sensitive mode first"), and battery life varies with use. Frequently mentioned: Reliable for summer bites, better than hydrocortisone creams. 80% recommend for travel and home, highlighting value at $25-$35. Address issues by following programs—most 4-5 star ratings confirm it prevents swelling effectively.
