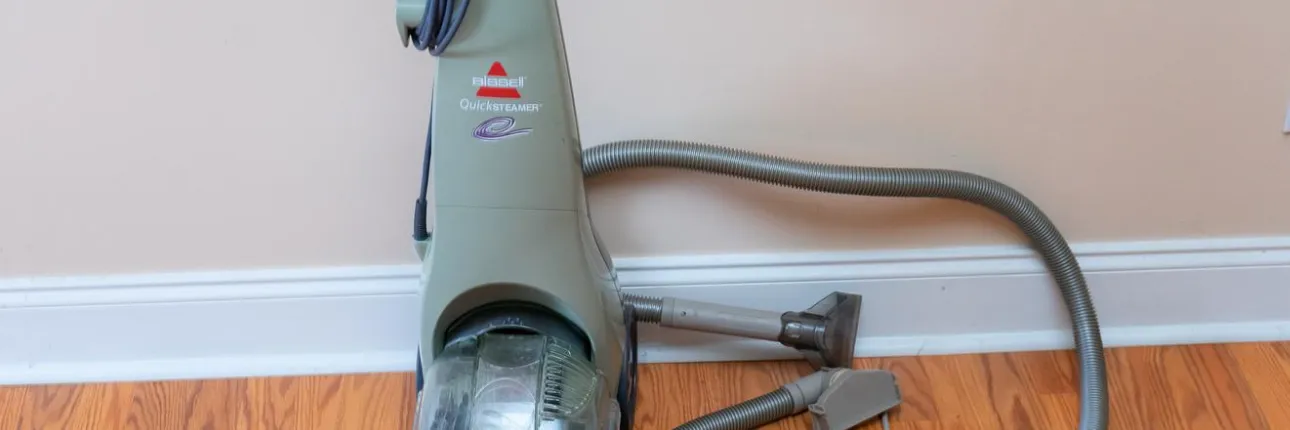

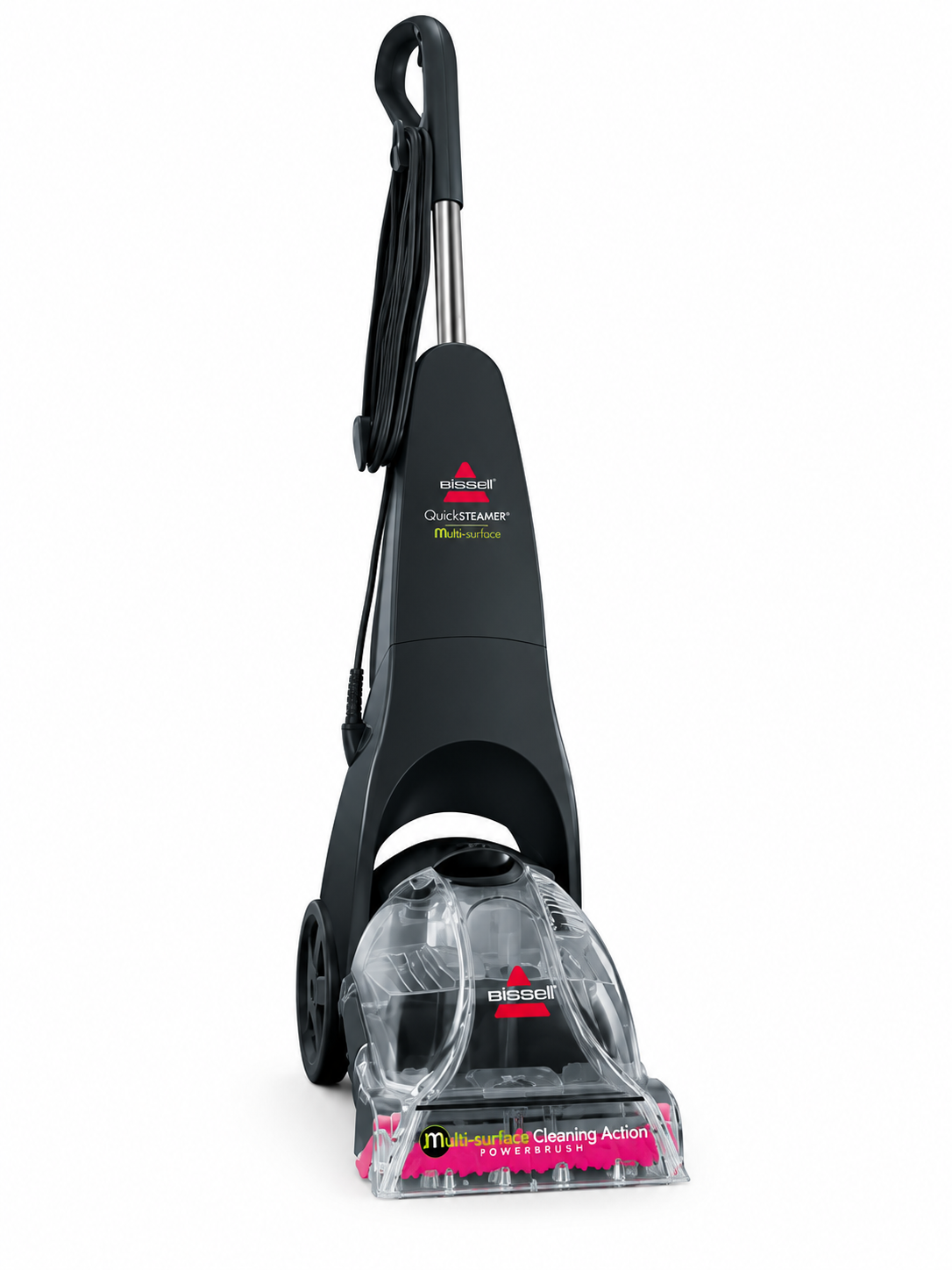

Introduction of Bissell QuickSteamer Carpet Steam 1950 SERIES

The Bissell QuickSteamer Carpet Steam SERIES is a powerful and efficient carpet cleaner designed to help you keep your carpets and area rugs looking and smelling fresh and clean. This upright steam cleaner is easy to use, with a lightweight design and a convenient carrying handle. The estimated price of the QuickSteamer Carpet Steam 1950 SERIES is around $140 to $160, and it was launched in the market in 2021.

Detailed Specifications of QuickSteamer Carpet Steam

• Weight: 12 pounds
• Dimensions: 17.8 x 12.4 x 44.5 inches
• Tank capacity: 1/2 gallon
• Power: 550 watts
• Cord length: 20 feet
• Hose length: 6 feet
• Number of cleaning paths: 9
• Heat-up time: 30 seconds
• Warranty: 1 year

Description of QuickSteamer Carpet Steam 1950 SERIES

The QuickSteamer Carpet Steam 1950 SERIES is a versatile and easy-to-use steam cleaner that can tackle a variety of cleaning tasks. It features a powerful 550-watt motor and a convenient 1/2 gallon tank, so you can clean for longer without having to stop and refill. The steam cleaner also has a heat-up time of just 30 seconds, so you can start cleaning right away. The Bissell QuickSteamer Carpet Steam SERIES comes with a variety of tools and attachments, including a stair tool, a crevice tool, and a upholstery tool, so you can clean a variety of surfaces with ease. The machine also has a lightweight design and a convenient carrying handle, making it easy to move from room to room. Additionally, the Bissell Carpet Steam 1950 SERIES is easy to maintain, with a removable and washable filter and a convenient downtime between tanks

OVERVIEW OF THE QuickSteamer Carpet Steam

How To Use This QuickSteamer Carpet Steam

This QuickSteamer Carpet Steam has been designed to help you get the utmost satisfaction from your BISSELL QuickSteamer Lightweight Deep Cleaner. You’ll find assembly and operating instructions, safety precautions, as well as maintenance and troubleshooting instructions. Please read this Guide thoroughly before assembling your cleaner.
Pay particular attention to the product diagram, assembly instructions, and part names. Locate and organize all parts before assembly. Familiarize yourself with the parts and where they go. Following this User’s Guide will greatly enhance your ability to get the most perform-ance from your BISSELL QuickSteamer for many years.
Your QuickSteamer comes in two, easy to assemble components

• Detachable Handle Assembly
• Lower Body

Replacement parts - BISSELL QuickSteamer

QuickSteamer – 1950 Series Parts

QuickSteamer PowerBrush – 2050 Series Parts

How To Put It Together

Your QuickSteamer is packaged as two primary components - the Lower Body and the Handle Assembly. Your QuickSteamer assembles easily in two quick steps. The only tool you’ll need to assemble your cleaner is a Phillips head screwdriver.

1. Attach Handle to Lower Body
   Slide Handle Assembly (with attached Quick Release Cord Wrap™) down into Lower Body until it will go no further.

2. Secure with screw
   Secure by placing one (1) Phillips head screw (supplied) into rear of Handle Assembly. Tighten with screwdriver until secure.



Other Components Of  Bissell QuickSteamer Carpet Steam

• Clean Water Tank - holds 1/2-gallon of hot water cleaning solution.
• Dirty Water Tank - holds 1/2-gallon of dirty water.
• Power Cord - for storage, wrap the Power Cord around Upper and Lower Cord Wraps, and secure Plug to Cord with molded clip

How to use your BISSELL QuickSteamer

How to begin

1. Plan activities to give carpet time to dry.
2. Remove easily moved furniture (chairs, lamps, coffee/cocktail tables, etc.) from room if needed.
3. Vacuum carpet thoroughly.
4. Decide where to begin — and end — your job. Clean in 3’ X 4’ sections, starting in areas farthest from exit. Plan to leave a path open to empty soiled water and refill cleaner.
5. The carpeting will dry in three to four hours, depending on carpet style and air circulation in room. A floor fan speeds drying.
6. Replace furniture on damp carpeting by placing waxed paper under legs until floor dries completely.

WARNING
To reduce the risk of fire, use only BISSELL Advanced Cleaning Formulas for Deep Cleaning Machines. The use of cleaning formulas that contain lemon or  pine oil may damage this appliance and void warranty. Chemical spot cleaners or solvent-based soil removers should not be used. These products may react with the plastic materials used in your QuickSteamer,® causing cracking or pitting.

Tip: Always vacuum thoroughly before you deep clean. If possible, move larger furniture to an area you will not be cleaning.

Getting ready

1. Remove the Clean Water Tank by lifting it straight up, then away from the Lower Body.



2. Using the Formula Measuring Cap, add two (2) capfuls of BISSELL® Advanced Cleaning Formulas for Deep Cleaning Machines to the Clean Water Tank. Add 1/2-gallon
3. of hot (NOT boiling) tap water. Fill only to fill line –do not overfill.
4. Replace and turn Formula Measuring Cap clockwise until secure.
5. Place Clean Water Tank on Lower Body.

6. Rotate Quick Release Cord Wrap™ and plug in.



7. Turn Power Switch [located on the back of the Lower Body] to ( I ) ON. If cleaner starts when first plugged in, switch cleaner OFF ( O ) until ready for use.

Pre-Treating

Pre-treat stubborn stains and highly soiled carpet in hallways and other high-traffic areas.

1. Spray soiled area with BISSELL® Tough Stain PreCleaner.™
2. Use a stiff-bristled brush to work formula into carpet pile.
3. Wait 3 -5 minutes before deep cleaning.

Deep Cleaning

1. Turn Power Switch [located on the back of the Lower Body] to (    ) ON.
2. With foot, press the Detent Lever on right side of Lower Body.
3. Depress Spray Trigger to spray cleaning solution. Do not overwet.
4. Repeat motion over same area without depressing Trigger.
5. Repeat Steps 3 and 4 until no more dirt can be removed.
6. Continue to clean entire carpet, working in 3’ x 4’ sections.

7. Empty the Dirty Water Tank when dirty water reaches the full line, or when the Clean Water Tank is empty. See page 10 for instructions.



8. If Floor Nozzle stops spraying, turn Power Switch to OFF ( O ) and check water and cleaning solution levels. Refill if needed.

Attaching the Bare Floor Tool - 1950 Series only

*Barefloor Cleaning is only available on select QuickSteamer models without the DirtLifter® PowerBrush. If your QuickSteamer did not come so equipped, you may order one through BISSELL Consumer Services at 1-800-237-7691. You can also visit the BISSELL website: https://www.bissell.com/

NOTE: Your QuickSteamer is not recommended for cleaning wood floors.

• Use only BISSELL® Floor Cleansing Formula™ on no-wax floors. Never use BISSELL carpet cleaning formulas on bare floors.
• Sweep or vacuum before starting.
• Remove old wax before cleaning.
• Leave an exit path for yourself.
• Allow at least 1/2 hour drying time.

CAUTION: The Dirty Water Tank holds approximately 1/2 gallon of soiled liquid. Filling past the fill line can damage unit.

1. Remove Dirty Water Tank.
2. Remove Brush by depressing tabs on the Cross Action Brush™ outward with thumbs until the Brush loosens.

3. Add Bare Floor Tool underneath the Floor Nozzle by sliding notches and tabs into the opening until it is secure. Make sure tabs on the Bare Floor Tool snap over front lip of Floor Nozzle.



4. Replace empty Dirty Water Tank.

5. Empty and rinse Clean Water Tank.



6. Using the Formula Measuring Cap, add two (2) capfuls of BISSELL® Floor Cleansing Formula™ to the Clean Water Tank. Add 1/2-gallon of hot (NOT boiling) tap water. Fill only to fill line – do not overfill.
7. Replace and turn the Formula Measuring Cap clockwise until secure.
8. Rotate Quick Release Cord Wrap and plug in.
9. Turn Power Switch located on the back of Lower Body to (I) ON.

Cleaning Bare Floors

1. Slowly move QuickSteamer back and forth over soiled surface one time while depressing Trigger. Do not overwet.
2. Repeat motion over same area without depressing Trigger.
3. Repeat Steps 1 and 2 until no more dirt can be removed.
4. If Floor Nozzle stops spraying, turn Power Switch to OFF (O) and check water and cleaning solution levels. Refill if needed.

CAUTION: Do not lay QuickSteamer on its back with Clean Water Tank in place. Do not tip up foot with Dirty Water Tank in place.

Belt and Brush Removal - 2050 Series only

QuickSteamer PowerBrush models only

1. Turn the machine off and unplug from wall outlet.
2. Remove clean and dirty water tanks.
3. Lie machine down to access the bottom of the machine.
4. Unscrew the brush cover.

5. Remove the brush end cap and remove belt from brush.



6. Brush can now be removed.
7. Belt can be removed by sliding off the motor pulley.
8. Clean or replace belt. Attach belt to motor pulley and brush, insert brush into right side end cap, and reattach belt to brush.

9. Reattach the left end cap.



10. Slide brush with the end cap attached back into place.

11. Replace the brush cover and screw into place.



WARNING: To reduce the risk of injury from moving parts and/or electrical shock, turn Power Switch OFF and disconnect polarized plug from electrical outlet before performing troubleshooting checks.

Routine Maintenance

When you’re done
Turn Power Switch to OFF (O) position.Unplug Power Cord from outlet.Remove and empty Dirty Water Tank.

1. Press detent Pedal and tip Handle back, laying it gently on floor.



2. Release Dirty Water Tank latches [1 each side] by pulling up from bottom of latch and then out.

3. Carefully lift Dirty Water Tank from Lower Body.



4. Carry Dirty Water Tank to a toilet or sink. To empty, pour out contents  using opening at back of Tank.



5. Fill Dirty Water Tank with clean water through the Vent Cover and rinse thoroughly. Discard water.



• Replace Dirty Water Tank on Lower Body and secure with latches. Replace Clean Water Tank.
• Wrap Power Cord around Quick Release Cord Wrap™ on side of QUICKSTEAMER®.
• Wipe all surfaces with a soft cloth. Store cleaner upright in a protected, dry area.

NOTE: You may have cleaning solution remaining in the Clean Water Tank. You may store your QuickSteamer this way for the next cleaning task, but never keep soiled solution in the Dirty Water Tank.

Troubleshooting of Bissell QuickSteamer Carpet Steam

If you're having trouble with your Bissell QuickSteamer Carpet Steam 1950 SERIES, here are some common problems and solutions:

• Problem: The steam cleaner isn't producing steam.
• Solution: Make sure the tank is filled with water and that the power switch is turned on. Also, check that the heating element is working properly.
• Problem: The steam cleaner is leaking.
• Solution: Check the connections between the tank and the machine to make sure they are secure. Also, make sure the tank is not overfilled.
• Problem: The steam cleaner is not picking up dirt and debris.
• Solution: Make sure the brush roll is turning and that the suction is working properly. Also, check the filters and make sure they are clean.

Reduced spray or no spray.

Possible Causes
Clean Water Tank empty Spray Bar clogged

Deep Cleaner not picking up the cleaning solution.

Possible Causes

• Dirty Water Tank not aligned/secured The
• Dirty Water Tank is full

Remedies

Check Tank for proper alignment and secure with side latches Empty Tank

Warranty Of QuickSteamer Carpet Steam 1950 SERIES

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
One Year Warranty
Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.
See the information below on "If your BISSELL product should require service".

Pros & Cons of  Bissell QuickSteamer Carpet Steam 1950 SERIES

Pros

• Powerful 550-watt motor
• Convenient 1/2 gallon tank
• Heat-up time of just 30 seconds
• Lightweight design and carrying handle
• Variety of tools and attachments
• Easy to maintain

Cons

• May not be suitable for larger cleaning jobs
• The cord and hose could be longer
• Some users have reported issues with leaks

Customer Reviews about Carpet Steam 1950 SERIES

Customers have generally given positive reviews for the QuickSteamer Carpet Steam SERIES. They have commented on its ease of use, powerful suction, and convenient features. However, some users have reported issues with leaks and the short length of the cord and hose. Overall, the Bissell QuickSteamer Carpet Steam is a great choice for those looking for a versatile and easy-to-use steam cleaner for their carpets and area rugs.
