Introduction

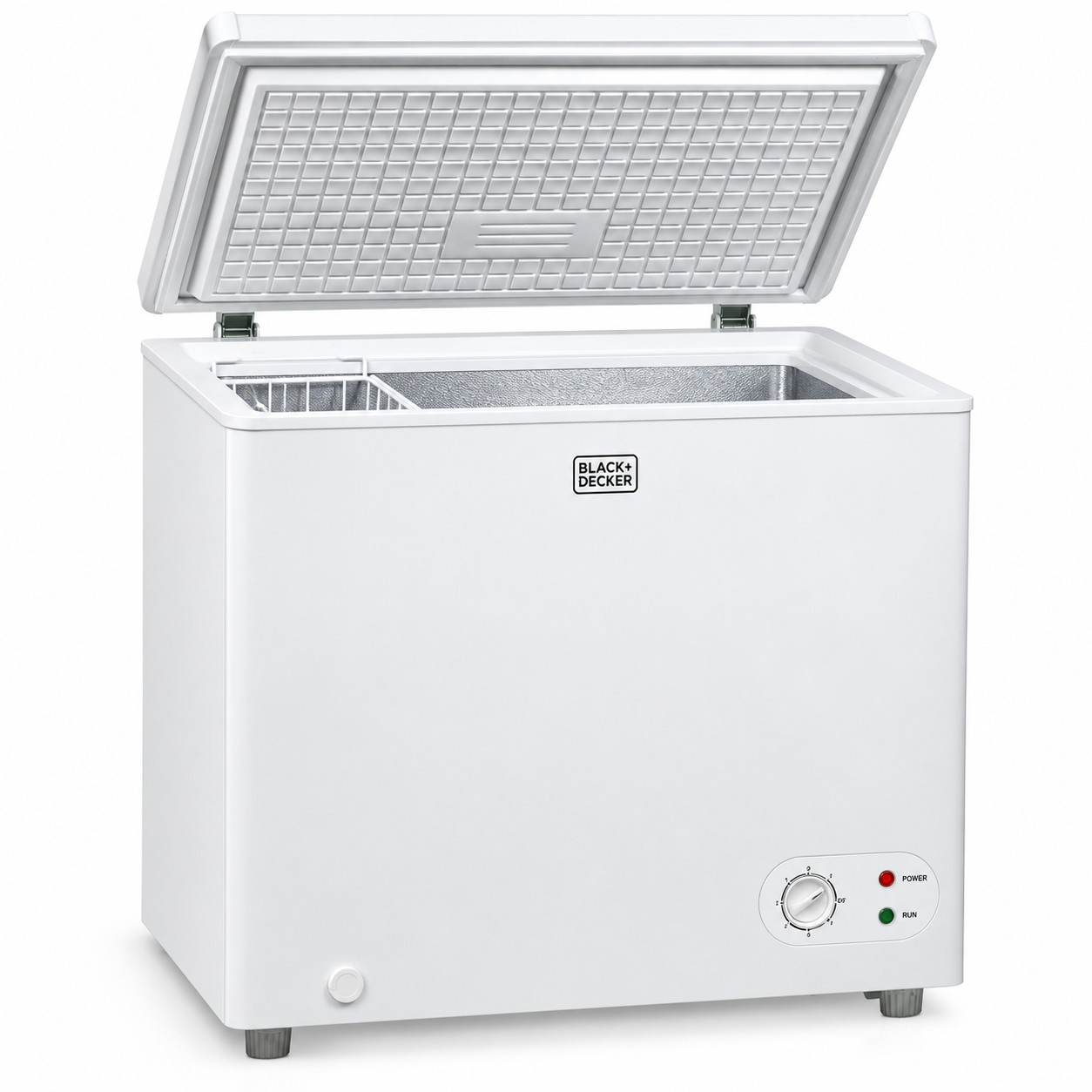

The Black Decker Chest Freezer BCFK35W is a versatile and reliable freezer designed for both residential and commercial use. With a spacious 35 cubic foot capacity, this freezer is perfect for storing large quantities of food, making it an excellent choice for grocery stores, restaurants, and large families. The estimated price for this freezer is around $600 to $700, and it was launched in the market in 2021.

Detailed Specifications of Black Decker Chest Freezer BCFK35W

The Black Decker Chest Freezer BCFK35W comes with several key features, including a manual defrost system, adjustable temperature control, and a power-on indicator light. It has a total of five door bins, providing ample storage space for smaller items. The freezer also has a durable and easy-to-clean liner, making it a low-maintenance option for busy households and businesses. Additionally, the freezer has a foam insulation design, which helps maintain consistent temperatures and reduces energy consumption.

PARTS & FEATURES

OPERATION INSTRUCTIONS

TEMPERATURE CONTROL

NOTE: If the freezer has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.

• The settings of the temperature control are "0, 1, 2, 3, 4, 5, 6, 7." Adjust the temperature control to the setting that best suits your needs.
• Turning the temperature to “0” position will shut off the cooling cycle, but does not turn off the electrical power to the unit.

NOTE:

• Wait 3-5 minutes before restarting if you unplug the freezer.  The unit may fail to operate  properly if restarted too quickly.
• If the ambient temperature is too high, the freezer may not reach the desired target temperature.
• Large amounts of foods will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet and leave spaces for airflow.
• If you choose to change the thermostat setting, adjust thermostat control one increment at a time.  Allow several hours for temperature to stabilize between adjustments.

FOOD STORAGE

Your freezer has a removeable basket to better store and organize the contents.

DEFROSTING & DRAINING

• Defrost whenever the frost becomes 1/8” thick. Never use a sharp or metallic instrument to remove the frost as it may damage the cooling coils.
  NOTE: A punctured coil will void the warranty
• Turn the temperature control to OFF position and unplug the unit. Remove the drain plug from the inside of the freezer. Defrosting usually takes a few hours. To defrost faster keep the door open.
• For draining, place a tray beneath the outer drain dial. Turn the drain dial in a counter-clockwise direction to remove (see fig. below). This will let the water flow out into the tray. When finished, replace the drain dial and turn in a clockwise direction to close.
  NOTE: Monitor the container under the drain to avoid overflow.
• Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.

• Reset the temperature control to the desired setting.



SAFETY INFORMATION

DANGER: Immediate hazards which WILL result in severe personal injury or death

WARNING: Hazards or unsafe practices which COULD result in severe personal injury or death

CAUTION: Hazards or unsafe practices which COULD result in minor personal injury

WARNING: When using electrical appliances, basic safety precautions should be followed, including the following

NOTE:  If the freezer has been placed in a horizontal or tilted position for any period of time, wait 24 hours before plugging the unit in.

1. Use this appliance only for its intended purpose as described in this use and care guide.
2. This freezer must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
3. Never unplug your freezer by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
4. Do not operate any appliance with a damaged cord or plug.  Return appliance to the nearest authorized service facility for examination, repair or adjustment.
5. Unplug your freezer before cleaning or before making any repairs. Note: If for any reason this product requires service, we strongly recommend that a certified technician performs the service. Component parts shall be replaced with like components and servicing shall be done by factory authorized service personel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.
6. Do not use any electrical device or any sharp instrument in defrosting your freezer.
7. DANGER: Risk of child entrapment.  Before you throw away your old freezer or freezer, take off the doors and leave the shelves in place so that children may not easily climb inside.
8. After your freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.
9. Do not refreeze foods that have been thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “…You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40˚F. “…Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat … Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can.”
10. This freezer should not be recessed or built-in in an enclosed cabinet. It is designed for freestanding installation only.
11. Do not operate your freezer in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS about Black Decker Chest Freezer BCFK35W

DANGER: Risk of child entrapment. Before you throw away your old freezer or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

REFRIGERANT

GAS WARNINGS

• DANGER: Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost freezer. DO NOT puncture refrigerant tubing.
• DANGER: Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. DO NOT puncture refrigerant tubing.
• CAUTION: Risk of fire or explosion. Flammable refrigerant used. Consult repair manual/owner’s guide before attempting to service this product. All safety precautions must be followed.
• CAUTION: Risk of fire or explosion. Dispose of property in accordance with federal or local regulations. Flammable refrigerant used.
• CAUTION: Risk of fire or explosion due to puncture of refrigerant tubing; Follow handling instructions carefully. Flammable refrigerant used.

GROUNDING INSTRUCTIONS

ELECTRICAL REQUIREMENTS

• The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the product be provided.
• The product is equipped with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.
• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. The cord provided with this appliance is equipped with a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Avoid the use of three prong adapters or cutting off the third grounding prong in order to accommodate a two prong outlet
• This is a dangerous practice since it provides no effective grounding for the freezer and may result in shock hazard.

Consult a qualified electrician or serviceman if

WARNING: Improper use of the grounding plug can result  in a risk of electric shock.

1. The grounding instructions are not completely understood.
2. You are unsure that the appliance is properly grounded.
3. You have any questions about the grounding or electrical instructions.

POWER SUPPLY CORD

1. Avoid the use of an extension cord because of potential safety hazards under certain conditions. Have a qualified electrician or serviceman to install an outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme care must be exercised.
   • Use only a grounding type 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
   • The marked electrical rating of the cord set or extension cord must equal to or greater than the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

NOTE:  Neither BLACK+DECKER nor the dealer can accept any liability for damage to the product or personal injury resulting from failure to observe the electrical connection procedures.

Description of Black Decker Chest Freezer BCFK35W

The Black Decker Chest Freezer BCFK35W is a high-quality freezer that offers reliable and efficient performance. Its spacious interior and adjustable temperature control make it an excellent choice for storing a wide variety of food items. The manual defrost system ensures that the freezer maintains consistent temperatures, while the power-on indicator light provides a convenient way to monitor the freezer's status. The durable liner and foam insulation design also help extend the freezer's lifespan and reduce energy costs.

SET UP & USE

INSTALLATION GUIDE

1. Unpack your freezer by removing all packaging materials like carton, base, foams, adhesive tape, etc.
2. Remove all accessories, internal packaging material used to hold shelves, ice tray, etc. in place.
3. Clean the remains of all adhesive tap used and remove all printed material supplied.
4. Install the freezer in a convenient location away from extreme heat and cold. Allow sufficient clearance between the freezer and side wall so the door(s) will open without obstruction. Freezer is not designed for recessed installation.
5. The floor on which the freezer should be placed must be flat, hard, solid, and even. The freezer should not be placed on any soft material such as foam, plastic, etc.
6. The following are recommended minimum clearances around the freezer for proper air circulation:
   • Sides: 3/4” (19mm)
   • Back: 2” (50mm)
   • Proper air circulation will help your freezer work at maximum efficiency.

NOTE:  The appliance must be correctly connected to the power supply.

CAUTION: Care should be taken during the handling moving and use of the freezer to avoid damaging the refrigerant tubing or increasing the risk of a leak.

WARNING: It is important to keep the power cord away from the compressor at the back of the freezer as during operation, the compressor can reach a high temperature and could cause serious damage to the power cord.

PROTECTION FROM HEAT AND MOISTURE

• Do not install your freezer in any location where heavy moisture is present or if the location is not properly insulated. This freezer is not designed to operate in temperature setting below 55° Fahrenheit.
• Location for the freezer should be on a hard surface and away from direct sunlight and heat source, e.g., radiators, baseboard heaters, cooking appliances, etc.

STARTING YOUR NEW FREEZER

1. After cleaning your freezer thoroughly, wipe the outside with a soft dry cloth, the interior with a clean moist cloth.
2. Insert the power supply cord into the electrical outlet.
3. Turn the thermostat dial to an initial setting of “7” for 24 hours and then set the freezer to your desired setting.

NOTE: As the door gets pressed in during shipping, the gasket may have to be reset. This is  done to prevent the cool refrigerated air from escaping. If there is a gap between the door gasket and the cabinet, set the gasket by gently pulling it out of the seal gap.

CLEANING AND CARE

CLEANING AND MAINTAINING

The freezer should be cleaned and maintained once a month. Before doing so, you must unplug the freezer.

CAUTION: To avoid personal injury or product damage always read and follow manufacturer’s instructions and warnings before using any cleaning products.

WARNING: Always unplug your freezer before cleaning to avoid electric shock. Ignoring this warning may result in death or injury.

POWER INTERRUPTION

In case of a power interruption/outage, unplug the power cord from the wall outlet.  Replug the power cord to the wall outlet once the power has been restored.  For long period of power outage, inspect and discard the spoiled or thawed foods from the freezer and freezer compartments.  Clean the freezer thoroughly before using again.

CLEANING METHOD

Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution to wipe down your freezer.

• Rinse with clean warm water and dry with a soft cloth,
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your freezer.

DOOR GASKET
Clean door gaskets every three months according to general instructions. Gasket must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge sides of gaskets will keep the gasket pliable and ensure a good seal.

VACATION AND MOVING CARE

• When going on vacation, it is best that you empty all the food from your freezer and freezer.  Set the temperature dial to “0” and unplug the freezer. Clean the unit as per “Cleaning Method” and leave the door open to remove any odors.
• When travelling or moving the freezer, always transport the unit vertically.  Moving the unit on its sides may damage the freezer and/or its compressor. TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE Freezer YOURSELF.

ENERGY SAVING TIPS Black Decker Chest Freezer BCFK35W

• The freezer should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in the freezer.  Overloading the freezer forces the compressor to run longer and thus increase energy consumption.  Foods that refrigerate too slowly may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing in the freezer.
• The shelves should not be lined with aluminium foil, wax paper, or paper towels.  This will interfere with cold air circulation, making the freezer less efficient.
• Organize food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

HOW TO DEFROST

• Defrost the freezer compartment when the frost accumulated is about 1/8” thick.
• Set the temperature control dial to “0” before defrosting.  Remove all contents from the freezer compartment and leave the top lid open until ice and frost dissolve thoroughly.  Make sure the drip tray is in place and unplug the unit. After defrosting, empty water from drip tray and wipe the compartment  dry with a soft cloth and then adjust the temperature control dial to the desired position.

NOTE: In case you want to speed up the  defrosting, you may put a bowl of warm water (about 122°F) into the freezer.

• Do not heat the evaporator directly with hot water or hair dryer while defrosting.  Doing so will damage the freezer compartment.
• Never use a sharp or metallic instrument to remove frost as it may damage the freezer and puncture the cooling coils.  It will also void the warranty. We recommend using a plastic scraper.

Troubleshooting Black Decker Chest Freezer BCFK35W

Troubleshoot your problem by using the chart below. If the freezer still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components.

WARRANTY

Appliance Co. warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of  1 year (12 months) for labor/1 year (12 months) for parts (manufacturing defects only)/carry in service/ and a total of 2 years (24 months) for compressor part only. W Appliance Co. agrees that it will, at its option, replace the defective product with either a new or remanufactured unit equivalent to your original purchase during the warranty period.

BEFORE YORE YOU CALL FOR SERVICE IF THE FREEZER FAILS TO OPERATE:

• Check to make sure that the freezer is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE FREEZER YOURSELF.
IMPORTANT: DO NOT RETURN THIS PRODUCT TO THE STORE If you have a problem with this product, please contact the W.Appliance Co. Customer Satisfaction Center at   844-299-0879 or [email protected]. DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE.

Exclusions: This warranty does not apply to the below.

1. If the appearance or exterior of  the product has been damaged or defaced, altered or modified in design or construction.
2. If the product original serial number  has been altered or removed or cannot be readily determined.
3. If there is damaged due to power line surge, user damage to the AC power cord or connection to improper voltage source.
4. If damage is due to general misuse, accidents or acts of God.
5. If repair attempts are done by unauthorized service agents, use of parts other than genuine parts or parts obtained from persons other than authorized service companies.
6. On units that have been transferred from the original owner.
7. On products that have been purchased as refurbished, like new, second-hand, in a “As-Is” or “Final Sale” terms.
8. To products used in a commercial or rental setting.
9. To products used in settings other than ordinary household use or used other than in accordance with the provided instructions.
10. To damages for service calls for improper installations.
11. To glass parts and other accessory items that are included with the unit.
12. Transportation and shipping costs associated with the replacement of the unit.
13. Food loss for loss due to product failure or delay in service, repair or replacement.
14. Service calls to instruct you how to use your product.
15. Service calls to repair or replace the house fuse, reset the circuit breaker or correct the wiring in the house.

Pros & Cons

Pros

• Spacious 35 cubic foot capacity
• Adjustable temperature control
• Manual defrost system
• Power-on indicator light
• Durable and easy-to-clean liner

Cons

• May be too large for some households or businesses
• Manual defrost system can be time-consuming

Customer Reviews

Customers have praised the Black Decker Chest Freezer BCFK35W for its spacious interior, reliable performance, and easy-to-clean design. However, some have noted that the manual defrost system can be time-consuming and that the freezer may be too large for smaller households or businesses. The most common complaint is that the freezer can be noisy, but this is not a widespread issue.
