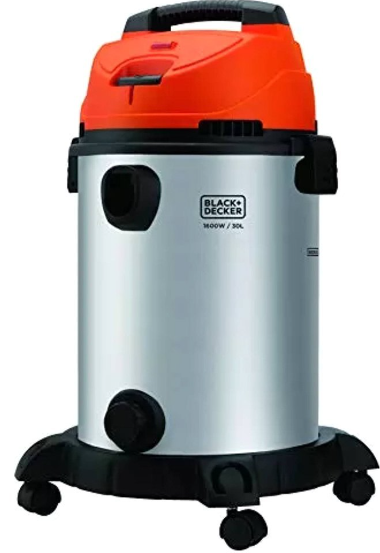

Introduction of Black & Decker Electric Wet & Dry VC WDBDS30

The Black & Decker Electric Wet & Dry VC WDBDS30 is a versatile and powerful vacuum cleaner, perfect for cleaning both wet and dry messes. With a compact design and lightweight build, this vacuum is easy to maneuver and store. The estimated price of this product is around $80, and it was launched in 2021.

Detailed Specifications

The Black & Decker Electric Wet & Dry VC WDBDS30 features a 1.8 liter tank capacity, making it ideal for larger cleaning jobs. It also has a powerful 1200W motor, which provides strong suction power for efficient cleaning. The vacuum includes a variety of attachments, such as a crevice tool, dusting brush, and wet suction head, to tackle any mess. Additionally, the vacuum has a washable filter, making it easy and cost-effective to maintain.

• VACUUM: WDBDS20 | WDBDS30

• Input Voltage: 220-240 V | 220-240 V

• Frequency: 50/60 Hz | 50/60 Hz

• Power: 1400 W | 1600 W

Carton Contents List

DRUM ASSEMBLY

Warning! If any part is missing or damaged, please do not assemble until you have all the parts.
Invert drum to install wheel
Insert the four wheels (7) into the socket of wheel base. Be sure that wheels spin freely (Fig. B)

ASSEMBLING THE UNIT

1. Put the HEPA filter (10) into float holder, then lid the HEPA filter cover (11), fasten it clockwise. On the contrary, remove the HEPA filter anticlockwise (Fig. C).



   NOTE: When picking up small amounts of liquid the HEPA filter can be left in place. When picking up large amounts of liquid we recommend that the HEPA filter should be removed. If the HEPA filter is not removed, it will become saturated and misting may appear in the exhaust.

2. Fitting the dust bag. Put the dust bag board (8) into inlet base. (Dust bag board should be aim at the slot of the inlet base). Rotate the board clockwise 90º degrees to fasten the dust bag according to arrow direction (LOCK side)  (Fig. D). To remove the dust bag from the inlet base, just rotate the dust bag board anticlockwise 90º degree (OPEN side), then take out the dust bag.



   NOTE: The dust bag use only for dry-vacuum.

3. Install the power head assembly into the drum assembly as shown (Fig. E).



4. Rotate both latches down and press until you hear them snap over the flanges on the drum (Fig. F).



5. Insert the flexile hose connector into the inlet base of the vacuum cleaner (Fig. G).



Wet & Dry VC WDBDS30 Description

The Black & Decker Electric Wet & Dry VC WDBDS30 is a versatile and durable vacuum cleaner that is perfect for any home or office. Its powerful motor and large tank capacity make it ideal for larger cleaning jobs, while its lightweight and compact design make it easy to move and store. The vacuum's attachments and wet suction head make it easy to clean any mess, and its washable filter means you'll save money on replacement filters. Whether you're cleaning up after a spill or just doing some routine cleaning, the Black & Decker Electric Wet & Dry VC WDBDS30 is the perfect tool for the job.

Black & Decker Electric Wet & Dry VC WDBDS30 Operation

Accessories use instructions
The vacuum cleaner is equipped with three nozzles for different applications. Each individual nozzle can either be fitted onto the connecting tube or directly onto the handle of the flexible hose.

1. Floor brush
   This is suitable for cleaning wide areas. The floor brush is fitted with a practical 360º tie-in, this ensures that you can reach easily into any corner (Fig. H).



2. Crevice nozzle
   This nozzle is suitable for sucking and cleaning the corners or niches that cannot be reached with the floor brush. Besides, it can be used as blowing tool (Fig. I).



3. Sofa brush
   You can use this to clean the dust from books or sensitive objects such as picture frames etc. This nozzle is suitable for the careful cleaning of upholstered furniture, mattresses, cushions, curtains etc. (Fig. J)



ATTENTION!

Make sure all the assembly is according to the instructions. Connect the hose to the unit, then install the specific accessories for the intended cleaning purpose. Insert the plug into the socket. Press the ON/OFF switch button, start the using. After using, press the ON/OFF switch button to stop. Unplug the cord from the socket. (Fig. K)

WET VACUUMING
Caution! Always remove the dust bag when you commencing wet vacuuming.

1. When picking up small amounts of liquid the HEPA filter may be left in place.
2. When picking up large amounts of liquid we recommend that the HEPA filter should be removed. If the HEPA filter is not removed, it will become saturated and misting may appear in the exhaust.
3. When the liquid in the drum reaches a predetermined level, the float mechanism will rise automatically to cut off air-flow, the indicator light turn on at the same time. When this happens, turn off the vac, unplug the power cord, and empty the drum.
4. After using the vac to pick up liquids, the HEPA filter must be cleaned and dried to reduce the risk of possible mildew and damage to the filter.

5. The sponge filter should be cleaned and dried if necessary, the removal method is shown in (Fig. L).



6. When the drum full, turn anticlockwise the water lid and empty the water (Fig. M).



DRY VACUUMING
Caution! Never dry vacuum without the filter assembly installed.

1. For dry vacuum using, there are two filtering methods:
   • Dust bag; HEPA filter. For mass dust cleaning, we advise to use dust bag. For a bit but tiny dust cleaning, we advise to use HEPA filter. Since the HEPA filter have better filtering performance but will low down the air flow.
2. The device has dirt full and block indication function, the light turns on that means the air route way is blocked. In this case, user should switch off the device and check:
   • Is the hose or accessories blocked by large dirt?
   • Is the filter blocked by dirt?

User should take actions

• Clean the dirt in the hose or other accessories.
• Change or clean the dust bag/HEPA filter.

BLOWING FUNCTION
The device has blow function, if necessary, fix the hose connector to the exhaust of the device (the same method with inlet connection), then fix the accessories to use (Fig. N).

Black & Decker Electric Wet & Dry VC WDBDS30 Setup Guide

To set up the Black & Decker Electric Wet & Dry, follow these steps:

1. Remove the vacuum from the box and plug it in.
2. Choose the appropriate attachment for the job (crevice tool, dusting brush, or wet suction head) and attach it to the vacuum.
3. Press the power button to turn on the vacuum.
4. Adjust the suction power as needed by using the suction control dial.
5. When you're finished cleaning, empty the tank and clean the filter according to the instructions in the user manual.

CARE AND MAINTENANCE

Warning! Before storing the vacuum, the dust drum and filter should be emptied and cleaned.

• The cord should be wrapped around the device (Fig. O), the  accessories should be stored in the storage base (Fig. P). The vac should be stored indoors.





• To clean the device casing switch off and disconnect the  plug from the mains socket.
• Never expose the vacuum cleaner to the effects of the  weather (rain, etc.). No parts may be washed in a dish washer.
• The casing, dust collecting chamber and filter chambers of the vacuum cleaner can be wiped with a damp cloth if required. No liquid must enter the vacuum cleaner in the process. Never use strong cleaning substance (scouring liquids, thinners), since these will corrode the plastic surface. Only place the plug back in the mains socket when you have made sure that all the parts are thoroughly dry.
• Hair and fluff may gather on the running wheels and on the floor nozzle of the vacuum cleaner in time. You should remove these to ensure that handling of the vacuum cleaner is always easy.
• Lubricating or oiling of the roller bearing is not  recommended, because this will cause dirt and fluff to stick even better.

Correct disposal of this product
Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

GENERAL SAFETY RULES

Warning! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS
General vacuum cleaner safety warnings. Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “vacuum cleaner” in all of the warnings listed below refers to your mains operated (corded) vacuum cleaner or battery operated (cordless) vacuum cleaner.

Work Area Safety

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate vacuum cleaners in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Vacuum cleaners create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a vacuum cleaner. Distractions can cause you to lose control.

Electrical Safety

• Vacuum cleaner plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) vacuum cleaners. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose vacuum cleaners to rain or wet conditions.
• Water entering a vacuum cleaner will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the vacuum cleaner. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a vacuum cleaner outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a vacuum cleaner in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a vacuum cleaner. Do not use a vacuum cleaner while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating vacuum cleaners may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying vacuum cleaners with your finger on the switch or energising vacuum cleaners that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the vacuum cleaner on. A wrench or a key left attached to a rotating part of the vacuum cleaner may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the vacuum cleaner in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

Vacuum cleaner Use and Care

• Do not force the vacuum cleaner. Use the correct vacuum cleaner for your application. The correct vacuum cleaner will do the job better and safer at the rate for which it was designed.
• Do not use the vacuum cleaner if the switch does not turn it on and off. Any vacuum cleaner that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the vacuum cleaner before making any adjustments, changing accessories, or storing vacuum cleaners. Such preventive safety measures reduce the risk of starting the vacuum cleaner accidentally.
• Store idle vacuum cleaners out of the reach of children and do not allow persons unfamiliar with the vacuum cleaner or these instructions to operate the vacuum cleaner. Vacuum cleaners are dangerous in the hands of untrained users.
• Maintain vacuum cleaners. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the vacuum cleaners operation. If damaged, have the vacuum cleaner repaired before use. Many accidents are caused by poorly maintained vacuum cleaners.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the vacuum cleaner, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the vacuum cleaner for operations different from those intended could result in a hazardous situation.

Service
Have your vacuum cleaner serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the vacuum cleaner is maintained.
Electrical safety
Your tool is double insulated; therefore no earth wire is required. Always check that the main voltage corresponds to the voltage on the rating plate. Warning! If the power cord is damaged, it must be replaced by the manufacturer, authorized BLACK+DECKER Service Center or an equally qualified person in order to avoid damage or injury. If the power cord is replaced by an equally qualified person, but not authorized by BLACK+DECKER, the warranty will not be valid.

Black & Decker Electric Wet & Dry VC WDBDS30 Labels on tool

SAFETY INSTRUCTIONS FOR VACUUMS

Warning! Read all safety rules carefully before attempting to operate.
Warning! This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Warning! The product for household use only. Never operate this unit when flammable materials or vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion.

• Do not leave vacuum when plugged in. Unplug from outlet  when not in use and before servicing.
• To reduce the risk of electric shock, do not expose to rain;  store indoors.
• Use only as described in this manual. Use only  manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If vacuum is not  working as it should, has been dropped, damaged, or  dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a  door on cord or pull cord around sharp edges or corners.
• Do not run vacuum cleaner over cord. Keep cord away  from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the  plug, not the cord.
• Do not handle plug or vacuum with wet hands.
• Do not put any object into openings. Do not use with any  openings blocked
• Keep hair, loose clothing, fingers and all parts of body  away from openings and moving parts.
• Turn off all controls before unplugging.
• Do not use to pick up flammable or combustible liquids  such as gasoline or use in areas where they may be present. f To avoid spontaneous combustion, empty tank after each use. f Do not pick up anything that is burning or smoking, such  as cigarettes, matches, or hot ashes.
• Do not use without dust bag and/or filter in place.
• To reduce the risk of the electric shock. Make sure the  plug is dry and do not operate with wet hands.
• Do not run vacuum unattended.
• If the supply cord is damaged, it must be replaced by the  manufacturer, its service agent or a similarly qualified  person in order to avoid a hazard.
• The appliance is not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless  they have been given supervision or instruction.
• Children being supervised not play with the appliance.

Troubleshooting

If you're having trouble with your Black & Decker Electric Wet & Dry VC WDBDS30, here are some common problems and solutions:

• Problem: The vacuum won't turn on.
• Solution: Check that the vacuum is plugged in and that the power switch is in the "on" position.
• Problem: The vacuum is losing suction power.
• Solution: Check that the filter is clean and that the tank is not full. If the problem persists, try cleaning the filter or replacing it if it is damaged.
• Problem: The vacuum is making strange noises.
• Solution: Check that all attachments are securely attached and that there is nothing blocking the suction path. If the problem persists, consult the user manual or contact Black & Decker customer service.

Pros & Cons about Black & Decker Electric Wet & Dry VC WDBDS30

Pros

• Powerful 1200W motor
• Large 1.8 liter tank capacity
• Lightweight and compact design
• Wet and dry suction capabilities
• Washable filter
