Introduction

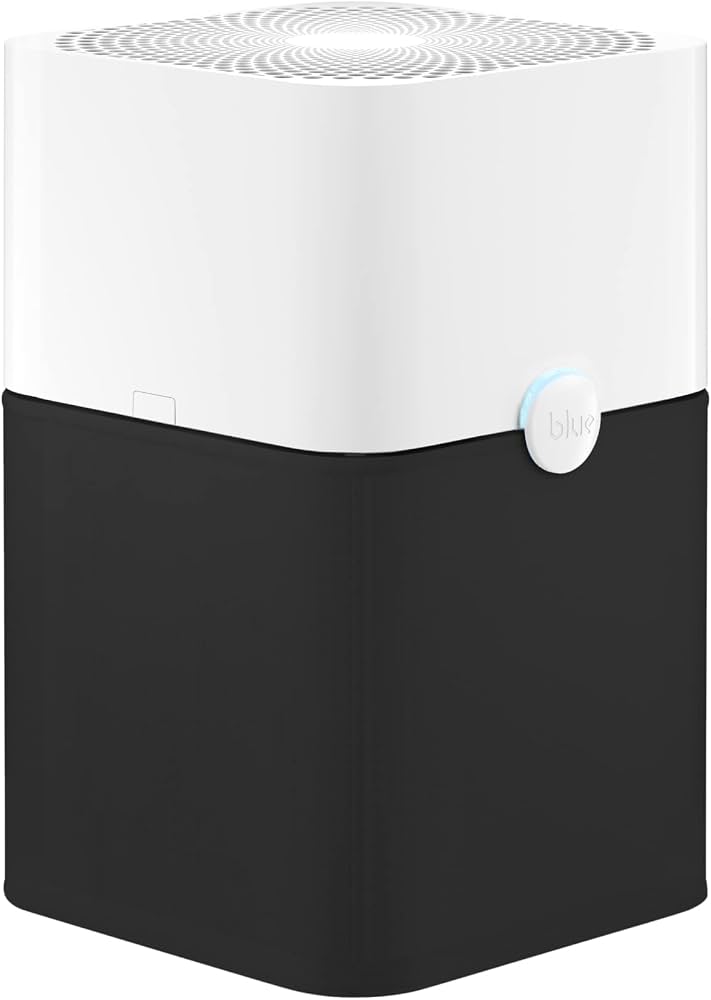

The Blueair Air Purifier Blue PURE 211+ is a high-performance air purifier designed for large rooms up to 540 square feet. With its revolutionary HEPASilent filtration technology, it removes 99.97% of airborne pollutants such as dust, allergens, viruses, and bacteria, as small as 0.1 microns. Priced at around $300, this air purifier is a worthwhile investment for maintaining a clean and healthy living environment.

Blueair Specifications

FeatureSpecification
Room size50m² (540 sq. ft.)
Clean Air Delivery Rate (CADR)Smoke: 350 cfm, 590 m³/h; Dust: 350 cfm, 590 m³/h; Pollen: 350 cfm, 590 m³/h
Filter replacement indicatorYes
On/Off timerNo
Speeds1-2-3-off
DimensionsHeight: 522 mm (20.5 in); Width: 330 mm (13 in); Depth: 330 mm (13 in); Weight: 7 kg (15 lbs)
Airflow rate230 - 620 m³/h (135 - 365 cfm)
Air exchange²5 per hour (50 m² or 540 sq.ft.room)
Power usage⁴30 - 61 W
Noise level31 - 56 dB(A)
Average filter service lifesix months³
WarrantyLocal regulations
  • Blue is available in different colors for the Pure 211+ air purifier unit. The colored fabric works as a pre-filter. Certified ratings as stated are based on U.S. version models (120VAC, 60Hz) with Blue Particle Filter. Ratings may be affected by use of other Blue filter models.
  • Air changes per hour are calculated on the recommended room size, assuming 8-foot (2.4-m) ceilings.For smaller rooms, the air changes per hour will increase.
  • Depending on air quality in the area of use, the recommended six-month filter lifetime may be longer.
  • The available electrical power voltage and frequency affects the   power consumption of the unit. the power consumption might therefore be different from the stated value.

SYSTEM OVERVIEW

  • Air outlet
  • Ion chamber (Air stream optimizer)
  • Inner wall
  • Fan
  • Motor
  • Fan base
  • Protective grill
  • Release button for filter
  • External metal frame (optional fabric pre-filter)
  • Particle filter or Particle + Carbon filter
  • Air inlet 360°

WHAT'S IN THE BOX

Air purifier unit package

  • The air purifier unit
  • Particle or Particle + Carbon filter
  • Optional fabric pre-filter. A fabric pre-filter captures larger particles and increases the lifetime of the main filter.


Options of Air Purifier Blue PURE 211

  • A Particle filter or Particle + Carbon filter.
  • A fabric pre-filter
  • Choice of color for the fabric pre-filter.

Placing the unit Air Purifier Blue PURE 211

Placement

Place the unit in an upright position on the floor in your room. Be sure to place the unit where it won’t be knocked over by any person or pet in the household.

Using the unit in your bedroom

After 7 seconds the light automatically dims to 10% of the full effect.

  • Place the unit in a location where air can circulate freely in, out and around the unit.
  • Do not place the unit closer than 10 cm (4”) from another object.
  • Do not place the unit directly on or against soft furnishings such as bedding or linen.
  • Do not place the unit near sources of heat, such as radiators, fireplaces or ovens.
  • Do not place the unit near wet areas, such as bathrooms or laundry rooms where it may come into contact with water.
  • Do not place the unit outdoors.

SET UP

Getting started

  • If the optional pre-filter is used refer to steps 1 to 5. Otherwise refer to steps 5 and 6.
  • Gently press the buttons on both sides of the unit simultaneously.
  • Remove the top portion of the unit.

  • Then attach the fabric pre-filter. To ensure a smooth fit, pull it carefully over the metal frame.

  • Next, reposition the top of the unit onto the bottom and make sure it clicks into place.
  • Plug in the unit.
  • Press the button to turn the unit on. The unit automatically sets itself to the recommended energy-efficient operating speed. When the indicator light glows white your unit is working properly.


ON/OFF AND OPERATING SPEEDS



  • On/Low
    Press once to turn the unit on and set it to the recommended energy-efficient speed.
  • Medium
    Press twice to set to medium speed.
  • High
    Press three times to set to high speed.

  • Off
    Press a fourth time to turn the unit off.


Moreover, the unit has an Autostart feature. This means that the unit will automatically restart at the set speed if a power failure occurs, the unit is unplugged or a power switch timer is used.

Filters of Blueair Air Purifier Blue PURE 211

General information

The unit is delivered with two fabric pre-filters and either a Particle filter or Particle + Carbon filter. These filters remove the following pollutants:

  • Particle filters remove:

  • Particle + Carbon filters remove all the above pollutants, plus:

  • Particle matter smaller than 2.5 microns

IMPORTANT!  Use only genuine Blueair filters to ensure proper function of your unit and to qualify for full warranty coverage.

Button control functions

  • Change filter indicator
    When the indicator turns yellow (after 5 months of operation), it’s time to order a new filter.
  • Change filter When the indicator light turns red (after 1 extra month of operation), you should change the main filter.
  • Reset the filter alert Press the button for three seconds to reset the filter alert.

You can change the filter before the indicator light turns red, i.e. when it first turns yellow. In this case, just reset the unit after changing the filter and use for another 6 months. (see "Change the main filter")

Vacuum or wash the pre-filter PURE 211

  • Occasionally vacuum the exterior of the fabric pre-filter to remove dust. Before removing the fabric pre-filter, turn off and unplug the unit.
  • Gently pull and detach the pre-filter from the lower half of the unit.
  • Wash the pre filter on a gentle, low temperature cycle in the washing machine.
  • Before replacing the fabric pre-filter, gently press the release buttons on both sides of the unit until you hear a click.
  • Lift off the top of the unit.

  • Re-fit the fabric pre-filter over the bottom part of the unit.
  • Replace the top of the unit, pressing firmly until you hear a click.

  • Plug in the unit.
  • To restart the unit press the button for three seconds, and then release it.


Change the main filter

When the indicator light turns red, it’s time to change the main filter. Before changing the main filter, turn off and unplug the unit.

  • Gently press the release buttons on both sides of the unit until you hear a click.
  • Lift off the top of the unit.
  • Remove the old main filter from the unit. Unfold the new main filter and insert into the unit.


    This lets the  unit know that you have changed the main filter. The indicator light flashes 3 times and then changes from red to white.

  • Firmly press the top of the unit down onto the new main filter until you hear a click.

  • Plug in the unit.
  • To restart the unit press the button for three seconds, and then release it.


Description

The Blue PURE 211+ boasts a sleek and modern design that complements any home decor. Its three-stage filtration system consists of a fabric pre-filter, a particle filter, and an activated carbon filter, effectively eliminating odors and volatile organic compounds (VOCs) from the air. The air purifier operates at a low noise level, with a maximum of 56 decibels, allowing for minimal disruption during use. Its simple and user-friendly controls, along with its energy-efficient operation, make it a convenient and cost-effective solution for improving indoor air quality.

CARE AND MAINTENANCE

General care

Take good care of your unit to ensure that it delivers optimal performance

  • Vacuum the pre-filter occasionally to remove dust, or wash it on a gentle, low temperature cycle in the washing machine.
  • Change the main filter every six months, depending on the operating conditions.
  • When the unit is open to change the filter, vacuum any dust that may have accumulated inside the unit.
  • Occasionally wipe the top of the unit with a dry dust cloth.

Troubleshooting

  • Filter Replacement: The Blue PURE 211+ features a filter replacement indicator that alerts users when it's time to replace the filters. If the indicator is not functioning correctly, check the power connection and reset the filter timer.
  • Airflow Restriction: If there's a decrease in airflow, clean the fabric pre-filter to remove any dust or debris buildup. Additionally, ensure that the air purifier is positioned away from walls and furniture for optimal air circulation.
  • Noise Level: If the air purifier is operating at a higher noise level than usual, check for any obstructions around the unit that may be causing vibrations. Adjust the fan speed to a lower setting if necessary.

Pros & Cons of Blue PURE 211+

Pros

  • High-efficiency filtration with a coverage area of up to 540 square feet
  • Fabric pre-filter for easy maintenance and customization
  • Low noise level and energy-efficient operation
  • Easy-to-use controls and filter replacement process

Cons

  • Higher price point compared to other air purifiers on the market
  • Limited color options may not appeal to all users

Customer Reviews

Customers rave about the Blue PURE 211+'s excellent air purification capabilities and user-friendly design. Its high-quality filters, easy maintenance, and quiet operation have earned it a 4.7-star rating on average. However, some users have expressed concerns about the higher price point and limited color choices.

Faqs

What is the frequency with which I should replace the filters in my Blue PURE 211+?

While the Blue PURE 211+ particle and activated carbon filters should be replaced every six months, the fabric pre-filter should be replaced every month or as needed. Other filters should be updated as needed.

Is it possible to utilize the Blue PURE 211+ in a space that is smaller?

Yes, the Blue PURE 211+ is designed for rooms up to 540 square feet, but it can still effectively purify air in smaller spaces.

Are there any smart home gadgets that are compatible with the Blue PURE 211+?

No, the Blue PURE 211+ is not compatible with smart home devices like Google Assistant or Amazon Alexa when it comes to smart home gadgets.

Is it possible for the Blue PURE 211+ to eliminate pet dander and hair?

It is true that the cloth pre-filter is able to successfully absorb pet hair and dander, while the particle filter is able to eliminate allergens that are minute in size.

What is the amount of electricity that is consumed by the Blue PURE 211+?

When compared to other air purifiers, the Blue PURE 211+ is more energy-efficient than others because it uses between 30 and 60 watts of electricity on average.

What is the level of noise that is produced by the Blue PURE 211+?

With a noise level that varies from 31 decibels on the lowest setting to 56 decibels on the highest setting, this air purifier is relatively quiet in comparison to other air purifiers.

To what extent does the Blue PURE 211+ generate ozone?

Contrary to popular belief, the Blue PURE 211+ does not generate any toxic byproducts or ozone while it is in operation.

Is it possible to wash the fabric that has the pre-filter?

The fabric pre-filter can indeed be washed in a machine, and depending on how often it is used, it should be washed every two to four weeks.

To what extent does the Blue PURE 211+ come with a warranty?

When it comes to the Blue PURE 211+, Blueair provides a limited guarantee that lasts for one year and covers flaws in both the materials and the workmanship.

Am I able to move the Blue PURE 211+ from one room to another?

Indeed, the Blue PURE 211+ is not only lightweight but also portable, which makes it simple to move it from one room to another as required.
