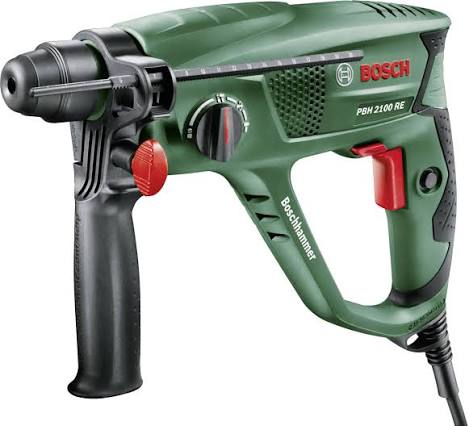

Introduction of Bosch PBH 2100 RE Rotary Hammer Drill

The PBH 2100 RE Rotary Hammer Drill is a versatile and powerful tool designed for a variety of drilling and chiseling applications. This corded hammer drill is perfect for professionals and DIY enthusiasts who need a reliable and efficient tool for their heavy-duty projects. It has an estimated price range of $150 to $200 and was launched in 2015.

Detailed Specifications of Bosch PBH 2100 RE Rotary Hammer Drill

The Bosch PBH RE Rotary Hammer Drill has the following key features

•  7.5 Amp motor that delivers 0-800/0-2,900/0-5,400 blows per minute (BPM)/no-load RPM in hammer drilling, drilling, and chiseling modes, respectively
• 1/2" keyed chuck for use with various drill bits
• Hammer mechanism that provides 1.7 ft.-lbs. of impact energy
• Variable speed trigger for controlled drilling and chiseling applications
• Integrated Vibration Control that reduces vibration by up to 50%
• Soft grip handle for comfortable use
• Weighs 6.7 lbs. for easy handling

Description of Bosch Rotary Hammer Drill

The Bosch PBH RE Rotary Hammer Drill is a high-performance tool that is built to last. It is designed for heavy-duty drilling and chiseling applications, making it ideal for professionals and DIY enthusiasts who need a reliable and efficient tool for their projects. Its 7.5 Amp motor delivers high power, while its 1.7 ft.-lbs. of impact, energy allows for faster drilling and chiseling. The variable speed trigger and keyed chuck provide controlled and precise drilling and chiseling, while the integrated Vibration Control and soft grip handle ensure comfortable use even during prolonged periods.

Setup Guide of Bosch PBH RE Rotary Hammer Drill

Here's how to operate, assemble, and configure the PBH 2100 RE Rotary Hammer Drill

1. Plug the tool into a power source.
2. Attach the drill bit or chisel to the keyed chuck.
3. Choose the desired mode: hammer drilling, drilling, or chiseling.
4. Adjust the speed by sliding the variable speed trigger.
5. Hold the tool firmly with both hands, using the soft grip handle for added comfort.
6. Apply steady pressure to the tool while drilling or chiseling.
7. Turn off the tool when not in use.

General Power Tool Safety Warnings of Bosch Rotary Hammer Drill

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. The use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Power tool use and care
• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service : Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hammer Safety Warnings

• Wear ear protectors. Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Hold the tool by the insulated gripping surfaces when performing operations where the application tool or the screw could contact hidden wiring or its own power cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator.

Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). cut off and an appropriate plug fitted in its place by an authorized customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Additional Safety and Working Instructions

• Observe the mains voltage! The voltage of the power source must correspond with the data on the type plate of the machine. Power tools marked with 230/240 V can also be operated with 220 V.
• Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
• Firmly tighten the auxiliary handle, hold the machine firmly with both hands while working and keep proper footing and balance at all times. The machine is securely guided with both hands.
• Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
• For drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving, tools without SDS-plus are used (e.g., drills with cylindrical shank). For these tools, a keyless chuck or a key-type drill chuck are required.
• The quick change chuck is automatically locked. Check the locking effect by pulling the quick change chuck.
• Inserting SDS-plus Drilling Tools: Check the latching by pulling the tool.
• Replace a damaged dust protection cap immediately. The dust protection cap largely prevents the penetration of drilling dust into the tool holder during operation. When inserting the tool, pay attention that the dust protection cap is not damaged.
• Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.
  • As far as possible, use a dust extraction system suitable for the material.
  • Provide for good ventilation of the working place.
  • It is recommended to wear a P2 filter-class respirator.
  • Observe the relevant regulations in your country for the materials to be worked.
• Prevent dust accumulation at the workplace. Dust can easily ignite.

Symbols of Bosch PBH 2100 RE Rotary Hammer Drill

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Delivery Scope of Bosch Rotary Hammer Drill

Rotary hammer, auxiliary handle and depth stop. Application tools and other accessories shown or described are not part of the standard delivery scope. A complete overview of accessories can be found in our accessories program.

Intended Use of Bosch PBH Rotary Hammer Drill

The machine is intended for hammer drilling in concrete, bricks and masonry, as well as for light chiselling work. It is also suitable for drilling without impact in wood, metal, ceramics and plastic, as well as for screwdriving.

Mounting and Operation of 2100 RE Rotary Hammer Drill

The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the safety instructions.

Maintenance and Cleaning

For safe and proper working, always keep the machine and ventilation slots clean.
If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

Technical Data of 2100 RE Rotary Hammer Drill

• The technical data of the machine are listed in the table on page 76.
• The values given are valid for a nominal voltage [U] of 230 V.
• For different voltages and models for specific countries, these values can vary.
• Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Pros & Cons of Bosch PBH 2100 RE Rotary Hammer Drill

Pros

• High-performance motor
• 1.7 ft.-lbs. of impact energy
• Variable speed trigger and keyed chuck for controlled drilling and chiseling
• Integrated Vibration Control for comfortable use
• Durable and long-lasting

Cons

• The corded design may limit mobility
• May be heavy for some users

Customer Reviews of Bosch Rotary Hammer Drill

Customers love the PBH RE Rotary Hammer Drill for its high performance, durability, and comfort. Some users note that the tool may be heavy for some, while others appreciate its sturdy design. The integrated Vibration Control has been praised for reducing fatigue during prolonged use, while the variable speed trigger and keyed chuck provide precise and controlled drilling and chiseling.

The most common complaints of 2100 RE Rotary Hammer Drill

• May be heavy for some users
• The corded design may limit mobility
