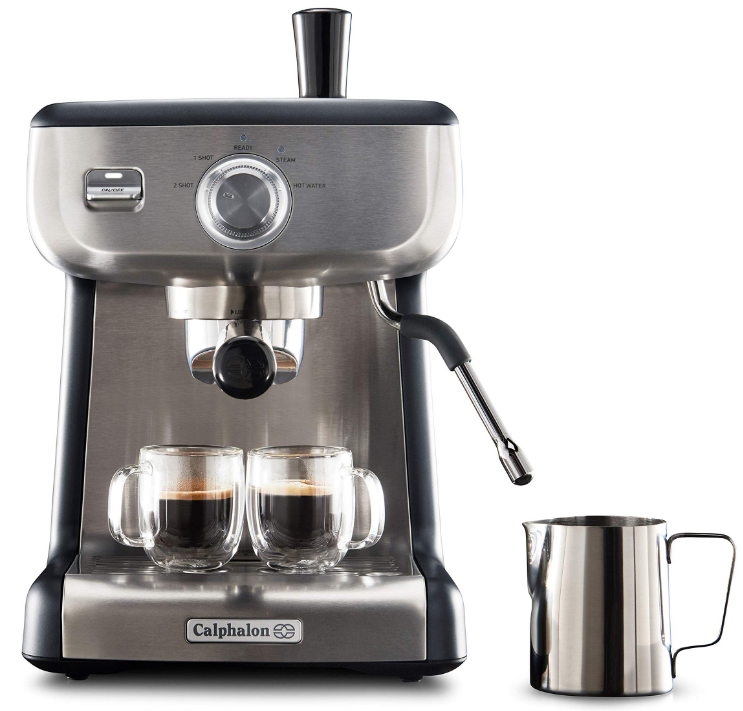

Calphalon BVCLECMP1 Temp iQ Espresso Machine With Grinder Introduction

A smart device that will improve your coffee-making experience. With its inbuilt conical burr mill grinder and accurate temperature control, this machine makes espresso that rivals that of a barista, right in your own house. This espresso machine offers a personalized brewing experience to suit your taste preferences, regardless of your level of coffee consumption.

Detailed Specifications

The Calphalon BVCLECMP1 Temp iQ Espresso Machine With Grinder  has the following key features:

• 15-bar Italian pump for optimal extraction
• Integrated grinder with 30 adjustable settings
• PID temperature control for precise temperature control
• Pre-infusion function for even extraction
• Automatic milk frothing and steaming
• Programmable shot volumes and coffee strength
• Color touchscreen display for easy operation
• Removable water reservoir with built-in filter
• Cord storage and height-adjustable cup tray
• Dimensions: 16.5 x 12.2 x 15 inches

Features of your Calphalon Temp iQ Espresso Machine

Features

1. Removable Bean Hopper
   The removable 250g capacity Bean Hopper features 30 easily adjustable Grind Settings. Turn the Hopper from coarse to fine to adjust the Grind Setting & maximize the taste of your espresso.
2. Illuminated Grind Area
   LED illumination starts when grinding begins. The coffee grinds are illuminated as they are delivered directly into the Filter Basket. The light automatically fades when grinding is complete.
3. Grinding Cradle
   The unique Grinding Cradle holds the portafilter to provide seamless one-touch on-demand grinding. This helps you to control the amount of coffee grinds straight into the Filter Basket.
4. Accessories Storage Home
   Area behind the Drip Tray, for storing the One & Two Cup Filter Baskets, Cleaning Disc, Cleaning Brush & Cleaning Pin.
5. Removable Drip Tray, Grill & Grind Bin
   Includes a Water Level Indicator which floats through the Stainless Steel Grill to indicate when the tray is full of water & requires emptying. A removable Grind Bin for collecting overflowed coffee grinds, separate from the water, is located in the Drip Tray. Simply remove the Grind Bin & discard grinds as required.
6. Cord Storage
   Conveniently stow excess cord by pushing the cord inside the machine to keep countertop tidy.
7. Non-slip Feet
   The non-slip silicone feet ensure that the espresso machine remains stable on the countertop during use.
8. Warming Plate with Tamper Home
   Preheats cups & glasses which helps to retain the essential characteristics of true espresso aroma & a rich, sweet taste. Tamper home located on the top of the Warming Plate for convenient access & storage.
9. Removable 2.8L Water Reservoir
   Push back the lid & fill with cold water, or remove the Water Reservoir by opening the Lid, lifting upwards using the Handle located inside.
10. Group Head - 58mm Commercial Size
    The wider size allows more even extraction of the tamped coffee grinds.
11. Portafilter - 58mm Commercial Size
    The wider size ensures the coffee grinds are more evenly spread, and easier to tamp.
12. Steam & Hot Water Wand
    Ball joint movement with silicone cover, allows movement of the Steam Wand to desired position without burning fingers.
13. Extra Tall Cup Height
    A large 4 inch space for extracting coffee directly into tall mugs & glasses.
14. Removable Top Burr
    Easily removable by lifting the Burr handles when cleaning.
15. GRINDER Light
    Fully illuminated white when ready.
    Flashes whilst attempting to grind to indicate the Hopper Gates are not completely open.
    Fully illuminated red when Grinder Motor is in protection mode.
16. ON/OFF Button & Light
    Press button to turn on the machine. The ON/OFF LIGHT will illuminate & pulse to indicate it is heating up. The ON/OFF LIGHT stays fully illuminated when ready. The machine will automatically enter sleep mode after 20 minutes, the ON/OFF LIGHT will stop illuminating.
17. Espresso Extraction Buttons
    1. ONE SHOT Button Pours 1 shot of espresso - 1 oz then automatically stops.
    2. TWO SHOT Button Pours 2 shots of espresso - 2 oz then automatically stops.
    3. MANUAL SHOT Button Allows for shot volumes in addition to one & two shot presets. Press button to start extraction, when desired pour volume is reached press button again to stop. Automatically stops after 6 ounces.
18. DIAL Features & Lights
    • DIAL Light
      Fully illuminated when ready.
      Shuts off when brewing or dispensing steam.
    • Steam Light
      Fully illuminated when ready to steam.
      Flashes when warming up to steam temperature & when cooling down (purging water) to espresso temperature.
    • STEAM Use to heat & froth milk. HOT WATER Pours 6 ounces then automatically stops.Use for long black coffee, hot drinks such as tea, instant soups and to warm cups prior to making espresso.
19. CLEAN Light

    • Fully illuminated blue when a cleaning cycle for the Group Head & Shower Head is required.



More Details

Three-Way Shot Control System

Optimum temperature
This 3-way system delivers the accurate & stable water temperature that is needed for consistently great tasting coffee.

• Thermoblock Technology
  The Thermoblock ensures fast heat up, and precise water temperature for the best espresso extraction & milk steaming. Only the required amount of water is heated for speed and efficiency. The Thermoblock heats water so that espresso extracts at 198°F for the optimum extraction of oils from the tamped coffee grinds. Temperatures above or below will result in burnt/bitter or weak tasting espresso.
• Advanced PID Controller
  The PID monitors and controls the Thermoblock to ensure water is always delivered to tamped coffee grinds at the precise temperature needed.
• Gentle Pre-infusion
  Small amounts of water are gently introduced onto the tamped coffee grinds before the steady flow of water, for a richer flavored espresso. (For different Pre-infusion profiles, see page 23)

Café 58mm

Group Head & Portafilter Extract the maximum amount of flavor

The Group Head and the portafilter are commercial sized, 58mm, just like local café.

• The wider size ensures the coffee grinds are more evenly spread in the Filter Baskets. The coffee grinds are easier to fill, tamp and remove after use.
• The 58mm portafilter allows a more even extraction of the tamped coffee grinds, resulting in a true café tasting coffee.

Integrated Grinder

Easy on-demand grinding experience

• On-Demand Grinding
  The on-demand grinding technology delivers coffee grinds directly into the Portafilter with one touch. Simply push down on the Portafilter to activate the Grinder.
• Conical Burr Grinder
  The integrated Grinder offers all-in-one grinding experience. The hardened Stainless Steel Conical Burr achieves consistent grind particle sizes, which minimizes heat transfer & reduces friction due to its gentle & slow rotation.
• Bean Hopper
  The 250g Hopper features anti-spill gates which prevents coffee beans from escaping onto the countertop when removing. The on-board Grinder offers all-in-one grinding experience with Grinder integrated in the Espresso Machine.

Auto Shot & Customizable

Volumetric Control Right quantity of espresso in your cup

• Auto Shot is the easiest way to create a great espresso. Press the ONE or TWO SHOT BUTTONS to pour the right amount.
•  All Extraction Buttons can be customized to deliver the shot volumes preferred. For more information, see pages 20-21.

Customizable

Extraction Temperature Temperature just like you want
The Espresso Machine allows water temperature to be changed from the recommended 198°F (in 2°F increments) to cater for personal preferences.

Description

The Calphalon BVCLECMP1 Temp iQ Espresso Machine With Grinder is a state-of-the-art espresso machine that combines advanced technology with a sleek, modern design. The machine is constructed with high-quality materials, including a brushed stainless steel exterior and a durable stainless steel boiler. The integrated grinder has 30 adjustable settings, allowing you to customize the grind to your preferred taste. The PID temperature control ensures precise temperature control, while the pre-infusion function ensures even extraction for optimal flavor. The automatic milk frothing and steaming feature makes it easy to create café-quality drinks at home. The machine also features programmable shot volumes and coffee strength, so you can customize your drinks to your liking. The color touchscreen display makes it easy to operate, and the removable water reservoir with a built-in filter makes maintenance a breeze.

Espresso Making Guide

1. Check Water & Beans

2. Start-Up



3. Warm Cup - by Hot Water OR by Warming Plate



4. Select Filter Baskets

5. Warm Group Head, Portafilter & Filter Basket



6. Dose Coffee Grinds

7. Tamp



8. Wipe Excess Grinds
9. Insert Portafilter

10. Position Cup



11. Espresso Extraction

12. Remove Coffee Cake



13. Prep Milk Pitcher

14. Before Frothing Milk



15. Position Steam Wand

16. Start Frothing Milk



17. Milk Frothing



18. Purge & Clean Steam Wand



19. Milk Finishing Touches

20. Thermoblock Auto Purge



21. Wash Parts

22. Drip Tray Clean-Up



Setup Guide

To set up the Calphalon BVCLECMP1 Temp iQ Espresso Machine With Grinder , follow these steps:

1. Remove the machine from the box and plug it in.
2. Fill the water reservoir with fresh, cold water and replace the lid.
3. Turn on the machine and run the cleaning cycle to rinse the system.
4. Fill the bean hopper with your preferred coffee beans and close the lid.
5. Select the desired grind setting and adjust the coffee strength and shot volume to your preference.
6. Place a cup under the spout and select the espresso button to start brewing.

Care & Cleaning Espresso Machine

The espresso-making process involves extracting oils out of coffee grinds. Deposits of grinds & oils build up over time, affecting the taste of the coffee & operation of the Espresso Machine. Purging water through the Group Head & Steam Wand, before & after making each coffee, is the easiest way to keep your Espresso Machine clean. (See Espresso Making Guide pages 10-13) Cleaning Accessories & Removable Parts

• Clean parts in warm water with a mild detergent, rinse & dry. Dishwasher Safe parts:
• Stainless Steel Milk Pitcher
• Stainless Steel Drip Tray Grill
• Stainless Steel One Cup Filter Basket
• Stainless Steel Two Cup Filter Basket
• Cleaning Disc Dishwasher Safe TOP SHELF ONLY parts:
• Hardened Stainless Steel Top Burr
• Grind Bin

NON-Dishwasher Safe parts:

• Water Reservoir
• Portafilter
• Bean Hopper
• Drip Tray
• Tamper
• Cleaning Pin
• Cleaning Brush

Cleaning Warming Plate & Exterior

When Required Wipe over the machine with a soft damp cloth with a mild detergent and wipe dry

CAUTION: To prevent damage to the appliance do not use alkaline cleaning agents, abrasives or metal scourers.

CAUTION: Do not immerse the machine in water.

Note: Over time it is normal for the inside of the Drip Tray & Grind Bin to be stained by the oils in the coffee grinds.

Weekly

Clean in warm water with a mild detergent, rinse & dry.

Cleaning Portafilter & Filter Basket

• Every Time Wash after each use by rinsing them with warm water under the tap.
• Regular Intervals In warm soapy water using a mild detergent, rinse & dry.

Cleaning Shower & Group Head

• Every Time
  • Run water through before making an espresso. (See Espresso Making Guide pages 10)
• Weekly
  • Purge water through the Group head by pressing the ONE SHOT BUTTON.
  • Allow water to run through until it stops.

  • With the Cleaning Brush remove any coffee grinds from around the Group Head inside rim and Silicone Seal. Wipe the Shower Head with a damp cloth.



Cleaning Tablet Espresso Machine Cleaning Tablets are available for purchase online or at major retailers.

Cleaning Cycle

The CLEAN LIGHT will illuminate blue to indicate a Cleaning Cycle is required. The Cleaning Cycle takes approximately 7 minutes to complete.

Preparing for Cleaning Cycle

• Ensure there is at least 1 Liter of water in the Reservoir.

• Empty the Drip Tray & replace.



• The machine is on and in the READY state



• Place the Two Cup Filter Basket & the Cleaning Disc into the Portafilter.

• Place one Espresso Machine Cleaning Tablet in the middle of the Cleaning Disc in the space provided.



• Insert Portafilter into the Group Head.

Start the Cleaning Cycle

• Simultaneously press & hold the ON/OFF & MANUAL BUTTONS for 4 seconds. The machine will beep and the Cleaning Cycle will start.

Note: The Cleaning Cycle can be exited at any point by pressing the ON/OFF BUTTON.

The ON/OFF & CLEAN LIGHTS will flash during the cleaning cycle.

Water will purge into the Drip Tray and small amounts of water will pour from the Portafilter spouts.

Cleaning Cycle Complete

• The machine will beep and the ON/OFF & CLEAN LIGHTS will stop flashing.
• The machine will return to the READY state.
• Remove the Portafilter from the Group Head. Check tablet has been dissolved.

Note: If the tablet has not been dissolved, insert the Portafilter back into the Group Head, empty the Drip Tray & replace it. Repeat the 'Start the Cleaning Cycle' section

Cleaning Cycle Clean-Up

• Purge the Group Head by pressing the ONE SHOT BUTTON and water should flow.
• Allow water to run through until it stops.
• Wash the Drip Tray, Portafilter & Cleaning Disc in warm water with a mild detergent, rinse & dry.

Group Head Silicone Seal
A Silicone Seal is located in the Group Head and creates a seal against the Filter Basket when making an espresso.

Important: When not being used, we recommend not to leave the Portafilter inserted into the Group Head, as this will reduce the life of the Silicone Seal.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Unplug from outlet when either the appliance or display clock (if provided) is not in use, and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to an Authorized Service Center for examination, repair, or adjustment.
7. The use of an accessory not recommended by the appliance manufacturer for use with this appliance may result in fire, electric shock or injury to persons.
8. Do not use outdoors or for commercial purposes.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.

Always attach plug to appliance first, then plug cord into the wall outlet (for appliances with detachable cords). To disconnect, turn any control to the off position, then remove plug from wall outlet. Do not use appliance for other than intended use. Misuse can cause injuries.

1. WARNING: To avoid the risk of injury, never open or disengage the brew chamber (portafilter) during the brew cycle. Always properly engage the filter holder to the locking mechanism. Failure to so do may disengage the filter holder during the brew cycle and cause injuries.
2. Models intended to be used with sealed capsules: Only use capsules intended for this appliance. If the capsule does not fit, do not force the capsule into the appliance.
3. Models with coffee grinders: Check hopper for presence of foreign objects before using.

For appliances with service panels:

WARNING: TO REDUCE THE RISK OF FIRE

OR ELECTRIC SHOCK. DO NOT REMOVE THIS COVER. NO USER-SERVICEABLE PARTS INSIDE. REPAIRE SHOULD BE DONE BY AUTHORIZED PERSONNEL ONLY.

Troubleshooting

3 YEAR WARRANTY

Calphalon ("Calphalon") warrants that for a period of three years from the date of purchase, this product will be free from defects in material and workmanship. Calphalon, at its option, will repair or replace this product or any component of the product found to be defective during the guarantee period.

Pros & Cons

Pros

• Advanced temperature control for optimal flavor
• Integrated grinder with 30 adjustable settings
• Automatic milk frothing and steaming
• Programmable shot volumes and coffee strength
• Color touchscreen display for easy operation

Cons

• Expensive compared to other espresso machines
• Large footprints may not fit in all kitchens
• Cleaning and maintenance can be time-consuming

Customer Reviews

Customers have praised the Calphalon BVCLECMP1 Temp iQ Espresso Machine With Grinder for its advanced temperature control and automatic milk frothing and steaming features. However, some have criticized the machine for its high price point and large footprint. The most common complaint is the time-consuming cleaning and maintenance process.
