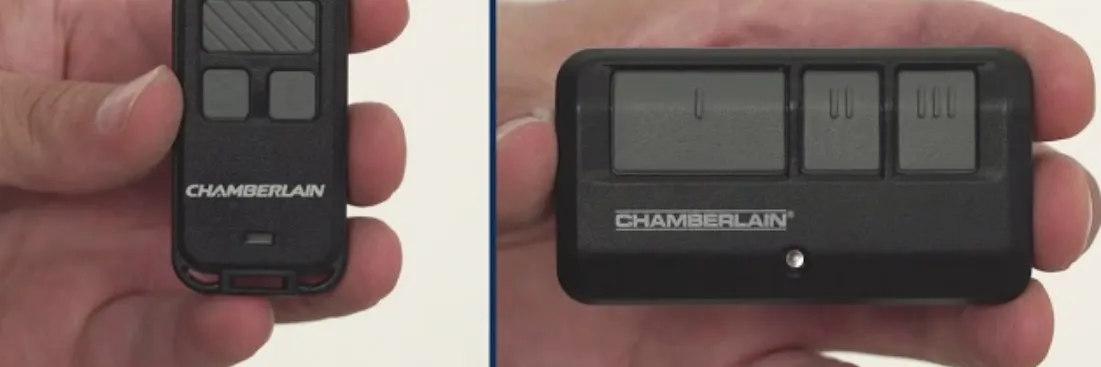

Introduction of Chamberlain 3-button Remote Control 956EVC

The 3-button Remote Control 956EVC is a versatile and reliable remote control designed for Chamberlain garage door openers. With its three-button design, it allows you to control up to three different garage doors or gates. This remote control operates on Chamberlain's Security+ 2.0 technology, ensuring secure and hassle-free operation. The estimated price of the Chamberlain 3-button Remote Control 956EVC is around $30, making it an affordable solution for your garage door control needs. The product was launched in 2019 and has gained popularity due to its user-friendly design and durability.

Detailed Specifications

The Chamberlain Remote Control 956EVC features the following specifications

• Operates on Security+ 2.0 technology for enhanced security.
• Controls up to three garage doors or gates with three buttons.
• Comes with a visor clip for easy carrying.
• Range of up to 1,500 feet for convenient operation.
• Uses a single 3-volt CR2032 lithium battery for power.

Description of 3-button Remote Control

The Chamberlain 3-button Remote Control is a high-quality remote control designed for Chamberlain garage door openers. With its three-button design, it provides flexibility in controlling multiple garage doors or gates. The remote control operates on Security+ 2.0 technology, which ensures secure and reliable operation. The remote control has a range of up to 1,500 feet, making it convenient to use from a distance. The visor clip included with the remote control makes it easy to carry around. The remote control is powered by a single 3-volt CR2032 lithium battery, which provides long-lasting power.
Warning
To prevent possible SERIOUS INJURY or DEATH from a moving gate or garage door

• ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with remote controls.
• Activate gate or door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel.
• ALWAYS keep gate or garage door in sight until completely closed. NEVER permit anyone to cross path of moving gate or door.

Setup of Chamberlain Remote Control

To set up the Chamberlain Remote Control 956EVC, follow these steps

1. Install a new 3-volt CR2032 lithium battery in the remote control.
2. Press and hold the button you want to program until the LED light blinks.
3. Press the learn button on the garage door opener until the LED light blinks.
4. Release both buttons and the programming is complete. The LED light on the remote control will remain lit to confirm programming.

PREPARE

PROGRAM THE REMOTE CONTROL (953EV & 953EVC)

1. Press and hold the program button the remote control until the LED on the front of the remote control turns on.
2. Press and release the remote control button you wish to use the number of times that corresponds with the garage door opener type:
3. To exit programming mode, press any remote control button except the button that was just programmed.
4. Press and release the Learn button on the garage door opener.
5. Press the remote control button programmed in step 2 until the garage door opener lights flash or two clicks are heard.
6. To test, press the programmed button on the remote contro
7. Install the visor clip.

PROGRAM THE REMOTE CONTROL (956EV & 956EVC)

1. Press and hold the program button the remote control until the LED on the front of the remote control turns on.
2. Press and release the remote control button you wish to use the number of times that corresponds with the garage door opener type:
3. To exit programming mode, press any remote control button except the button that was just programmed.
4. Press and release the Learn button on the garage door opener.
5. Press the remote control button programmed in step 2 until the garage door opener lights flash or two clicks are heard.
6. To test, press the programmed button on the remote control...

BATTERY

The LED on your remote will stop flashing when the battery is low and needs to be replaced.
To replace the battery, open the case as shown. Insert battery positive side up (+). Replace the battery with only 3V CR2032 coin cell batteries. Dispose of old battery properly.

• 953EV & 953EVC
  Pry open the case first in the middle (1), then at each side (2 and 3) with the visor clip.
• 956EV & 956EVC
  Pry open the case with a screwdriver blade.

Warning
To prevent possible SERIOUS INJURY or DEATH

• NEVER allow small children near batteries.
• If battery is swallowed, immediately notify doctor.

To reduce risk of fire, explosion or chemical burn

• Replace ONLY with 3V CR2032 coin batteries.
• DO NOT recharge, disassemble, heat above 212° F (100° C) or incinerate.

REPLACEMENT PARTS

• Battery: 10A20
• Visor Clip
• (Models 953EV & 953EVC ONLY): 29B137

Troubleshooting

Here are some common problems and solutions for the Chamberlain 3-button Remote Control

• Problem: Remote control does not work.
• Solution: Check the battery level and replace it if necessary. Make sure the remote control is within range of the garage door opener.
• Problem: Garage door does not respond to the remote control.
• Solution: Make sure the garage door opener is in learning mode. If the problem persists, try reprogramming the remote control.

WARRANTY

ONE-YEAR LIMITED WARRANTY
The Chamberlain Group, Inc. warrants to the first retail purchaser of this product that is free from defects in materials and/or workmanship for a period of 1 year from the date of purchase.

Pros & Cons of Chamberlain Remote Control 956EVC

Pros

• Controls up to three garage doors or gates.
• Uses Security+ 2.0 technology for enhanced security.
• Long-range operation of up to 1,500 feet.
• Easy to program and use.

Cons

• Limited compatibility with non-Chamberlain garage door openers.
• May require regular battery replacements.

Customer Reviews of 3-button Remote Control 956EVC

Customers have given positive reviews for the 3-button Remote Control , praising its ease of use, long-range operation, and reliability. However, some customers have reported issues with compatibility with non-Chamberlain garage door openers. Overall, the remote control is a popular choice for Chamberlain garage door openers, with a high rating on e-commerce websites.
