How to Assemble & Open: Chicco Cortina Together Two-Passenger Stroller

Content

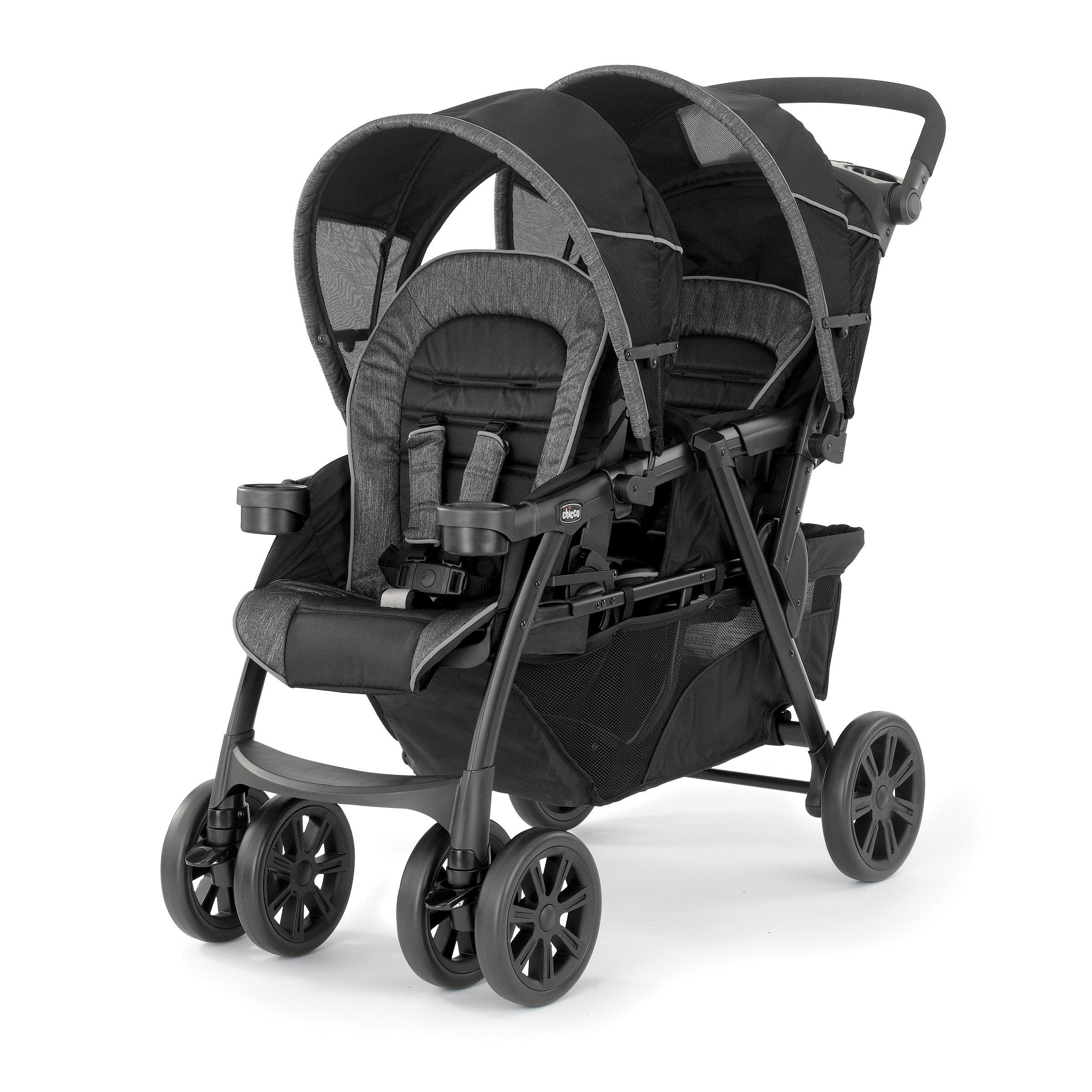

Introduction of Chicco Cortina Together Two-Passenger Stroller

The Chicco Cortina Together Two-Passenger Stroller is a versatile and stylish stroller designed for parents of two young children. This stroller is perfect for everyday use, with a sleek design and a plethora of features that make it easy to use and maneuver. The estimated price of the Chicco Cortina Together Stroller is around $350 to $400, making it an affordable option for many families. This stroller was launched in 2018 and has been a popular choice for parents ever since.

Chicco Parts list


Chicco Cortina Together Two-Passenger Stroller Specifications

The Chicco Cortina Together Two-Passenger Stroller boasts several key features, including:

Accommodates two children, with a weight limit of 40 pounds per seat.
Adjustable canopies with peek-a-boo windows to keep an eye on your little ones.
One-hand fold system with auto positioning.
Front-swivel wheels with locking functionality.
Multi-position reclining seats with adjustable footrests.
Parent tray with two cup holders and a storage compartment.
Independent canopies and reclining seats for each child.
Linked parking brakes for safety.
All-wheel suspension for a smooth ride.
Compatible with Chicco Key Fit and Fit2 infant car seats for added versatility.

Failure to follow these warnings and the assembly instructions cold result in serious injury or death

PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED.
NEVER LEAVE CHILD UNATTENDED. Always keep child in view while in stroller.
AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. After fastening buckles, adjust belts to get a snug fit around your child.
CHILD MAY SLIP INTO LEG OPENINGS AND STRANGLE. Never use seat in a reclined carriage position unless the straps are fastened to close off the leg opening.
AVOID FINGER ENTRAPMENT: Use care when folding and unfolding the stroller. Be certain the stroller is fully opened and latched before allowing your child near the stroller.
NEVER USE STROLLER ON STAIRS or escalators. You may suddenly lose control of the stroller and your child may fall out. Also, use extra care when going up or down a step or curb.
AVOID STRANGULATION. DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
USE OF THE STROLLER with children weighing more than 40 lbs per seat (18.14 kg) will cause excessive wear and stress on the stroller.
TO PREVENT TIPPING, do not place more than 3 lbs (1.4 kg) on the parent's tray. Do not place more than 1lb (.45 kg) in each cupholder.
TO AVOID BURNS, never put hot liquids in the parent's tray.
NEVER LIFT the stroller using the cupholders or armbar.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, never place purses, shopping bags, parcels or accessory items on the handle or canopy.
TO PREVENT A HAZARDOUS, UNSTABLE CONDITION, do not place more than 10 lbs (4.5 kg) in the storage basket.
DO NOT use storage basket as a child carrier.
DO NOT ALLOW your child to stand on the basket. It may collapse and cause injury.
NEVER PLACE child in the stroller with head toward front of stroller.
NEVER ALLOW YOUR STROLLER to be used as a toy.
STROLLER TO BE USED only at walking speed. Product not intended for use while jogging, skating, etc.
DISCONTINUE USING YOUR STROLLER should it become damaged or broken.

Using Chicco Infant Carrier with stroller

Use only Chicco KeyFit carrier with this travel system.
Read the manual provided with your Chicco carrier before using it with your stroller.
ALWAYS SECURE your child with the carrier harness when using the carrier in the stroller. If your child is already in the carrier, check that the child is secured with the harness.

How to assemble parent tray

The parent tray contains the mechanism to unfold the stroller.

The parents tray MUST be attached as shown in order to open stroller.
Locate handle on the parent tray. With one hand squeeze lock and lift handle. With other hand on front end of frame, push down to open stroller.

WARNING: To prevent tipping, do not place more than 3 lbs (1.4 kg) in the parent's tray. Never put hot liquids in the cup holders. Never place purses, shopping bags, parcels or accessory items on the handle or canopy
Make sure the stroller is completely open and secure.
How to assemble storage basket
WARNING: Do not load the storage basket with objects weighing over 10 lbs. (4.5 kg).
Locate the storage basket and frame at the bottom of the stroller. Insert storage basket frame ends into the corresponding openings on the back of the stroller as shown. The frame will be secure when the snap buttons click into place.
Pull both sides of storage basket up and wrap it around the basket frame. Snap into place.
Secure the storage basket further by looping two straps around the stroller frame as shown. There are two straps to snap into place on both sides of the stroller.
How to attach rear axle
Remove and discard red plastic end caps on the rear axle. Attach the rear axle (D) to the stroller frame as shown. Rear axle is attached when snap buttons come through axle mounts.
How to attach rear wheels
WARNING: Check that the wheels are fitted correctly.
Place rear wheel (C) and washer (E) on one side of the rear axle.

To secure the wheel to the axle, push the pins (F) straight side through the hole on the axle. The curve on the pin must curve around the outside of the axle as shown. Make sure washer is between pin and wheel as shown.

Line up the tabs on the hubcaps (G) with the holes on the wheel. Snap the hubcap onto wheel to cover the washer and pin. Repeat for other side.
How to attach front wheels
Attach front wheels (B) to the stroller frame as shown. The wheels should click into place. To check that the wheels are securely attached pull down on the wheel assemblies.

Note: You can make the stroller more compact when folded by removing the front wheels.
WARNING: Avoid burns never put hot liquids in child’s cupholder. Do not lift stroller by cupholder.
How to attach cupholder
Attach cupholder (K) into the openings on the front stroller frame as shown.
Note: The cupholders are interchangeable.
To release cupholders push in the release button located under the front armrest.
How to attach armbar
WARNING: Do not lift stroller by armbar.
Attach armbar (H) into the openings on the front stroller frame as shown.

Note: The armbar can be released by pushing in on the release buttons located underneath the armrest (see step 8B).
How to attach front canopy
Attach front canopy (I) to the stroller frame using the canopy mounts. The canopy mount will fit over the recessed area on the front armrest shown in red.
How to attach rear canopy
Attach rear canopy (J) to the stroller frame using the canopy mounts. The canopy mount will fit over the disc (shown in red) on the frame down tube.
How to open/close canopy
To open canopy, pull the front bow forward.
To secure the canopy, push down on both locks on either side of canopy. To close the canopy pull up on the center of the lock.
How to use safety harness
This stroller has a 5-point safety harness. Make sure the Shoulder Strap Connector is in the correct position, as shown. Slide the Shoulder Strap Connector onto the Waist Strap Clip and repeat for the other side. Then slide both Waist Clips into the Crotch Strap Buckle, as shown. Pull on both sides to make sure the Clips are secured to the Buckle.
WARNING: Never leave child unattended. Avoid serious injury from falling or sliding out. Always use seat belt.
The Safety Harness can be released by pressing the button on the center of the Buckle and pulling both Waist Clips out. Pull up on the Shoulder Strap Connector to remove it from the Waist Strap Clip.
The length of the Shoulder Straps can be adjusted by pulling on the adjustment buckles to tighten or loosen. The length of the waist straps can be adjusted. Press the tab at the end of the Waist Strap Clip and pull on the strap to tighten or loosen, to better fit your child.
How to adjust stroller handle
The stroller handle can be adjusted to 3 positions for comfort. To adjust handle, push in button (in red) on each side of handle and rotate the handle up or down.
How to adjust front backrest
To recline the front backrest, squeeze the recline handle on the back of the seat. Pull down on front backrest. To raise the front backrest push up.
How to adjust rear backrest
To recline the backrest, squeeze the recline handle on the back of the seat. Pull down on backrest.
To raise the backrest push up.
How to use bassinet enclosure
WARNING: Child may slip into leg openings and strangle. NEVER use rear seat in a reclined carriage (bassinet) position, unless the straps are fastened to close off the leg opening.
This stroller has occupant retention when rear seat is converted to bassinet position as shown. Once the rear backrest is in a full recline position, reach under the rear seat bottom and pull leg flap forward.

How to use bassinet enclosure
Lift up leg flap as shown and thread two straps (on each side) through openings in seat side panel and fasten.
How to access storage basket
To access the storage basket when the backrest is in recline position, unzip the basket door as shown.
How to use brakes
WARNING: Always apply the brakes whenever the stroller is stationary. Never leave the stroller on a sloped surface, with a child on board, even with the brakes applied.
This stroller has linked rear brakes. You can activate the brakes on either side of the rear axle.
To lock the rear brake, push down on either lever on the rear axle.
To unlock the rear brake, push up on either lever on the rear axle.
How to use front wheels
For increased maneuverability on smooth surfaces, activate the front swivel wheels.
To activate the front swivel wheels push up on the lever as shown.

For easier pushing on uneven surfaces, lock the wheels in a forward position.
To lock the front wheels push down on the lever as shown.
How to fold stroller
WARNING: When folding the stroller, make sure that your child and other children are at a safe distance. Ensure that during the operations, the movable parts of the stroller do not come in contact with your child.
To fold the stroller make sure that both canopies are folded closed. Unlock canopies, then fold.
To fold stroller, lock front swivel wheels, squeeze and lift handle on the parent tray.
Using your foot push down on storage basket and tilt stroller backwards.
How to attach Key Fit infant carrier front seat
Squeeze recline handle on the back of the front seat and fold forward.
Insert Key Fit infant carrier as shown into front section of the stroller frame. The infant carrier will snap into the attachment points.
Note: Pull up on the infant carrier to make sure the infant carrier is attached.
To remove the Key Fit infant carrier, squeeze the release handle at the back of infant carrier. Lift to remove.
How to attach Key Fit infant carrier rear seat
To attach Key Fit infant carrier to rear seat lower the backrest to the full recline position as shown in
Insert the Key Fit infant carrier into rear seat of the stroller frame. The infant carrier will snap into the attachment points.
Note: Pull up on the carrier to make sure the carrier is attached.
How to attach Key Fit infant carrier rear seat
To remove the Key Fit infant carrier, squeeze the release handle at the back of infant carrier. Lift to remove.
How to attach 2 Key Fit infant carriers
To attach two Key Fit infant carriers follow steps 24 thru 26.

Description of Chicco Cortina Together Two-Passenger Stroller

The Chicco Cortina Together Two-Passenger Stroller is a reliable and convenient option for parents with two young children. With its ability to accommodate two children up to 40 pounds each, this stroller is perfect for families with twins or siblings close in age. The adjustable canopies and reclining seats make it easy to customize the stroller to your children's needs, while the parent tray provides a convenient place to store your belongings. Additionally, the stroller's one-hand fold system makes it easy to store and transport, even with both children in tow.

Cleaning and Maintenance

This product requires regular maintenance. The cleaning and maintenance of the stroller must only be carried out by an adult.

CLEANING

Please refer to the care label for instructions on cleaning the fabric parts of the stroller. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water.

MAINTENANCE

Lubricate the moving parts only if necessary, with a light application of a silicone based lubricant. Periodically check the stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Chicco replacement parts. To avoid friction that may prevent the correct operation of the stroller, ensure that all the movable plastic parts placed along the metal frame are clean of dust, dirt or sand. Keep the stroller in a dry place. If stroller becomes wet open canopies and allow stroller to dry completely. Prolonged exposure to direct sunlight may cause the fabric to fade and plastic parts to warp.

Chicco Troubleshooting

Some common issues that parents may encounter with the Chicco Cortina Together Two-Passenger Stroller include:

Difficulty folding the stroller: Make sure to engage the auto-lock mechanism after folding the stroller to keep it in place.
Wheels not turning smoothly: Check for debris in the wheels and clean them out as necessary. If this does not solve the issue, consider tightening the wheels or replacing them.
Stroller tips over easily: Make sure to evenly distribute the weight of your children in the stroller and engage the parking brake when parked on an incline.
Canopies do not stay in place: Make sure to securely attach the canopies to the stroller frame and adjust them as needed.

Pros & Cons

Pros

Accommodates two children, making it perfect for families with multiple young children.
Adjustable canopies and reclining seats provide customizable comfort.
One-hand fold system makes it easy to store and transport.
Parent tray with cup holders and storage compartment adds convenience.
Compatible with Chicco Key Fit and Fit2 infant car seats.

Cons

May be too bulky for some parents to maneuver easily.
Can be difficult to fold with both children in the stroller.
Heavier than some other stroller options on the market.

Chicco Cortina Customer Reviews

The Chicco Cortina Together Two-Passenger Stroller has received mixed reviews from customers. While some parents love the stroller's versatility and customizable features, others have criticized its bulkiness and weight. The stroller has an average rating of 4.2 out of 5 stars on Amazon, with many reviewers praising its durability and ease of use. However, some parents have noted issues with the stroller's folding mechanism and maneuverability.

Most Common Complaints

The most common complaints about the Chicco Cortina Together Two-Passenger Stroller include:

Difficulty folding the stroller
Bulky and difficult to maneuver
Heavy and difficult to lift
Canopies do not always stay in place

Faqs

What car seats can I attach to the Chicco Cortina Together Two-Passenger Stroller?

Chicco Cortina Together Two-Passenger Stroller is compatible with all Chicco Key Fit, 30, and Fit2 car seats without the need for additional adapters. They easily snap into the stroller’s frame, making it a versatile travel system.

What is the correct way to fold the Chicco Cortina Together Two-Passenger Stroller?

Engage the brakes, then pull up on the handle located on the parent tray. The stroller will collapse and automatically lock. Chicco Cortina Together Two-Passenger Stroller stands on its own when folded for easy storage.

How should I clean my Chicco Cortina Together Two-Passenger Stroller?

To clean the fabric parts, spot clean with a damp cloth and mild soap, Chicco Cortina Together Two-Passenger Stroller air dry. Do not use bleach. The frame can be wiped down with a damp cloth. Regularly check for debris and clean the wheel area to maintain smooth operation.

Is the Chicco Cortina Together Two-Passenger Stroller travel-friendly?

Though robust, the Chicco Cortina Together Two-Passenger Stroller has a one-handed fold mechanism and a compact standing fold that doesn't require the removal of the rear seat, making it convenient for travel and storage.

How do you adjust the canopies on the Chicco Cortina Together Two-Passenger Stroller?

To adjust the canopies on the Chicco Cortina Together Two-Passenger Stroller, simply pull them up and secure them in place with the attached Velcro straps. To change the angle of the canopies, move the slider on the back of the stroller.

How do you recline the seats on the Chicco Cortina Together Two-Passenger Stroller?

To recline the seats on the Chicco Cortina Together Two-Passenger Stroller, lift the lever located on the back of the seat and move the seat to the desired position. To adjust the footrest, lift the lever on the bottom of the seat and move the footrest up or down.

Can the Chicco Cortina Together Two-Passenger Stroller be used for children of different ages?

Yes, Chicco Cortina Together Two-Passenger Stroller can be used for children of different ages as long as they do not exceed the weight limit.

How much can I store in the Chicco Cortina Together Two-Passenger Stroller basket?

The extra-large storage basket is Chicco Cortina Together Two-Passenger Stroller accessible from the front and rear and is designed to hold diaper bags, personal items, and other necessities for both children.

What safety features are included in the Chicco Cortina Together Two-Passenger Stroller?

The stroller includes a 5-point safety harness for both seats, a dual braking system, and a locking mechanism that secures Chicco Cortina Together Two-Passenger Stroller when folded.

What is the warranty on the Chicco Cortina Together Two-Passenger Stroller?

Chicco Cortina Together Two-Passenger Stroller comes with a 2-year limited warranty from the date of purchase.
