Cuisinart AirFryer Toaster Oven TOA-60C User Manual

cover-image

Content

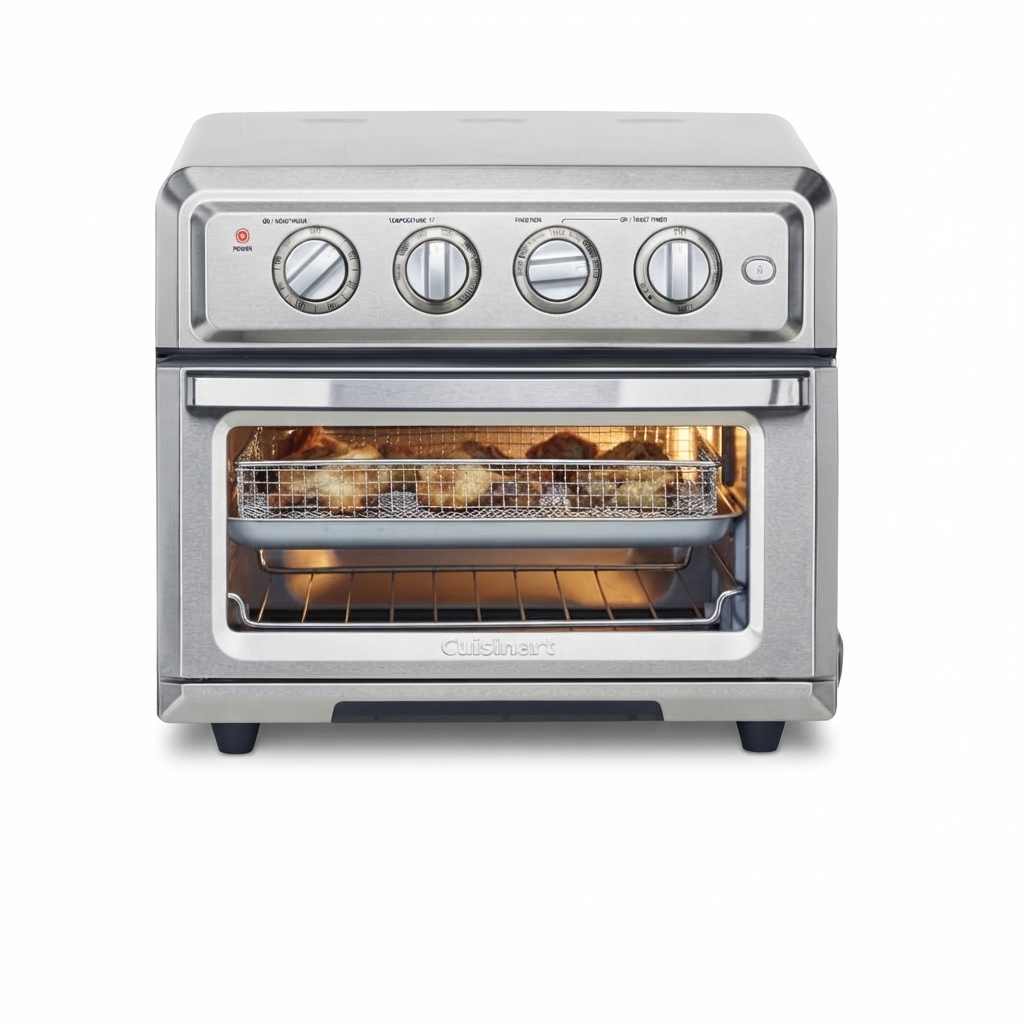

Introduction of the Cuisinart AirFryer Toaster Oven TOA-60C

The Cuisinart AirFryer Toaster Oven TOA-60C is a multifunctional kitchen appliance that combines the capabilities of a toaster oven and an air fryer in one sleek design. With 1800 watts of power, it offers seven cooking functions, including air frying, baking, and broiling, allowing you to prepare a variety of meals with little to no oil. Its spacious interior can accommodate a 4-pound chicken, making it ideal for family cooking. Priced at $249.99, the TOA-60C is a valuable addition to any kitchen.

Detailed Specifications

The Cuisinart AirFryer Toaster Oven TOA-60C boasts the following key features:

  • 7 cooking functions: air fry, convection bake, convection broil, bake, broil, warm, and toast
  • 4 quartz heating elements for even cooking
  • Adjustable thermostat with 60-minute timer and auto-shutoff
  • 7-inch square by 3-auto-shutoff tray and 11.5-inch by 9.5-inch removable air fryer basket
  • Stainless steel construction with cool-touch handle and non-stick interior for easy cleaning
  • Includes oven rack, baking pan, and air fryer basket

FEATURES AND BENEFITS

  1. Power On Light
    The indicator light will turn on and remain lit when the oven is in use.
  2. ON/Oven Timer Dial
    Use to set the desired time for all functions except the Toast function.  Setting the oven timer powers the unit on and begins the cooking cycle.  When the timer runs out, the unit will power off.
  3. Oven Temperature Dial
    Use to set the desired temperature.
  4. Function Dial
    Use to select cooking method – Warm, Broil, Convection Broil, Toast, Bake, Convection Bake, AirFry.
  5. ON/Toast Timer Dial
    Use to set the desired toast shade from light to dark.  Setting the Toast Timer powers the unit on and begins the toasting cycle.  When a cycle is complete, the unit will power off.
  6. Light Button
    Push the button to turn on the interior oven light.  Please note that this oven has a bulb-saver feature that allows the light to work only while the oven is in use. The light will not work if the power is off.
  7. Easy Clean Interior
    The sides of the oven are coated, providing an easy-to-clean surface.
  8. Safety Auto Off Door Switch
    This oven comes equipped with a Safety Auto Off switch that cuts off power to the unit when the oven door is opened. Please make sure to keep the oven door closed during cooking/air drying.
  9. Pull-Out Crumb Tray
    The crumb tray comes already positioned in your oven. The crumb tray slides out from the bottom front of the AirFryer Toaster Oven for easy cleaning.
  10. AirFryer Basket
    Use the AirFryer Basket in conjunction with the AirFry function to optimize your cooking results. The AirFryer Basket should always be used nested in the baking pan.
  11. Oven Rack
    Can be used in two positions: Position 1 (bottom), and Position 2 (top). Position 2 has a 50% stop feature so the rack stops halfway out of the oven. The oven rack can be removed from Position 2 by lifting the front of the rack and sliding it out.
  12. Baking Pan/Drip Tray
    A Baking Pan/Drip Tray is included for your convenience. Use alone when baking or roasting. Use the Baking Pan with the AirFryer Basket when AirFrying.
  13. Cord Storage (rear, not shown)
    Takes up excess cord and keeps countertop neat.

BEFORE FIRST USE

  • Place your AirFryer Toaster Oven on a flat surface.
  • Before using your AirFryer Toaster Oven, move it 2 to 4 inches (5 to 10 cm) away from the wall or from any objects on the countertop.
  • Do not use on heat-sensitive surfaces.

OBJECTS SHOULD NOT BE STORED ON THE TOP OF THE OVEN. IF THEY ARE, REMOVE ALL OBJECTS BEFORE YOU TURN ON YOUR OVEN. THE EXTERIOR WALLS GET VERY HOT WHEN IN USE. KEEP OUT OF REACH OF CHILDREN.

GENERAL GUIDELINES

  • AirFry: This function is used for AirFry meals as a healthy alternative to deep frying in oil. The AirFry function uses a combination of hot air, high blower velocity, and 4 upper heating elements to prepare a variety of meals that are both delicious and healthier than traditional frying.
    • Use the provided Baking Pan and AirFryer Basket when using the AirFry function.
    • Place the AirFryer Basket onto the Baking Pan. Use Rack Position 2 for AirFrying.
  • Bake: This function can be used as you would normally use your kitchen oven for roasting meats, including chicken, or for delicate baked goods like cakes and custards.
    • Use the provided Baking Pan to make fresh pizza. When baking a frozen pizza, place it directly on the Oven Rack.
  • Convection Bake: Convection baking uses a fan to circulate heated air around food as it cooks. Use this function for baked goods that require even browning like scones, cookies, pastry, and bread.
    • Most baking recipes recommend reducing temperatures by 25 degrees (5°C) when using the convection feature. Always check doneness 10 minutes before the suggested end of cooking time.
  • Broiling: The broiling function can be used for beef, chicken, pork, fish, and more. It also can be used to top brown casseroles and gratins. Convection Broil is best for meats and fish, while traditional broil should be reserved for top browning.
    Caution: Aluminum foil is not recommended for covering the AirFryer Toaster Oven accessories. If covered, the foil prevents the fat from dripping into the drip tray. Grease will accumulate on the foil surface and may catch fire. If you choose to use foil to cover the Baking Pan/Drip Tray, be sure the foil is cut to neatly fit into the pan and does not touch the wall or heating elements.
  • Toasting: Always have the Oven Rack in Position 2, as indicated in the diagram below, for even toasting. Always position your item/items in the middle of the rack.
    WARNING: Placing the Oven Rack in Position 1 or 2 with the rack upward while toasting may result in a fire. Refer to the rack position diagram for proper use.
  • Turning off the AirFryer Toaster Oven: Turn BOTH the ON/Oven Timer and the ON/Toast Timer dials to the OFF position. The power on the light will turn off.

OVEN RACK AND PAN POSITION DIAGRAMS

Each recipe gives you step-by-step directions and will tell you where the Oven Rack and tray should be positioned for best results. Please refer to the diagrams below for oven rack positions.

  • POSITION 2 FOR BAKING
    NOTE: For chicken or other large items the pan or rack can be in Position 1.
  • POSITION 1 FOR BAKING
  • POSITION 2 FOR BROILING AND AIR FRYING
  • POSITION 2 FOR TOASTING

Detailed Description

The Cuisinart AirFryer Toaster Oven TOA-60C is designed to provide maximum versatility and convenience in the kitchen. Its 7 cooking functions allow you to air fry, bake, broil, convection bake, convection broil, warm, and toast a variety of dishes with ease. The adjustable thermostat and 60-minute timer make it easy to set the perfect cooking time and temperature for your meals, while the cool-touch handle and non-stick interior make cleanup a breeze.

The spacious 0.6 cubic foot interior can accommodate a 12-inch pizza, 6 slices of bread, or 3 pounds of chicken wings, making it perfect for family meals or entertaining guests. The removable baking tray and air fryer basket are dishwasher safe, and the stainless steel construction adds a modern and sophisticated touch to any kitchen decor.

Cuisinart AirFryer Toaster Oven TOA-60C OPERATION

Unwind the power cord. Check that the Crumb Tray is in place and that there is nothing in the oven. Plug the power cord into the wall outlet.

Broil or Convection Broil

  1. Place the AirFryer Basket on top of the Baking Pan to use to Broil in rack Position 2.
  2. Set the Function Dial to either Broil or Convection Broil. Set Tthe emperature Dial to Toast/Broil. Then turn the ON/Oven Timer dial to the desired cooking time to turn on the oven and begin broiling. The power light will illuminate. The timer will ring once when the cycle is complete and the oven will power off when the time expires.
  3. To stop broiling, turn the ON/Oven Timer dial to the OFF position.

Broiling Tips

  • For best results, use the provided AirFryer Basket fitted inside the Baking Pan to broil.
  • Never use glass oven dishes to broil.
  • Be sure to keep an eye on food – items can get dark quickly while broiling.

Bake

  1. Fit the provided Baking Pan or Oven Rack into either rack position.
  2. Set the Function Dial to Bake. Set the Temperature Dial to the desired temperature. Then turn the ON/Oven Timer dial to the desired cooking time to turn on the oven and begin baking (It is recommended to preheat the oven for 5 minutes before baking. Incorporate this into the total baking time).
  3. The power light will illuminate. The timer will ring once when the cycle is complete and the oven will power off when the time expires.
  4. To stop baking, turn the ON/Oven Timer dial to the OFF position.

Baking Tips

  • Select Bake for more delicate baked goods like custards, cakes,, and eggs.
  • Most baked goods, as well as larger items, are baked in rack Position 1, while most egg dishes and custards should be baked in rack Position 2.
  • If making fresh pizza, place the Baking Pan in the oven in Position 1. If making frozen pizza, place pizza directly on the rack in Position 1. For chicken or other large items, the pan can be in Position 1.

Convection Bake

  1. Set the function to Convection Bake. Set the Temperature Dial to desired tempera-ture. Then turn the ON/Oven Timer dial to the desired cooking time to start the oven and begin baking (It is recommended to preheat the oven for 5 minutes before baking. Incorporate this into the total baking time).
  2. The power light will turn on. The timer will ring once when the cycle is complete and the oven will power off when the time expires.
  3. Place the pan in Position 2 for baking. For chicken or other large items, the pan can be in Position 1. To stop the Convection Bake operation, turn the ON/Oven Timer dial to the OFF position.

Convection Baking Tips

  • Most baking recipes recommend reducing temperatures by 25 degrees (5 °C) when using the convection feature. Always check for doneness 10 minutes before ethe nd of sthe uggested cooking time.
  • Select Convection Bake for most hearty baked goods that require even browning such as scones and pies, as well as roasts and poultry.

IMPORTANT
All of our recipes have been tested in our test kitchen and are specially developed to work in the Cuisinart AirFryer Toaster Oven.

Warm

  1. Fit the provided Baking Pan or Oven Rack into rack Position 2.
  2. Set the Temperature Dial to Warm. Set the Function Dial to Warm. Then turn the ON/Oven Timer Dial to the desired warming time to start the oven and begin warming.
  3. The power light will illuminate. The timer will ring once when the cycle is complete and the oven will power off when the time expires.
  4. To stop warming, turn the ON/Oven Timer dial to the OFF position.

Toast

  • Fit the Oven Rack into Position 2. If toasting two items, center them in the middle of the Oven Rack. Four items should be evenly spaced – two in front, and two in back.  Six items should be evenly spaced – three in front, three in back.
  • Set the Function Dial to Toast. Set the Temperature Dial to Toast/Broil. Turn the  ON/Toast Timer Dial to the desired shade setting from light to dark within the marked settings to turn on the oven and begin toasting.
  • The oven power light will illuminate. The timer will ring and turn off.
  • To stop toasting, turn the ON/Toast Timer dial to the OFF position.

Important Notes on Toasting

The Oven Rack must be in Position 2 as indicated in the diagram on page 5.

AirFry

  1. Place the AirFryer Basket onto the Baking Pan. AirFry in rack Position 2.
  2. Set the Function Dial to AirFry. Set the Temperature Dial to the desired temperature. Then turn the ON/Oven Timer dial to the desired cooking time to turn on the oven and begin AirFrying.
  3. The oven power light will illuminate. The timer will ring once when the cycle is complete and the oven will power off when the time expires.
  4. To stop AirFrying, turn the ON/Oven Timer dial to the OFF position.

AirFrying Tips

  • AirFrying is a healthy alternative to frying. Many foods that can be fried, can be AirFried without using excess amounts of oil. AirFried foods will taste lighter and less greasy than deep-fried foods.
  • Most oils can be used for AirFrying. Olive oil is preferred for a richer flavor. Vegetable, canola, or grapeseed oil is recommended for a mild flavor.
  • Spray food liberally and evenly with oil to achieve the crispiest and most golden results.
  • An assortment of coatings can be used for AirFry foods.
  • Some examples of different crumb mixtures include: breadcrumbs, seasoned breadcrumbs, panko breadcrumbs, cornflakes, potato chip crumbs, graham cracker crumbs, quinoa, various flours, etc.
  • Most foods do not need to be flipped during cooking, but larger items, like chicken cutlets, should be flipped halfway during cooking to ensure quick, even cooking and browning.
  • When AirFrying large quantities of food that crowd the pan, toss food halfway through cooking to ensure even cooking and coloring.
  • Use higher temperatures for foods that cook quickly, like bacon and chips, and lower temperatures for foods that take longer to cook like breaded chicken.
  • Foods will cook more evenly if they are cut to the same size.
  • Line the Baking Tray with aluminum foil for easy cleanup.
  • Please note that when most foods cook, they release water. When cooking large quantities for an extended period, condensation may build up, which could leave moisture on your countertop

Setup Guide

Setting up the Cuisinart AirFryer Toaster Oven TOA-60C is easy:

  1. Remove all packaging materials and place the appliance on a level surface.
  2. Plug in the power cord and turn on the appliance by sliding the switch to "on."
  3. Select the desired cooking function and adjust the temperature and time settings using the control knobs.
  4. Place your food in the baking tray or air fryer basket, and slide it into the oven.
  5. Close the oven door and monitor your food as it cooks.

CLEANING AND MAINTENANCE

  1. Always allow the oven to cool completely before cleaning.
  2. Always unplug the oven from the electrical outlet.
  3. Do not use abrasive cleaners, as they will damage the finish. Simply wipe the exterior with a clean, damp cloth and dry thoroughly. Apply the cleansing agent to a cloth, not directly onto the toaster oven, before cleaning.
  4. To clean interior walls, use a damp cloth and a mild liquid soap solution or a spray solution on a sponge. Never use harsh abrasives or corrosive products. These could damage the oven surface. Never use steel wool pads, etc., on the interior of the oven.
  5. The Oven Rack, Baking Pan, dryer basket, and Crumb Tray should be hand-washed in hot, sudsy water or use a nylon scouring pad or nylon brush. They are NOT dishwasher safe.
  6. After cooking greasy foods and after your oven has cooled, always clean the top interior of the oven. If this is done regularly, your oven will perform like new. Removing the grease will help to keep the toasting consistent, cycle after cycle.
  7. To remove crumbs, slide out the Crumb Tray and discard the crumbs. Wipe clean and replace. To remove baked-on grease, soak the tray in hot, sudsy water or use nonabrasive cleaners. Never operate the oven without the Crumb Tray in place.
  8. Never wrap the cord around the outside of the oven. Use the cord storage cleats on the back of the oven.
  9. Any other servicing should be performed by an authorized service representative.

AIRFRYER CHART

The chart below lists the suggested cooking time and temperature for the maximum amount of food that can be air-fried in the Cuisinart AirFryer Toaster Oven. When air frying maximum amounts, toss occasionally to ensure the crispiest, most even results.
Smaller amounts of food will require less amount of time. Use the oven light to periodically check foodstoabouto achieve your perfect results.
Spray all foods liberally with oils.

Food

Max Amount

Function

Temperature

Time

Bacon

8 slices

Air Fry400ºF (200°C)

8 to 10 minutes

Chicken Wings

2 pounds(907 g), about20 wings

Air Fry400ºF(200°C)

20 to 25 minutes

Frozen Appetizers, (e.g. mozzarella sticks, popcorn shrimp, etc.)

11/2 pounds (680 g), about 28 frozen mozzarella sticks

Air Fry400ºF (200°C)

5 to 7 minutes

FrozenChicken Nuggets1 pound (454 g), about 34 frozen chicken nuggetsAir Fry400ºF(200°C)

10 minutes

Frozen FishSticks12 ounces(340 g), about20 frozen fish sticksAir Fry400ºF (200°C)

8 minutes

Frozen Fries1 to 2 pounds (454 to 907 g)Air Fry450ºF(200°C)

15 to 25 minutes

Frozen SteakFries1 to 2 pounds(454 to 907 g)Air Fry450ºF (200°C)

15 to 25 minutes

Hand-Cut Fries2 pounds (907 g), about3 medium potatoes, cut into 1/4-inch (0.6 cm) thick pieces, about 4 inches (10 cm)Air Fry400ºF (200°C)

15 to 20 minutes

Hand-Cut Steak Fries2 pounds (907 g), about 3 medium-large potatoes, cut into eighths lengthwiseAir Fry400ºF (200°C)

15 to 20 minutes

Shrimp1 pound (454 g), about 16 extra-large shrimpAir Fry375ºF (200°C)

8 to 10 minutes

Tortilla Chips6, 5-inch (12.7cm) tortillas cut into fourthsAir Fry400ºF (200°C)

5 to 6 minutes, toss halfway through

Troubleshooting

Here are some common problems and solutions when using the Cuisinart AirFryer Toaster Oven TOA-60C:

  • If the appliance does not turn on, make sure it is plugged in and the switch is in the "on" position. Check for any visible damage to the power cord or outlet.
  • If food is not cooking evenly, make sure the heating elements and air fryer basket are clean and free of debris. Adjust the temperature and time settings as needed.
  • If the appliance is making unusual noises, turn it off and unplug it. Check for any loose or damaged parts, and contact Cuisinart customer service for further assistance.

Pros & Cons

  • Pros:
    • Versatile and convenient all-in-one appliance
    • Spacious interior for family-sized meals
    • Easy to clean and maintain
    • Adjustable temperature and time settings
  • Cons:
    • Higher price point compared to standalone appliances
    • May take up more counter space than desired
    • Some users may find the controls confusing or difficult to use

Customer Reviews

Customers love the Cuisinart AirFryer Toaster Oven TOA-60C for its versatility and convenience. Many rave about the spacious interior and easy-to-clean design, while others appreciate the adjustable temperature and time settings for precise cooking. However, some users note that the price point is higher than standalone appliances and that the controls can be confusing or difficult to use.

The most common complaints are related to the air fryer function, with some users reporting uneven cooking or a lack of crispiness. Others note that the appliance can be noisy during use and that the exterior can get hot to the touch.

PDF

Faqs

What is the size of the Cuisinart AirFryer Toaster Oven TOA-60C?

The Cuisinart AirFryer Toaster Oven TOA-60C has a spacious 0.6 cubic foot interior that can accommodate a 12-inch pizza, 6 slices of bread, or 3 pounds of chicken wings.

What materials is the Cuisinart AirFryer Toaster Oven TOA-60C made of?

The Cuisinart AirFryer Toaster Oven TOA-60C is made of stainless steel with a cool-touch handle and non-stick interior for easy cleaning.

What cooking functions does the Cuisinart AirFryer Toaster Oven TOA-60C have?

The Cuisinart AirFryer Toaster Oven TOA-60C has 7 cooking functions: air fry, convection bake, convection broil, bake, broil, warm, and toast.

How do I clean the Cuisinart AirFryer Toaster Oven TOA-60C?

The removable baking tray and air fryer basket are dishwasher safe, and the non-stick interior can be wiped clean with a damp cloth. Avoid using abrasive cleaners or scrubbers to prevent damage.

What is the power consumption of the Cuisinart AirFryer Toaster Oven TOA-60C?

The Cuisinart AirFryer Toaster Oven TOA-60C has a power consumption of 1800 watts.

Can I use aluminum foil in the Cuisinart AirFryer Toaster Oven TOA-60C?

Yes, you can use aluminum foil in the Cuisinart AirFryer Toaster Oven TOA-60C, but make sure to avoid covering the heating elements or ventilation openings.

How long is the warranty for the Cuisinart AirFryer Toaster Oven TOA-60C?

The Cuisinart AirFryer Toaster Oven TOA-60C comes with a 3-year limited warranty.

What is the weight of the Cuisinart AirFryer Toaster Oven TOA-60C?

The Cuisinart AirFryer Toaster Oven TOA-60C weighs 21 pounds.

Does the Cuisinart AirFryer Toaster Oven TOA-60C have a digital display?

No, the Cuisinart AirFryer Toaster Oven TOA-60C does not have a digital display. It uses analog control knobs for temperature and time settings.

Can I use the Cuisinart AirFryer Toaster Oven TOA-60C to dehydrate food?

No, the Cuisinart AirFryer Toaster Oven TOA-60C is not designed for food dehydration. It is primarily an air fryer, toaster oven, and convection oven.

Wireless Stereo Headphone System MDR-RF985RK

Hole Puncher XPP01

Leave a Comment

Name

Email

Comment
