Introduction

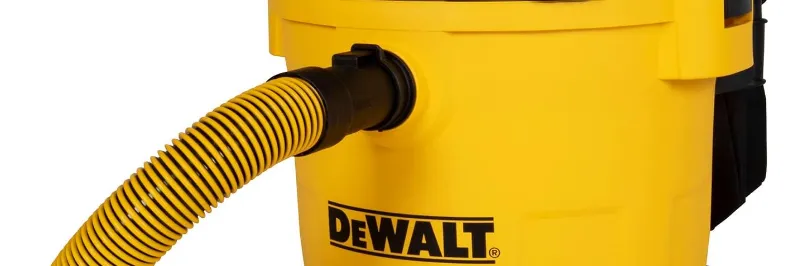

A strong and adaptable cleaning equipment for both home and business use is the DeWalt DXV12P Portable Wet/Dry Vacuum. This vacuum has a 12-gallon capacity, so it can easily handle big cleanup jobs. It is perfect for collecting both dry and moist garbage because of its powerful motor, which produces exceptional suction force. The vacuum boasts a built-in blower port for convenience, a sturdy construction, and on-board accessory storage for optimal usability and storage. With its durable and dependable design, the DeWalt DXV12P is perfect for handling tough dust or spills. The price of DeWalt DXV12P Portable Wet/Dry Vacuum is $159.97.

PACKAGE CONTENTS

HARDWARE CONTENTS

PARTS LIST

PRODUCT SPECIFICATIONS

WARNING: Use only extension cords that are rated for outdoor use. Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards when using an extension cord, be sure it is in good condition and that the connection does not come into contact with liquid. To keep power loss to a minimum, use the following table to choose the minimum wire size extension cord.

Description

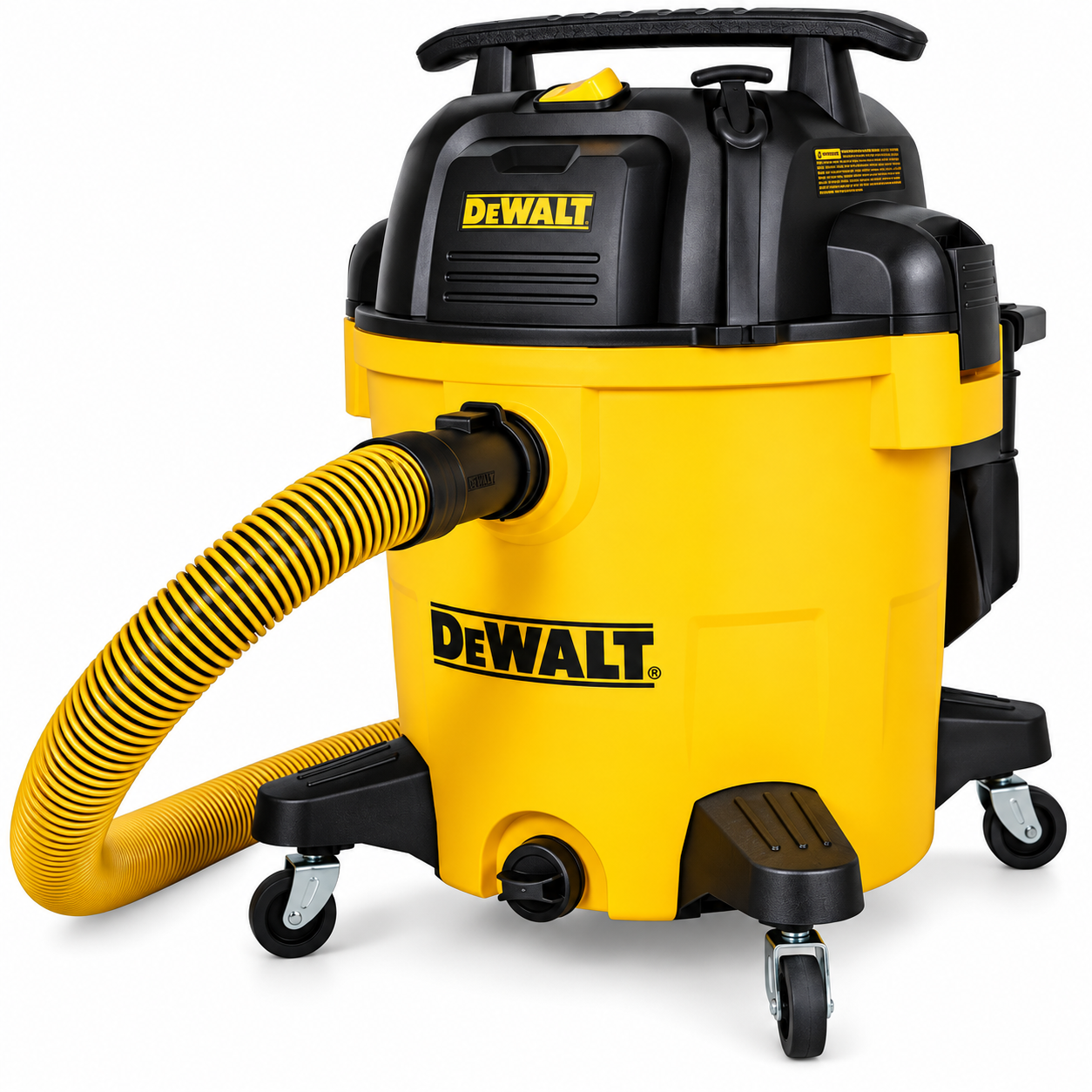

With optimum cleaning power and convenience in mind, DeWalt built the DXV12P Portable Wet/Dry Vacuum. Its powerful suction is capable of handling both wet and dry trash thanks to its 5.5 peak horsepower motor. A 12-gallon capacity means that you can clean for extended periods before having to empty the vacuum. It is simple to keep all of your attachments accessible and organized thanks to the onboard accessory storage. In addition, the vacuum has a blower port for increased adaptability. The vacuum has sturdy rubberized casters that make installation and maneuvering simple and secure.

OPERATING INSTRUCTIONS

UNPACKING & SET-UP SUMMARY

1. Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank.
2. Attach heavy-duty rubberized casters following the instructions in this manual.
3. Before replacing power head, refer to this manual to ensure you have the proper filters installed for your cleaning operation.
4. Replace power head, and apply pressure with thumb to each latch until it snaps tightly in place. Make sure all lid latches are clamped securely.
5. Insert the air hose end into inlet of tank.
6. Attach the extension wands to the accessory end of the hose. Apply slight pressure until fitting is tight.
7. Attach one of the cleaning accessories (depending on your cleaning requirements) on the extension wands. Twist slightly to tighten the connection.
8. Plug the cord into the wall outlet. Your cleaniner is ready for use.

CASTER ASSEMBLY

1. Invert dust tank, take the caster to align the tank bottom sinking place. Secure with screws provided.

2. Return dust tank assembly upright.



ACCESSORY BAG HOLDER BRACKET ASSEMBLY

• Attach 2 accessory bag holder brackets to tank with 4 self-tapping screws provided.

ACCESSORY BAG HOLDER ASSEMBLY

• Place the accessory bag holder into the hole of bracket.(See illustration).

WARNING! To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors or explosive dust in the air. Flammable gases or vapors include but are not limited to: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but are not limited to: coal, magnesium, aluminum, and grain or gun powder. Do not vacuum explosive dust, flammable or combustible liquids or hot ashes. Do not use this vac as a sprayer for any flammable or combustible liquid. To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
WARNING! The operation of any utility vac can result in foreign objects being blown into the eyes, which can result in severe eye injury. Always wear safety goggles complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before starting operation.
CAUTION: To reduce risk of hearing loss, wear ear protectors when using the vac for extended hours or when using it in a noisy area. The unit is ready for dry vacuuming or blowing. After you plug the power cord into the wall receptacle, turn the unit “ON” by pushing the switch position with 1 embossing straps is the “ON” position.

DRY PICK-UP

1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage. Make sure there are no gaps between the filter and the lid. (See illustration). It is very important to assemble the filter to the cage without allowing any possible leaks or tears. Any leaks will allow the picked up debris to be blown out of the blowing port and back into the surrounding environment.
2. When using your vac to pick up very fine dust, it will be necessary to empty the dust tank and clean or replace the filter at more frequent intervals to maintain peak vac performance.

NOTE: A dry filter is necessary to pick up dry material. If you use your vac to pick up dust when the filter is wet, the filter will clog quickly and be very difficult to clean. If the filter gets wet, replace it before continuing to do dry pickups.
INSTALLING THE CARTRIDGE FILTER
The cartridge filter can be used for wet or dry pick, installation is the same for both.

1. With the power head in an upside down position, slide the cartridge filter down over the lid cage, push the filter seals against the power head.
2. Turn the knob on filter retainer clockwise to tighten, locking the filter into place.
3. To remove the filter for cleaning, turn the filter knob counter clockwise till feel the tactile and auditory cue, and make sure the knob arrow align with the "Unlock" icon on the filter cap, then slide the cartridge filter off the lid cage.
4. To clean the cartridge filter, shake or brush off excess dirt or rinse (from the inside of the filter) with water, dry completely (approximately 24 hours) and re-install.

NOTE: If the filter has been used for wet pick-up, it must be cleaned and dried before using for dry pick-up.
INSTALLING THE DISPOSABLE FILTER BAG

1. Slide the cardboard collar opening firmly onto the vacuum port deflector until it stops against the deflector wall.
2. Position the bag so that it is distributed around the inside of the tank.

3. Replace and secure the power head onto the tank.



WET PICK-UP

The cartridge filter must be positioned over the filter cage while vacuuming liquids. When picking up several tanks full of liquid, the cartridge filter will become saturated and misting may appear in the exhaust air. At this time, you should dry or replace the cartridge filter to eliminate the misting and possible dripping of liquid around the lid. After completingawet pick-up job, raise the hose to drain any excess liquid into the tank before shutting off. The interior of tank should be periodically cleaned.

1. Always disconnect the plug from the wall outlet before removing the power head. Place power head in an upside down position. Remove cartridge filter by sliding it up and off the filter cage.
2. Shake excess dust off cartridge filter witha rapid up and down movement.
   NOTE: WET PICK-UP ACCESSORIES SHOULD BE WASHED PERIODICALLY, ESPECIALLY AFTER PICKING UP WET, STICKY KITCHEN ACCIDENTS. THIS CAN BE ACCOMPLISHED WITH A WARM SOLUTION OF SOAP AND  WATER.
3. This wet/dry vac is equipped withafloat mechanism which will rise automatically to cut off the airflow when the liquid in the tank reaches a predetermined level. When this happens, turn off vac, unplug the power cord, and empty the dust tank. You will know that the float has shut the airflow off because the suction ceases and the motor noise becomes higher in pitch due to increased motor speed. The liquid capacity may vary with the rate of pickup.

IMPORTANT: To reduce the risk of damage to the vac, do not run motor with float in raised position.

NOTE: IF ACCIDENTALLY TIPPED OVER, THE VACUUM COULD CLOSED SUCTION. IF THIS OCCURS, PLACE VAC IN UPRIGHT POSITION AND TURN SWITCH OFF. THIS WILL ALLOW THE FLOAT TO RETURN TO ITS NORMAL POSITION, AND YOU WILL BE ABLE TO CONTINUE OPERATION.

EMPTY THE TANK

WARNING! To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank.

1. Remove the power head assembly of the wet/dry vac by pulling outward on the lid clips located on each side of the vac. Lift off the power head assembly.

2. Dump the tank contents into the proper waste disposal container.



3. Liquids may be emptied through the tank drain. To empty, turn the Unit off and remove the plug from the wall outlet. Remove the drain cap and deposit the liquid waste conents in a suitable drain. After tank is empty, return the drain cap to its original position. To continue use, plug the cord into the wall outlet and turn the unit on.



BLOWING OPERATION

WARNING!
Always wear safety goggles complying with ANSI Z87.1 (or in Canada CSA Z94.3) when using as a blower.
WARNING!
To avoid injury to bystanders, keep them clear of blowing debris.
CAUTION
Wear a dust mask if blowing creates dust which might be inhaled.
CAUTION
To reduce the risk of hearing loss, wear ear protectors when using the vac/blower for extended hours or when using it in a noisy area.
Your vac contains a blowing feature. It has the capability to blow sawdust and other debris. It can be used to blow dust and debris out of garages or off patios and driveways. Follow the steps below to use your vac as a blower.

1. Locate blowing port on your vac.
2. Insert one end of the 2-1/2 in. x 7 ft. hose into the blowing port.
3. Turn vac “ON”.

Setup Guide

To set up the DeWalt DXV12P, first make sure that all of the components are included in the box.

• Connect the hose to the vacuum and the desired attachment to the hose.
• Press the power button to turn on the vacuum.
• To use the blower function, connect the hose to the blower port and press the power button.
• The onboard accessory storage makes it easy to keep all of your attachments organized and within reach.

CARE AND MAINTENANCE

FILTER REPLACEMENT

• WARNING!
  To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter. Your filter should be cleaned often to maintain peak vac performance.
• IMPORTANT
  To avoid damage to the blower wheel and motor, always reinstall the Clean Connect TM filter before using the vac for dry pickups  and wet pickups.
• IMPORTANT
  After cleaning, check the filter for tears or small holes. Do not use  a filter with holes or tears in it. Even a small hole can cause a lot  of dust to come out of your vac. Replace it immediately.
• NOTE
  Before installing the filter on the vac, clean the area of the lid so  that the filter will seal against the lid and stop small particles from bypassing the filter bag. If the filter is clean and not damaged, replace it on the filter cage. If it cannot be reused,place a new filter over the filter cage.
• NOTE
  Clean the filter in an open area. Cleaning should be done outdoors and not in living quarters.
• WARNING!
  Do not remove filter cage and float. The float prevents water from entering the impeller and damaging the motor. The cage prevents fingers from touching the moving impeller.

CLEANING: To keep your wet/dry vac looking its best, clean the outside with a cloth dampened with warm water and mild soap.
To clean the tank:

1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.

STORAGE
Before storing your vac, the dust tank should be emptied and cleaned. The cord should be wrapped and hung on the unit and the accessories should be kept in the accessory holder so they can be readily available. The vac should be stored indoors.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electric appliances, always follow basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following:
BEFORE USING THIS APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS.
WARNING: To reduce the risk of electric shock. Do not expose to rain. Store indoors.

• Use this appliance ONLY as described in the manual. Use only DEWALT recommended attachments.
• Do not use this appliance with a damaged cord or plug. If the appliance is not working correctly, or if it has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.
• Do not pull or carry this appliance by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep cord away from heated surfaces.
• Do not unplug this appliance by pulling on the cord. To unplug, grasp the plug, not the cord.
• Turn off all controls before unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use the appliance to pick up flammable or combustible liquids, such as gasoline, or use in areas where flammable or combustible liquids are present.
• Static shocks are possible in dry areas or when the relative humidity of the air is low. This is only temporary and does not affect the use of the vacuum. To reduce the frequency of static shocks, add moisture to the air with a console, installed humidifier or use anti-static hose (standard on some models).
• To avoid spontaneous combustion, empty canister after each use.

TROUBLESHOOTING

WARNING!
TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS.
Minor problems often can be fixed without calling customer service.

WARRANTY

3 year Limited Warranty
This warranty covers any defects in materials or workmanship of the enclosed product. Alton Industry Ltd. Group will repair or replace any defective materials due to craftsmanship of the product. This warranty does not cover any problem caused by misuse, abuse, accidents or acts of God, such as floods or hurricanes. Consequential and incidental damages are not covered under this warranty. Coverage terminates if you sell or otherwise transfer the ownership.

Pros & Cons

Pros

• Powerful 5.5 peak horsepower motor
• Large 12-gallon tank
• Onboard accessory storage
• Blower function
• Rubberized casters for easy mobility

Cons

• Heavy when full
• Can be loud when in use
• Filter can be hard to clean

Customer Reviews

Customers have praised the DeWalt DXV12P for its powerful suction and large capacity. Many have noted that it is easy to transport and store, thanks to the onboard accessory storage and rubberized casters. However, some have noted that it can be heavy when full and that the filter can be difficult to clean. Overall, customers have been very satisfied with the performance and value of the DeWalt DXV12P.
