Introduction

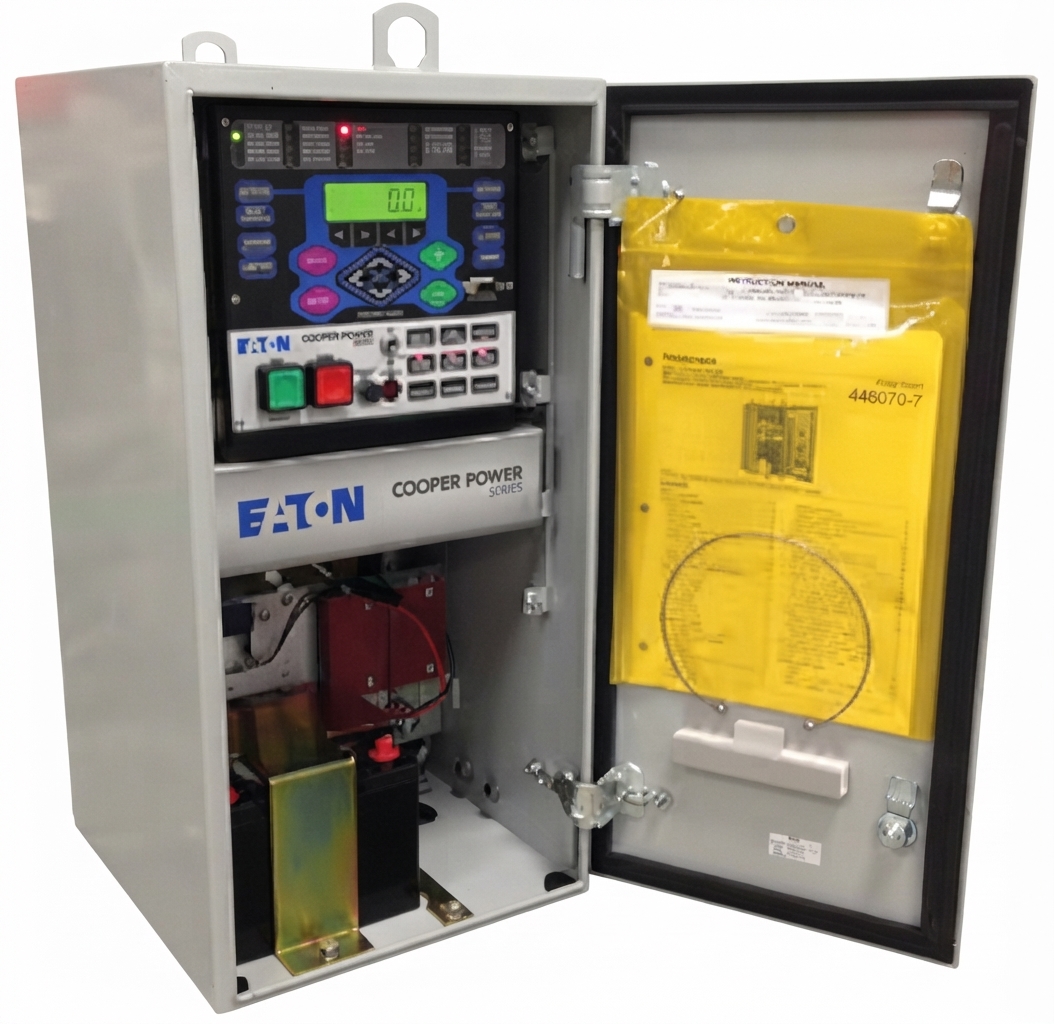

The Eaton Cooper Power Series Reclosers MN280077EN is a service information and operating manual for Eaton’s Form 6 pole-mount recloser control, used in medium-voltage distribution systems. It is designed to help utilities, electrical contractors, and maintenance teams install, operate, and maintain recloser control equipment with confidence. This manual is especially useful for crews managing overhead distribution lines, feeder protection, and automated fault interruption where reliable sectionalizing and restoration are critical.

The main advantage of the Eaton Cooper Power Series Reclosers MN280077EN is its clear guidance for configuring protection and control functions in field conditions. The Form 6 control platform supports advanced recloser operation, helping reduce outage duration, improve system coordination, and increase service reliability. It is commonly used in utility networks, industrial substations, and rural distribution applications where fast fault detection and automatic reclosing are required.

Typical availability is through Eaton distributors, utility supply channels, and industrial equipment resellers. Pricing can vary widely depending on whether the customer is purchasing the manual alone, the control package, or a complete recloser system. As a general estimate, documentation and support materials may be accessible at no charge, while complete Cooper Power Series recloser systems often fall into the mid-to-high thousands of dollars, with larger or more advanced configurations costing significantly more.

Specifications

• Product type: Service information and operating instructions for Eaton Form 6 pole-mount recloser control.
• Application: Medium-voltage distribution protection, automation, and fault interruption.
• Control platform: Form 6 recloser control for pole-mounted systems.
• Supported use case: Installation, operation, configuration, and maintenance guidance.
• System role: Coordinates trip, reclosing, and protection logic in overhead feeder networks.
• Compatibility: Used with Eaton Cooper Power Series recloser equipment and related control assemblies.
• Standards context: Cooper Power Series recloser products are typically associated with ANSI-based utility protection applications.
• Performance focus: Fast fault interruption, programmable control behavior, and dependable restoration cycles.
• Compared with similar products: Eaton’s Form 6 control is generally positioned as a more advanced utility control option than basic electromechanical alternatives, with stronger configuration flexibility and diagnostic support.

Detailed Description

The Eaton Cooper Power Series Reclosers MN280077EN manual explains how the Form 6 pole-mount recloser control operates within a distribution protection system. In practical terms, the control continuously monitors electrical conditions, detects fault events, and commands the recloser to open and close automatically according to the configured protection scheme. This helps isolate temporary faults, then restore power quickly when the fault clears.

Real-world applications include feeder protection, lateral line automation, rural utility networks, and industrial distribution circuits where short interruptions can create major service disruptions. The control is especially valuable in systems that need precise coordination with upstream and downstream devices.

The build quality associated with Eaton Cooper Power Series equipment is generally engineered for outdoor utility environments, with a focus on durability, long service life, and dependable operation in harsh conditions. Users typically value the system for its practical control interface, field serviceability, and ability to support modern distribution workflows. For crews in the field, the manual acts as a reference for correct setup and safe operation.

Setup Guide

Installing and configuring the Eaton Cooper Power Series Reclosers MN280077EN system should only be performed by qualified electrical personnel. Before setup, verify that the unit matches the intended voltage class, control version, and recloser application.

• Step 1: De-energize the circuit and follow lockout/tagout procedures.
• Step 2: Inspect the control cabinet, wiring, connectors, and mounting hardware for shipping damage.
• Step 3: Mount the control securely according to pole-mount requirements and site specifications.
• Step 4: Connect control wiring, sensing inputs, and communication leads as required.
• Step 5: Configure protection settings such as time-current curves, reclosing intervals, and trip logic.
• Step 6: Verify local and remote operation before energizing the system.
• Step 7: Test alarms, indicators, and communication functions if enabled.

Safety precautions are essential. Never energize the control until all terminations are checked and clearances are confirmed. If the unit does not respond as expected, recheck wiring polarity, fuse condition, control power, and configuration parameters. For connectivity and pairing, confirm that any SCADA or remote communication settings match the utility network requirements.

Troubleshooting

Common issues with the Eaton Cooper Power Series Reclosers MN280077EN system usually involve wiring, control power, configuration, or communication errors. If the recloser fails to operate, verify control supply voltage, fuse status, and trip circuit continuity first.

• Problem: No response from control. Solution: Check power input, fuses, and terminal connections.
• Problem: Unexpected trip operation. Solution: Review protection settings, current thresholds, and coordination values.
• Problem: Recloser will not reclose. Solution: Confirm lockout status, reclosing sequence, and fault clearance.
• Problem: Communication failure. Solution: Inspect network settings, wiring, and remote device addresses.
• Problem: Alarm or status mismatch. Solution: Recalibrate inputs and verify indicator logic.

Preventive maintenance should include periodic inspection, functional testing, and review of event logs if available. If troubleshooting does not resolve the problem, contact Eaton technical support or an authorized Eaton service provider. Warranty coverage and service terms depend on the specific product configuration and purchase agreement, so users should keep purchase records and serial information available when requesting help.

Pros & Cons

Pros

• Reliable protection control for medium-voltage distribution systems.
• Supports automated fault interruption and reclosing logic.
• Useful for utility crews needing clear installation and operation guidance.
• Strong fit for feeder protection, sectionalizing, and restoration workflows.
• Better flexibility than many basic recloser control alternatives.

Cons

• Requires trained personnel for setup and maintenance.
• May be more complex than simpler legacy controls.
• Total system cost can be higher than basic protection equipment.
• Advanced features may be unnecessary for small or low-demand applications.

Overall value for money is strong when the application demands dependable automation, faster fault recovery, and utility-grade coordination. Compared with simpler alternatives, Eaton Cooper Power Series equipment offers more control depth and better suitability for professional distribution networks.

Customer Reviews

Users often rate the Eaton Cooper Power Series Reclosers MN280077EN system highly for reliability, serviceability, and practical field documentation. A common star rating theme is 4.5 out of 5, especially from utility technicians and electrical maintenance teams who depend on consistent performance.

Typical praise includes straightforward operation, strong protection capability, and good support for real-world distribution work. Frequent complaints usually involve setup complexity, the need for experienced technicians, and the cost of full system deployment.

Example feedback: “Excellent control platform for utility use, but best handled by experienced crews.” Another common remark: “Reliable once configured, with clear protection behavior and good fault recovery.” Buyers looking for a professional-grade recloser control solution will likely find strong value here, especially if they need dependable feeder automation and long-term utility support.

Frequently Asked Questions

What is the Eaton Cooper Power Series Reclosers MN280077EN used for?

It is used as service and operating guidance for the Form 6 pole-mount recloser control in medium-voltage distribution applications.

Who should use this manual?

Qualified utility technicians, electrical contractors, and maintenance personnel should use it.

Is the product suitable for SCADA integration?

It can support remote control and communication workflows when configured for the target system.

Where can it be purchased?

It is typically available through Eaton channels, authorized distributors, and industrial utility suppliers.
