Introduction

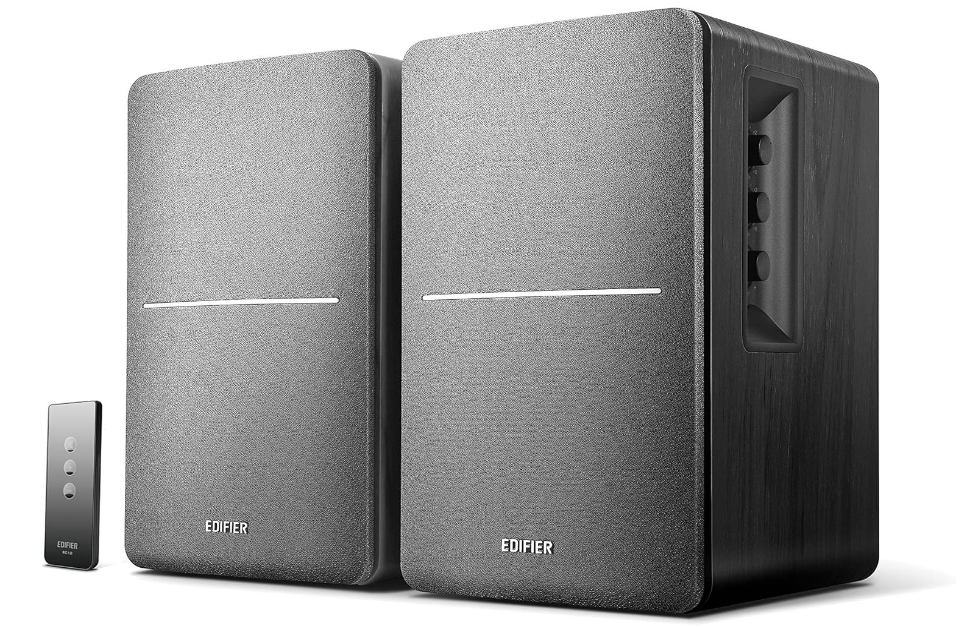

The Edifier R1280T Bluetooth Multimedia Speaker is a stylish and versatile audio solution designed for music lovers and casual listeners alike. Featuring a classic wooden enclosure, these active bookshelf speakers deliver a powerful 42 watts of RMS output through dual 4-inch bass drivers and silk dome tweeters, ensuring rich sound quality. With multiple connectivity options, including Bluetooth, RCA, and 3.5mm inputs, the R1280T is priced at approximately $129, making it an excellent value for high-quality audio performance.

Box Contents

Illustrations

1. Infrared receiver
2. Treble dial
3. Bass dial
4. Master volume dial
5. Power indicator
6. Audio input connector port
7. Speaker output
8. Power switch
9. Power cord

Edifier R1280T Bluetooth Multimedia Speaker Specifications

• Power output: RMS 21W × 2 ( DRC ON )
• Signal-to-noise ratio: ≥85 dBA
• Distortion: ≤0.5%
• Frequency response: 75 Hz ~ 18 KHz (+/-9dB)
• Input type: RCA stereo input
• Input sensitivity: PC: 750 mV ± 50 mV
• AUX: 550 mV ± 50 mV
• Adjustment: Master volume/treble/bass dial, remote control
• Treble unit: 13mm silk dome tweeter
• Bass unit: 4 inch (116mm)
• Dimension: 146 mm (W) × 234 mm (H) × 196 mm (D)
• Weight (net/gross): Approx. 4.9 kg / 5.65 kg

There is no restriction of use.

Remote control

Battery loading

Please refer to the illustration to open the battery compartment, insert the CR 2025 battery and close the compartment.

WARNING!

1. Don’t swallow the battery; danger of chemical burn.
2. The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the new or old battery in where children can get to it.
3. Don’t use the product if the battery cover is missing or not closed, and keep the remote inaccessible to children.
4. Please go to the hospital immediately if the battery is swallowed.

Note

1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for a long period of time.
4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Description

The Edifier R1280T is characterized by its elegant wooden enclosure and classic design, making it a stylish addition to any room. The speaker's construction contributes to its warm and natural sound, while the silk dome tweeters ensure clear and detailed high frequencies. The 4-inch bass drivers deliver robust low-end performance, making this speaker suitable for a wide range of music genres and multimedia applications.

The speaker is easy to set up and use, with a user-friendly interface and a remote control that allows you to adjust settings from across the room. The presence of multiple input options means you can connect it to various devices, from smartphones and tablets to TVs and gaming consoles.

Connectivity & Operational guide

Connecting the speakers

• Connect the active speaker and passive speaker with the included connecting cable (golden cable to red wire clamp, and silver cable to the black).
• Connect audio source like PC sound card to active speaker with the included 3.5mm to RCA connector cable.

Connect to A.C. Power Outlet

• Please connect the A.C. power plug to the correct A.C. voltage outlet.

 Adjustment

Play the audio on your connected device and adjust master volume/bass/treble to a desired level.

Note:
If two audio sources are connected simultaneously, both signals will play. To dedicate audio output from one source, decrease the volume or power off the unselected device.

Setup Guide

Setting up the Edifier R1280T is straightforward and user-friendly. Here are the steps to get you started:

1. Place the speakers in your desired location, ensuring they are positioned at ear level for optimal sound quality.
2. Connect the left and right speakers using the provided RCA cables.
3. Plug in the power cord and turn on the speaker.
4. To connect via Bluetooth, press the Bluetooth button on the back of the speaker until the LED light starts flashing. Then, select "Edifier R1280T" from your device's Bluetooth settings.
5. If using RCA or auxiliary inputs, simply connect your device and adjust the volume and settings as needed.

The remote control allows you to adjust volume, bass, and treble settings conveniently.

Important safety instruction

1. Please read the instructions carefully. Keep it in safe place for future reference.
2. Use only accessories approved by the manufacturer.
3. Install the instrument properly by following the instructions in the device connection section.
4. Using the product in a 0-35℃ environment is recommended.
5. To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
6. Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
7. Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
8. Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
9. Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
10. Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
11. Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
12. Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
13. Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
14. Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
15. Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Power warning

1. Place the product near the power outlet for easy use.
2. Before use, make sure that the operating voltage is the same as your local power supply. Correct operating voltage can be found on the product plate.
3. For safety purpose, unplug the product during lightning storms or when unused for extended periods of time.
4. Under normal conditions, the power supply may get hot. Please keep good ventilation in the area and exercise caution.
5. Safety warning labels on the housing or bottom of the product or power adaptor.

This symbol is to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is to warn the user not to disassemble the enclosure of the product and there is no user-replaceable part inside. Take the product to an authorized service center for repair.
This symbol indicates that the product is for indoor use only.
This symbol indicates that the product is a CLASS II or double insulated electrical device with no earth requirement.

The MAINS plug is used as the disconnect device,  the disconnect device shall remain readily operable.

Troubleshooting

To learn more about EDIFIER, please visit https://www.edifier.com

Pros & Cons

Pros

• Aesthetic Design: The wooden enclosure gives it a classic and stylish look.
• Rich Sound Quality: Balanced sound with deep bass and clear treble.
• Multiple Connectivity Options: Bluetooth, RCA, and auxiliary inputs for flexibility.
• User-Friendly Interface: Easy to set up and operate with a remote control.
• Affordable Price: Priced around $100, making it an excellent value for money.

Cons

• No Built-in Microphone: Not suitable for hands-free calls or voice assistants.
• Due to its size and weight, it's not the best option for on-the-go use.
• For those seeking a more immersive audio experience.

Customer Reviews

Customers generally praise the Edifier R1280T for its excellent sound quality, stylish design, and ease of use. Many reviewers appreciate the balanced sound output and the ability to customize settings with the remote control. Some common complaints include the lack of a built-in microphone and limited portability due to its size. However, these issues are minor compared to the overall satisfaction with the product's performance.
