Introduction

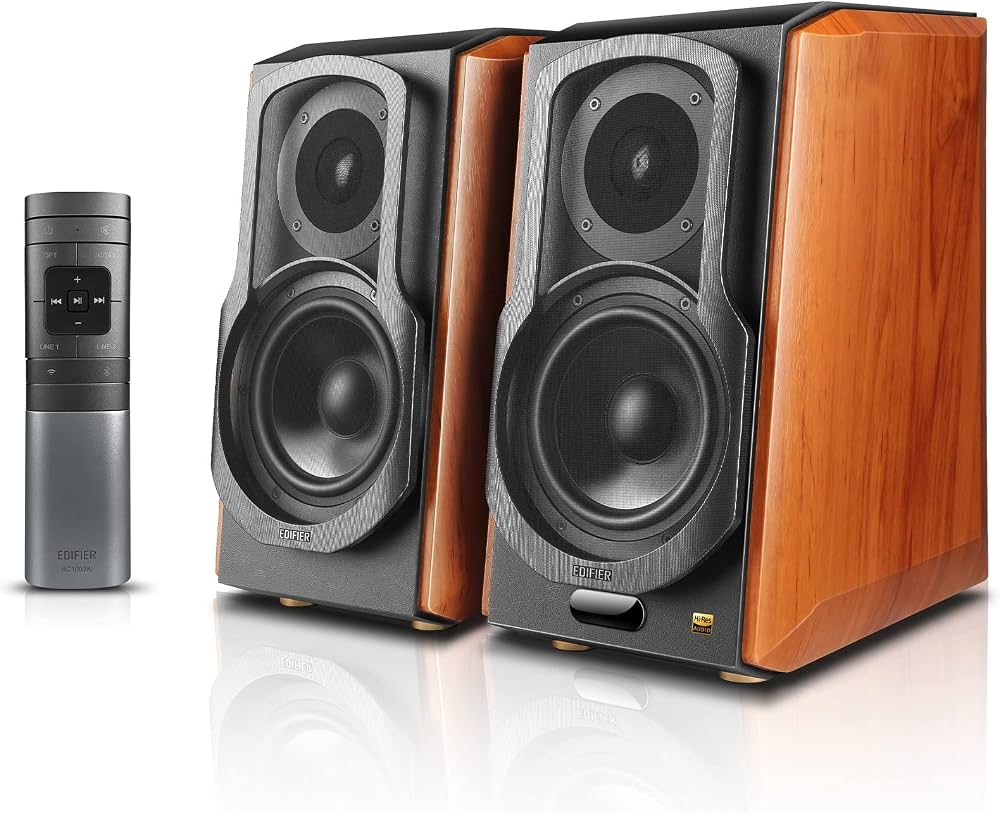

The Edifier S1000W Wireless Bookshelf Speaker offers an impressive blend of high-fidelity sound and modern connectivity. Designed for audiophiles, it features a powerful 120-watt output with a 5.5-inch mid-bass driver and a 1-inch titanium dome tweeter, delivering rich and detailed audio across a wide frequency range. With support for Wi-Fi, Bluetooth, and various input options, including optical and RCA, it ensures versatile connectivity. Priced at approximately $449.99, it represents a premium choice for quality sound in any setting.

Box contents

Specifications

1. Power Output
   • R/L (Treble): 25W+25W
   • R/L (Mid-Range and Bass): 35W+35W
2. Frequency Response
   45Hz-40KHz
3. Audio Inputs
   Wi-Fi, Bluetooth, Line In, Optical, Coaxial

Note

• Download Edifier Home App from the App Store/Google Play Store.
• Images are for illustrative purposes only and may differ from the actual product.

Illustration

1. Master volume control/input selection
   Rotate: master volume control
   Press:

   1. wake (sleep mode)
   2. input selection (when not in sleep mode) (Wi-Fi→Bluetooth→Line In 1→Line In 2→Optical→Coaxial)

   Press and hold: standby

2. Treble dial
3. Bass dial
4. Reset
   Press: disconnect Bluetooth and clear Bluetooth pairing records (Bluetooth mode); enter Wi-Fi network connection (Wi-Fi mode)
   Press and hold for 3s: reset
5. Power switch
6. Power cable
7. Line In input
8. Optical input
9. Coaxial input
10. Connect to passive speaker
11. Connect to active speaker
12. Display window
    • Wi-Fi mode: white LED
    • Bluetooth mode: blue LED
    • Line In 1 mode: green LED flashes once
    • Line In 2 mode: green LED flashes twice
    • Optical mode: red LED flashes once
    • Coaxial mode: red LED flashes twice

Description

The Edifier Wireless Bookshelf Speaker S1000W boasts a sophisticated design with wooden enclosures that not only enhance the aesthetic appeal but also contribute to its rich and warm sound quality. The speakers are equipped with 5.5-inch bass drivers and 1-inch silk dome tweeters, ensuring a balanced sound spectrum from deep bass notes to crisp treble.

The system supports multiple input options including Bluetooth 5.0, optical, RCA, and USB, making it versatile for different devices such as smartphones, tablets, TVs, and computers. The speakers also feature a remote control for easy volume adjustment and input switching.

Remote Control

1. Power on/off
2. Mute
3. Remote control indicator
4. Optical mode
5. Coaxial mode
6. Previous track/next track (Bluetooth/Wi-Fi mode)
7. Volume up/volume down
8. Pause/play (Bluetooth/Wi-Fi mode)
   Press and hold for 6s: reset
9. Line In 1 mode
10. Line In 2 mode
11. Wi-Fi mode
    Press and hold: Wi-Fi network connection
12. Bluetooth mode
    Press and hold: disconnect Bluetooth

1. As the illustration shows, press remote control batteries cover downwards with thumb and follow the arrow direction to remove cover, uses two AAA batteries (note the "+" and "-" pole).
2. The batteries life are normally about 6 months; please replace them when the remote control is not sensitive or the control distance is shortened.
3. Never use old and new batteries together.

Note

1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for a long period of time to avoid batteries leakage.
4. The batteries should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.

Connection

* This plug type is meant for illustration purpose only.

Audio Inputs

1. Line In 1/Line In 2 mode
   • Press the "Volume/Input" button on the active speaker, or press the "LINE 1" or "LINE 2" button on the remote control to switch to Line In 1/Line In 2 mode (the green indicator will blink and then will be steady lit);
   • Connect audio source (mobile phone, tablet, etc.) to the "Line In 1" or "Line In 2" input port (note color matching) on the rear panel of the active speaker using audio cable;
   • Play music on the connected device and adjust the settings to a desired level.
2. Optical mode
   • Press the "Volume/Input" button on the active speaker, or press the "OPT" button on the remote control to switch to optical mode (the red indicator will blink once and then will be steady lit);
   • Connect audio source (DVD, Set Top Box, etc.) to the "OPT" input port on the rear panel of the active speaker using fiber optic audio cable;
   • Play music on the connected device and adjust the settings to a desired level.
3. Coaxial mode
   • Press the "Volume/Input" button on the active speaker, or press the "COAX" button on the remote control to switch to coaxial mode (the red indicator will blink twice and then will be steady lit);
   • Connect audio source to the "COAX" input port on the rear panel of the active speaker using coaxial cable (coaxial cable not included);
   • Play music on the connected device and adjust the settings to a desired level.
4. Bluetooth mode
   1. It is Bluetooth mode by default when the product is turned on for the first time; You can also press the "Volume/Input" button on the active speaker, or press the "" button on the remote control to switch to Bluetooth mode (the blue indicator will blink rapidly);
   2. Select "EDIFIER S1000W" in your device setting to connect, after pairing is successful, the blue indicator will be steady lit.
   3. Play music on the connected device and adjust the settings to a desired level.

NOTE

• To enjoy all Bluetooth functions of this product, please ensure your audio source device has A2DP (Advanced Audio Distribution Profile) and AVRCP(Audio Video Remote Control Profile) profiles.
• Bluetooth connectivity and compatibility may differ amongst different source devices, depending on the software versions of source devices.
• Only the standard PCM audio signals (44.1KHz/48KHz/96KHz/192KHz) function in optical/coaxial mode.

Download Edifier Home App

Please download the “Edifier Home” App to a compatible phone or tablet from the App Store/Google Play or from https://www.edifier.com

Bookshelf Speaker S1000W Speaker Controls

Bluetooth and Wi-Fi modes

Connect to Wi-Fi Network

Please enable Wi-Fi and Bluetooth functions on your device, and open the Edifier Home App. Then follow the instructions to connect S1000W to your Wi-Fi Network.

1. Add device
2. Select device model for network connection

3. Please select a device to add



4. Enter Wi-Fi password
5. Connecting to Wi-Fi

6. Configuring audio network...



7. Network configuration is successful
8. Link your speaker to your Amazon account

9. Add Alexa for more functions



You can also Change name:

1. Click the setting button to enter the setting interface
2. Change name

Works with Alexa

Register your S1000W with your Amazon account through the Edifier Home App. By using an Alexa Built-in device or Amazon Echo device, you are able to use your voice to play and pause music, change tracks, adjust volume, and more.

AirPlay

Set up the AirPlay

• If the S1000W is already connected to the Wi-Fi network, AirPlay is ready to use.
• If not, please go to Setting > Wi-Fi on your iOS device and look for EDIFIER_S1000W_XXXX in the Set Up New AirPlay Speaker section.
• AirPlay enables audio apps on Apple mobile, laptop or desktop devices to stream material over a network to AirPlay compatible speakers such as S1000W. AirPlay enabled apps will display the AirPlay icon.

Compatibility:
iPhone, iPad, and iPod touch with iOS 11.4 or later, Apple TV 4K or Apple TV (4th Generation) with tv 0S 11.4 or later, Mac or PC with iTunes 12.8 or later.

Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to https://spotify.com/connect  to learn how.
The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

Setup Guide

Setting up the Edifier Wireless Bookshelf Speaker S1000W is straightforward:

1. Unbox the speakers and remote control.
2. Place the speakers in your desired location.
3. Connect the speakers using the provided RCA cable or optical cable if preferred.
4. Turn on the speakers and set the input to Bluetooth or your preferred input source.
5. Pair your device via Bluetooth or connect using another input method.
6. Use the remote control to adjust volume and switch between inputs as needed.

Important safety instruction

• Please read the instructions carefully. Keep it in safe place for future reference.
• Use only accessories approved by the manufacturer.
• Install the instrument properly by following the instructions in the device connection section.
• Using the product in a 0-35°C environment is recommended. Shipping and storing the product in a 0-35°C environment is recommended.
• To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
• Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
• Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
• Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
• Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
• Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
• Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
• Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
• Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
• Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
• Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.
• Switching between different countries on the App, the product will automatically sync to local Wi-Fi operating frequency bands.
• The product must be used at an altitude of lower than 2000m.

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Power warning

1. Place the product near the power outlet for easy use.
2. Before use, make sure that the operating voltage is the same as your local power supply. Correct operating voltage can be found on the product plate.
3. For safety purpose, unplug the product during lightning storms or when unused for extended periods of time.
4. Under normal conditions, the power supply may get hot. Please keep good ventilation in the area and exercise caution.
5. Safety warning labels on the housing or bottom of the product or power adaptor.

This symbol is to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is to warn the user not to disassemble the enclosure of the product and there is no user-replaceable part inside. Take the product to an authorized service center for repair.
This symbol indicates that the product is for indoor use only.
This symbol indicates that the product is a CLASS II or double insulated electrical device with no earth requirement.

The MAINS plug is used as the disconnect device,  the disconnect device shall remain readily operable.

For wireless product

1. Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices or medical equipment.
2. Turn off the product when it’s disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
3. Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

Troubleshooting

No sound

• Check if the speaker is ON.
• Try to turn up the volume using the volume control or remote control.
• Ensure the audio cables are firmly connected and the input is set correctly on the speaker.
• Check if there is a signal output from the audio source.

Cannot connect via Bluetooth

• Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the "" button, then try again.
• Effective Bluetooth transmission range is 10 meters; please ensure that operation is within that range.
• Try another Bluetooth device for connection.

The S1000W does not turn on

•  Check if main power is connected, or if the wall outlet is switched on.

Noise coming from speakers

•  EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up, if no sound can be heard at 1 meter away from the speaker, then there is no problem with this product.

Pros & Cons

Pros

• High-Quality Sound: Clear and balanced audio with deep bass and crisp treble.
• Wireless Connectivity: Convenient Bluetooth 5.0 connectivity for seamless streaming.
• Multiple Input Options: Supports optical, RCA, USB, and Bluetooth inputs for versatility.
• Aesthetic Design: Sleek wooden enclosures add elegance to any room.

Cons

• Price: At around $350, it may be out of budget for some users.
• No Built-in Subwoofer: While the bass is good, it might not be sufficient for heavy bass lovers.
• No Wi-Fi Connectivity: Limited to Bluetooth for wireless connectivity.

Customer Reviews

Customers have praised the Edifier Wireless Bookshelf Speaker S1000W for its exceptional sound quality and stylish design. Many have noted that these speakers offer a significant upgrade over standard computer speakers or older home audio systems. However, some users have mentioned that the price could be prohibitive for those on a tight budget.
