Introduction

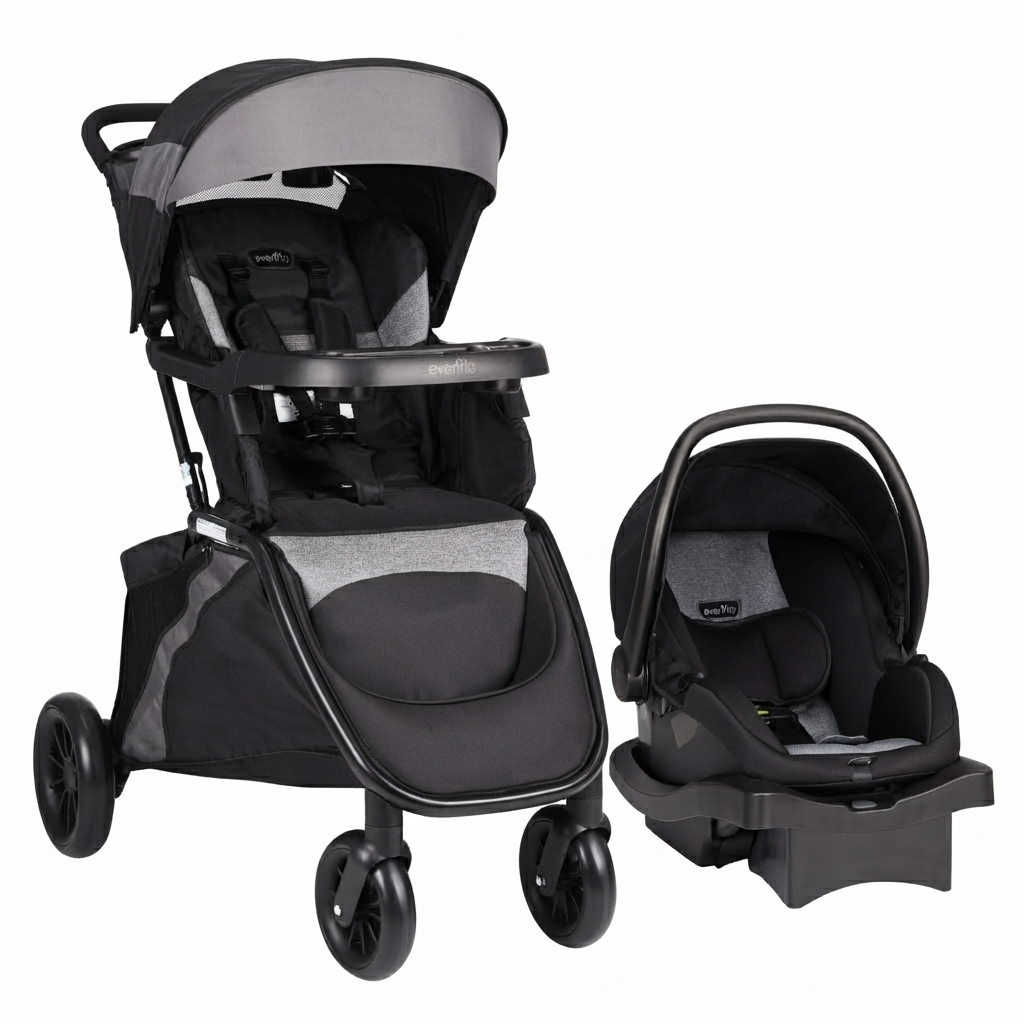

The Evenflo Epic 4 Stroller Travel System 54611770 is a comprehensive solution for parents seeking convenience and safety. This travel system includes a versatile stroller and an infant car seat, designed for easy transitions between the car and the stroller. With its durable construction and user-friendly features, it ensures a smooth ride for both baby and parent. Priced at $449.99, it offers excellent value for a complete travel solution.

IDENTIFICATION OF PARTS

Detailed Specifications

The Evenflo 54611770 is packed with features that make it a top choice for parents. The stroller has a weight capacity of 50 pounds and can be used for children up to 4 years old. It has a lightweight and durable frame that weighs only 22 pounds, making it easy to lift and transport. The stroller also has a spacious storage basket that can hold up to 10 pounds of gear, as well as a parent tray with two cup holders and a covered compartment for your phone and keys. The car seat is designed for infants from 4 to 35 pounds and has a stay-in-car base that makes it easy to transfer your baby from the car to the stroller. The travel system also features a one-hand fold design, which allows you to quickly and easily fold the stroller with just one hand. Additionally, the stroller has a multi-position reclining seat that allows your baby to sit upright or lie flat, and a canopy with a peek-a-boo window that provides shade and ventilation.

Evenflo Epic 4 Stroller Travel System 54611770 FEATURES

1. Parent’s Handle
2. Canopy
3. Harness Strap Loop
4. Harness Covers
5. Shoulder Straps
6. Child’s Tray
7. Footrest
8. Swivel Wheel
9. Storage Basket
10. Waist Restraint
11. Side Frame Lock
12. Parent’s Console
13. Multi-Position Recline Strap
14. Brakes

Description

The Evenflo Epic 4 Stroller Travel System 54611770 is a must-have for parents who want a versatile and durable stroller that can accommodate their growing child. The stroller is designed with a lightweight and durable frame that makes it easy to lift and transport. It also has a spacious storage basket that can hold up to 10 pounds of gear, and a parent tray with two cup holders, and a covered compartment for your phone and keys. The car seat is designed for infants from 4 to 35 pounds and has a stay-in-car base that makes it easy to transfer your baby from the car to the stroller. The travel system also features a one-hand fold design, which allows you to quickly and easily fold the stroller with just one hand. Additionally, the stroller has a multi-position reclining seat that allows your baby to sit upright or lie flat, and a canopy with a peek-a-boo window that provides shade and ventilation.

ASSEMBLING YOUR STROLLER

WARNING
Care must be taken when folding or unfolding the stroller to prevent injury in hinge areas.

1. To protect flooring, place a protective covering (cardboard, towel, small rug,, or blanket) beneath the stroller during assembly.
   Unlatch side frame lock A. Continue holding the lock open while unfolding the stroller.
   Grab the parent’s handle B near the top of the canopy and pull upward until the stroller opens fully with an audible click. Make sure the stroller is locked in the open position.



2. Attach the storage basket C to the frame by inserting the storage basket tube D into the opening in the stroller frame E. Make sure the storage basket locks into place with an audible click. Repeat on the other side.



3. For ease of removal and assembly of the clevis pin, use needle nose pliers.
   To assemble the rear wheels to the axle, remove clevis pin G and one washer H from the axle, leaving one washer and rear hub J on the axle.
   With the spokes facing out, slide a wheel I onto the axle. Slide on a second washer H.
   Insert the straight side of the clevis pin through the hole in the axle. Snap hub cap F onto the wheel.
   Pull on the wheel to make sure it is locked securely. Repeat steps to attach the other rear wheel.



4. Turn the stroller upside down, as shown, so the rear of the stroller is facing upwards.
   Hold the rear wheel/axle assembly K so the brake levers L face toward the parent’s handle.
   Slide the rear wheel/axle assembly onto the stroller frame M until each side locks into place with audible clicks.
   Pull upward on the rear wheel/axle assembly to make sure it is locked securely.



5. Turn the stroller so the front of the stroller is facing upwards, as shown.
   Slide a front wheel assembly D into the front frame leg E until it locks into place with an audible click. Pull downward on the front wheel assembly to make sure it is locked securely. Repeat for the other side.
   Turn the stroller right side up onto its wheels.



6. Install the child’s tray P onto the tray mounts Q. Make sure the tray locks into position with audible clicks. Pull on the child’s tray to make sure it is locked into place.



7. To install the canopy R, stand behind the stroller and slide each end of the canopy S onto the canopy mount T located on the stroller frame. Make sure each end of the canopy slides onto the mounts completely.



USING YOUR STROLLER

1. Step on the rear brake lever A to lock the rear wheels on the stroller.
   To release the brakes, lift up on the brake levers.



2. To keep the front wheel from swiveling, lift tab B on front wheel assembly C. Push the tab down to allow the front wheel to swivel.
   NOTE: The locked position is recommended for travel over uneven surfaces.



3. To open the child’s tray D, push a locking tab E on either side of the tray.
   Note: You can open the tray from either side.
   To remove the tray D, push both tabs and remove the tray from the stroller.



4. WARNING
   To avoid serious injury from the child falling out of the stroller, DO NOT raise or recline the seat with the child in a stroller.
   To recline the seat, squeeze adjuster L and pull down the recline strap on the rear of the seat.
   To raise the seat, hold the D-ring M on the strap, then slide the adjuster toward the seat.



5. WARNING
   To avoid serious injury from falling or sliding out,
   ALWAYS use waist restraint.
   Note: Verify the stroller is locked in the open position by lifting up the rear of the stroller using the parent’s handle.
   Lock the rear brakes and pivot the child’s tray out of the way.
   • 5-point Harness:
     With the 5-point harness, the harness shoulder strap G must start at shoulder height or lower, as shown, and use the harness strap loops H closest to the baby’s shoulders. To adjust the height of the harness shoulder straps to the baby’s shoulder height, do the following:
     1. Remove each harness shoulder strap G from each buckle I, as shown.
     2. Thread each harness shoulder strap G under the harness strap loop  H that is closest to the baby’s shoulder.

     3. Reattach each harness shoulder strap G to each buckle I.



   • 5-point and 3-point Harnesses:
     Place the baby in the seat and bring the crotch panel J up between the child’s legs. Fasten each buckle I. For a snug, comfortable fit, pull the shoulder straps G to tighten the shoulder restraint (shoulder restraint only for 5-point harness) and pull the waist restraint straps K to tighten the waist restraint.
     Note: To loosen the waist straps K, push in the release button L on the buckle and pull.
     Once the child is properly restrained, close and lock the child’s tray. Make sure the tray locks into position with audible clicks. Pull on the child’s tray to make sure it is locked into place.
     To change from 5-point to a 3-point harness:
     Remove each harness shoulder strap G from each buckle I, as shown above.



6.  Pull canopy hoop M forward to extend the canopy. Push the canopy toward the parent’s handle to close.



7. WARNING
   Care must be taken when folding or unfolding the stroller to prevent injury in hinge areas.
   To fold the stroller, lock the front swivel wheels, lock the rear brakes, close the canopy, and remove your child.
   Pull upward on the in-seat fold strap N until the side frame lock O clicks into place.
   To unfold the stroller, unlatch the side frame lock O. Continue holding the lock open while unfolding the stroller. Grab the parent’s handle near the top of the canopy and pull upward until the stroller opens fully with an audible click. Make sure the stroller is locked in the open position



USING YOUR STROLLER WITH THE SAFEMAX AND LITEMAX INFANT CAR SEAT

WARNING

• Only use the Evenflo SafeMax and LiteMax infant car seats with this stroller.
  Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
• Before using the SafeMax or LiteMax infant car seat with this stroller, read all the instructions provided with it and keep the instructions stored properly for future use.
• DO NOT lift the stroller by using the SafeMax or LiteMax infant car seat handle when installed on the stroller.
• If unable to securely attach SafeMax or LiteMax infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 01-800-706-12-00 (Mexico).
• To avoid serious injury, make sure the SafeMax or LiteMax infant car seat is securely snapped onto the car seat mounts.
• Some SafeMax and LiteMax infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.

1. Fully recline the stroller seat back.
2. Make sure the child tray is securely latched.
3. The SafeMax or LiteMax infant car seat A MUST be facing the parent when installed.
   Position the infant car seat over the stroller. Touch the rear vertical surface B of the infant car seat against the rear vertical surface C of the child tray. Lower the infant car seat into the stroller and push down on the handle. The infant car seat will click when fully locked into place.

4. Pull up on the front and back of the SafeMax or LiteMax infant car seat to ensure that it is properly locked into place.



CHECKLIST FOR PROPER INSTALLATION

• Make sure the SafeMax or LiteMax infant car seat A is in the rear-facing position (facing the parent).
• Make sure the SafeMax or LiteMax infant car seat is securely locked into the car seat mounts D and resting on the child tray C.
  Note: Car seat mounts are behind fabric, and not visible.
• Pull up on the front and back of the SafeMax or LiteMax infant car seat to test that it is properly locked into place.

To remove the infant car seat, pull the release handle E with one hand while lifting up on the carry handle F with the other hand.

Note: Refer to your SafeMax or LiteMax infant car seat instructions for proper handle use.

Setup Guide

Setting up the Evenflo Epic 4 Stroller Travel System 54611770 is easy.

1. First, attach the car seat to the stroller frame using the included LATCH connectors or the seatbelt.
2. Next, adjust the stroller seat to your desired position, and attach the canopy and parent tray.
3. To fold the stroller, simply lift the handle located on the seat and the stroller will automatically fold in half.
4. To unfold the stroller, pull the handle and the stroller will automatically open.
5. Make sure to check the manual for specific instructions on how to properly install the car seat and attach it to the stroller.

CARE AND MAINTENANCE

• Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.
• An occasional drop of vegetable oil may reduce wear and tear on moving parts.

WARNING
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• Only use the Evenflo SafeMax and LiteMax infant car seat with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
• NEVER leave a child unattended. ALWAYS keep the child in view while in the stroller.
• Adult assembly is required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and discard packing material before using this product.
• Avoid serious injury from falling or sliding out. ALWAYS use waist restraint.
• AVOID STRANGULATION:
  • DO NOT suspend strings or toys from the canopy.
  • DO NOT place the stroller anywhere near cords from window blinds, draperies, phones, etc.
  • DO NOT place items with a string around your child’s neck such as hood strings or pacifier cords.
  • If not properly secured, the child may slip into leg openings and strangle.
• When making adjustments to the stroller, ALWAYS ensure that all parts of the child’s body are clear of any moving parts of the stroller.
• The canopy is not intended to provide UV protection.
• Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.

IMPORTANT INFORMATION

Child Requirements
Maximum weight: 50 lbs (22.6 kg)
Maximum height: 38 inches (96 cm)
IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. DO NOT USE YOUR STROLLER UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS.

Troubleshooting

1. If you are having trouble setting up the Evenflo Epic 4 Stroller Travel System 54611770, make sure to consult the manual for specific instructions.
2. If the stroller is not folding or unfolding properly, check to make sure that the handle is not obstructed and that the stroller is fully open or closed.
3. If the car seat is not properly secured to the stroller, make sure that the LATCH connectors are properly attached and tightened.
4. If you are having trouble installing the car seat in your vehicle, make sure to consult the manual for specific instructions and to check your vehicle's manual for any additional information.

WARRANTY

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end-user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship.

Registration Information
Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at https://www.evenflo.com/registerproduct

Pros & Cons

Pros

• Lightweight and durable frame
• Spacious storage basket
• Parent tray with two cup holders and a covered compartment
• One-hand fold design
• Multi-position reclining seat
• Canopy with peek-a-boo window

Cons

• The stroller may be too bulky for some users
• The car seat may not be suitable for premature infants

Customer Reviews

Customers who have purchased the Evenflo Epic 4 Stroller Travel System 54611770 have praised its durability, ease of use, and spacious storage basket. They have also appreciated the one-hand fold design and the multi-position reclining seat. However, some customers have mentioned that the stroller may be too bulky for some users, and that the car seat may not be suitable for premature infants.
