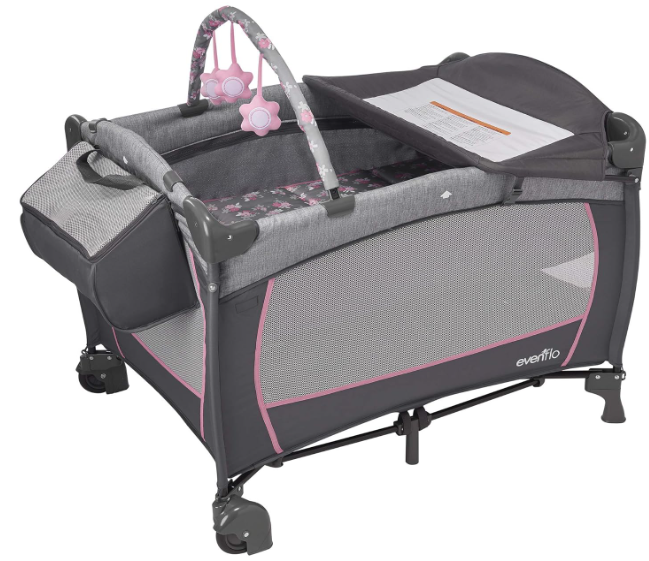

Introduction of Evenflo Portable BabySuite

Evenflo Portable BabySuite is a versatile and convenient baby gear that provides a safe and comfortable space for your baby, whether at home or on-the-go. This product includes a playard, a bassinet, and a changing station, making it a complete solution for your baby's needs. The estimated price of Evenflo Portable BabySuite is around $150 to $200, and it is now available in the market.

IDENTIFICATION OF PARTS

Detailed Specifications

Here are the key features of Evenflo Portable BabySuite

• Playard: The playard measures 42" L x 28" W x 30" H and has a reversible napper/changer that can be used for infants up to 15 lbs.
• Bassinet: The bassinet has a removable and machine-washable fabric and can be used for newborns up to 3 months or 15 lbs.
• Changing Station: The changing station is designed to provide a safe and comfortable changing surface for your baby and can support up to 20 lbs.
• Portability: The product is lightweight and has a compact fold design, making it easy to transport and store.
• Safety: The product has been tested and meets or exceeds all applicable safety standards.

Evenflo Portable BabySuite Assembly

IMPORTANT: Make sure you ALWAYS install the feet and wheel assemblies BEFORE setting up the playard.

1. Remove feet and wheel assemblies from plastic bag. Discard bag.



   Slide two wheel assemblies  onto both wheel bases O, as shown, until they snap into place with an audible click.
   Install two feet onto both foot bases, as shown, until they snap into place with an audible click.

2. Remove the playard from the carry bag. Unhook the two Velcro tabs e to remove the mattress pad.



3. Separate the corners to open the playard.



   Note: Do not push center of the playard floor down yet.

4. WARNING: To prevent injury or death, DO NOT allow child in product with SIDES DOWN. ALWAYS make sure sides are raised and all four rails are fully and securely locked by firmly pushing down on the center of each rail. Lift up both long top rails until they securely lock into place.



   Note: The floor must stay up, as shown, so the rails will lock properly. If the rails do not lock into place, pull up on the strap handle, draw the feet together, and try to lock the rails again.
   Lift up both short top rails until they securely lock into place.



5. Push down on the center of the floor until it locks into a flat position.



6. IMPORTANT: NEVER use the playard without the mattress pad securely installed on either the playard floor or in the bassinet. Place mattress pad on the floor of the playard, cushion side up. Insert the six mattress straps  through the slots in the floor of the playard and fasten them to the Velcro tabs on the underside of the playard floor. Make sure all six straps are properly secured to the playard and the Velcro tabs are facing downward, securing the pad to the playard floor.



Note: The mattress pad must always be used with the cushion side up.

SETTING UP THE BASSINET

IMPORTANT: NEVER use the playard without the mattress pad securely installed on either the playard floor or in the bassinet.

• Place the bassinet on the floor with tubes and sleeves facing





• WARNING
  To prevent injury or death, NEVER set up the bassinet with the child in the playard. ALWAYS remove the child from the playard before installing the bassinet.
  Place the bassinet into the playard with the tube assemblies on top, as shown.
  Make sure all four hooks are securely attached to the rails, as shown.



• Fasten the bassinet to the playard using the zipper on each side of the bassinet. Cover each zipper tab with its flap O, as shown.



USING THE CONVERTIBLE PLAYMAT

1. Install the changer to the playard by placing each hook securely onto each corner post, as shown.



2. WARNING
   FALL HAZARD: To prevent death or serious injury, NEVER leave child unattended. ALWAYS keep child within arm's reach.
   NEVER leave changing table in place when child is in the playard. To avoid serious injury or death, ALWAYS remove the changer from the playard after each use.
   Fasten both snaps O on the flap to the playard B.



3. NEVER leave changing table in place when child is in the playard.



   • To avoid serious injury or death, ALWAYS remove the changer from the playard after each use.
   • Fasten the security strap on each side of the changer 0.

   • Remove child from changer change o then sungach over the end of the playard, as shown.



Not available on all models

Insert the two Velcro straps through the openings in the playard or carrying bag, fold over, and fasten the Velcro straps.

ATTACHING THE TOY BAR

• Possible entanglement injury. Keep out of baby's reach. Remove toy bar trom playard when baby begins to push up on hands and knees.
• Recommended for babies from birth to five months of age. This toy bar is intended for visual stimulation and is not intended to be grasped by the baby.
• Use ONLY toys that are supplied with toy bar. DO NOT add toys to the toy bar that are not supplied by nor intended for use on toy bar by manufacturer.
• ALWAYS securely attach toys to the toy bar if there is Velcro on it. Check toy bar, toys, and connections frequently.
• DO NOT add additional strings, straps, or other components to the playard or toy bar.
• DO NOT use toy bar if it is damaged, broken, or missing parts.

If Velcro is on the toy bar A, attach the toys B to it, as shown. Securely clip the toy bar A onto each side of the playard, as shown. Make sure the toy bar is attached securely by giving it a firm tug.

FOLDING UP THE PLAYARD

1. Gather the sides of the playard together.




   Note: If the sides do not easily fold up, repeat steps 1 and 2, making sure all hinges are unlocked.

2. To disassemble the bassinet O, disconnect the tubes , as shown.



   Note: The tubes cannot be removed from the bassinet.

3. Remove toy bar, if necessary, and the mattress pad and/or bassinet.



   Lift up on the strap handle  attached to the center of the floor until the feet  are drawn together.

4. Find the center of one of the top rails O. Lift up and squeeze hard on the fold lock release button inside the padded rail to release the lock.



   Make sure that both sides of the rail unlock properly, then push the rail downward and fold completely. Repeat for the remaining three top rails.
   Note: If the top rail will not fold completely, lift up on the strap handle attached to the center of the floor and try again.

5. Place the mattress pad on the floor, cushion side up.



6. Place the folded playard on the mattress pad, as shown. Then place the bassinet assembly on top of the folded playard, followed by the changer and toy bar assemblies, ring 0, fold over, and fasten. Repeat for the other "D" ring.



7. Place the playard and accessories in the carry bag.
   Soft console can be attached to carry bag to store and transport baby care supplies. See page 7 for attaching the soft console to the carry bag.



WARNING
FAILURE TO FOLLOW THESE WARNINGS AND THE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

• Always provide the supervision necessary for the continued safety of your child. NEVER leave child unattended.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and discard packing material before using this product.
• To avoid injury, the playard must be erected and fully assembled prior to use. Top rails must be locked in the upright position, and the mattress pad must be used.
• DO NOT attach additional items to the playard that are not approved by Evenflo. Items not tested with this playard could injure the child.
• Child can become entrapped and die when improvised netting or covers are placed on top of product. NEVER add such items to confine child in product.
• When using Evenflo approved optional attachments, make sure all clips and snaps are securely fastened.
• Use only for a child who is unable to climb out of the playard and who is less than 35 inches (89 cm) tall and weighs 30 lbs (13.6 kg) or less. Discontinue use of the playard when the child is able to climb out or reaches the height of 35 inches (89 cm) or weight of 30 lbs (13.6 kg).
• When child is able to pull up to a standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out.
• DO NOT use with more than one child at a time.
• NEVER use this product if there are any missing or damaged parts, including, but not limited to, loose or missing fasteners, loose joints, or torn mesh/fabric. Check before assembly and periodically during use.
•     INFANTS CAN SUFFOCATE:
  • In gaps between a mattress too small or too thick and product sides
  • On soft bedding
  • NEVER add a mattress, pillow, comforter, or padding. Use ONLY mattress/pad provided by the manufacturer.
  • NEVER use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
  • NEVER LEAVE infant in playard with the SIDES DOWN. Make sure sides are raised and in locked position whenever child is in the product.DO NOT use a water mattress with the playard.
• TO AVOID STRANGULATION
  • DO NOT suspend strings or toys over the product other than those provided with this product.
  • DO NOT place playard in any location where there are cords such as window blind cords, drapes, phone cords, etc.
  • DO NOT place items with a string, such as hood strings or pacifier cords, around your child’s neck.
  • DO NOT refinish tubing of playard frame.
  • DO NOT allow unit to get wet.
  • DISCONTINUE USE immediately if any parts are damaged or missing.

IMPORTANT INFORMATION

Child Requirements

1. Maximum height: 35 inches (89 cm)
2. Maximum weight: 30 lbs (13.6 kg)
3. Maximum weight for Bassinet: 15 lbs (6.8 kg)
4. Maximum weight for Changer: 25 lbs (11.3 kg)
5. Maximum weight for Soft Console: 2 lbs (0.9 kg)

IMPORTANT: It is very important to use and assemble the playard according to these instructions. DO NOT USE YOUR PLAYARD UNTIL YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS.
IMPORTANT: Make sure you ALWAYS install the feet and wheel assemblies BEFORE setting up the playard.

Description

Evenflo Portable BabySuite is a versatile and convenient baby gear that offers a safe and comfortable space for your baby. The playard provides a spacious area for your baby to play, sleep, and relax, while the bassinet and changing station offer additional features that make caring for your baby easier. The product is lightweight and has a compact fold design, making it easy to transport and store. With its reversible napper/changer, you can use it as a bassinet or changing station, depending on your baby's needs. The product is also designed with safety in mind, meeting or exceeding all applicable safety standards.

Evenflo Care & Maintenance

TO CLEAN FABRIC AND VINYL

• Clean spills and stains on cloth, vinyl, or plastic surfaces with cold water and mild soap. Air dry.
• DO NOT machine wash or tumble dry accessories with plastic backing or vinyl coverings. These parts may be damaged by detergents and heat.
• The storage bag may be machine washed. Machine wash separately in cold water, delicate cycle. NO chlorine bleach. Air dry.
• DO NOT tumble dry. DO NOT iron or dry clean.

TO CLEAN AND MAINTAIN FRAME

• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.
• An occasional drop of vegetable oil may reduce wear on moving parts.

LIMITED WARRANTY
For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user ("Purchaser") this Product (including any accessories) against defects in material or workmanship. Evenflo's sole obligation under this express limited warranty shall be, at Evenflo's option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Troubleshooting of Evenflo Portable BabySuite

Here are some common problems and solutions for Evenflo Portable BabySuite

• Problem: The product is difficult to assemble.
• Solution: Make sure to follow the instructions carefully and lay out all the parts before starting the assembly process. If you still encounter issues, contact Evenflo's customer support for assistance.
• Problem: The product is wobbly or unstable.
• Solution: Make sure that all the legs are fully extended and locked into place. If the product is still unstable, check for any damaged or missing parts and contact Evenflo's customer support for assistance.
• Problem: The product's fabric is difficult to clean.
• Solution: The product's fabric is machine-washable, so you can remove it and wash it in cold water with mild detergent. Hang it to dry or use a low-heat setting in the dryer. Avoid using bleach or fabric softener, as they may damage the fabric.

Pros & Cons

Pros

• Versatile and convenient baby gear
• Safe and comfortable space for your baby
• Lightweight and portable
• Easy to assemble and clean
• Affordable price

Cons

• May not be suitable for larger babies
• Some parts may be difficult to assemble
• The product's fabric may wear out quickly

Customer Reviews about Evenflo Portable BabySuite

Here are some common customer reviews and complaints for Evenflo Portable BabySuite:

• Many customers love the product's versatility and convenience, as it provides a safe and comfortable space for their baby at home or on-the-go.
• Some customers complain that the product's fabric is not durable and wears out quickly, especially with frequent use.
• Other customers mention that some parts are difficult to assemble, but they appreciate the product's affordability and safety features.
