Introduction

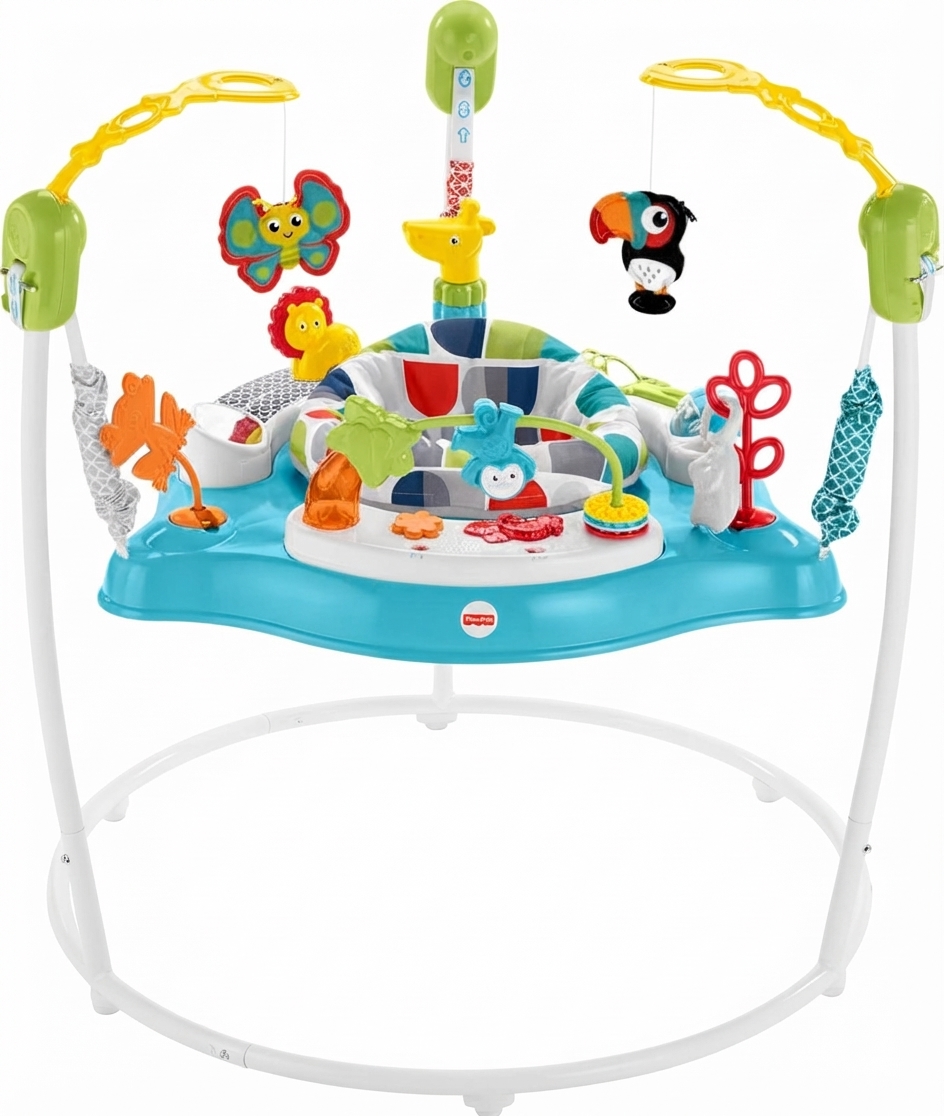

The Fisher-Price Baby Bouncer Climbers FVC13 is a versatile and entertaining baby gear that combines a bouncer and a climber in one. It is designed to provide a safe and comfortable place for babies to play, bounce, and climb as they develop their motor skills. The estimated price of the FVC13 model is around $100, and it was launched in 2021.

Parts

Detailed Specifications

The Baby Bouncer Climbers FVC13 has the following key features:

• Suitable for babies from 4 months to toddlers up to 25 lbs
• Combines a bouncer and a climber in one
• Three adjustable height positions for the climber
• Removable and machine-washable seat cover
• Bouncer vibration mode with two-speed settings
• Interactive toys and activities on the climber
• Sturdy and stable frame
• Easy to assemble and fold for storage

Description

The Fisher-Price Baby Bouncer Climbers FVC13 is a unique and engaging baby gear that grows with your child. The bouncer mode provides a cozy and soothing spot for babies to relax and play, with a vibration mode that can be adjusted to two speeds. The climber mode offers a fun and stimulating environment for toddlers to explore and develop their gross motor skills, with three adjustable height positions that can be customized to their ability level. The FVC13 model also features interactive toys and activities on the climber, such as a sliding bead bar, a peek-a-boo window, and a light-up bird button, that can help promote sensory and cognitive development. The removable and machine-washable seat cover makes cleaning easy and convenient, and the sturdy and stable frame ensures safety and durability.

Assembly

1. While pressing the button on a base tube, insert it into another base tube. Continue to slide it until you hear a “click”.



2. While pressing the button on the base tube assembly, insert it the remaining base tube. Continue to slide it until you hear a “click”.



3. While pressing the button on the free end of the base tube assembly, insert it into the remaining free end of the assembly. Continue to slide the base tube until you hear a “click”.



4. Hint: You may want to install batteries inside the electronic toy before completing this  assembly step. Please refer to the Battery Installation section.
   Insert and “snap” the electronic toy into the frame.



5. Hint: You may need the help of another adult with this assembly step.
   While pressing a button on a frame tube, insert into an upright base tube. Continue to slide the frame tube into the base tube until you hear a “click”. Pull up on the frame tube to be sure it is secure.
   Repeat this procedure to assemble the two remaining frame tubes to the base tubes.



6. Position the seat pad with the red tabs toward you and the seat ring with the instructional labels toward you.
   Hint: The seat pad can only be assembled to the seat ring one way. First, assemble the red tabs on the seat pad to the peg below each instructional label.
   Align the red tabs on the seat pad to the pegs below each instructional label on the seat ring. "Snap" the tabs to the pegs.
   "Snap" tabs on the side of the pad to the matching pegs.



7. Turn the seat ring around so that the front faces you.
   "Snap" the remaining four tabs on the seat pad to the pegs on the seat ring.



8. Insert and “snap” the seat into the frame.
   First, turn the seat to see if it moves freely. Then, pull up on the seat to be sure it's attached to the frame. If the seat does not move freely or you can remove it, you have not assembled it correctly. Remove the seat from the frame completely and try again.



9. Insert and "snap" the frog teether, giraffe toy and link tree. The giraffe toy has a larger base and fits only into one of the sockets.
   Hint: These toys are removable. Squeeze the tabs on the base of the toy and lift.
   Hook the elephant toy's trunk to the link tree.



10. Insert and "snap" the hanging toys into the slots in the hubs.



Battery Installation

• Loosen the screw in the battery compartment door with a Phillips screwdriver and remove the battery compartment door.
• Insert three AA (LR6) alkaline batteries into the battery compartment.
• Replace the battery compartment door and tighten the screw.
• If the electronic toy product begins to operate erratically, you may need to reset the electronics. Slide the power/volume switch off and then back on.
• When sounds or lights become faint or stop, it’s time for an adult to replace batteries.

Disposal: Protect the environment by not disposing of this product or any batteries with household waste. This symbol indicates that this product shall not be treated as household waste. Check your local authority for recycling advice and facilities.

Setup and Use

WARNING: To prevent serious injury or death:

• Use only for a child who is able to hold head upright unassisted and who is not able to walk or climb out of product.
• Never leave child unattended. Always keep child in view while in product.
• Never use near steps, pools, hot surfaces or areas that may be hazardous to a child. Product may move during use.
• To avoid tip-over, place product on a flat, level surface.
• Strings can cause strangulation! DO NOT place items with a string around child’s neck, such as hood strings or pacifier cords. DO NOT suspend strings over product or attach strings to toys.

Seat Height Adjustment

IMPORTANT! This product is shipped with the straps in the middle height position . Please be sure you adjust the height of the frame for your child.

Place your child in the seat. Check the distance between your baby’s feet and the floor. Your child’s toes should touch the floor (without bouncing). If your child’s entire foot is touching the floor or the toes are not touching the floor at all, adjust the height to any of three positions (one for the smallest child and three for the tallest child).

Seat Height Adjustment

1. While feeding the strap into the slot on the inside of the hub, pull the strap on the outside of the hub.
2. Lower the strap bar.
3. Pull the strap out or feed it into the hub to the desired height .
4. Fit the strap bar into the desired slot in the strap.
   Hint: You may need to feed the strap, from the inside of the hub, to be able to insert the strap bar into the slot in the strap.
5. Lift the strap bar to secure the strap in place.
6. Pull the strap on the inside of the hub.

IMPORTANT! Repeat this process to adjust the height for the other two straps. Make sure all three straps are adjusted to the same height.

Jump on in & explore around with music, lights & sounds!

• Slide the power/volume switch to:
  • ON with low volume
  • ON with high volume
  • OFF
• Slide the mode switch to:
  • Baby's jumping activates lights, sounds and music! Press the flower button to hear tunes.
  • Baby's jumping activates approximately 20 minutes of lights, sounds and music. Press the flower button to hear sound effects!

Fisher-Price Baby Bouncer Climbers FVC13 Care

• The seat pad is machine washable. Wash it separately in cold water on the gentle cycle. Do not use bleach. Tumble dry separately on low heat and remove promptly.

• The frame, seat ring and toys may be wiped clean using a mild cleaning solution and damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove soap residue. Do not immerse the electronic toy.



Remove the Seat and Pad
Lift the frame. While pressing a tab on the seat, pull the seat from the frame. Turn the seat over. Pull to remove the seat tabs from the pegs on the seat. Remove the pad.

Replace the Seat and Pad

Please follow the Assembly instructions.

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable.
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely. Do not dispose of product in a fire. The batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removeable, rechargeable batteries are used, they are only to be charged under adult supervision.

Fisher-Price Baby Bouncer Climbers FVC13 Important Safeguards

• Read all instructions before assembly and use of the product.
• Keep instructions for future use.
• Adult assembly is required. No tools needed for assembly.
• Requires three AA (LR6) alkaline batteries (not included) for electronic toy. Tool needed to install batteries: Phillips screwdriver.
• Product features and decorations may vary from photos.

WARNING: To prevent serious injury or death:

• Use only for a child who is able to hold head upright unassisted and who is not able to walk or climb out of product.
• Never leave child unattended. Always keep child in view while in product.
• Never use near steps, pools, hot surfaces or areas that may be hazardous to a child. Product may move during use.
• To avoid tip-over, place product on a flat, level surface.
• Strings can cause strangulation! DO NOT place items with a string around child’s neck, such as hood strings or pacifier cords. DO NOT suspend strings over product or attach strings to toys.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. Do not use the product if any parts are missing, damaged or broken. Do not use accessories or replacement parts other than those approved by the manufacturer.

This product may come with replacement warning labels which you can apply over the factory applied warning label if English is not your primary language. Select the warning label with the appropriate language for you.

Troubleshooting

Here are some common problems and solutions for the Fisher-Price Baby Bouncer Climbers FVC13:

• Problem: The bouncer seat is not vibrating.
• Solution: Check if the vibration unit is properly plugged in and the power switch is turned on. Make sure the speed setting is not set to "off".
• Problem: The climber frame is wobbly or unstable.
• Solution: Make sure the climber frame is inserted and locked securely into the bouncer frame. Check if the height position of the climber is adjusted correctly to your baby's ability level.
• Problem: The seat cover is difficult to remove or install.
• Solution: Make sure you follow the instructions carefully and align the velcro tabs and zippers correctly. Be gentle when pulling or stretching the fabric.

Pros & Cons

Pros

• Versatile and grows with your baby
• Interactive and stimulating toys and activities
• Comfortable and soothing bouncer mode
• Easy to assemble and clean
• Sturdy and stable frame

Cons

• Bulky and not portable
• Requires battery for vibration mode
• May not be suitable for babies with mobility issues
• Interactive toys may distract some babies from sleeping
