Introduction

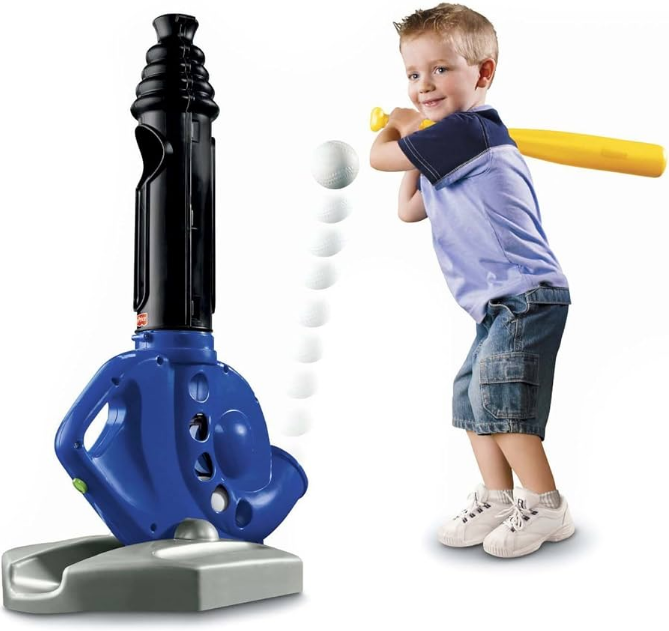

Fisher-Price Triple Hit Baseball BMM05 is an engaging and interactive baseball toy designed to help young children develop their batting skills. Ideal for ages 3 and up, this versatile toy features three play modes—Tee Ball, Pop-Up Pitch, and Automatic Pitch—offering progressive challenges to enhance hand-eye coordination and motor skills. With adjustable height settings and a durable build, it provides a fun and safe way for kids to practice baseball both indoors and outdoors.

Detailed Specifications

The Fisher-Price Triple Hit Baseball BMM05 comes with the following features:

• Three baseballs on a constant loop, allowing children to practice their swing again and again.
• A built-in scoreboard that keeps track of the number of hits.
• An adjustable volume control, allowing parents to set the level of noise they're comfortable with.
• A stable base that ensures the toy doesn't move around while in use.
• Requires 3 AA batteries (not included).

Assembled Parts

SHOWN ACTUAL SIZE

Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws.

Assembly of Fisher-Price Triple Hit Baseball BMM05

1. Insert and snap the tabs into the slots in the ball chute pieces.



2. Insert two screws into the pegs at the top of the ball chute and tighten.



3. Align the tabs at the bottom of the ball chute with the grooves in the opening of the motor.

   • Turn the ball chute clockwise to lock it into position. Pull up on the ball chute to be sure it is secure.



4. At an angle, insert the closed peg on the motor into the hole in the base.



5. Lower the motor so that the open peg fits into the groove in the base.

   • Insert the battery plug into the socket in the motor, as shown.



     • Hint: If there isn’t a socket inside the peg, the motor/chute assembly is backwards in the base. Remove the motor/chute assembly and turn it around. Repeat assembly step 4.
6. Fit the cover over the peg and plug and into the base.

   • Insert two screws into the cover and tighten.



Description

The Fisher-Price Triple Hit Baseball BMM05 is a terrific toy for baseball fans and beginners. A continual loop of three baseballs lets kids practice their swing as often as they desire. The built-in scoreboard is engaging and competitive, pushing kids to progress. The adjustable volume control lets parents manage the toy's sounds, which is clever.

Battery Installation

1. Loosen the screws in the battery compartment door and remove the door.
2. Insert four D (LR20) alkaline batteries.
   • Hint: We recommend using alkaline batteries for longer battery life.
3. Replace the battery compartment door and tighten the screws.
4. If this product begins to operate erratically, you may need to reset the electronics. Slide the power switch off and then back on.
5. When ball release distance is greatly reduced or if the time between ball releases is long, it’s time for an adult to replace the batteries.
6. Protect the environment by not disposing of this product with household waste (2012/19/EU). Check your local authority for recycling advice and facilities.

Battery Safety Information

In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage:

• Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove exhausted batteries from the product. Dispose of batteries safely. Do not dispose of this product in a fire. The batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be charged under adult supervision.

Batting Practice Tips

• We recommend using this toy outdoors, on a non-paved surface, such as grass or sand. Do not use outdoors when it is raining or there is wet grass. The balls will not launch properly.
• When your child is batting, be sure there are no other children in or around the batting area, including directly in front of the unit.
• This toy is designed for use with foam balls and plastic bat (both included). It is not designed for use with wooden or metal bats, or regulation baseballs or softballs. Use of these balls and bats may damage this toy.
• Hold the bat with hands together, about one or two inches (2.5 - 5 cm) from the knob at the end of the bat.
  • Right-handed batters should have the right hand on top of the left hand.
  • Left-handed batters should have the left hand on top of the right hand.
• Stand with feet about shoulder width apart.
• When hitting from the tee or pop-up, stand close enough to hit the ball comfortably. Look at the ball and swing with a smooth and level motion.
• When hitting a pitched ball, stand no further than 10 feet (three meters) from the unit.
• Keep your eyes on the ball as it pops up or as it is being pitched.
• Swing with a smooth and level motion.

Beginner

Hit from the tee!

• Position the ball chute completely upright.
• Place the ball on top of the ball chute.
• Your little player can hit the ball off the tee.

Rookie

Balls pop up automatically to hit.

• Push the ball chute all the way back.
• Load the balls into the side of the ball chute.
• Locate the power switch on the top of the motor. Slide the power switch ON .
• Press the automatic ball button and get ready.
• Stand about two feet (0.6 meters) to the side of the base.
• Hit the ball when it pops up!

All-Star

Hit the pitched ball from up to 10 feet (three meters) away!

• Position the ball chute completely upright.
• Load the balls into the side of the ball chute.
• Locate the power switch on the top of the motor. Slide the power switch ON .
• Press the automatic ball button and get ready.
• Stand up to 10 feet (three meters) away from the front of the base.
• Watch the pitch and hit a home run!

Hint: After pressing the automatic ball button, the motor shoots three balls and automatically turns off. Load the balls into the side of the ball chute and press the automatic ball button to shoot the balls again!

Setup Guide

Setting up the Fisher-Price Triple Hit Baseball BMM05 is easy:

1. Insert 3 AA batteries into the battery compartment.
2. Place the toy on a flat surface.
3. Press the power button to turn it on.
4. Adjust the volume to your desired level.
5. Let your child start swinging at the baseballs.

Storage

• Load the balls into the side of the ball chute.
• Fit the bat in the circular opening in the base.

Fisher-Price Triple Hit Baseball BMM05 Care

• Do not leave this product outdoors. Store this product indoors when not in use.
• This product may be wiped clean using a mild cleaning solution and a damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue. Do not immerse this product.
• Periodically inspect this product for wear and damage and replace any cracked parts.

WARNING

• To prevent injury from balls and moving parts:
  • Keep face, head and hands away from the ball release.
  • Use only the balls included.
  • Never put other objects in the ball chute.
• Do not aim at eyes or face. Only use projectiles supplied with this toy. Do not fire at point-blank range.

Troubleshooting

• If the toy is not turning on, check that the batteries are inserted correctly and that they have enough power.
• If the baseballs are not looping correctly, make sure that the toy is on a flat surface and that the batteries have enough power.
• If the scoreboard is not keeping track of the number of hits, make sure that the toy is turned on and that the batteries have enough power.

Pros & Cons

Pros

• Provides endless entertainment for children who love baseball.
• Helps children develop hand-eye coordination and motor skills.
• Features a built-in scoreboard that adds a sense of competition.
• Adjustable volume control allows parents to control the level of noise.

Cons

• Requires 3 AA batteries (not included).
• May be too simple for older children who are looking for a more challenging baseball toy.

Customer Reviews

Customers have praised the Fisher-Price Triple Hit Baseball BMM05 for its simplicity and effectiveness in helping children develop their baseball skills. Some have noted that the toy is more suitable for younger children, while others have expressed disappointment that it doesn't come with batteries.
