Four E-S Scientific Vortex Mixer MI0101002 Instruction Guide

Content
Introduction

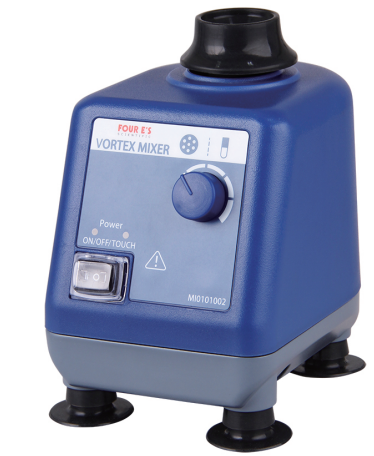

The Four E-S Scientific Vortex Mixer MI0101002 is a powerful and versatile lab tool, designed for efficient and consistent sample mixing. With a variable speed control, users can easily adjust the vortexing speed to suit their specific needs. This durable and reliable mixer is perfect for a wide range of applications, including DNA/RNA extraction, protein precipitation, and general sample preparation. The estimated price for this product is around $1,500 USD, and it was launched in the first quarter of 2021.
Four E-S Scientific Vortex Mixer MI0101002 Accessories

Application of Accessories
Accessory | Adjustable Speed Model 400-3000rpm | |||
Touch Mode Continuous Mode | ||||
High Speed | Low Speed | High Speed | Low Speed | |
MI0101002-13 | Y | Y | Y | Y |
MI0101002-31+ MI0101002-14 |
Y |
Y | ||
MI0101002-32+ MI0101002-14 |
Y |
Y | ||
MI0101002-33+ MI0101002-14 |
Y |
Y | ||
MI0101002-34+ MI0101002-14 |
Y |
Y | ||
MI0101002-35+ MI0101002-14 |
Y |
Y | ||
MI0101002-36+ MI0101002-14+ |
Y |
Y |
Specifications
Model | MI0101002 |
Operation mode | Continuous/touch operation |
Type of movement | Orbital |
Orbital diameter | 6mm |
Speed range | 0-3000rpm |
Permissible ambient temperature | 5 - 40°C |
Permissible relative humidity | <80% |
Protection class according to DIN EN 60529 | IP 21 |
Voltage | 200 - 240 / 115 / 100V compatible |
Frequency | 50/60 Hz |
Power | 36W |
Motor rating input | 30W |
Motor rating output | 15W |
Dimensions (W x H x D) | 107x146x166mm |
Weight | 2.62kg |
Description
The Four E-S Scientific Vortex Mixer MI0101002 is a high-quality and dependable lab tool, perfect for a wide range of applications. Its variable speed control allows users to adjust the vortexing speed to suit their specific needs, providing consistent and efficient mixing. The durable and corrosion-resistant materials ensure a long lifespan and reliable operation, even with heavy use. The adjustable platform makes it easy to accommodate multiple sample sizes, while the compact and lightweight design allows for easy portability. The digital display and intuitive interface make it easy to adjust the speed control, and safety features such as overload protection and auto shut-off provide peace of mind.
Operator’s Control

- Mode Indicator Light
- Mode Switch
- Adapter
- Speed Control Knob
Item Description | Function |
---|---|
Mode Indicator Light | The left one is for continuous working mode and the right one is for touch working mode. |
Mode Switch | It’s the continuous mode when the switch is on the left side and the left mode LED is light. It’s the touch mode when the switch is on the right side and the right mode LED is light. |
Adapter | Different adapters are used for various mixing applications. |
Speed Setting | To set the speed in the range of 0-3000rpm/min by horizontal rotation of the knob. |
Four E-S Scientific Vortex Mixer MI0101002 Changing attachment

Using insert

Unpacking
- Unpacking
- Please unpack the device carefully
- In the case of any damage a fact report must be set immediately (post, rail or forwarder)
- Delivery scope
- Vortex Mixer
- Plug-in power supply
- Operating instructions
Correct Use
- Use
- For mixing liquids
- Touch mode for single test tubes
- Continuous mode for single or several vessels
- Range of use
- Laboratories / Schools / Pharmacies
- This device is suitable for use in all areas except
- Residential areas
- Areas that are connected directly to low-voltage supply network that also supplies residential areas.
The safety of the user cannot be guaranteed if the appliance is operated with accessories that are not supplied or recommended by the manufacturer or if the appliance is operated improperly contrary to the manufacturer’s specifications.
Installation
- Assemble the adapters per the Figure 2 and 3.
- Choose the working mode by the mode switch
- Set the speed by the knob
- Run the mixer by “Run/Stop” in the continuous mode and by pressing the adapter by single test tube in the touch mode.
- Turn off the mixer by putting the mode switch on middle gear.
Maintenance
The appliance is maintenance-free.
Cleaning
Only use cleansing agents which have been recommended by us.
Substance | Cleaning Solution |
---|---|
Dyes | Isopropyl alcohol |
Construction Materials | Water containing tenside / isopropyl alcohol |
Cosmetics | Water containing tenside / isopropyl alcohol |
Foodstuffs | Water containing tenside |
Fuels | Water containing tenside |
Use to remove
Do not allow moisture to get into the appliance when cleaning.
- Wear protective gloves during cleaning the devices
- Before using another than recommended method for cleaning or decontamination, the user must ascertain with us that this method does not destroy the instrument.
- The rubber of the attachments’ pads is a natural product, so talcum can discharge .Clean the rubber pad with glycerin.
Spare parts order
When ordering spare parts, please give:
- Machine type
- Manufacturing number, see type plate
Repair
In case that the device has to be cleaned, please be free from any material which may constitute a health hazard. If you require services, please return the appliance in its original packing.
Setup Guide of Four E-S Scientific Vortex Mixer MI0101002
- Place the Vortex Mixer on a stable and level surface.
- Plug the power cord into a nearby electrical outlet.
- Place your samples on the adjustable platform, making sure they are secure and stable.
- Use the digital display to set the desired vortexing speed, and press the start button to begin mixing.
- Monitor the samples during mixing to ensure proper mixing and to avoid any potential issues.
- After mixing, press the stop button and remove the samples from the platform.
Safety Instructions
For your protection
- Read the operating instructions in full before starting up and follow the safety instructions.
- Keep the operating instructions in a place where they can be accessed by everyone.
- Ensure that only trained staff work with the appliance.
- Follow the safety instructions, guidelines, occupational health and safety and accident prevention regulations.
- Socket must be earthed (protective ground contact).
- Wear your personal protective equipment in accordance with the hazard category of the media to be processed. Otherwise there is a risk from:
- Splashing liquids
- Projectile parts
- Body parts ,hair ,clothing and jewellery getting caught.
WARNING
- Keep hand/arm vibration to a minimum (Directive 2002/44/EC) When operated manually:
- Keep the sample container as vertical as possible.
- Only exert the minimum pressure necessary for the mixing process.
- Use attachments for multiple samples when there is a large number of samples.
- Set up the appliance in a spacious area on an even, stable, clean, non-slip, dry and fireproof surface.
- The feet of the appliance must be clean and undamaged.
- Position the knob at the left stop before starting up. Gradually Increase the speed.
- If the shaking movement of the appliance increases (resonance), reduce the speed or pass through the critical phase as quickly as possible.
- Reduce the speed if
- The medium splashes out of the vessel because the speed is too high
- The appliance is not running smoothly
- The container moves on the base plate
- Firmly secure the accessories and vessels in place, otherwise shaking vessels could be damaged or projected out.
- Check the appliance and accessories beforehand for damage each time you use them. Do not use damaged components.
- Position one single shaking vessel in the centre and several shaking vessels so that they are evenly spread out.
- The appliance is not suitable for manual operation.
- Sharp edged vessels cause wear debris on the attachments.
- Beware of hazards due to:
- flammable materials
- glass breakage as a result of mechanical shaking power.
- Only process media that will not react dangerously to the extra energy produced through processing. This also applies to any extra energy produced in other ways, e.g. through light irradiation.
- Do not operate the appliance in explosive atmospheres, with hazardous substances or under water.
- Safe operation is only guaranteed with the accessories described in the “Accessories” chapter.
- Always disconnect the plug before fitting accessories.
- The appliance starts up again automatically following a cut in the power supply.
- The appliance may heat up when in use.
To the protection of the equipment
- The voltage stated on the nameplate must correspond to the mains voltage.
- Protect the appliance and accessories from bumps and impacts.
- The appliance may only be opened by experts.
Four E-S Scientific Vortex Mixer MI0101002 Troubleshooting
- If the Vortex Mixer stops working, check to make sure it is properly plugged in and that the power outlet is working.
- If the samples are not mixing properly, check to make sure they are securely placed on the adjustable platform and that the vortexing speed is set correctly.
- If the Vortex Mixer becomes hot to the touch, unplug it immediately and let it cool down before continuing use.
- Always use caution when handling samples and the Vortex Mixer, and follow all safety guidelines and precautions.
Warranty
In accordance with our warranty conditions, the warranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the machine directly to our factory, enclosing the delivery invoice and giving reasons for the claim. You will be liable for freight costs.
Pros & Cons
Pros
- Variable speed control for efficient mixing
- Durable and corrosion-resistant materials for long lifespan
- Adjustable platform for multiple sample sizes
- Compact and lightweight design for easy portability
Cons
- May be more expensive than some other Vortex Mixers on the market
- May not be suitable for very large sample sizes
Customer Reviews about Four E-S Scientific Vortex Mixer MI0101002
Many customers have praised the Four E-S Scientific Vortex Mixer MI0101002 for its consistent and efficient mixing, durable construction, and user-friendly interface. Some have noted that it is more expensive than some other Vortex Mixers, but most agree that the added features and benefits are well worth the investment. The adjustable platform and digital display have also been highlighted as convenient and useful features.
Faqs
What types of operation modes are available on the Four E-S Scientific Vortex Mixer MI0101002, and how do they benefit different applications?
What is the speed range of the Four E-S Scientific Vortex Mixer MI0101002, and how can it be adjusted to suit various mixing needs?
When was the Four E-S Scientific Vortex Mixer MI0101002 released?
What is the orbital diameter of the Four E-S Scientific Vortex Mixer MI0101002, and how does it impact the mixing process?
What are the permissible ambient temperature and relative humidity levels for operating the Four E-S Scientific Vortex Mixer MI0101002?
What is the protection class of the Four E-S Scientific Vortex Mixer MI0101002 according to DIN EN 60529, and what does it signify?
What type of movement does the Four E-S Scientific Vortex Mixer MI0101002 utilize, and why is this movement effective for mixing?
How does the continuous operation mode on the Four E-S Scientific Vortex Mixer MI0101002 work, and what are its typical applications?
How does the touch operation mode on the Four E-S Scientific Vortex Mixer MI0101002 function, and when is it most useful?
What is the warranty on the Four E-S Scientific Vortex Mixer MI0101002?
