Garmin Dēzl 760 GPS Navigator

Introduction

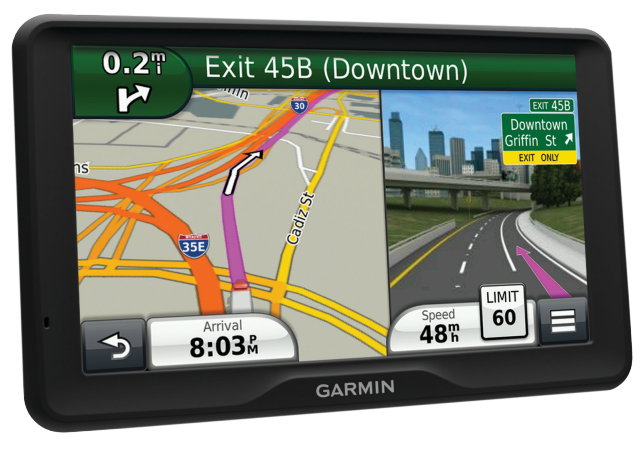

The Garmin Dēzl 760 GPS Navigator is a premium trucking and RV navigation device designed for professional drivers who demand reliability, safety, and advanced features. With its large 7-inch high-resolution touchscreen, the Dēzl 760 delivers crystal-clear maps and intuitive controls, making it ideal for long-haul truckers, delivery drivers, and RV enthusiasts. This device stands out with its specialized truck routing, voice-activated navigation, and real-time traffic updates, ensuring you always take the safest and most efficient route.

Key benefits include free lifetime map updates, active lane guidance, and customizable truck profiles that factor in vehicle dimensions, weight, and height. The Dēzl 760 also offers Bluetooth hands-free calling, text-to-speech directions, and a built-in speaker for clear audio prompts. Whether you’re navigating city streets or rural highways, this GPS navigator helps you avoid delays, reduce travel time, and arrive on schedule.

Targeted at commercial truck drivers and RV owners, the Garmin Dēzl 760 GPS Navigator is available new and certified refurbished, with prices typically ranging from $250 to $350. It’s widely available through major electronics retailers and online stores, making it accessible for drivers seeking a top-tier navigation solution.

Specifications: Garmin Dēzl 760 GPS Navigator

• Screen Size: 7-inch high-resolution touchscreen
• Map Coverage: USA, Canada, Mexico
• Map Updates: Free lifetime updates
• Points of Interest: Over 10 million
• Bluetooth: Hands-free calling and audio streaming
• Text-to-Speech: Voice-prompted turn-by-turn directions
• Voice Control: Hands-free navigation commands
• Traffic Information: Real-time traffic alerts via FM-TMC
• Active Lane Guidance: Visual lane assistance for complex interchanges
• Custom Truck Routing: Input vehicle dimensions, weight, and height
• Battery Life: Up to 2 hours
• Warranty: 1-year parts and labor
• Memory: microSD card slot for expandable storage

Compared to similar truck GPS devices, the Garmin Dēzl 760 offers superior map detail, more robust truck-specific features, and a larger, easier-to-read display.

Getting Started

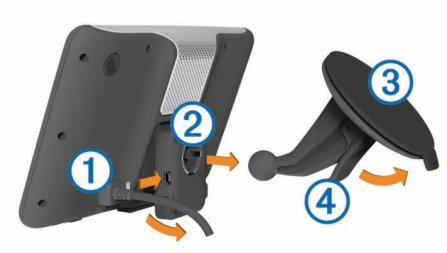

Connecting the Device to Vehicle Power

WARNING
This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

Before you use your device on battery power, you should charge it.

1. Plug the vehicle power cable • into the USB port on the mount.
2. Press the mount ® onto the suction cup ® until it snaps into place.
3. Press the suction cup to the windshield, and flip the lever @ back toward the windshield.

4. Fit the tab on the top of the mount into the slot on the back of the device.



5. Press the bottom of the mount into the device until it clicks.
6. Plug the other end of the vehicle power cable into a power outlet in your vehicle.
7. If necessary, connect the external antenna to the traffic receiver and secure it to the windshield using the suction cups.

About myDashboard
Use myDashboard to register your device, check for software and map updates, access product manuals and support, and more.

Setting Up myDashboard

1. Plug the small end of the USB cable into the port on the device.
2. Plug the larger end of the USB cable into an available USB port on your computer.
3. Go to the dashboard.
4. Follow the on-screen instructions.

Registering the Device

1. Open myDashboard (page 1).
2. Click Register Now.
3. Follow the on-screen instructions.

Updating the Software

1. Open myDashboard (page 1).
2. Under Software Updates, click Update Now.
3. Follow the on-screen instructions. nüMaps Guarantee™
   If you register the device at my. Garmin,, within 90 days of acquiring satellites while driving, your device could be eligible for one free map update. Go to Garmin. For terms and conditions.

Updating Maps

1. Open myDashboard (page 1).
2. Register the device (page 1).
3. Select an option:
4. Under Map Updates, click Update Now.
5. If a free map update is no longer available, click Buy Now.
6. Follow the on-screen instructions.

Lifetime Subscriptions

• Some models include subscriptions to lifetime features. For more information, go to .garmin.
• LT: This model includes a lifetime traffic subscription and a traffic receiver.
• LM: This model includes a nüMaps Lifetime™ subscription, which provides quarterly map updates for the useful life of your device. For terms and conditions, go to. garmin
• LMT: This model includes a nüMaps Lifetime subscription, a lifetime traffic subscription, and a traffic receiver.

Activating Lifetime Maps

1. Go to.garmin/lifetimeupdater.
2. Follow the on-screen instructions.

NOTE: If you register the device, you can receive e-mail notifications when a map update is available (page 1).

Entering a Truck or RV Profile

WARNING
Entering your vehicle profile characteristics does not guarantee that your vehicle's characteristics will be accounted for in all route suggestions or that you will receive the warning icons in all cases. Limitations may exist in the map data such that your device cannot account for these restrictions or road conditions in all cases. Always defer to all posted road signs and road conditions when making driving decisions.

1. Select Settings > Truck Profile.
2. Select Truck or RV.
3. Select $.
4. Follow the on-screen prompts.

Turning Off the Device

1. Hold the Power key
   NOTE: If you hold the Power key for less than 5 seconds, the device enters sleep mode (page 2).
2. Select Off.

Resetting the Device

• You can reset your device if it stops functioning.
• Hold the Power key for 10 seconds.

About Sleep Mode

• Use sleep mode to conserve battery power when your device is not in use. Sleep mode uses very little power, and a battery charge lasts for weeks when your device is in sleep mode.
• Entering Sleep Mode
• Press the Power key.
• Exiting Sleep Mode
• While the device is in sleep mode, press the Power key.

Adjusting the Screen Brightness

1. Select Settings > Display > Brightness.
2. Use the slider bar to adjust the brightness.

Adjusting the Volume

1. Select Volume.
2. Select an option:
   1. Use the slider bar to adjust the volume.
   2. Select & to mute the device.
   3. Select 4 > Audio Mixer and use the slider bars to adjust the volume for navigation prompts, phone, and media.

About Automatic Volume

• On devices with hands-free calling, automatic volume allows the device to adjust the volume level based on the background noise in the vehicle (page 9).
• Automatic volume control lowers the volume of the device when background noise is low and raises the volume level when background noise increases.

Enabling Automatic Volume

• Your device can increase or decrease the volume automatically based on the level of background noise.
• Select Volume > 3 > Automatic Volume.

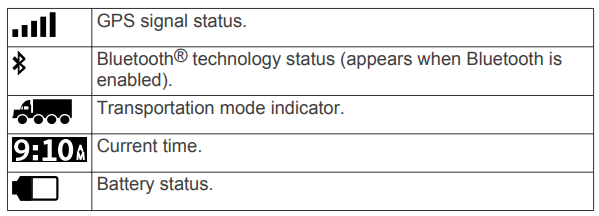

Status Bar Icons

• The status bar is located at the top of the main menu. The status bar icons display information about features on the device. You can select some icons to change settings or view additional information.

Acquiring GPS Signals
To navigate with your device, you must acquire satellites. „nil in the status bar indicates the satellite signal strength (see page 2). Acquiring satellites can take several minutes.

1. Turn on the device.
2. If necessary, go outdoors to an open area, away from tall buildings and trees.
3. If necessary, hold ..ill to view detailed information about the satellite signals.
4. Viewing GPS Signal Status
5. Hold ill for three seconds.

Transportation Modes

Routing and navigation are calculated differently based on your transportation mode.

Choosing a Transportation Mode
Select
Battery Information
After the device is connected to power, it begins to charge. The status bar indicates the status of the internal battery.
To increase the accuracy of the battery gauge, you should fully
discharge the battery and then fully charge it. Do not unplug the device until it is fully charged.
Setting the Time

NOTE: You can select Automatic to automatically set the time each time the device is powered on.

1. Select
2. Scroll the numbers to set the time.

Troubleshooting: Garmin Dēzl 760 GPS Navigator

• The suction cup will not stay on my windshield
  1. Clean the suction cup and windshield with rubbing alcohol.
  2. Dry with a clean, dry cloth.
  3. Mount the suction cup (page 1).

 The device does not charge in my vehicle

• Check the fuse in the vehicle power cable (page 19).
• Verify the vehicle is turned on and is supplying power to the power outlet.
• Verify the interior temperature of the vehicle is between 32° and 113°F (between 0* and 45°C).
• Verify that the fuse is not broken in the vehicle's power outlet.
• The battery gauge does not seem accurate
  1. Allow the device to fully discharge.
  2. Fully charge the device without interrupting the charge cycle. My device does not appear as a removable drive on my computer.
• On most Windows computers, the device connects using Media Transfer Protocol (MTP). In MTP mode, the device appears as i portable device and not as a removable drive. MTP mode is supported by Windows 7, Windows Vista®, and Windows XP
• Service Pack 3 with Windows Media Player 10. My device does not appear as a portable device on my computer
• On Mac computers and some Windows computers, the device connects using USB mass storage mode. In USB mass storage mode, the device appears as a removable drive or volume, and not as a portable device. Windows versions before

Windows XP Service Pack 3 uses USB mass storage mode.

• My device does not appear as either a portable device or a removable drive, or as a volume on my computer.
  1. Disconnect the USB cable from your computer.
  2. Turn off the device.
  3. Plug the USB cable into a USB port on your computer and into your device.
• TIP: Your device should be connected directly to a USB port on your computer and not to a USB hub.

The device automatically turns on and goes into MTP mode or USB mass storage mode. A picture of the device connected to a computer appears on the device screen. My phone will not connect to the deviceSelect Settings > Bluetooth.

• The Bluetooth field must be set to Enabled.
• Enable Bluetooth wireless technology on your phone and bring your phone within 33 feet (10 m) of the device.

Pros & Cons: Garmin Dēzl 760 GPS Navigator

Pros

• Large, easy-to-read 7-inch touchscreen
• Free lifetime map updates
• Advanced truck-specific routing and lane guidance
• Real-time traffic and delay alerts
• Voice-activated navigation for hands-free control
• Bluetooth hands-free calling and audio streaming

Cons

• Battery life is limited to 2 hours
• Some users report occasional map update delays
• Higher price point compared to basic GPS devices

The Garmin Dēzl 760 GPS Navigator offers excellent value for professional truckers and RV owners, with robust features and reliable performance that justify its price.

Customer Reviews: Garmin Dēzl 760 GPS Navigator

Users consistently praise the Garmin Dēzl 760 GPS Navigator for its accurate routing, clear voice prompts, and real-time traffic updates. Many highlight the device’s ability to reduce travel time and improve delivery schedules. Common complaints include the short battery life and occasional map update issues. The device holds an average rating of 4.5 stars, with reviewers recommending it for truckers and RV owners seeking a reliable, feature-rich navigation solution.

“The traffic and delay feature is spot-on. Arrival times are accurate, and voice commands work flawlessly.” – Verified Buyer.

“Great for long-haul trucking. The large screen makes navigation easy, even in low light.” – Professional Driver.
