Garmin Venu SQ Fitness & Sport Smartwatch

Introduction

The Garmin Venu SQ is a versatile and feature-rich smartwatch designed for both fitness enthusiasts and everyday users. Launched in 2021, this smartwatch is part of Garmin's Venu series, known for its robust health and fitness tracking capabilities. The Venu SQ is available in various colors and sizes, including a 40mm and 45mm model, catering to different wrist sizes and personal preferences.

This smartwatch is intended for a wide range of activities, from casual wear to intense athletic training. It integrates advanced health monitoring features such as heart rate tracking, sleep monitoring, and stress tracking. The estimated price of the Garmin Venu SQ starts around $200, making it a competitive option in the mid-range smartwatch market.

With its AMOLED display and sleek design, the Venu SQ offers a blend of style and functionality. It supports various fitness apps and can be paired with both Android and iOS devices, ensuring compatibility across different ecosystems.

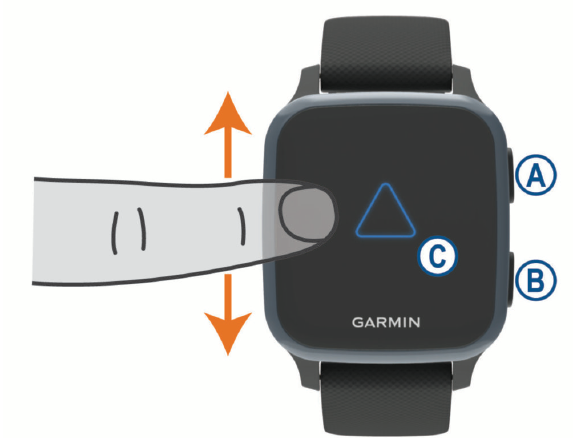

Overview

• Action button:
  • Press to turn on the device.
  • Press to start and stop the activity timer.
  • Hold for 2 seconds to view the controls menu, including device power.
  • Hold until you feel 3 vibrations to launch the assistance feature (Safety and Tracking Features, page 11).
• Back (Menu) button:
  • Press to return to the previous screen, except during an activity.
  • During an activity, press to mark a new lap, start a new set or pose, or advance to the next stage of a workout.
  • Hold to view a menu of device settings and options for the current screen.
• Touchscreen:
  • Swipe up or down to scroll through glances, features, and menus.
  • Tap to select.
  • Double-tap to wake the device.
  • Swipe right to return to the previous screen.
  • During an activity, swipe right to view the watch face and glances.
  • From the watch face, swipe right to view the shortcut feature.

Specifications

• Battery type: Rechargeable, built-in lithium-polymer battery
• Battery life: Up to 6 days in smartwatch mode
• Operating temperature range: From -20º to 60ºC (from -4º to 140ºF)
• Charging temperature range: From 0º to 45ºC (from 32º to 113ºF)
• Venu Sq wireless frequency: 2.4 GHz @ -0.82 dBm nominal
• Venu Sq Music wireless frequency: 2.4 GHz @ 9.98 dBm nominal
• Water rating: Swim, 5 ATM 1

Icons
A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected.

Device Information

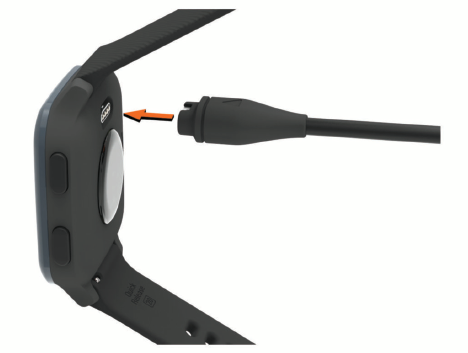

Charging the Watch

WARNING: This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTICE: To prevent corrosion, thoroughly clean and dry the contacts and the surrounding area before charging or connecting to a computer. Refer to the cleaning instructions (Device Care, page 50).

1. Plug the small end of the USB cable into the charging port on your watch.



2. Plug the large end of the USB cable into a USB charging port.  The watch displays the current battery charge level.

Product Updates

Your watch automatically checks for updates when connected to Bluetooth or Wi‑Fi. You can manually check for updates from the system settings (System Settings, page 43).On your computer, install Garmin Express (www.garmin.com/express). On your phone, install the Garmin Connect app.

This provides easy access to these services for Garmin devices:

• Software updates
• Course updates
• Data uploads to Garmin Connect
• Product registration

Updating the Software Using the Garmin Connect App
Before you can update your watch software using the Garmin Connect app, you must have a Garmin Connect account, and you must pair the watch with a compatible phone (Pairing Your Smartphone, page 3). Sync your watch with the Garmin Connect app (Using the Garmin Connect App, page 37).
When new software is available, the Garmin Connect app automatically sends the update to your watch. The update is applied when you are not actively using the watch. When the update is complete, your watch restarts.

Updating the Software Using Garmin Express
Before you can update your watch software, you must download and install the Garmin Express application and add your watch (Using Garmin Connect on Your Computer, page 37).

1. Connect the watch to your computer using the USB cable.
   When new software is available, the Garmin Express application sends it to your watch.
2. After the Garmin Express application finishes sending the update, disconnect the watch from your computer.
   Your watch installs the update.

Viewing Watch Information

You can view the unit ID, software version, regulatory information, and license agreement.

1. From the watch face, hold .
2. Select System > About.

Viewing E-label Regulatory and Compliance Information
The label for this device is provided electronically. The e-label may provide regulatory information, such as identification numbers provided by the FCC or regional compliance markings, as well as applicable product and licensing information.

Hold B for 10 seconds.

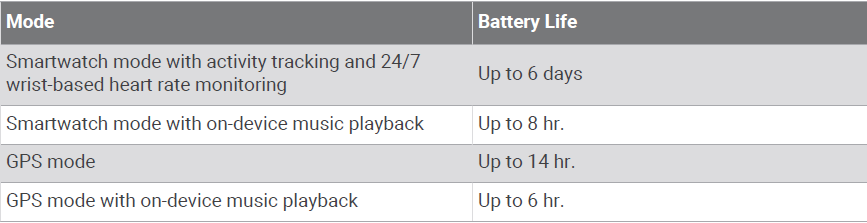

Battery Life Information

The actual battery life depends on the features enabled on your device, such as activity tracking, wrist-based heart rate, smartphone notifications, GPS, and connected sensors.

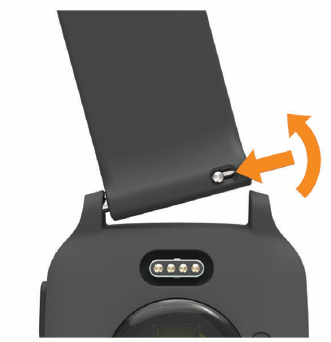

Changing the Bands

The device is compatible with 20 mm wide, standard, quick-release bands.

1. Slide the quick-release pin on the spring bar to remove the band.



2. Insert one side of the spring bar for the new band into the device.
3. Slide the quick-release pin, and align the spring bar with the opposite side of the device.
4. Repeat steps 1 through 3 to change the other band.

Activity Tracking
For more information about activity tracking accuracy, go to garmin.com/ataccuracy.

My step count does not seem accurate
If your step count does not seem accurate, you can try these tips.

• Wear the watch on your non-dominant wrist.
• Carry the watch in your pocket when pushing a stroller or an awn mower.
• Carry the watch in your pocket when actively using your hands or arms only.

NOTE: The watch may interpret some repetitive motions, such as washing dishes, folding laundry, or clapping your hands, as steps.

Improving the Accuracy of Intensity Minutes and Calories
You can improve the accuracy of these estimates by walking or running outside with a GPS for 15 minutes.

NOTE: After you calibrate the device for the first time, ! No longer appears in the My Day widget.

1. From the watch face, swipe to view the My Day widget.
2. Select !.
3. Follow the on-screen instructions.

Getting More Information

• Go to support.garmin.com for additional manuals, articles, and software updates.
• Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts.
• Go to www.garmin.com/ataccuracy.

This is not a medical device. The pulse oximeter feature is not available in all countries.support.garmin.com

Troubleshooting

Is my smartphone compatible with my device?
The Venu Sq device is compatible with smartphones using Bluetooth technology.

My headphones will not connect to the watch.
If your Bluetooth headphones were previously connected to your phone, they may connect to your phone automatically instead of connecting to your watch. You can try these tips.

• Turn off Bluetooth technology on your phone.
  Refer to the owner's manual for your phone for more information.
• Stay 10 m (33 ft.) away from your phone while connecting your headphones to your watch.
• Pair your headphones with your watch (Connecting Bluetooth Headphones, page 8).

My music cuts out,, or my headphones won't stay connected
When using a Venu Sq Music watch connected to Bluetooth headphones, the signal is strongest when there is a direct line of sight between the watch and the antenna on the headphones.

• If the signal passes through your body, you may experience signal loss or your headphones may become disconnected.
• If you wear your Venu Sq Music watch on your left wrist, you should make sure the headphone's Bluetooth antenna is on your left ear.
• Since headphones vary by model, you can try wearing the watch on your other wrist.
• If you are using metal or leather watch bands, you can switch to silicone watch bands to improve signal strength.

Maximizing Battery Life
You can do several things to extend the life of the battery.

• Reduce the display timeout (Customizing the Display Settings, page 45).
• Reduce the display brightness (Customizing the Display Settings, page 45).
• Turn off Bluetooth technology when you are not using connected features (Turning Off the Bluetooth Phone Connection, page 5).
• Turn off activity tracking (Activity Tracking Settings, page 18).
• Limit the smartphone notifications the device displays (Managing Notifications, page 5).
• Stop broadcasting heart rate data to paired Garmin devices (Broadcasting Heart Rate, page 14).
• Turn off wrist-based heart rate monitoring (Turning Off the Wrist-based Heart Rate Monitor, page 15).
• Turn off automatic pulse oximeter readings (Changing the Pulse Oximeter Tracking Mode, page 17).

Acquiring Satellite Signals
The watch may need a clear view of the sky to acquire satellite signals.

1. Go outdoors to an open area.
   The front of the watch should be oriented toward the sky.
2. Wait while the watch locates satellites.
   It may take 30 to 60 seconds to locate satellite signals.

Improving GPS Satellite Reception

• Frequently sync the device to your Garmin Connect account:
• Connect your device to a computer using the USB cable and the Garmin Express application.
• Sync your device to the Garmin Connect app using your Bluetooth-enabled smartphone.
• Connect your device to your Garmin Connect account using a Wi‑Fi wireless network.

While connected to your Garmin Connect account, the device downloads several days of satellite data, allowing it to quickly locate satellite signals.

• Take your device outside to an open area away from tall buildings and trees.
• Remain stationary for a few minutes.

Pros & Cons

Pros:

• Advanced health and fitness tracking features
• Vibrant AMOLED display
• Long battery life compared to other smartwatches
• Support for various fitness activities including, including swimming
• Compatible with both Android and iOS devices
• Stylish and comfortable design

Cons:

• No built-in Wi-Fi for direct internet connectivity
• Limited third-party app support compared to other smartwatches
• No built-in cellular connectivity option
• Music storage is limited compared to some competitors

Customer Reviews

Customers have praised the Garmin Venu SQ for its robust health tracking features and long battery life. Many users appreciate its stylish design and ease of use. However, some users have noted the lack of Wi-Fi connectivity and the limited app store as minor drawbacks.

Common complaints include occasional connectivity issues with smartphones and the need for more frequent software updates to fix bugs.
