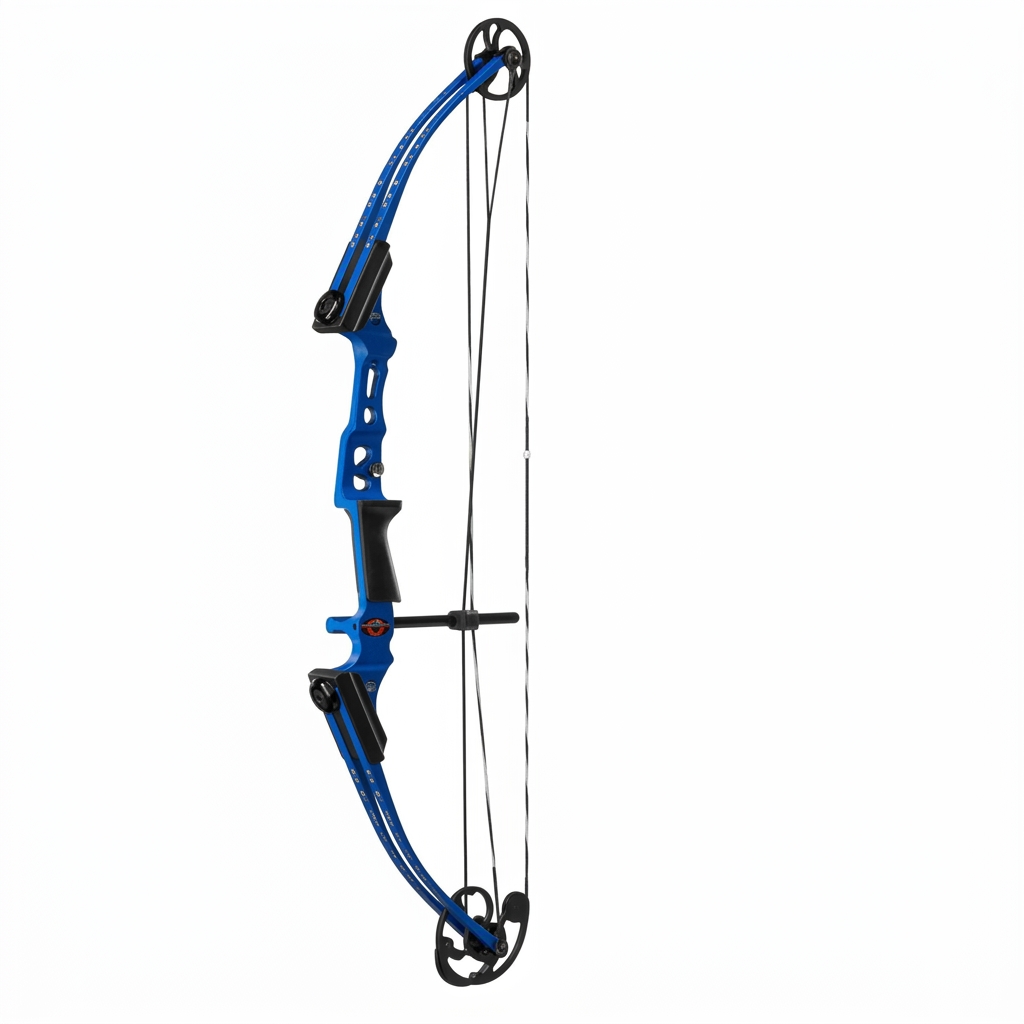

Introduction of Genesis Bow Mini Genesis

The Genesis Bow Mini Genesis is a compact and versatile bow that is perfect for both beginners and experienced archers. This bow has an estimated price range of $150 to $200 and is set to be launched in the summer of 2023. The Mini Genesis is a great option for those who are looking for a high-quality bow that is easy to use and transport.

What’s in this manual

• The fundamentals of archery
• The importance of safety
• Basic step-by-step shooting instructions
• Care and maintenance instructions
• Options for accessories

Detailed Specifications

• Draw weight: 10 to 20 lbs.
• Draw length: up to 30"
• Percent let-off: 0%
• Axle-to-axle length: 351/2"
• Brace height: 75/8"
• String length: 9413/16"
• Power cable length: 371/4"

Your Genesis Bow
The Genesis bow you purchased is different from other bows because it accommodates all draw lengths from 15” to 30”. This means that people of all sizes can shoot the same bow without adjustment. Made especially for the beginning archer, the Genesis bow takes little effort to draw and is very easy to shoot.
The Genesis riser is made from solid, lightweight, machined aluminum, and the limbs are formed from a high-strength, fiber-reinforced composite. It is a single-cam bow and is fitted with a high-tech bowstring and durable molded grip.

Genesis Bow Mini Genesis Genesis Features

• Riser
  The riser (handle section) on your Genesis bow is machined from 6061-T6 aluminum. This material is engineered to provide the Genesis bow with optimal balance while being both extremely durable and very lightweight.
• Idler Wheel
  The idler wheel is located on the upper limb of the bow. The main function of the idler wheel is to transfer stored energy from the bow limbs back through the string to the arrow in a smooth and rapid fashion. The bearings in the idler wheel are made of a very low-friction synthetic material which seldom requires lubrication.
• Limbs and Limb Bolts
  The limbs on your Genesis bow are attached to each end of the riser. They store the potential energy you put into the bow until the string is released.  At the moment of release, the stored potential energy is transformed into energy in motion, and the arrow is propelled toward the target.  The limb bolts attach the limbs to the riser and are also used to adjust the draw weight of your bow. Using a 3/16” hex wrench, the limb bolts can be turned in a counter clock-wise direction to decrease the poundage of the bow to a minimum of 10 lbs. Turning the limb bolts clockwise will return the bow to its maximum of 20 lbs.  One full turn equals approximately 1.4 lbs. of draw weight. The limb bolts on each limb should always be turned the same number of turns when adjusting bow poundage.
• Genesis Solo Cam System
  Your Genesis bow features single-cam design. The elliptical-shaped cam allows the bow to maintain the set poundage through-out the draw cycle. The extended solid arm on the cam cradles and guides the bow-string.  When the bowstring is released, the arm creates a flywheel effect, which results in a faster arrow while minimizing bow recoil.
• Grip
  The durable, molded grip on your Genesis bow is specially designed to fit the contours of your hand, providing both comfort and consistency.
• Arrow Rest
  Your Genesis bow comes with a flipper-style arrow rest (made by New Archery Products). The arrow rest is located just above the shelf portion of the riser. Our test-ing has shown that this rest is very durable and provides excellent shooting characteristics.
  • Note: If the flipper arm bends after repeated shots, simply bend the arm back to the original horizontal position.
• Bowstring
  We equip each Genesis bow with a high-strength, durable bowstring made from state-of-the-art materials. This bowstring provides superior performance, ensuring that the maximum amount of the bow’s stored energy is transferred to the arrow.
• Power Cable and Cable Guard
  The power cable is the second component of the bowstring assembly. It is anchored at the axle on the upper limb and wraps around the take-up track on the cam which is mounted on the lower limb.  The cable guard is the metal rod which sup-ports the sliding cable cage that keeps the cable slightly off to one side and out of the flight path of the arrow.
• Nocking Point
  Your bow is marked with a white string nock. Your arrow should be “nocked” (positioned on the string) just below this mark.

Mini Genesis Starts ‘em Younger!
Smaller, lighter version of original Genesis bow allows youngsters to shoot
Featuring the same revolutionary technology as the original Genesis bow, the Mini Genesis is scaled to fit even smaller-framed youngsters. Weighing only 2 pounds, and with adjustable draw weights of 6 to 12 pounds, the Mini Genesis fits even pre-schoolers who are ready for the unique thrills of archery.

Single-cam compound bow

• Draw weight: 6 lbs to 12 lbs
• Draw length: 14" to 25"
• Let-off: 0%
• Axle-to-axle length: 291/8"
• Brace height: 61/8"
• String length: 7711/16"
• Power cable length: 3013/16"

Mini Genesis Features

• Riser
  The riser (handle section) on your Genesis bow is machined from 6061-T6 aluminum. This material is engineered to provide the Genesis bow with optimal balance while being both extremely durable and very lightweight.
• Idler Wheel
  The idler wheel is located on the upper limb of the bow. The main function of the idler wheel is to transfer stored energy from the bow limbs back through the string to the arrow in a smooth and rapid fashion. The bearings in the idler wheel are made of a very low-friction synthetic material which seldom requires lubrication.
• Limbs and Limb Bolts
  The limbs on your Genesis bow are attached to each end of the riser. They store the potential energy you put into the bow until the string is released.  At the moment of release, the stored potential energy is transformed into energy in motion, and the arrow is propelled toward the target.  The limb bolts attach the limbs to the riser and are also used to adjust the draw weight of your bow. Using a 3/16” hex wrench, the limb bolts can be turned in a counter clock-wise direction to decrease the poundage of the bow to a minimum of 10 lbs. Turning the limb bolts clockwise will return the bow to its maximum of 20 lbs.  One full turn equals approximately 1.4 lbs. of draw weight. The limb bolts on each limb should always be turned the same number of turns when adjusting bow poundage.
• Genesis Solo Cam System
  Your Genesis bow features single-cam design. The elliptical-shaped cam allows the bow to maintain the set poundage through-out the draw cycle. The extended solid arm on the cam cradles and guides the bow-string.  When the bowstring is released, the arm creates a flywheel effect, which results in a faster arrow while minimizing bow recoil.
• Grip
  The durable, molded grip on your Genesis bow is specially designed to fit the contours of your hand, providing both comfort and consistency.
• Arrow Rest
  Your Genesis bow comes with a flipper-style arrow rest (made by New Archery Products). The arrow rest is located just above the shelf portion of the riser. Our test-ing has shown that this rest is very durable and provides excellent shooting characteristics.
  • Note: If the flipper arm bends after repeated shots, simply bend the arm back to the original horizontal position.
• Bowstring
  We equip each Genesis bow with a high-strength, durable bowstring made from state-of-the-art materials. This bowstring provides superior performance, ensuring that the maximum amount of the bow’s stored energy is transferred to the arrow.
• Power Cable and Cable Guard
  The power cable is the second component of the bowstring assembly. It is anchored at the axle on the upper limb and wraps around the take-up track on the cam which is mounted on the lower limb.  The cable guard is the metal rod which sup-ports the sliding cable cage that keeps the cable slightly off to one side and out of the flight path of the arrow.
• Nocking Point
  Your bow is marked with a white string nock. Your arrow should be “nocked” (positioned on the string) just below this mark.

WARNING! Make certain that arrows used are of proper length and stiffness for your bow’s draw weight and draw length (see  and follow your arrow manufacturer’s recommendations).

Introducing the Genesis Pro, a competition-quality bow with an adjustable draw stop that lets you customize your draw length!
Like the original Genesis bow, the Genesis Pro will fit virtually everyone, thanks to its zero let-off cam. But, the new GenesisTM Pro has an adjustable draw stop that provides the archer with a "solid wall" which makes shooting with a mechanical release aid easier.

Single-cam compound bow

• Draw weight: 15 lbs to 25 lbs
• Draw length: 15" to 30"
• Let-off: 0%
• Axle-to-axle length: 351/2"
• Brace height: 75/8"
• String length: 9413/16"
• Power cable length: 371/4"
• Draw stop: 181/2" - 30"

Genesis Pro Features

• Riser
  The riser (handle section) on your Genesis Pro bow is machined 6061-T6 aluminum. This material is engineered to provide the Genesis Pro with optimal balance while being both extremely durable and very lightweight.
• Larger centershot clearance area
  An expanded range of centershot adjustment accommodates many modern rests and allows for advanced bow tuning techniques.
  Note: The Genesis Pro does not include a rest. Choose a rest that suits your needs and shooting style.
• Idler Wheel
  The idler wheel is located on the upper limb of the bow. The main function of the idler wheel is to transfer stored energy from the bow limbs back through the string to the arrow in a smooth and rapid fashion. The bearings in the idler wheel are made of a very low-friction synthetic material which seldom requires lubrication.
• Limbs and Limb Bolts
  The limbs on your Genesis bow are attached to each end of the riser. They store the potential energy you put into the bow until the string is released.  At the moment of release, the stored potential energy is transformed into energy in motion, and the arrow is propelled toward the target.  The limb bolts attach the limbs to the riser and are also used to adjust the draw weight of your bow. Using a 3/16” hex wrench, the limb bolts can be turned in a counter clock-wise direction to decrease the poundage of the bow to a minimum of 10 lbs. Turning the limb bolts clockwise will return the bow to its maximum of 20 lbs.  One full turn equals approximately 1.4 lbs. of draw weight. The limb bolts on each limb should always be turned the same number of turns when adjusting bow poundage.
• Genesis Solo Cam System
  Your Genesis bow features single-cam design. The elliptical-shaped cam allows the bow to maintain the set poundage through-out the draw cycle. The extended solid arm on the cam cradles and guides the bow-string.  When the bowstring is released, the arm creates a flywheel effect, which results in a faster arrow while minimizing bow recoil.
• Grip
  The durable, molded grip on your Genesis bow is specially designed to fit the contours of your hand, providing both comfort and consistency.
• Arrow Rest
  Your Genesis bow comes with a flipper-style arrow rest (made by New Archery Products). The arrow rest is located just above the shelf portion of the riser. Our test-ing has shown that this rest is very durable and provides excellent shooting characteristics.
  • Note: If the flipper arm bends after repeated shots, simply bend the arm back to the original horizontal position.
• Bowstring
  We equip each Genesis bow with a high-strength, durable bowstring made from state-of-the-art materials. This bowstring provides superior performance, ensuring that the maximum amount of the bow’s stored energy is transferred to the arrow.
• Power Cable and Cable Guard
  The power cable is the second component of the bowstring assembly. It is anchored at the axle on the upper limb and wraps around the take-up track on the cam which is mounted on the lower limb.  The cable guard is the metal rod which sup-ports the sliding cable cage that keeps the cable slightly off to one side and out of the flight path of the arrow.
• Nocking Point
  Your bow is marked with a white string nock. Your arrow should be “nocked” (positioned on the string) just below this mark.

WARNING! Make certain that arrows used are of proper length and stiffness for your bow’s draw weight and draw length (see and follow your arrow manufacturer’s recommendations).

Learning to Shoot (Step-by-step Shooting Instructions)
The secret to consistent archery performance is repeatability. There are seven basic elements that must be practiced, and they make up what we call shooting form. We suggest that you visit your local pro shop to help guide you through your first shooting experience.  The following seven steps will lead you to the bull’s-eye.

1. Stance – Feet should be shoulder-width apart and at a right angle to the shooting line.

2. Nock the arrow – Arrows have three vanes; the odd-colored vane should always face away from the bow if you are using the factory arrow rest. Nock the arrow on the string below the nocking point.



3. Finger Placement – Touch your pinky to your thumb, expos- ing your three mid- dle fingers (much like a Boy Scout sign).  Place the string in the first joints of those three fingers below the arrow.



4. Anchor – After drawing, touch the string to your nose while placing your pointer finger in the corner of your smile.



5. Aim – Close your left eye (for a right-handed shooter – or your right eye, for a left-handed shooter), look down the arrow shaft with your aiming eye and align it with the target.

6. Release –Relax your grip on the string and let the bow fire the arrow.



7. Follow-through – Keep your arms up after releasing the arrow.

Upgrades and Options
Your Genesis bow is a purchase you can be proud of. Its quality and design makes it look and feel very much like the bows the professionals use! Your local pro shop can outfit you with possible upgrades for your Genesis bow in the future.

Description of Genesis Bow Mini Genesis

The Genesis Bow Mini Genesis is a draw-length-adjustable bow that is perfect for archers of all ages and skill levels. The bow features a lightweight and durable design, making it easy to transport and use in a variety of settings. The Mini Genesis has a draw weight range of 10-20 lbs and a draw length range of 15-30 inches, making it a versatile option for both young and experienced archers. The bow also features a 75% let-off, which makes it easier to hold and aim the bow for extended periods of time.

Accessories

Disclaimer
Failure to follow the recommendations and instruc-tions of Brennan Industries, Inc., and any privately labeled Genesis brand or any accessory manufactur-er could result in serious personal injury to yourself or others, death, or damage to property, the equipment, or accessories. By your use of the Genesis bow, you acknowledge that Brennan Industries, Inc., and any privately labeled Genesis brand shall not be liable for any injury or damage to person or property, equip-ment or accessories, by the user or others, resulting from or in any way related to the failure to follow such instructions and recommendations.

Arrows
Arrows are commonly made from one or more of the following materials: wood, aluminum, fiberglass or graphite composites. Aluminum, fiberglass and graphite arrows are the most popular because they can be made stronger and more consistent than the natural wood arrows.
Arrows are composed of four basic parts: a shaft, a head (also called a point), fletchings (feathers or vanes), and a nock. The shaft is the main part of the arrow, and all the other components are attached to it. The head is the heavy end of the arrow that is usually pointed, allowing the arrow to easily stick into the target. The fletchings, or vanes, are locat-ed toward the rear of the arrow and help to guide the arrow to the target. The fletchings, or vanes, are commonly mounted to the arrow shaft in a helical (slight spiral) fashion to make the arrow spin while in flight (much like a bullet). This stabilizes the arrow in flight so it flies straight. The nock, attached to the very rear of the arrow, keeps the arrow in contact with the bowstring during the shoot-ing process. This ensures that the arrow receives the maximum amount of the bow’s stored energy and that each arrow launch is consistent.

WARNING! Make certain that arrows used are of proper length and stiffness for your bow’s draw weight and draw length (see and follow your arrow manufacturer’s recommendations).
WARNING! Defective arrows are not safe to shoot.  Check your arrows for defects before shooting. Some defects to watch for are: bends, dents or cracks in the shaft; loose points; damaged vanes; and cracked, bent or
broken nocks.

Arrows come in many different sizes. The arrows generally shot from the Genesis bow are aluminum with the 1820 designa-tion and are 30" or 31" long. These arrows are capable of being shot by virtually any-one with the Genesis bow and they are very durable. For other arrows suitable for a particular Genesis shooter, check with your local retailer.

Sights
Bow sights come in a variety of configurations and styles. The most popular ones use light-gathering fiber optic pins. Adding a bow sight to your Genesis bow can improve your shooting accuracy almost instantly. However, it is important to note that when a sight is added to the bow, it lessens the bow’s versatility from shooter to shooter if the bow is shared by a family or group. Many factors affect proper sight placement: the way an individual grips the string, the distance from your anchor point to your eye, and even the way a person lines up the sight with the target – all affect the arrow’s impact point.
The majority of today’s archers utilize a bow sight on their own individual bow, but for the beginning archer, it is not absolutely necessary. There are shooters who do not use bow sights, and instead, choose to shoot “instinctively.” Instinctive shooting is simply concentrating on the spot that you want to hit while instinctively judging where to aim the arrow.

A third style of shooting is called “Bare Bow.” It consists of several different methods, one being the “gap system.”  In this system, the archer sights the target while making a mental picture of the tip of the arrow in relation to the target (called “the gap”), just prior to release of the arrow. Another method is to sight down the length of the arrow with the aiming eye; this is referred to as “shotgunning.”

Arrow Rests
Your Genesis bow comes equipped with a New Archery Products flipper rest.  Other rests are available that are adjustable  and have various other features. These rests should adapt easily to your Genesis bow and are available at your local pro shop. Your Genesis Pro does not come equipped with a rest to allow for rests with greater centershot adjustment.
Stabilizers
Stabilizers come in many shapes and sizes and are made from a variety of materials. The function of the stabilizer is to balance the bow in your hand, which helps to improve accuracy.
Targets
Targets are made of many different materials and come in many different shapes and sizes. Targets made from bales of straw or old cardboard boxes have been popular for years. Recently, archery targets have become more sophisticated. A number of traditional target shapes are available in foam. More recently, foam has been used to make targets that are shaped like deer or other animals and are called 3-dimensional targets. These  3-dimensional targets are often used by archers to prepare them for a hunt.

Miscellaneous Accessories

As you progress in the sport of archery, you will discover that there is a lot of equipment on the market that has been specifically designed to help the archer obtain better accuracy or more comfort while shooting. Here are a few items that may help you enjoy archery a bit more.

• Padded leather finger stalls or finger tab
  These devices afford the finger shooter protection while providing a smooth, consistent release of the bowstring.



• Mechanical shooting release aid
  These are hand-held devices that attach to the bowstring and are used to pull and release the bowstring in place of using one’s fingers directly on the string. The mechanical release aid reduces the strain on the drawing fingers and increases the consistency of the bowstring release, which usually results in increased accuracy.



• Quivers
  Quivers are devices that hold your arrows safely and securely and keep them close at hand. These can be worn by the shooter or can be attached directly to the bow.



• Arm guards
  These devices are worn on the shooter’s “bow” arm.  They protect the shooter from the bowstring should it contact the arm during a lapse in proper shooting form.



Practice Makes Perfect

As with any sport, to become really good at something, you must practice. The more often you practice, the better you will become. The better you become, the more fun you will have. And with practice, you will soon be hitting the center of the target with consistency, making your archery experience as rewarding as it is fun.

Factors That Affect Shooting Accuracy

When shooting an arrow, there are a num-ber of factors that you, as a beginning archer, must think about if you’re going to get that arrow into the bull’s-eye: Range, Gravity, Arrow Velocity and Trajectory.
Range
Range is the distance from your bow to the target, and it is often measured in yards. You’ll typically shoot at 10 or 20 yards, but may shoot longer distances as you become more proficient.  Accurate arrow placement requires accurate knowledge of “Range,” the distance to the target.

Gravity
Gravity is an invisible force that pulls every-thing toward the Earth (including arrows). To get your arrow to the center of the target before gravity pulls it to the ground, you must launch your arrow slightly above your straight line of sight. The arrow’s trajectory (path to the target) will be in the form of an arc. The distance to the target and the speed of the arrow determine the launch angle and the height of the arrow’s arc.

Trajectory
Trajectory is the path the arrow takes to the target. When you look at a target, your line of sight to the target is a straight line. However, when you shoot an arrow, the path your arrow takes to get to the target is a curved path or arc. Having a feel for, or knowing the trajectory (arched path) that your arrow will take, increases your ability to hit targets at varying ranges.

Trajectory is the actual path of the arrow.
Arrow Velocity
Arrow Velocity is the speed at which the arrow leaves the bowstring. Arrow velocity is most often expressed in units of “feet-per-second.” The arrow velocity is the main fac-tor in determining the arrow’s trajectory. If we also know the arrow’s weight, we can determine its kinetic energy or ability to penetrate a target. With the Genesis bow, the same arrow may be shot at different arrow velocities, depending on the draw length of the archer shooting the bow. Short draw lengths will result in lower arrow velocities and higher arched trajectories, while longer draw lengths result in higher ini-tial velocities and flatter trajectories.

1. A slower arrow will have a higher trajectory.
2. A faster arrow will have a flatter trajectory.
3. A slower arrow will have more arc.
4. A faster arrow will shoot flatter.

It All Comes Together
When range and arrow trajectory are calculated correctly, your arrow will arrive at the center of the target! And to hit the center of the target, your bow must be in good working condition. In the following pages we will  discuss the basics and the importance of proper  equipment care.

Where To Shoot
Where do you go to shoot your bow?Archery pro shops often have indoor ranges where you can shoot. For a small fee, you’re often allowed to shoot from a few hours to as much as an entire day. Finding a local archery club that sponsors an outdoor archery range would also be a good resource. Chances are good that there may even be a public shooting area or outdoor range near you.

Genesis Bow Mini Genesis Setup Guide

Setting up the Genesis Bow Mini Genesis is a simple and straightforward process. First, make sure to attach the bowstring to the bow using the provided string loops. Next, adjust the draw weight and draw length to your desired settings by following the instructions in the owner's manual. Once the bow is properly set up, you can begin shooting arrows by following these steps:

• Nock an arrow on the bowstring.
• Stand with your feet shoulder-width apart and your dominant foot slightly in front of the other.
• Grip the bow with your non-dominant hand, making sure to keep a relaxed grip.
• Draw the bowstring back to your anchor point (the point where your hand naturally rests when drawing the bowstring).
• Aim the bow and release the arrow.

Care For Your Bow

To keep your bow shooting straight and in good work-ing order, there are a few things you need to know.

Inspect Your Bow

• Inspect your bow before each shooting session! Worn or damaged parts could be dangerous.
• Check for any loose parts on sights, stabilizers, quivers, etc. and tighten before shooting.
• When inspecting, pay special
  attention to the bowstring and cables. If the bowstring is frayed or has broken strands, replace it immediately. If any of the protective servings are loose or have come undone, either have the string or cable re-served, or have it replaced prior to shooting.

WARNING! Do NOT expose the bow-string or cables to sharp edges or extreme heat sources of any kind.

Check the bow limbs, cam, and idler wheel for damage or wear.  If one of these items appears damaged in any way or is not working correctly, DO NOT SHOOT your bow. Take your bow to a qualified local pro shop to have it looked at by a trained professional.

Lubricate Your Bow & Bowstrings

1. Oil the axles of the cam and idler wheel every now and then with a drop of lightweight oil to keep them functioning smoothly. The bearings on the Genesis bow are self-lubricating, so the oil is only a precaution that coats the high-strength axles to prevent oxidation.

2. Lubricate your bowstring with beeswax or a commercial bowstring wax, which can be purchased at any archery pro shop. The wax keeps the individual strands lubricated and helps to reduce friction and wear, which prolongs the life of your string.



3. Check the arrow rest to make sure it is in good working order. If worn, replace the arrow rest. When replacing the rest, ensure that the flipper arm (which supports the arrow) is located below the (black) side pressure point of the rest and pivots freely in the direction of arrow travel.



Storage of Your Bow

• Store your bow properly when not in use. Keep it stored in a bow case that is specifically designed for your bow, or hang your bow by the riser in a horizontal position.
• Always place your bow on a bow rack manufactured specifically to temporarily store your bow.

WARNING! Do NOT expose any bow to extreme heat or prolonged damp conditions, or damage to the bow may result.

Genesis Bow Mini Genesis Troubleshooting

If you are experiencing issues with your Genesis Bow Mini Genesis, here are some common problems and solutions:

• Problem: The bowstring is difficult to pull back.
• Solution: Make sure that the draw weight is set to the correct setting for your strength level. Also, check to make sure that the bowstring is not frayed or damaged.
• Problem: The arrows are not flying straight.
• Solution: Make sure that the arrows are properly nocked and that the bow is being held steady when shooting.
• Problem: The bow is making strange noises.
• Solution: Make sure that all parts of the bow are properly aligned and that there are no loose or damaged parts.

Warranty

Every Genesis, Mini Genesis and Genesis Pro bow are warranted against defects in mate-rials and workmanship for one year from the date of purchase to the original owner. Included in this warranty are all bow parts, except: bowstring, power cable, cable slide, arrow rest, cam/idler bearings and cosmetic appearance (chips, dings, scratches) caused by normal use and wear. The bow will be repaired or replaced at solely our discretion. B

Pros & Cons about Genesis Bow Mini Genesis

Pros

• Compact and versatile design
• Draw-length-adjustable bow
• Lightweight and durable construction
• 75% let-off for easy aiming
• Affordable price range

Cons

• May not be suitable for experienced archers who require a higher draw weight
• Not suitable for hunting due to low draw weight
