Introduction

Thank you for purchasing an Artis Product. This UPS is designed to work with a personal computer and its peripherals

Introducing the Artis UPS Powersafe 1000VA ECO, a reliable and efficient uninterruptible power supply (UPS) system designed to protect your electronic devices from power outages, surges, and other electrical issues. With a 1000VA capacity, this UPS is ideal for home and small business use, providing power backup for computers, servers, networking equipment, and other critical devices. The Artis UPS Powersafe 1000VA ECO is competitively priced, making it an affordable solution for those looking to safeguard their electronic investments. The estimated launch date is set for Q2 2023.

Artis UPS BOX CONTENTS

• 1 x 1000VA Eco UPS
• 1 x User Manual

FEATURES

• Line interactive Design: Compact Size & Light weight
• Superior microprocessor control: Guarantees high reliability
• Automatic Voltage Regulator (AVR) for Boost and Buck: Guarantees Voltage stabilization
• Cold Start Function
• Auto Restart while AC Recovery
• Ac overload Protection
• Discharge, Overcharge and Overload Protection
• Generator compatible

PRODUCT OVERVIEW

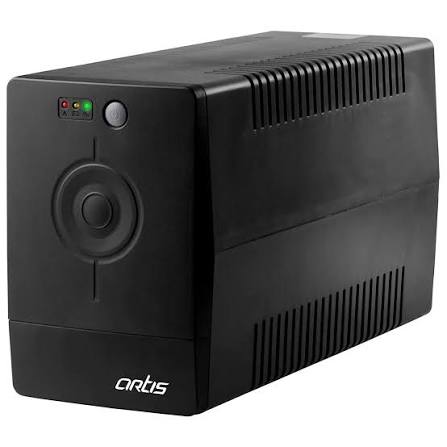

Front View

• A.    Power Button
• B.    AC mode: Green LED
• C.    Battery Mode: Yellow LED
• D.    Fault: Red LED

Back View

• A.    Output Receptacles
• B.    AC Input

INSTALLATION, INITIAL STARTUP & OPERATION

NOTE: Before installation, please inspect the unit  Be sure that nothing inside the package is damaged.

• PLACEMENT AND STORAGE CONDITIONS:
  Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please place the UPS away from any other devices or walls by at least 20 cm to avoid interference. Do NOT operate the UPS where the temperature and humidity is outside the specified limits. (Please check the specifications table  for the limitations.)
• CONNECTING TO A POWER SOURCE AND CHARGING
  Plug in the UPS AC input cord to the wall outlet For best results, please charge the battery for at least 4 hours before initial use. The unit charges its battery once it is connected to  a Wall outlet and is switched on.

• CONNECTING YOUR PC/PERIPHERALS/DEVICES
  Plug in your devices or PC to the to output receptacles on the rear panel of the UPS. Simply turn on the power switch of UPS unit, then the devices connected to the UPS will be protected by UPS unit.
  CAUTION: Never connect a laser printer or scanner to the UPS unit This may cause the damage of the unit



• TURNING THE UPS UNIT ON/OFF
  Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing the power switch again
• DC START FUNCTION
  DC start function enables the UPS to be started up when AC Power is not available and the battery of the UPS is fully charged. Simply press the power switch to turn on the UPS.

Description of Powersafe 1000VA

The Artis UPS Powersafe 1000VA ECO boasts a high- efficiency design that reduces energy consumption and lowers operating costs. Its tower form factor saves space and blends seamlessly into any environment. The built-in LCD screen displays essential information, such as battery level, load status, and runtime. This UPS system features pure sine wave output to ensure optimal performance and compatibility with sensitive electronic equipment. With a range of outlets and expansion slots, the Artis UPS Powersafe 1000VA ECO offers versatility and scalability to accommodate various power requirements.

IMPORTANT SAFETY INSTRUCTIONS

To safely operate this UPS please read and follow the below mentioned instructions carefully. Please read this user manual thoroughly before attempting to unpack, install and operate the UPS.  Please safely store this user manual for further reference if required.

• This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user replaceable parts. Please visit a authorized service center for repairs.
• To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)
• To reduce the risk of overheating the UPS, do not cover the UPS's cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.
• DO NOT attach non-computer-related items, such as medical equipment, life-support equipment, microwave ovens, or vacuum cleaners to UPS.
• Do not plug the UPS input into its own output.
• DO NOT allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-containing vessels on or near the unit.
• In the event of an emergency, press the OFF button and disconnect the power cord from the AC power supply to properly disable the UPS.
• DO NOT attach a power strip or surge suppressor to the UPS.
• With the installation of this equipment, it should be prevented that the sum of the leakage current of the UPS to the connected consumer exceeds 3.5mA.
• Attention hazardous through electric shock. Also with disconnection of this unit from the mains, hazardous voltage still may be accessible through supply from battery. The battery supply should be therefore disconnected in the plus and minus pole at the quick connectors of the battery when maintenance or service work inside the UPS is necessary.
• CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries.
• CAUTION! When replacing the batteries, use the same number and type of batteries.
• CAUTION! Internal battery voltage is 12VDC Sealed, lead-acid, 6-cell battery.
• CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes.
• CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
• CAUTION! A battery can present a risk of electric shock and high short circuit current.

Battery Replacement

The following precautions should be observed before replacing batteries:

1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting batteries terminal.

Troubleshooting of Artis UPS Powersafe 1000VA

Common issues with the Artis UPS Powersafe 1000VA ECO include:

• UPS not providing power during outages: Check the battery level and ensure the UPS is properly connected to the devices and power source.
• Overheating or unusual noises: Inspect the vents for blockages and ensure proper airflow. If the issue persists, contact Artis support.
• Software or firmware issues: Use the Artis UPS management software to update the firmware or reset the UPS to its default settings. Always follow safety guidelines when handling and troubleshooting the UPS.

Pros & Cons

Pros:

• High-efficiency design
• Pure sine wave output
• LCD screen for real-time monitoring
• Expandable and versatile
• Affordable price point

Cons:

• May require occasional maintenance
• Not suitable for larger-scale applications

Customer Reviews about 1000VA

Customers have praised the Artis UPS Powersafe 1000VA ECO for its compact design, user-friendly interface, and reliable performance during power outages. However, some users have reported issues with the UPS's noise levels and compatibility with specific devices. Despite these minor concerns, the Artis UPS Powersafe 1000VA ECO remains a popular choice for home and small business users seeking a dependable UPS solution.
