Troubleshooting: Artis BT72 Portable Wireless BT Speaker Setup Guide
Content
Introducing the Artis BT72 Portable Wireless BT Speaker
Experience high-quality sound on the go with the Portable Wireless BT Speaker. This compact and stylish speaker is perfect for anyone who wants to enjoy their music, podcasts, or audiobooks wherever they go. With a long-lasting battery life and easy Bluetooth pairing, the Artis BT72 is a must-have accessory for any music lover. The estimated price for the Artis BT72 is $79.99, and it is now available for purchase.
Product Specifications
| Specification | Detail |
|---|---|
| BT Version | 4.2 + EDR |
| Output | 10W RMS |
| Dimensions | 21.9 x 9.57 x 5.35 cm |
| Weight | 420g |
| Input modes | BT/USB/TF/AUX/FM |
| TWS Connectivity | Yes |
| Handsfree Calling | Yes |
| Charging time | 2 hours max |
| Playback time | 5 Hours max (Depending on volume level) |
| Input | 1A |
| Battery Capacity | 800mah |
| Memory Card / USB | 32 GB max |

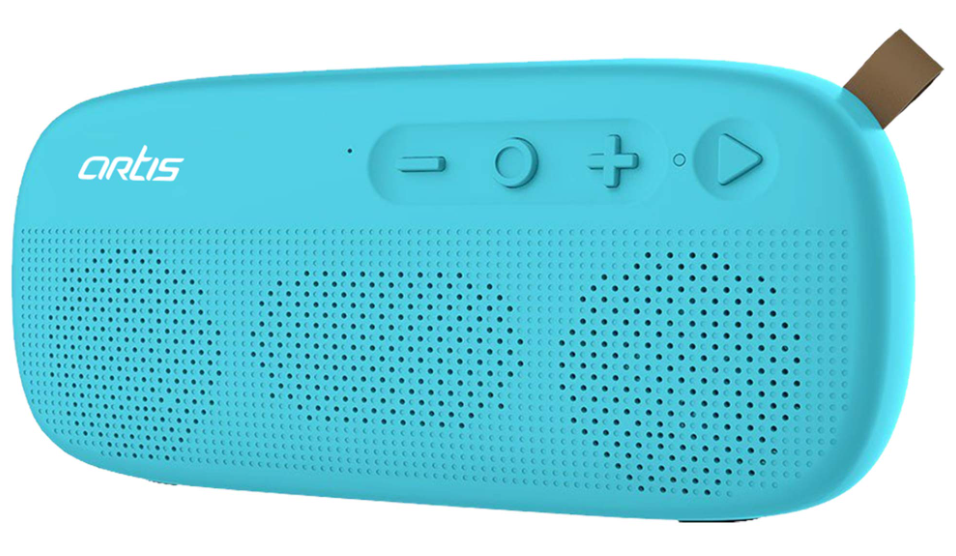

Product Details of Artis BT72 Portable Wireless BT Speaker
The Artis BT72 Portable Wireless BT Speaker is a lightweight and portable Bluetooth speaker that delivers clear and crisp sound. It has a sleek and modern design that fits in perfectly with any decor. The speaker is compatible with all Bluetooth-enabled devices, including smartphones, tablets, and laptops. The Artis BT72 also has a built-in microphone, allowing you to make hands-free calls with ease.
Description of Parts
- Short Press: Previous song ; Long Press: Volume low
- On/Off Switch ; Mode Key: BT / FM/ USB / TF Card / Aux in
- Short Press: Next Song ; Long Press: Volume high
- Short Press: Pause / Play / Pick up Call ; Double Press: TWS Connection mode
- LED Light indicator
- mic.
- USB pendrive slot
- Aux input
- Charging port
- Micro Sd Card / TF Card Slot
Instructions for Use
Charging the speaker
The speaker has a built in Re chargeable battery
Use the provided Micro USB charging cable to charge the speaker Plug in the charging cable in the micro usb port on the speaker Plug the other end in the usb port of a usb charger or a computer The Red LED will illuminate while it charges Once fully charged the LED will go off.
Important Reminders
- Please do not disassemble the speaker or try to open it for repairs
- This product uses lithium ion batteries, Please discard accordingly.
- Do not expose the product to rain , humidity or direct sun light
- In FM mode please connect the Micro USB Charging cable to act as a antenna for reception
BT mode
Please insure that the input device is paired with the speaker to steam music wirelessly
Once paired, you can stream music / play music from your device
Setup Guide of Artis BT72
Setting up the Artis BT72 is simple and straightforward. To turn on the speaker, press and hold the power button until the LED light turns on. Then, go to your Bluetooth settings on your device and select "Artis BT72" to pair. Once paired, you can adjust the volume and control the music directly from your device or the speaker. To turn off the speaker, press and hold the power button until the LED light turns off.
Music Mode | Function | Operation buttons |
Playing music | Increase Volume | Long press+ key |
Playing music | Decrease Volume | Long press- key |
Playing music | Pause | Short press |
Pause | Play | Short press |
Playing music | Previous track | Short press- key |
Playing music | Next track | Short press+ key |
Hands-free calling
Please insure your phone is paired with the speaker via BT mode
Handsfree Mode | Function | Operation buttons |
Incoming Call | Answer incoming call | Short press |
Incoming Call | Reject incoming call | Long press |
Incoming Call | End the call | Short press |
ON theline | Increase Volume | Long press + key |
ON theline | Decrease Volume | Long press - key |
Standby mode & Connected to a device | Redial last number | Short pressKey |
TWS Connection
( True wireless stereo – connecting 2 same speakers to 1 input device)
- Turn on both speakers
- Double press the play / pause / call pick up button on any one of the 3 speakers and you will hear a “ding dong” sound.
- Both the speakers will then be connected to each other
- Search for Artis BT72 on your input device under BT connections
- Pair your input device by selecting the Speaker model no Artis BT72
- Now you can enjoy your music output through 2 speakers
TF Card input / USB pen Drive input
- Turn on the speaker
- Insert the Memory card or the USB pen drive
- A voice prompt will be heard
- Speaker will automatically start playing the songs/tracks
NOTE: all files need to be in the root folder of the input pen drive or memory card
FM Radio
- Turn on the speaker
- Insert the micro usb charging cable in to the charging port
- This cable serves as an antenna for the speaker
- Short press the mode button till you are in FM mode
- To auto scan radio stations short press the play / pause button once
- It will take few moments to search all stations .
- Once scanned, all available stations will get stored automatically in the speakers memory
- Press – or + to skip the selected station
- Long press – or + to increase or decrease the volume
Aux Mode
- Turn on the speaker
- Use the aux cable to connect the input device and the speaker
- Select your songs on the source input device and play directly
- Long press – or + to increase or decrease the volume
- NOTE: In aux mode media is controlled through the source device and not speaker controls
Safety instructions
- Keep away from Sunlight on Hot objects
- Keep away from Humidity and Wet sources
- Keep in a dry location
- Keep away from children
- This is not a toy
Troubleshooting
| Problem | Possible cause | Solution |
|---|---|---|
| No sound output when power on | 1: No input sound source | 1: Connect a Line signal |
| 2: Volume knob in the lowest position | 2: Adjust volume | |
| 3: USB/SD no plug | 3: Insert a USB/SD Card | |
| Distortion of sound | 1: Volume too loud | 1: Turn volume lower |
| 2: Audio file error | 2: Check and change the audio file | |
| 3: Adjust Bass/Treble by "MENU" | ||
| and "Main volume" | ||
| No sound from the Microphone | 1: Microphone socket not fully plugged in | 1: Completely plug in the microphone socket |
| 2: Microphone switch is not on | 2: Power on microphone | |
| 3: Microphone volume in lowest | 3: Adjust microphone volume | |
| No sound from the USB/SD card | 1: Incompatible song format | 1: Songs format should be MP3/WMA |
| 2: Illegal operation causes failures | 2: Power off, then power on | |
| 3: USB/SD Card not inserted properly | 3: Insert USB/SD card properly | |
| Speaker has big noise | 1: Wired Microphone too close to the speaker | 1: Do not let the wired microphones |
| 2: Wired Microphone is switched on but not in use | head point at the speaker | |
| 3: Microphone volume too loud | 2: Turn off wired microphone | |
| 4: Mobile phone too close to the speaker | if not in use | |
| 5: Too close to the equipment which | 3: Reduce the microphone volume | |
| interferes with the speaker | 4: Keep mobile away from the | |
| speaker during calls | ||
| 5: Keep the speaker away from | ||
| other sources of interference | ||
| Blue-connect Failure | 1: Blue-connect Disconnected | 1: Find the right device Name or press |
| 2: Blue-connect Connected but no voice | "MENU" Button to restore factory settings. | |
| 3: Blue-connect effective distance too short | 2: Confirm if you are connected to the | |
| right device Name | ||
| 3: Try to keep away from barriers, | ||
| such as walls, glasses...etc |
Remarks: If the problem persists, please contact your dealer.
Electric products must not be put into household waste. Please bring them to a recycling center. Ask your local authorities or your dealer about the way to proceed.
Pros & Cons of Portable Wireless BT Speaker
Pros
- Compact and portable design
- Long-lasting battery life
- Easy Bluetooth pairing
- Built-in microphone for hands-free calls
- Clear and crisp sound quality
Cons
- May not be loud enough for large gatherings
- No option for wired connection
Customer Reviews of Artis BT72
"I love my Artis BT72! It's the perfect size to take with me on the go, and the sound quality is amazing. I've used it at the beach, by the pool, and even in the shower, and it always delivers. Highly recommend!" - Sarah L.
"I was hesitant to spend the money on a Bluetooth speaker, but the Artis BT72 was worth every penny. It's easy to use, has great battery life, and the sound is fantastic. I've even used it to take calls, and the other person said it sounded like I was in the same room as them. Definitely a great investment." - Michael T.
"The Artis BT72 is a great little speaker. I've had it for a few months now, and it still works perfectly. The sound is clear and crisp, and it's easy to pair with my phone. I've taken it on a few camping trips and it's held up great. Would definitely recommend." - Emily K.
The most common complaint about the Artis BT72 is that it may not be loud enough for large gatherings or outdoor events. However, for personal use or small gatherings, it delivers great sound quality and is a reliable and convenient accessory to have.
Faqs
Which version of Bluetooth is compatible with the Artis BT72 Speaker?
How much power can the Artis BT72 Speaker produce?
The Artis BT72 Speaker has several input modes.
Will the Artis BT72 Speaker allow me to make calls without using my hands?
What is the duration of the charging process for the Artis BT72 Speaker?
What is the Artis BT72 Speaker's playback time?
How many hours can the Artis BT72 speaker be played on a single charge?
What is the Artis BT72 Speaker's volume control mechanism?
If my Artis BT72 Speaker isn't powering on, what am I to do?
What is the warranty information for the Artis BT72 Speaker?
